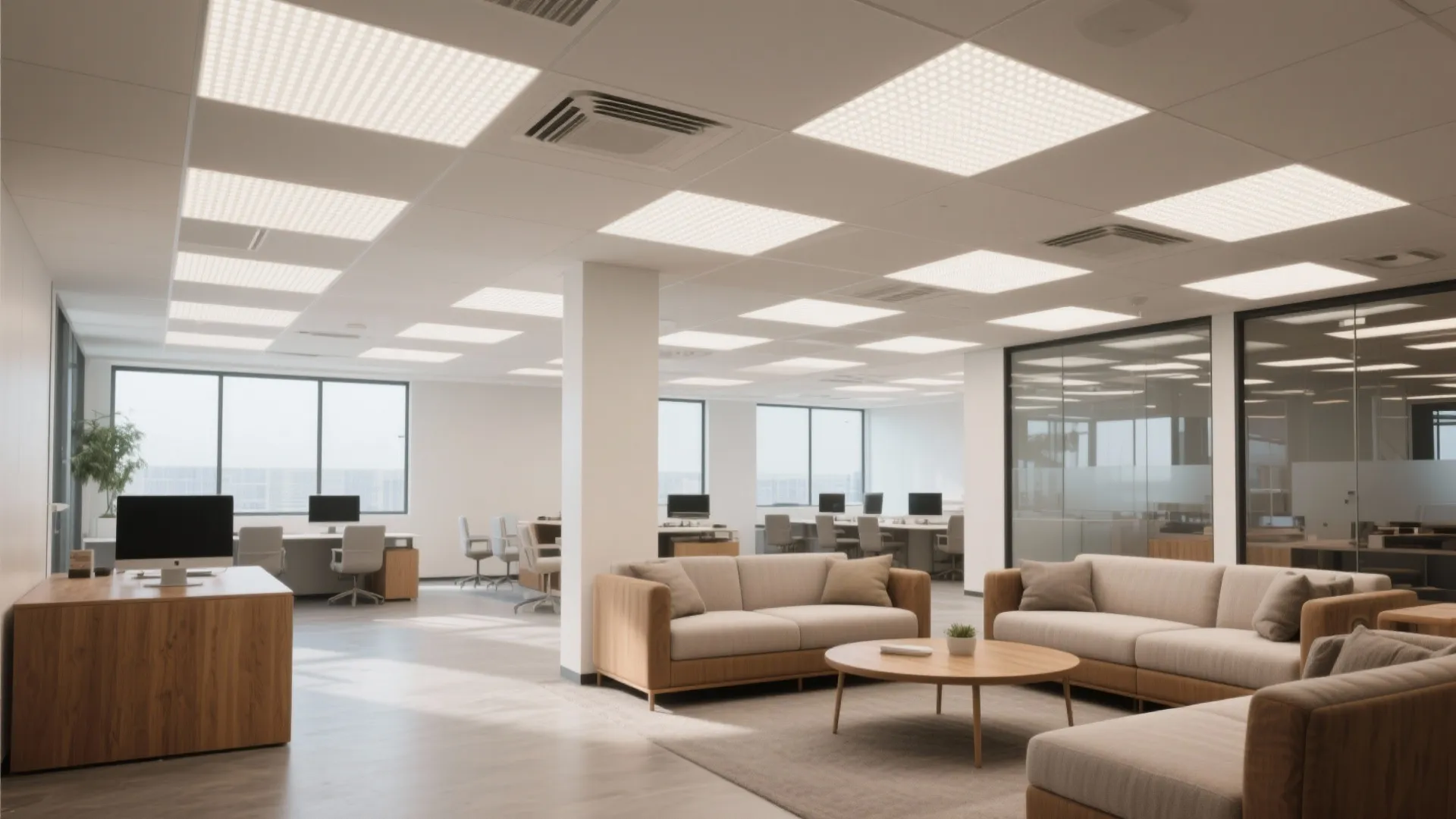

Room LED Panel Design: Bright Ideas for Modern Spaces: 1 Minute to Sleek, Energy-Efficient Room Lighting

LED panels have transformed how I tune brightness, color consistency, and visual rhythm in modern interiors. Done well, they elevate focus, reduce eye strain, and clean up ceiling clutter. In workplaces, good lighting correlates with measurable performance: Steelcase research reports that 13% of workers cite lighting as the top factor impacting productivity and wellbeing, and lighting quality is a core environmental input in multiple workplace studies. From a health perspective, the WELL Building Standard (WELL v2, L03-L09) sets targets for equivalent melanopic lux (EML) to support circadian alignment—at least 150 EML for day-active occupants in regularly occupied spaces as a starting point for healthy light exposure.

Illuminance is just as critical as spectrum. The Illuminating Engineering Society recommends maintained horizontal illuminance ranges of roughly 300–500 lux for typical office tasks, 150–300 lux in lounges, and up to 750–1,000 lux where fine detail work occurs (task planes). Many residential rooms feel more balanced when ambient panels provide 150–300 lux and task lighting tops up to 500 lux at surfaces. These ranges help me size panel density and drive layout decisions before committing to fixtures.

Design Goals: Evenness, Comfort, and Visual Calm

My baseline for LED panel design is uniformity without flatness. Even illumination limits hotspots and glare, while layered contrast preserves depth and visual interest. I watch three things closely: (1) glare control—UGR < 19 for desk-centric areas; (2) color temperature harmony—2700–3000K for living spaces, 3500–4000K for collaboration and focus zones; and (3) color rendering—CRI 90+ to keep finishes and skin tones natural. Panels with microprismatic optics maintain diffusion while preventing harsh angles, which is essential over monitors and glossy surfaces.

Panel Sizes, Modules, and Grid Logic

Common panel modules (2x2 ft / 600x600 mm, 2x4 ft / 300x1200 mm, 1x4 ft / 300x1200 mm) work well with most acoustic tiles and gypsum ceilings. I map panels along a clean grid, then flex around focal elements—art walls, conference tables, kitchen islands—to maintain symmetry. Aim for luminaire spacing-to-mounting-height (SHR) near manufacturer guidance (often 1.0–1.5) to maintain evenness. For rooms under 12 ft (3.6 m) wide, a single centered row can work if panels have wide beam distribution; wider rooms benefit from two rows to minimize scalloping.

Circadian-Friendly Spectra and Tunable White

In multi-use spaces, tunable white panels (2700–5000K) help me track daily rhythms—cooler CCT in mornings for alertness and warmer CCT in evenings for relaxation. WELL v2 clarifies the role of circadian-effective light by anchoring metrics like EML, encouraging both intensity and spectrum management. Transition presets—Morning (4000–5000K), Day (3500–4000K), Evening (2700–3000K)—let occupants feel in control without micromanaging scenes. In video-heavy rooms, I keep CCT stable near 4000K to maintain consistent skin tones on camera.

Glare, UGR, and Screen Ergonomics

Monitors and glossy finishes amplify discomfort when panels are too bright or unshielded. I target UGR < 19 in offices and study areas, keep luminance below 3,000 cd/m² in the normal field of view, and angle screens so panel reflections fall outside primary sightlines. When ceilings are low (below 8 ft / 2.4 m), I favor edge-lit panels with micro-diffusers or indirect coves paired with low-glare panels to soften contrast.

Acoustics Meet Light: Panels with Sound Absorption

Open rooms often need both light and acoustic dampening. Backed or baffle-integrated LED panels improve speech clarity and reduce reverberation. In meeting rooms, I combine a central luminous panel cluster with perimeter acoustic baffles to create a more intimate sound field without dropping overall brightness. Look for NRC values of 0.7+ on adjacent acoustic materials to tame flutter echo while keeping the ceiling visually coherent.

Color Psychology and Mood Setting

Color temperature influences behavior. Cooler light (4000–5000K) reads brisk and alert; warm light (2700–3000K) reads calm and intimate. Studies in color psychology highlight how hue and saturation alter perceived arousal and comfort. I pair neutral white panels with warm accent lamps to preserve calm in living rooms, and lean slightly cooler in kitchens or studios where attention to detail matters. With high-CRI panels, painted walls maintain their intended richness at both warm and neutral settings.

Planning Layouts: From Concept to Simulation

Before lock-in, I mock up panel positions against furniture, circulation, and vertical surfaces. Center panels over work surfaces and circulation lanes rather than simply aligning to walls. For square rooms, I test symmetric grids first, then break symmetry lightly to highlight a focal zone. Iterating with a room layout tool helps visualize panel spreads, seating and workstation placement, and glare paths, especially when balancing task planes and wall-wash accents. Try a layout simulation tool to pressure-test spacing, cable drops, and maintenance zones without redlining construction drawings: room layout tool.

Controls, Scenes, and Energy Logic

Panels pay off when controls are simple and mapped to behavior. I use three to four scenes max—Focus, Collaborate, Present, Unwind—each with distinct intensity and CCT. Occupancy sensors and daylight harvesting cut waste where windows deliver 200+ lux near the facade. Dimming to 10% minimum is fine for most rooms; where deep dimming matters (lounges, home theaters), specify 1% flicker-free drivers compatible with your control protocol (0–10V, DALI, or wireless).

Energy and Sustainability

High-efficacy panels (120–150 lm/W) with low flicker drivers reduce operational load. I prefer replaceable drivers and standardized LED boards to extend lifecycle and limit e-waste. In retrofit projects, edge-lit panels often fit shallow plenum depths without reworking ductwork. Pair panels with matte, high-LRV (Light Reflectance Value 0.6–0.8) finishes on ceilings/walls to bounce light deeper and lower the total wattage required.

Ceiling Aesthetics and Visual Rhythm

Too many panels flatten a space; too few create blotches. I build rhythm by alternating luminous and quiet ceiling fields, reserving brighter zones for tasks and softer zones for decompression. Linear panels can align with circulation to guide movement. In living spaces, mix a modest panel grid with concealed lines of light, then add warm table lamps for softness at eye level.

Room-by-Room Tactics

Home Office

Use low-glare panels at 3500–4000K with local task lights. Target 300–500 lux on the desk. Keep panels slightly off-axis from the monitor to avoid reflections and set a Focus scene with 80% output.

Kitchen

Continuous linear or 2x4 panels over prep zones, supplemental under-cabinet lights at 4000K. Aim for 500–750 lux on worktops; use 3000–3500K for dining moments.

Living Room

Limit panels to perimeter or circulation, then layer floor and table lamps. 200–300 lux ambient with warm accents at 2700–3000K keeps it inviting.

Conference Room

Combine uniform panel washes with wall-washers behind the presenter. Keep UGR low and create a Present scene (60% ambient, 3500–4000K) for camera-friendly light.

Commissioning and Verification

After installation, I measure lux at task planes and check flicker with a photometric app or meter. Tune scenes, confirm sensor timeouts, and verify dimming curves. Small tweaks—like lowering output 10% near glass—often fix glare without touching the layout.

Standards and Research Touchstones

I return to credible guidance when validating choices. WELL v2 provides health-centric lighting criteria, including circadian-effective targets, while the Illuminating Engineering Society offers recommended illuminance ranges and glare considerations to keep plans defensible and comfortable over time.

FAQ

Q1. What lux level should LED panels deliver in a home office?

Aim for 300–500 lux on the desktop from combined ambient and task lighting. Keep panels low-glare and supplement with a task light for fine work.

Q2. How do I pick the right color temperature?

Use 2700–3000K for relaxing spaces, 3500–4000K for work and collaboration, and consider tunable white if the room serves multiple purposes across the day.

Q3. How can I reduce glare from LED panels over monitors?

Select UGR < 19 panels, use microprismatic optics, place panels slightly forward or to the side of screens, and dim to suit ambient conditions.

Q4. Are tunable white panels worth it?

Yes in multi-use rooms. Presets that shift from cooler mornings to warmer evenings support comfort and can align with circadian-friendly practices referenced by WELL v2.

Q5. What CRI should I specify?

CRI 90+ keeps colors accurate for skin tones, food, and finishes. For art or retail-like displays, consider 95+ with strong R9 values.

Q6. How do I plan the panel grid?

Start with the room’s furniture and task zones, then map a symmetric grid and adjust around focal elements. Use a room design visualization tool to test spacing, brightness, and glare interactions before installation: interior layout planner.

Q7. What about low ceilings?

Choose edge-lit, low-profile panels with high diffusion, keep brightness moderate, and add wall or task lights to avoid a harsh overhead-only feel.

Q8. How do I integrate daylight?

Harvest available daylight with sensors; reduce panel output near windows where ambient exceeds ~200 lux. Balance contrast by maintaining even levels across the room.

Q9. Do LED panels handle acoustics?

Some do when paired with acoustic materials. Combine luminous panels with adjacent baffles or ceiling clouds rated NRC 0.7+ to control reverberation.

Q10. What dimming performance should I look for?

Flicker-free dimming down to 10% is fine for most spaces; 1% for presentation, hospitality, and home theater scenes. Match drivers to your control protocol.

Q11. How many panels do I need?

Calculate from target lux, room size, surface reflectance, and fixture output (lumens). Use manufacturer photometrics to check spacing for uniformity.

Q12. How do LED panels affect video calls?

A neutral 3500–4000K setting with soft, even distribution prevents harsh shadows and keeps skin tones natural. Avoid direct reflections in eyeglasses by offsetting panel positions.
