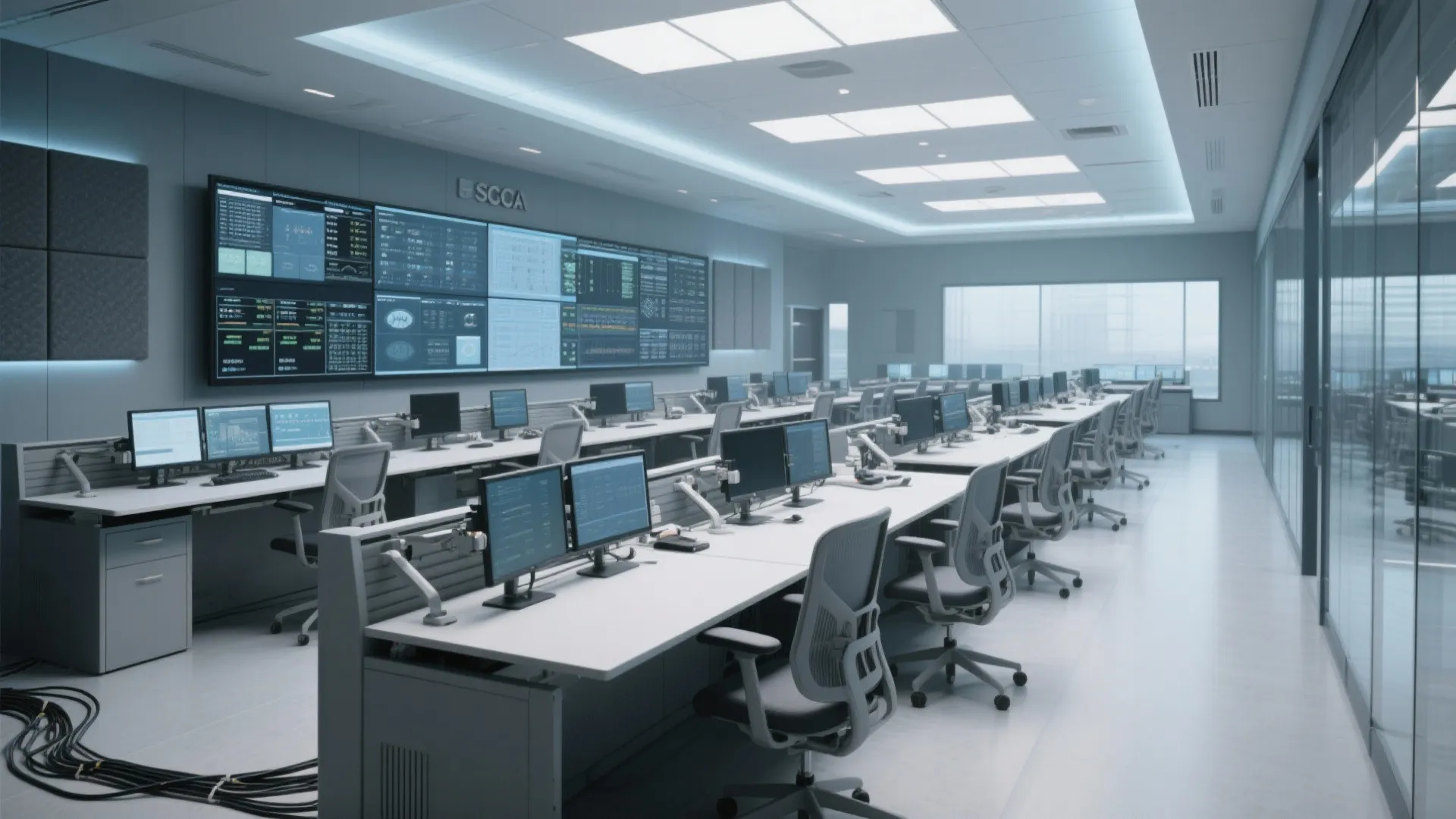

SCADA Room Design Guide: Optimize Your Control Center: 1 Minute to Smarter, Safer, and More Efficient SCADA Rooms

A high-performing SCADA room is a convergence of clarity, speed, and resilience. My design approach starts with the operator’s experience: clear sightlines to critical data, calibrated lighting that reduces eye strain, and ergonomic stations that support sustained vigilance. When these fundamentals align, response times improve and downtime drops.

Evidence consistently links space quality with operator outcomes. WELL v2 places visual comfort as a core precondition, endorsing glare control and appropriate illuminance to reduce fatigue and error risk. Gensler’s workplace research has highlighted how well-calibrated environments measurably improve cognitive focus and task efficiency; translating those findings to SCADA operations reinforces the need for meticulous light, acoustic, and ergonomic standards. To go deeper on visual standards, the IES recommends task illuminance for screen-based work in the 300–500 lux range with careful luminance balance to avoid contrast glare (IES standards).

Establish the Operational Model

Before any layout, define workflows: alarm handling, escalation paths, maintenance coordination, and system redundancy. Map operator roles, required sightlines to wall displays, and proximity to critical equipment. Steelcase research ties spatial clarity to reduced cognitive load, adding weight to a clean, legible floor plan that minimizes unnecessary movement and visual noise. When I plan a control center, I sequence zones—monitoring, collaboration, incident command, and technical support—so operators can pivot without stepping out of their focus bubble.

Plan the Layout for Line of Sight and Redundancy

Wall-mounted visualization should be readable from every station with no obstructing verticals. I favor shallow-angled rows with staggered seating to preserve sightlines and reduce parasitic glare. Critical paths must remain unobstructed, and redundant viewing (secondary displays at stations) ensures continuity if a video wall segment fails. If you need to test seating geometry and display distances, a layout simulation tool such as a room layout tool can help visualize sightlines and operator reach for different seating arrays.

Lighting: Precision over Brightness

Screen-heavy environments demand layered lighting—ambient, task, and accent—with dimmable, low-glare fixtures. Target 300–500 lux at the task plane for monitoring stations, keep wall display luminance balanced, and use indirect illumination to reduce veiling reflections. Color temperature in the 3500–4000K range supports alertness without harshness, while advanced controls allow day/night shifts to fine-tune circadian needs. WELL v2’s Light concept emphasizes glare control and equivalent melanopic lux considerations for sustained focus.

Ergonomics and Human Factors

Operator stations should meet neutral posture criteria: adjustable chairs with lumbar support, desks that provide 5–10 cm clearance for forearms, monitor centers set roughly at eye level and about an arm’s length away. Multi-monitor arrays require consistent height and arc alignment to minimize neck rotation. I incorporate footrests for shorter operators and flexible arm mounts to fine-tune screen placement; these small details reduce micro-strain that accumulates over long shifts and lower error rates during high-load events.

Acoustic Comfort for Vigilance

SCADA rooms typically sit in acoustically challenging shells with equipment hums and intermittent alerts. Aim for an NC 30–35 ambient noise criterion, adding absorptive ceiling tiles (NRC ≥ 0.75), wall panels, and soft flooring at circulation paths. Separate collaboration zones from the operator core with glass partitions and acoustic seals to maintain speech privacy while keeping visual connection. Well-managed soundscapes improve comprehension of audible alarms and reduce fatigue.

Visual Hierarchy and Color Psychology

Color decisions affect perception and response. Neutral palettes (cool grays, desaturated blues) minimize visual noise and help screens stand out. Accent colors are best reserved for wayfinding or zone identification, not walls directly behind displays. Verywell Mind’s color psychology insights note that blues are commonly associated with calm and focus, which aligns with the cognitive demands of monitoring. Keep chroma low and rely on contrast ratios to maintain legibility across daylight shifts.

Power, Cooling, and Technology Integration

Redundancy is non-negotiable: dual power feeds, UPS coverage for all critical stations, and sensible cable management to avoid heat accumulation. Separate equipment racks with dedicated cooling; maintain uniform inlet temperatures and design return paths that don’t wash operator areas with warm air. Plan for hot-swappable components and clear maintenance access. I favor raised floors or service raceways only when they demonstrably reduce reconfiguration time; otherwise, well-labeled ceiling drops and under-desk cable channels are easier to audit.

Data Walls and Display Strategy

For video walls, prioritize pixel pitch relative to viewing distance; the closest operator should have crisp legibility without pixelation. Calibrate brightness to avoid overpowering ambient light; set consistent color profiles across inputs. Adopt logical content zoning: alarms left, system status center, environmental overlays right, or another scheme that matches your workflow. A clear hierarchy reduces cognitive switching and speeds recognition during anomalies.

Resilience and Incident Readiness

Design for failure: alternate command stations, mirrored data endpoints, and pre-wired fallback paths. Store go-bags (documentation, portable power, headsets) within arm’s reach of incident command. Provide manual whiteboard or glassboard surfaces for quick analog tracking when systems stutter. During real events, the room’s ability to maintain calm, visible status information, and fast communication is the true test of design quality.

Circulation, Zoning, and Security

Control the perimeter with graded access: airlocks or vestibules to stabilize acoustics and temperature, card access, and CCTV with privacy-respecting angles. Internal circulation should sweep behind operators to avoid distraction, with dedicated huddle niches off the main floor. Place amenities—hydration, rest, and micro-break areas—nearby but outside sightlines to displays. In my projects, these zones reduce presenteeism and sustain attentiveness over 12-hour rotations.

Material Selection and Sustainability

Choose low-VOC finishes, anti-glare laminates, and high-durability surfaces. Matte textures on worksurfaces diminish reflections; acoustic fabrics and mineral-fiber ceilings dampen mid-to-high frequencies. Evaluate lifecycle and maintenance intervals; sustainable materials aren’t just about certification—they must hold performance under continuous operations. Material Connexion’s database is useful for vetting new composites and coatings for durability and cleanability.

Commissioning, Testing, and Training

Commission the room like you would a critical system: measure illuminance, verify acoustic targets, test thermal distribution under load, and run simulated incidents to validate sightlines and communication flow. Train operators on ergonomic adjustments and lighting presets; these are not set-and-forget parameters. I like to keep a punch list open for the first 90 days, logging tweaks that refine the environment as the team settles in.

FAQ

1) What illuminance levels work best for SCADA operators?

For screen-centric tasks, target 300–500 lux at the task plane with controlled contrast and minimal glare, aligning with IES guidance for VDT work.

2) How should I manage glare on large video walls?

Use indirect ambient lighting, matte wall finishes, controlled brightness on displays, and avoid windows or high-reflectance surfaces in direct sightlines.

3) Which color temperatures support alertness across shifts?

3500–4000K works well for sustained vigilance without harshness; maintain tunable controls to adapt to night shifts and circadian needs.

4) What acoustic targets reduce fatigue?

Aim for NC 30–35, combine absorptive ceilings (NRC ≥ 0.75), wall panels, and soft flooring. Separate collaboration zones to contain speech noise.

5) How do I position operator desks relative to video walls?

Use shallow-angled rows with staggered seats to preserve sightlines. Ensure the nearest viewing distance suits the wall’s pixel pitch for legibility.

6) What ergonomic features matter most for long shifts?

Adjustable seating with lumbar support, monitor arms for height and tilt, footrests for shorter operators, and consistent multi-monitor alignment to reduce neck rotation.

7) How can I plan for redundancy?

Provide dual power feeds, UPS-backed stations, mirrored data endpoints, hot-swappable components, and a fallback command desk ready to assume control.

8) What materials reduce reflections and improve focus?

Matte worksurfaces, low-gloss finishes, anti-glare laminates, and neutral palettes with low chroma help screens stand out and cut visual noise.

9) How should circulation be arranged to minimize distraction?

Guide traffic behind operator stations, place huddle areas off the main floor, and use glass partitions with acoustic seals to separate collaboration.

10) Are there recommended standards to reference?

Consult IES for lighting standards and WELL v2 for visual comfort and controls. Use research from Gensler or Steelcase to inform human-centered layout decisions.
