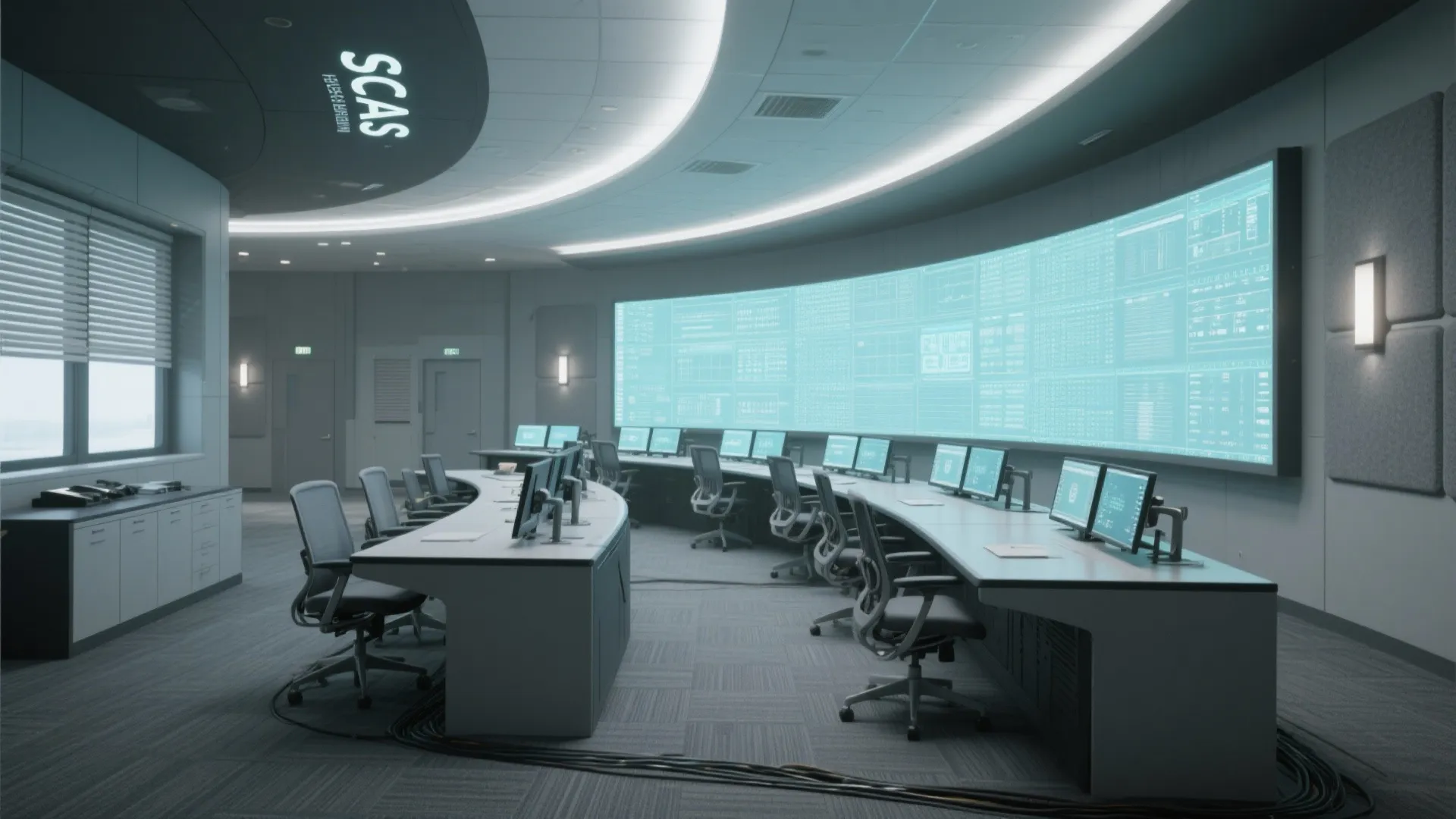

SCADA Room Design: Optimize Your Control Center Space: Fast-Track Guide to Seamless SCADA Room Planning

Designing a SCADA (Supervisory Control and Data Acquisition) room is about enabling uninterrupted awareness, swift decisions, and operator wellbeing. Over the years, I’ve learned that performance hinges on human factors: sightlines, cognitive load, noise, thermal comfort, and exactly how teams move and collaborate under pressure. The best control rooms blend technical resilience with a calm, legible environment that keeps operators alert without exhausting them.

Operator performance is highly sensitive to workspace design. Steelcase research notes that distraction can reduce productivity by up to 20–40% when interruptions and visual noise are not well managed, which directly maps to alarm handling and incident response in SCADA environments. Separately, WELL v2 emphasizes occupant health outcomes tied to air, light, and thermal comfort, reinforcing that environmental quality measurably influences cognitive clarity and decision-making. I prioritize glare-free illumination, ergonomic seating, and acoustic zoning as early, non-negotiable decisions. For deeper standards alignment on light metrics and glare control, the Illuminating Engineering Society provides clear guidance under IES standards.

Beyond cognitive load, team behavior shapes the space. Gensler’s workplace research consistently shows that well-planned layouts increase focus and collaboration by reducing friction in movement and clarifying spatial intent. In control rooms, that translates to fast access to shared displays, immediate lines to supervisors, and controlled transitions to support spaces. My baseline ratio keeps a clear operational line-of-sight from every primary workstation to critical wallboards while reserving quieter enclaves for analysis, debrief, and incident documentation. When testing workstation clusters, I often use a layout simulation tool to validate sightlines and movement paths: room layout tool.

Lighting: Precision Without Glare

Lighting must aid recognition, not fight it. Target 300–500 lux at work surfaces for monitoring tasks, balancing legibility and visual comfort. Keep vertical illuminance consistent to reduce eye strain during prolonged screen viewing. Prioritize indirect ambient lighting with localized, dimmable task lights. Control luminance ratios between screens, walls, and task surfaces; excessive contrast triggers fatigue and diminishes attention. Spectrally, neutral-white 3500–4000K with high CRI ensures accurate color discrimination on alarms and status indicators. Use concealed, low-brightness luminaires to prevent veiling reflections on monitors. Reference IES standards for criteria on glare management and uniformity; their recommendations are a reliable scaffold for tuning photometric performance.

Ergonomics: Posture, Reach, and Cognitive Ease

Operators may sit for long stretches, often under incident stress. I spec ergonomic chairs with adjustable lumbar support, synchronous tilt, and 4D armrests. Height-adjustable consoles allow easy posture change; keep sit-stand ranges around 650–1250 mm. Monitor height and tilt matter: the upper third of the screen should rest near eye level, with a viewing distance typically 600–800 mm depending on display size. Arrange primary input devices within the neutral reach zone to minimize shoulder loading. Multiple screens should arc around the operator’s natural field of view—about 30–40° to either side—so eyes move, not torsos. Cable routing must avoid foot wells and allow free knee clearance to support micro-movements, which are vital for circulation and alertness.

Acoustic Comfort: Quiet Focus With Clear Communication

Control rooms benefit from a calm acoustic floor. Use absorptive panels, carpet tiles with dense backing, and acoustically separated ceilings to reduce reverberation; a target RT60 of 0.4–0.6 seconds generally keeps speech intelligible without over-damping. Create micro-zones: low-noise areas for monitoring; slightly livelier areas near supervisors for quicker coordination. Isolation of equipment racks via dedicated rooms or acoustic enclosures prevents hum from masking alarms or speech. If glass is necessary for visibility, specify laminated acoustic glazing and perimeter seals. Sound masking, tuned carefully, can smooth out sporadic speech noise while preserving alarm audibility.

Spatial Layout: Clear Sightlines and Fast Circulation

Spatial intent should be unmistakable the moment you enter. I organize the room around three anchors: operator console clusters with direct views to shared displays, a supervisor hub with quick oversight lines, and a support spine for incident rooms, storage, and equipment access. Maintain generous aisle widths for quick, unimpeded movement—especially during escalations. Consolidate critical wallboards on a single axis to minimize head-turn and ensure shared situational awareness. Secondary displays should not compete visually with primary alerts. If you’re evaluating workstation groupings or aisle strategies, an interior layout planner can speed iteration: interior layout planner.

Color Psychology and Visual Balance

Color affects cognitive arousal and fatigue. Neutral bases (soft greys, muted taupes) stabilize the visual field and keep the focus on screens. Strategic accents—desaturated blues or greens—help reduce perceived stress and can support sustained attention. Avoid high-chroma reds near primary displays; they elevate arousal and can inadvertently bias risk perception. Keep wall reflectance around 50–70% to avoid harsh contrast with screens. Trim down visual clutter: consistent finishes, restrained textures, and strong alignment lines reduce mental noise. I let materials do quiet work—matte surfaces, low-gloss laminates, and textures that catch light softly rather than sparkle.

Human Factors: Workflow, Cognitive Load, and Team Rhythm

SCADA rooms succeed when they mirror real workflows. Map incident lifecycles—monitoring, verification, escalation, resolution—and assign spatial zones accordingly. Keep frequently referenced documents and tools within a short walk, and provide quick refuge nooks for brief decompression. Behavioral patterns matter: operators often prefer modest privacy at their stations but need immediate proximity to peers during events. I plan for short, purposeful movement loops and avoid dead ends. Visual hierarchy on shared displays should follow the brain’s scanning habits: critical alerts top-left or center, status summaries adjacent, deeper analytics stacked to edges to avoid constant eye refocusing.

Resilience and Technology Integration

Infrastructure must be robust yet maintainable. Plan for redundant power feeds, isolated UPS for critical loads, and neatly segregated cable trays for data, power, and control to reduce interference. Cooling strategies should anticipate overnight loads; place heat-generating equipment in a separate rack room with monitored airflow. Provide ample service clearances and labeled pathways so technicians don’t disrupt operations during maintenance. Keep interface hardware universal where practical; operators switch stations under pressure, and consistent input devices minimize errors. When integrating new display walls, test brightness uniformity and latency before final commissioning; even slight delays can compromise situational awareness.

Materials and Sustainability

Durability is critical, but sustainability can be aligned with performance. Choose low-VOC finishes to reduce headaches and fatigue. Resilient flooring with acoustic backing balances longevity with sound absorption. For furniture, look for high-recycled-content metals and FSC-certified wood substrates. Easy-to-clean matte surfaces prevent specular glare. ESD-safe materials may be appropriate near sensitive equipment. Where daylight is present, control it with exterior shading or dual-layer blinds; filtered daylight helps circadian regulation without washing out screens.

Thermal Comfort and Air Quality

Thermal comfort influences reaction time and accuracy. Provide zoned HVAC with discrete setpoints near operator clusters; keep temperature stable and avoid supply drafts directly on necks or hands. Ventilation should meet or exceed recommended rates, with precise control to prevent hot spots around electronics. CO2 monitoring helps maintain alertness, especially during long shifts. In rooms that run 24/7, I plan for periodic fresh-air boosts aligned with shift changes to reset cognitive energy.

Commissioning and Continuous Improvement

Commissioning a SCADA room is as much about people as equipment. Run simulated incidents and measure movement, response times, and communication clarity. Gather feedback across shifts—night crews often surface different glare, noise, and fatigue issues than day teams. Calibrate lighting scenes for routine operations, escalations, and maintenance windows. Establish a quarterly review cadence to tune layouts, accessory placement, and acoustic balance as the system evolves.

FAQ

How much light should a SCADA workstation have?

Target 300–500 lux at the task plane, with uniform vertical illuminance and minimal glare. Use indirect ambient light and dimmable task lights to stabilize visual comfort. IES standards offer reliable criteria for uniformity and glare control.

What color temperature is best for prolonged monitoring?

Neutral-white 3500–4000K balances alertness and visual accuracy. Pair high CRI lighting to support precise color recognition on alarms and status indicators.

Which ergonomic features matter most for operators?

Adjustable lumbar support, 4D armrests, and height-adjustable consoles are key. Place monitors so the upper third sits near eye level and keep input devices within the neutral reach zone to prevent fatigue.

How do I handle acoustics without losing speech clarity?

Aim for an RT60 around 0.4–0.6 seconds using absorptive panels, carpet tiles, and acoustic ceilings. Consider sound masking tuned to preserve alarm audibility while smoothing sporadic speech noise.

What layout pattern works best for shared displays?

Align primary wallboards on a single visual axis visible from all consoles. Keep walkways generous and avoid placing secondary screens where they compete with critical alerts. Test cluster arrangements with a room design visualization tool.

How can I reduce operator fatigue during long shifts?

Enable posture changes with sit-stand consoles, manage glare, stabilize temperatures, and provide short decompression zones. Limit visual clutter and keep movement loops short and obvious.

What sustainability choices suit control rooms?

Specify low-VOC finishes, durable acoustic flooring, recycled-content metals, and FSC-certified substrates. Use matte, low-gloss surfaces to prevent glare and simplify maintenance.

How should technology infrastructure be organized?

Segregate power, data, and control cable paths, provide redundant power feeds and UPS, and isolate heat-generating equipment in a dedicated rack room with monitored airflow. Keep service clearances wide to prevent operational disruption.

Do daylight and windows belong in SCADA rooms?

Daylight can help circadian stability if carefully controlled. Use exterior shading or dual-layer blinds to avoid screen washout and manage luminance ratios.

How often should the room be re-tuned after opening?

Adopt a quarterly tuning cycle, with specific checks on lighting scenes, acoustic balance, layout tweaks, and equipment placement informed by shift feedback and incident simulations.
