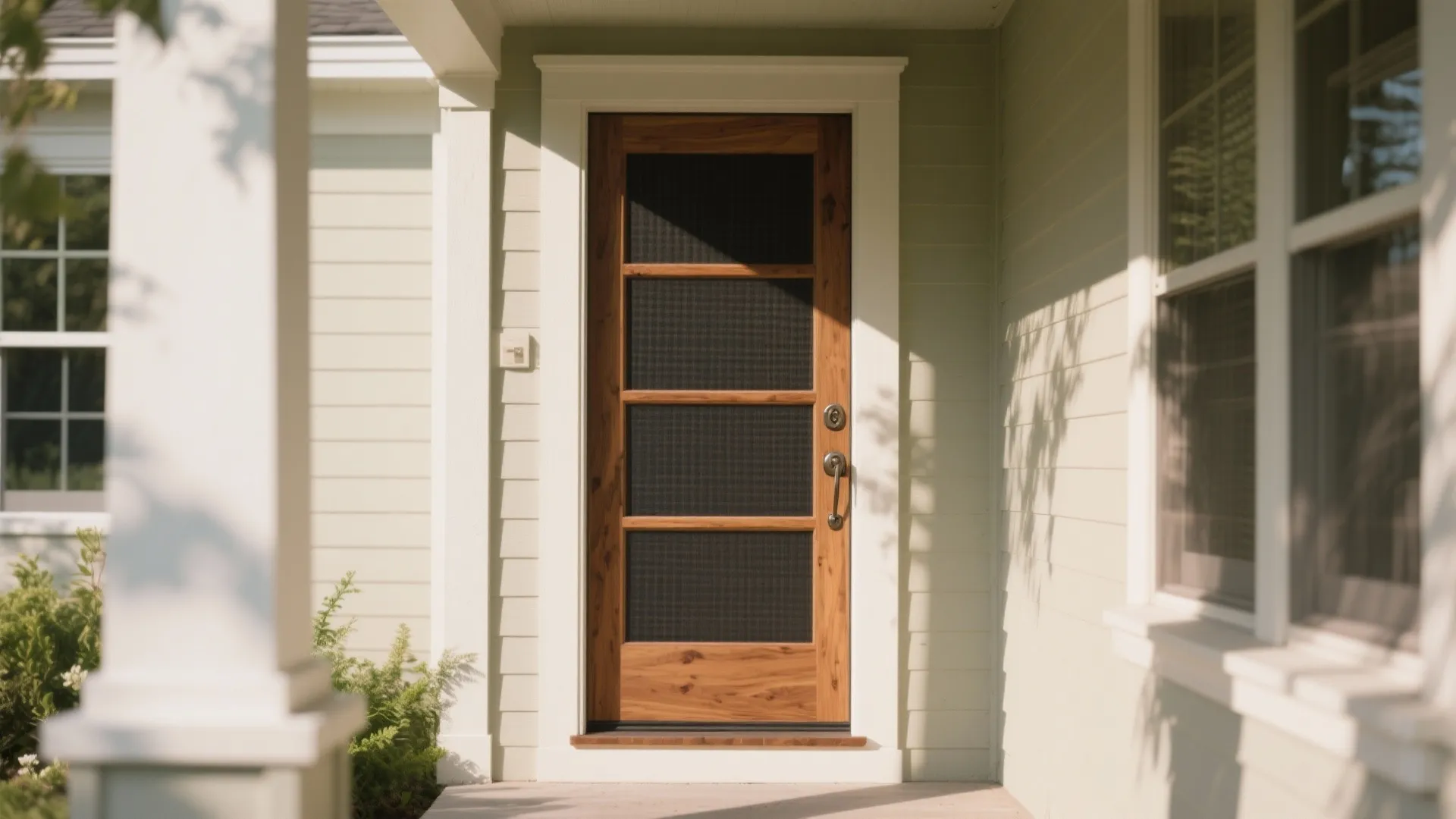

Screen Door DIY: Simple Steps for a Custom Door: Fast-Track Guide to Building Your Own Screen Door in Minutes

I’ve built and replaced more screen doors than I can count, from coastal cottages to dry, high-desert homes. A custom screen door should feel light in hand, close cleanly, resist sagging, and survive a season of pets and kids. Below is my streamlined, field-tested approach—focused on fit, materials, and details that matter for ventilation, daylight, and usability.

Good airflow and glare control are measurable benefits of a well-designed screen. Research from Herman Miller’s workplace studies highlights that access to natural ventilation and views correlates with improved comfort, and Steelcase findings indicate that visual comfort (reduced glare and adequate daylight) can improve perceived well-being and task performance. WELL v2 also recognizes operable windows and natural ventilation strategies for indoor air quality. These frameworks reinforce why a door that balances airflow, daylight, and privacy feels better in daily use. For broader design context, see Steelcase’s research on environmental comfort and WELL v2 guidance on ventilation and air quality.

Tools & Materials: What I Actually Use

- Measuring tape, square, pencil, level

- Miter saw or circular saw, chisel, drill/driver

- Exterior-grade wood (cedar, mahogany, or rot-resistant pine), or aluminum kit

- Stainless or brass screws, exterior-grade wood glue

- Screen mesh (standard fiberglass 18×16 is common; consider 20×20 “no-see-um” mesh if bugs are tiny)

- Spline roller, vinyl spline sized to your groove

- Hinges (3 heavy-duty), latch/handle set, optional automatic closer

- Weatherstripping, door sweep, and surface-mount threshold (if needed)

- Exterior finish: penetrating oil or low-VOC paint/sealer

Measure the Opening and Plan Clearances

Measure the door opening at three points (top, middle, bottom) for width and height; note the smallest number and work off that. Leave 3–4 mm (about 1/8 in) clearance on each side and 6–8 mm (about 1/4–5/16 in) at the bottom to avoid scraping. If the jamb is out of square more than 3–4 mm, I shim hinges and plane the door edges for parallel reveals. For tricky porch enclosures, I map hinge positions and swing with a room layout tool to visualize clearances before cutting.

room layout tool

Choose the Right Frame Material

Wood feels warm and is easy to service. Cedar is naturally rot-resistant and light; mahogany is premium and stable; pine is budget-friendly but needs diligent sealing. Aluminum kits resist warping, ideal in humid climates or where sun exposure is intense. If you’re in a salty environment, choose stainless fasteners and avoid dissimilar metals that can corrode. I design for a target door weight under ~9–11 lb for easy handling; heavier doors need stronger hinges and can stress soft jambs.

Build a Sturdy, Straight Frame

Rip or buy stock at 90–110 mm (3½–4¼ in) wide stiles and rails. I use simple mortise-and-tenon or pocket-screw joinery with glue, then reinforce corners with dowels or concealed brackets. Check diagonals; aim for equal measurements corner-to-corner (a quick test for square). Add a mid-rail at handle height for rigidity—this stops long stiles from bowing and gives a solid latch mount.

Integrate the Screen Panel Cleanly

Cut a shallow groove (about 3 mm deep) around the inner frame for the spline. Lay mesh oversize, press spline with a roller, keeping consistent tension to avoid ripples. Trim flush with a sharp blade. For pet-resistant zones, I install a kick plate or a secondary metal grille on the lower third—saves the mesh from claws without feeling industrial.

Hardware: Hinges, Latch, and Closer

Three hinges distribute load and reduce sag; position the top hinge within 150 mm (6 in) of the top, bottom hinge within 250 mm (10 in) of the bottom, and the middle roughly centered. A quality latch with adjustable strike prevents rattling. If wind is common, a pneumatic closer protects the frame and keeps the door from slamming. Use pilot holes and waxed screws; hardwoods split easily without pre-drilling.

Weatherstripping and Threshold Details

A compressible weatherstrip on the latch side and head improves bug control without making the swing feel heavy. At the sill, a slim door sweep and a low-profile threshold keep debris and rain out. In high-UV regions, select EPDM or silicone seals—they outlast foam.

Finish for Durability

Sand to 180–220 grit, round sharp edges, and seal all faces, especially end grain. Penetrating oils emphasize grain; paint hides mismatched lumber and offers better UV protection. In humid climates, I prefer a stain + clear exterior polyurethane. Recoat schedules vary: expect annual touch-ups in full sun; shaded porches can go 2–3 years.

Ventilation, Daylight, and Comfort Considerations

Good mesh maintains airflow without excessive glare. Finer meshes reduce insect ingress but marginally cut airflow and daylight. If your main entry is north-facing, you’ll enjoy diffuse light; west-facing doors benefit from a darker mesh to soften late-afternoon glare. Gensler’s research on workplace environments points to the value of visual comfort and control—principles that translate at home. WELL v2 emphasizes occupant control and fresh air; an operable screen door is a simple, effective move toward those goals.

Installation: Fit, Shim, and Test

Dry-fit the door, check reveals with the latch taped in position. Shim hinges as needed to achieve even gaps, then fasten. Set the strike plate so the latch engages firmly without forcing. Cycle the door 20–30 times—listen for rattle, scrape, or hinge squeak—and adjust the closer speed to prevent slams.

Maintenance: Keep It Feeling New

Quarterly, tighten hardware, clean mesh with mild soap, and check for sagging. If the door drifts, adjust hinge screws or add a longer screw into the framing stud behind the jamb. Replace spline if it loosens; it’s a five-minute fix once you’ve done it once.

Common Design Variations

- Full-view screen for maximum airflow

- Mid-rail or double-rail for strength and traditional character

- Decorative muntins with removable inner stops for seasonal glass inserts

- Pet door integration within the lower panel

FAQ

What mesh should I choose for coastal or buggy areas?

Go for 20×20 fiberglass or stainless mesh to block smaller insects. In salty climates, avoid aluminum mesh—it corrodes faster; stainless holds up better but is pricier.

How do I stop a screen door from sagging over time?

Use three hinges, a mid-rail, and robust corner joinery. If the door is already installed, add a turnbuckle tension kit on the interior face or replace short hinge screws with 3-inch screws into framing.

Is aluminum better than wood for humid climates?

Aluminum resists warping and rot, making it ideal for humidity. Wood can still work with proper sealing and regular maintenance. Choose stainless fasteners to avoid galvanic corrosion.

How much clearance should I leave at the bottom?

About 6–8 mm (1/4–5/16 in) prevents scraping while limiting debris entry. Pair with a low-profile threshold and sweep for better sealing.

What finish lasts longest in strong sun?

High-quality exterior paint typically outlasts clear finishes under UV. If you prefer natural wood, use a UV-inhibiting clear coat and expect more frequent recoats.

Can I add glass panels for shoulder seasons?

Yes. Design with removable stops so you can swap a glass insert in fall/winter and reinstall mesh in spring. Keep weep paths for condensation.

How do I reduce glare while keeping airflow?

Choose a darker-tint mesh and consider a light overhang or side shading. Steelcase research notes visual comfort matters; reducing direct sun on the entry helps.

What’s the best way to repair a torn screen?

Cut out the damaged section, lay new mesh, and re-seat with spline using a roller. Replace the entire panel if tears are extensive—it’s faster than patching multiple spots.

Do automatic closers damage light frames?

Not if adjusted correctly. Set closing speed low and ensure the mounting brackets are anchored into solid wood or metal. A closer also protects against wind slams.

How do I keep the latch from rattling?

Adjust the strike depth and add a thin adhesive felt behind the strike lip if needed. A well-placed mid-rail gives the latch a stable mount and reduces flex.
