Security Guard Room Design: Essential Tips for Efficiency: 1 Minute to Optimize Your Security Guard Room Layout

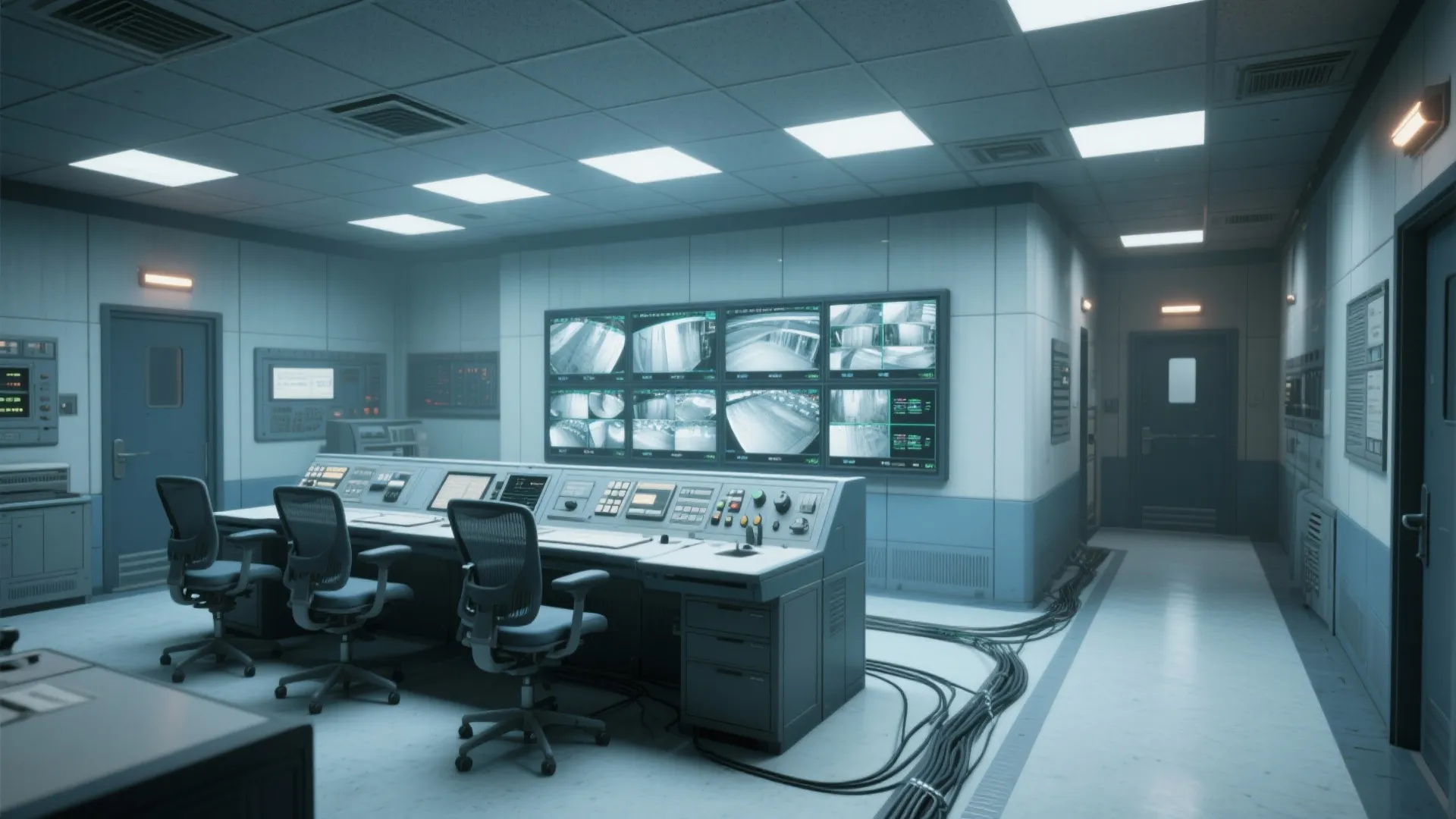

I design guard rooms to function like mission control: crisp sightlines, ergonomic stations, disciplined storage, and controlled acoustics. The space needs to shift seamlessly from routine monitoring to incident response without friction. A well-calibrated layout reduces reaction time, elevates comfort during long shifts, and keeps technology dependable under pressure.

Human performance in surveillance-heavy roles improves when the environment supports focus and reduces strain. WELL v2 recommends 300–500 lux for typical work areas, with task lighting tuned higher for detailed visual work; balanced vertical illuminance helps recognition of faces on monitors. Steelcase research links postural variability and ergonomic support to sustained attention in long-duration seated tasks, reinforcing the importance of adjustable chairs and monitor heights. For lighting and health guidance, see WELL v2 performance standards.

Core Layout Strategy: Clear Lines of Sight, Zero Clutter

Visual command defines the guard room. I align the primary desk to face main entries, camera walls, and critical corridors, avoiding obstructions within 15° sightlines of the most active zones. Keep circulation paths unobstructed—900–1200 mm aisle widths allow quick movement during handoffs or incidents. When testing alternative station placements or traffic paths, a room layout tool helps simulate sightlines and adjacency scenarios before build-out.

Ergonomic Control: Posture, Reach, and Screen Geometry

Guards spend hours scanning screens and interacting with radios, badge systems, and logs. I set monitors so the top of the screen is at or just below eye level; the viewing distance sits around 50–70 cm with a 15–20° downward gaze to reduce neck strain—principles consistent with ergonomics bodies and workplace research from Herman Miller on neutral posture and micro-movements. Multi-monitor arrays should arc within a 60–90° field to minimize head rotation. Frequently used devices stay within the primary reach zone (about 35–45 cm from the user). Chairs with synchronous tilt, lumbar support, and seat-depth adjustment sustain vigilance over long shifts.

Lighting: Glare-Free, Tunable, and Incident-Ready

Lighting quality can make or break recognition tasks. I combine low-glare indirect ambient lighting with adjustable task lights at 3000–4000 K to balance visual comfort and color rendering for camera feeds. IES guidelines for work surfaces inform the mix of uniform ambient and task lighting, and I keep luminance ratios around 3:1 between screens and surrounding surfaces to limit visual fatigue. Dim-to-warm controls help reduce eye strain during night shifts while maintaining clarity. Shield luminaires to keep reflections off monitor glass and avoid direct view of bright sources in the eye line.

Acoustic Comfort: Keep Comms Clear, Stress Low

Noise hampers situational awareness and increases stress hormones. I target an NC 30–35 background level and a reverberation time near 0.5–0.7 seconds with acoustic ceiling tiles, wall panels behind the operator, and soft finishes that don’t shed fibers near equipment. Separate radio/phone zones from general conversation areas. A small sound-lock or vestibule limits corridor noise spill. Place printers and mechanical devices outside the main monitoring area or inside acoustic cabinets.

Technology Integration: Reliable, Redundant, Maintainable

Equipment density must be planned for heat, wiring, and serviceability. I route power and data through raised access floors or cable raceways with labeled patch panels, plus 20–30% spare capacity for upgrades. Provide conditioned cooling—monitor walls and servers need dedicated ventilation and filtered intake. UPS with runtime sized for critical systems keeps feeds and access control stable during outages. Mount radios, intercoms, and panic buttons at consistent heights; color-code cabling by function to speed troubleshooting.

Security Workflow: Fast Handoffs, Clear Protocols

Shift changes require tidy desks, standardized forms, and quick briefings. I create a small, standing-height counter adjacent to the main station for handoffs, with lockable bins for incident logs and badges. Whiteboards or digital dashboards summarize overnight events and maintenance flags. Circulation routes must allow visitors or contractors to be processed without crossing sensitive operator zones. A compact staging area for packages and lost-and-found items keeps the primary workstation uncluttered.

Storage and Equipment Zoning

Discipline starts with storage. Lockable cabinets for keys, radios, and evidence sit within reach but separated from personal items. I keep cleaning supplies and PPE in a dedicated closet with clear labels. A drawer map at the station helps quick retrieval under stress. If firearms storage is applicable, separate it by code-compliant safes and clear SOP signage—never co-locate with general supplies.

Access Control and Visitor Management

The guard room acts as the funnel for people and information. Provide controlled sightlines to the entry and a secure transaction window or pass-through shelf. Install credential readers at ergonomic heights (100–120 cm) and ensure a secondary verification camera covers the counter. A short queuing lane with floor markings prevents crowding, while a seated waiting chair remains outside the operator’s immediate zone for safety.

Material Selection: Durable, Cleanable, and Non-Reflective

Materials need to work hard. I favor wear-resistant, matte finishes that reduce glare—textured laminate or powder-coated steel for desks; vinyl or rubber flooring for easy cleaning and slip resistance; acoustic ceiling tiles with high NRC; and wall paints in low-sheen neutral tones. For sustainability, select low-VOC finishes and modular components that can be replaced without downtime.

Color Psychology and Visual Balance

Color influences arousal and focus. Cooler neutrals and desaturated blues or greens help keep cognitive load steady, while small accents in warm hues guide attention zones (e.g., handoff counter trim). Verywell Mind’s insights on color psychology note that blues often support calm and concentration; I use them sparingly to avoid monotony and balance them with warm task lighting to maintain visual comfort.

Thermal Comfort and Air Quality

Comfort stabilizes performance during extended monitoring. Keep temperatures within 21–24°C with low-draft supply diffusers. CO₂ levels should be managed with adequate ventilation—place return grills away from dust-prone equipment racks. If doors open frequently, a vestibule or air curtain helps maintain conditions inside.

Fire, Life Safety, and Resilience

Clear egress, illuminated signage, and visible extinguishers are non-negotiables. Emergency lighting should be tested and independent of regular circuits. I organize go-kits with flashlights, spare radios, laminated building maps, and quick-reference SOPs. Ensure redundancy: alternate camera feed routes, backup access control, and clearly labeled shutdown procedures.

Scalability and Future-Proofing

Guard rooms evolve with technology. I plan desk space for two additional monitors per operator, add spare conduits, and reserve wall space for expanded video matrices. Modular furniture lets you reconfigure for events or increased staffing. When evaluating revised seating or equipment clusters, an interior layout planner makes iteration faster and decision-making clearer.

Maintenance and Cleanliness

Dust is the enemy of electronics. Specify closed storage, cable grommets, and easy-to-clean surfaces. A weekly check protocol for cable integrity, UPS status, and HVAC filters prevents downtime. Keep microfiber cloths and ESD-safe cleaning kits within reach but segregated from paperwork.

Tips 1: Right-size the Station

Provide at least 160–180 cm of desk width per operator for multi-monitor arrays and radios, plus 80–100 cm of lateral clearance for movement. If two operators share a station, stagger monitors to reduce shoulder collision.

Tips 2: Stabilize Night Shift Performance

Use warmer color temperature at night, dim ambient lights, and maintain task light contrast. Encourage posture changes with sit-stand options to combat fatigue.

Tips 3: Reduce Cognitive Noise

Standardize label colors and drawer maps, minimize screen brightness differences, and keep form templates consistent.

Tips 4: Design for Incident Spikes

Allow a pop-up secondary station with quick-connect power/data, a small rolling cart for extra radios, and overflow space that doesn’t block egress.

FAQ

What lighting levels work best for surveillance-heavy guard rooms?

Target 300–500 lux ambient with task lights for detailed work, tuned to 3000–4000 K. Maintain low glare and balanced luminance to reduce eye strain, consistent with WELL v2 guidance and IES practices for workstation tasks.

How should multi-monitor arrays be positioned?

Arc screens within a 60–90° field, keep the top of each monitor near eye level, and maintain 50–70 cm viewing distance to limit neck rotation and visual fatigue.

What acoustic targets improve communication clarity?

Aim for NC 30–35 background noise and 0.5–0.7 seconds reverberation time using acoustic ceilings, wall panels, and soft finishes placed away from airflow turbulence.

How can I plan for fast shift handoffs?

Add a standing-height handoff counter, lockable bins for logs and credentials, and a clear dashboard summarizing incidents. Keep circulation independent from the operator’s seated zone.

Which materials reduce glare and are easy to clean?

Matte laminates, powder-coated metals, low-sheen paints, vinyl or rubber flooring, and acoustic ceiling tiles with good NRC help control reflections and simplify maintenance.

What storage is essential for a guard room?

Lockable cabinets for radios, keys, and evidence; labeled drawers for forms and PPE; and segregated cleaning supply closets. Keep firearms (if applicable) in code-compliant safes separate from general storage.

How do I ensure technology resilience?

Provide UPS for critical systems, dedicated cooling for monitor walls and racks, labeled patch panels, and 20–30% spare capacity in power/data routes for upgrades.

What color palette supports focus?

Use cool neutrals with muted blues or greens to stabilize attention, paired with warm, low-glare task lighting. Reserve saturated accents for wayfinding or handoff zones.

How big should the operator workstation be?

Plan 160–180 cm desk width per operator with adequate depth for monitors and cable management, plus 900–1200 mm aisles for quick movement.

How do I prevent thermal discomfort?

Maintain temperatures around 21–24°C with low-draft diffusers, ensure sufficient ventilation, and use vestibules or air curtains if entries are frequently opened.
