Security Guard Room Design: Smart Tips for Modern Spaces: 1 Minute to a Secure and Efficient Security Guard Room Layout

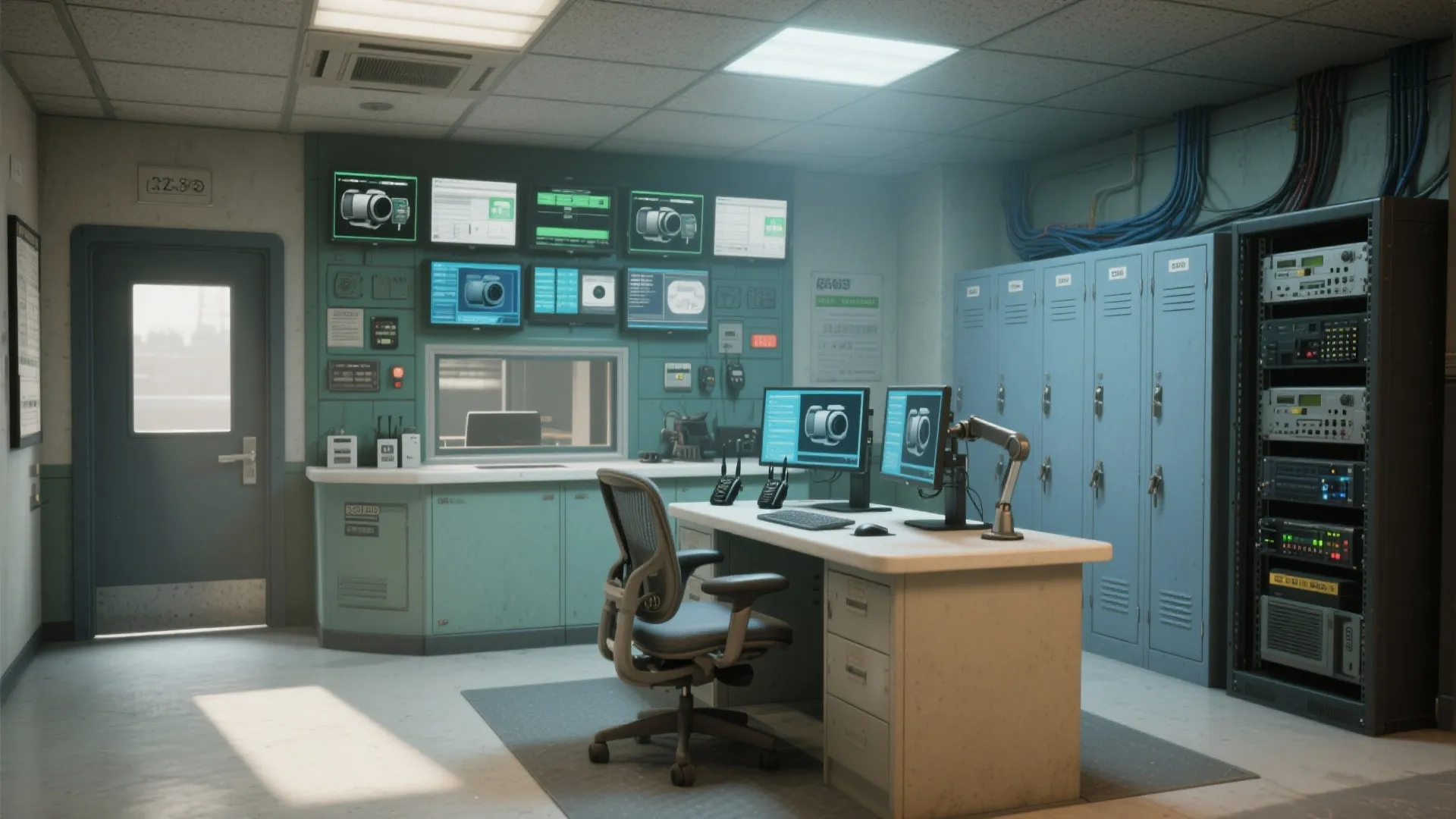

Security guard rooms anchor the safety operations of a site. When the workspace is clear, ergonomic, and technologically ready, guards respond faster and stay alert longer. I plan these rooms like mission-control hubs: compact circulation, direct sightlines to entries, controlled acoustics, and layered security—all while keeping comfort and focus front and center.

Focus duration and physical comfort are measurable. WELL v2 recommends task lighting in the range of 300–500 lux for typical work areas, and the IES suggests avoiding glare through proper luminance ratios and shielding to reduce visual fatigue—critical in 24/7 monitoring rooms where screen legibility is paramount (WELL v2; IES standards). On the behavioral side, color also plays a role: Verywell Mind reports that cooler tones like blue can support calm concentration, while muted greens ease visual strain—useful choices for long observation shifts.

Security operations benefit from reliable furniture and layout ergonomics. Herman Miller’s research links posture variation and adjustable seating to improved comfort and fewer musculoskeletal complaints over long desk-bound tasks; translating that to guard rooms means height-adjustable chairs with proper lumbar support, footrests, and monitor arms to set screens at eye level. These basics reduce fatigue that can slow response times.

Core Planning Priorities

I start by mapping workflows: entry monitoring, visitor processing, incident logging, patrol dispatch, and evidence storage. That sequence shapes adjacency: reception window and camera wall up front, radios and dispatch desk central, and a secure locker zone behind. When refining traffic flow, I often use a room layout tool to simulate movement between the door, desk, camera wall, and storage—right-sizing circulation paths reduces bottlenecks and keeps the station controllable.

room layout tool

Visibility and Sightlines

Guard visibility to primary entries and approach zones should be unobstructed. For glass control windows, I aim for a counter height of 42–44 inches with ballistic or laminated glazing where required, and a transaction drawer to avoid frequent door openings. Internally, keep low partitions near the desk and stagger equipment heights to maintain clean sightlines across the room and out to the corridor.

Lighting: Clarity Without Glare

Lighting sets the tempo. Blend indirect ambient lighting with task lights over logging areas. Keep ambient at ~300 lux and task zones at ~500 lux, ensuring luminance ratios near 3:1 between task and surround to avoid harsh contrast (WELL v2; IES standards). Use 4000K color temperature for a neutral, alert feel. Shield fixtures, angle monitors perpendicular to windows, and specify matte finishes to cut reflected glare on screens.

Acoustics: Reduce Distraction and Protect Speech Privacy

Radio chatter and incoming visitors create noise peaks that erode focus. I treat ceilings with high-NRC panels and add acoustic backing in wall panels behind the desk. A soft-surface zone (rug tile or resilient flooring with an underlayment) dampens footfall while remaining cleanable. If the guard room handles sensitive conversations, include a solid-core door with perimeter seals and a small sound lock where space allows.

Ergonomics and Human Factors

Continuous monitoring demands posture variation. I specify chairs with 4D arms, adjustable lumbar, and tilt tension. Desk height settles at 29 inches for seated tasks, with an adjustable keyboard tray to maintain neutral wrist angles. Dual or triple monitors should align center at eye level, with the primary screen’s top third at eye height to reduce neck strain. Keep frequently used devices (badge printer, radios) within the primary reach zone; place infrequent items (evidence boxes, spare batteries) in secondary storage to prevent clutter.

Technology Integration and Power Management

Security rooms often accumulate gear—NVRs, radios, access control panels, intercom systems—and heat. Plan a dedicated equipment rack with rear clearance, cable management, and discrete ventilation; separate noisy gear from the main desk to reduce hum. Provide a minimum of two circuits on isolated grounds for critical systems and a UPS for cameras and access control. Place network drops and power at both desk and rack; label each connection for faster troubleshooting during incidents.

Security Layers and Controlled Access

Even small guard rooms need tiered security. A secure exterior door with access control, a transaction window for visitor screening, and an interior storage locker with restricted keys form basic layers. Sightline-controlled windows allow visual connection without full exposure. For higher-risk sites, add panic buttons, duress alarms, and a small refuge corner with a secondary egress route if the main door is compromised.

Storage, Evidence, and Clean Zones

Separate clean, operational items from evidence or confiscated materials. I divide storage into three types: quick-grab (radios, flashlights), administrative (forms, visitor badges), and secure (sealed evidence bags, restricted tools). Use lockable casework with vented compartments for electronics and at least one fire-rated cabinet for critical records. Maintain a clear desk policy with a tray system for incident forms to keep surfaces ready for real-time work.

Material Selection and Durability

Guard rooms see heavy use. Opt for high-pressure laminates on counters, impact-resistant wall surfaces, and commercial-grade flooring with slip resistance and easy maintenance. Matte finishes reduce glare. Choose hardware with tamper-resistant screws where reachable by the public. For sustainability, specify low-VOC paints and adhesives and consider recycled-content acoustic panels; durable, cleanable materials extend life cycles and reduce replacement waste.

Color Psychology and Alertness

Muted neutrals build visual calm. I use cooler undertones—soft slate blue or sage—near monitor walls to minimize eye strain, with a slightly warmer accent near the visitor-facing counter to encourage approachability. According to color psychology discussions from Verywell Mind, blues support focus and stability while greens help reduce fatigue; both are appropriate for stations requiring sustained attention.

Thermal Comfort and Air Quality

Close quarters plus equipment heat demand steady airflow. Provide dedicated supply and return vents, and avoid directing air straight at the desk. Controlled temperature around 21–23°C helps with alertness. If doors open frequently to exterior air, add an entry vestibule to buffer drafts and particulates. Maintain regular filter changes; cleaner air reduces headaches that erode vigilance.

Spatial Ratios and Movement

Compact rooms still need comfortable motion. Keep at least 36 inches clear behind the chair for stand-and-turn movements, 42 inches in front of the transaction window to manage visitors, and 18–24 inches to side walls for reach. The path from desk to equipment rack should be unobstructed. If space permits, a small perch stool allows brief posture changes without abandoning the desk.

Shift Amenities and Fatigue Management

For 24/7 posts, add a small kitchenette niche with a mini-fridge and water access outside the direct public view. A perch ledge near the window allows brief interaction without full exposure. Soft task mats reduce leg fatigue for standing checks. Provide lockable personal cubbies so guards can store bags off the floor and keep pathways clean.

Future-Proofing: Modularity and Growth

Infrastructure should absorb change. Use modular monitor arms and a rail system for future screen additions. Oversize conduits for new cabling. Plan a flexible second desk position so the room can scale during events without a redesign. Label panels clearly and keep a laminated quick-reference of emergency procedures near the desk yet hidden from public sight.

Trusted Research for Design Decisions

For teams seeking standards and guidance on lighting and wellness, I often refer to WELL v2 and IES standards for illuminance and glare control, and to Herman Miller’s research on ergonomics for seated work comfort. These resources inform practical choices that directly improve guard performance and well-being.

WELL v2

FAQ

How bright should a security guard room be?

Target ~300 lux ambient and ~500 lux at task surfaces. Keep balanced luminance ratios to prevent glare and eye strain, following WELL v2 and IES guidance.

What monitor setup reduces neck and eye fatigue?

Place the primary monitor directly ahead with the top third at eye level. Use adjustable arms for dual/triple screens and set viewing distance around 20–30 inches.

Which chair features matter most for long shifts?

Adjustable lumbar, 4D armrests, seat depth adjustment, and tilt tension. Pair with a footrest and an adjustable keyboard tray for neutral posture.

How do I control noise without making the room feel closed in?

Use high-NRC ceiling tiles, acoustically backed wall panels behind the desk, and resilient flooring with underlayment. Keep glazing but add seals and a small sound lock if needed.

What color palette supports alertness?

Cool neutrals with blue or green undertones near monitor walls to ease eye strain; a warmer neutral at the visitor counter to promote approachability.

How should equipment racks be ventilated?

Provide rear clearance, cable management, and discrete ventilation separate from the main desk area. Consider a dedicated exhaust or fan-assisted vent to prevent heat buildup.

What is a practical storage strategy for evidence and gear?

Divide into quick-grab, administrative, and secure categories. Use lockable casework, vented compartments for electronics, and a fire-rated cabinet for critical records.

Do I need backup power?

Yes. A UPS for cameras, access control, and key network gear ensures continuity during brief outages and protects equipment from power fluctuations.

How much clearance should I leave around the desk?

Allow at least 36 inches behind the chair and 42 inches in front of the transaction window. Keep the route to equipment racks unobstructed.

Should the guard room have a transaction window or full door access?

For controlled sites, a transaction window with a drawer maintains separation while enabling visitor processing. Full door access suits low-risk environments or internal-only posts.

What temperature range keeps guards comfortable and alert?

Typically 21–23°C with steady airflow. Avoid drafts directed at the desk, and use a vestibule if exterior doors create temperature swings.
