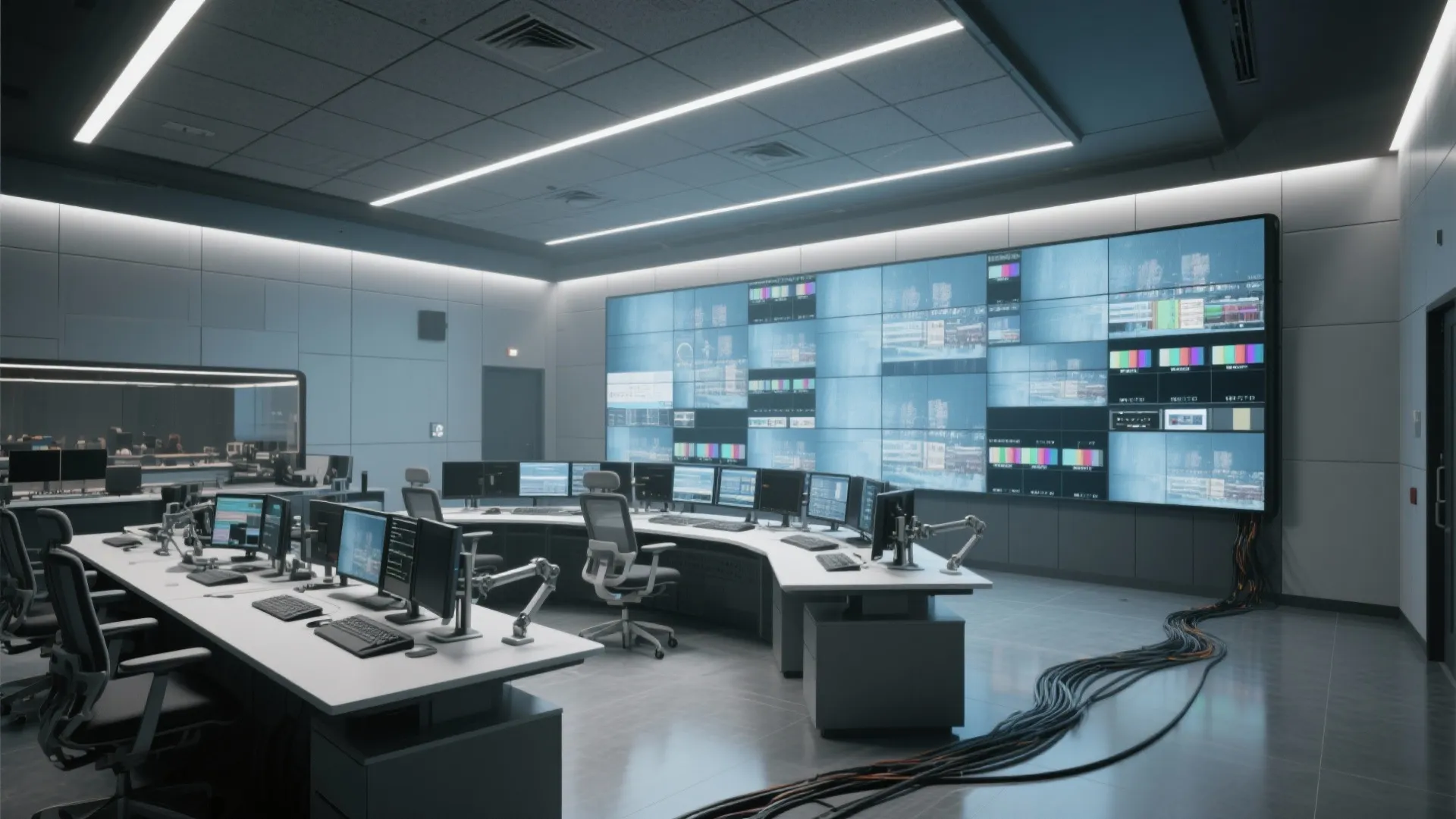

Security Room Design: Smart Solutions for Safer Spaces: Fast-Track Guide to High-Efficiency Security Room Design

Security rooms succeed when operators can see, hear, and act without friction. My approach blends technology integration with human-centered design: visual hierarchies, ergonomic stations, controlled lighting, and robust acoustics that sharpen attention rather than exhaust it.

Attention and visual performance are a measurable design problem. The Illuminating Engineering Society recommends task lighting in the 300–500 lux range for monitor-based work, with controlled glare and balanced vertical luminance to reduce eye strain (IES standards). Seating and workstation ergonomics also matter: Herman Miller research links adjustable seating, neutral wrist posture, and correct monitor heights to reductions in musculoskeletal complaints and improved vigilance across long shifts (hermanmiller.com/research).

Behavioral patterns inside a security room reveal productivity gaps. Steelcase studies show posture variation and support for micro-movements sustain attention during extended monitoring, reducing error rates in high-cognitive load tasks (steelcase.com/research). In mission-critical environments, WELL v2 highlights acoustic comfort, circadian-friendly lighting, and thermal control as contributors to response accuracy and operator wellbeing (wellcertified.com). These references give us guardrails to tune the space for sustained focus.

Core Principles of Security Room Planning

I start by mapping lines of sight, travel paths, and zones of responsibility. Supervisor positions should have uninterrupted views of the video wall and operator stations, while incident response desks sit close to exits and storage. When reconfiguring layouts or testing sightlines, I use a room layout tool to simulate view cones, monitor angles, and walkway clearances before committing to build.

Visual Hierarchy: Video Walls and Monitors

Critical feeds deserve center placement and slightly elevated eye line, with secondary dashboards off-axis. Keep the primary video wall at 1.2–1.6 times the diagonal viewing distance for legibility, and avoid high-gloss surfaces that reflect fixtures. For multi-monitor bays, the upper edge should not exceed 15–20 degrees above neutral eye level to minimize neck extension. I balance ambient vertical illuminance with low-glare task lights so pixels stay crisp and operators avoid squinting.

Lighting Strategy for Vigilance

Glare control outranks aesthetics in these rooms. I tune ambient lighting to roughly 300–350 lux, add dimmable task lights near keyboards at 200–300 lux, and keep correlated color temperature around 4000–4500K for neutral alertness. Indirect lighting behind the video wall reduces contrast fatigue. Daylight is welcome when filtered and controlled; otherwise, blackouts with integrated cove lighting preserve circadian cues without screen wash. Reference illuminance targets align with IES guidance for screen-dominant tasks.

Ergonomic Workstations

Operators shift posture dozens of times per hour. Worksurfaces sit at 710–740 mm, with keyboard trays allowing neutral wrists. Monitor centers align approximately 15 degrees below horizontal eye level, adjustable arms accommodate focal changes, and chairs support lumbar with independent seat depth. I specify footrests for shorter operators and encourage sit-stand transitions in multi-hour shifts, echoing findings highlighted by Herman Miller and Steelcase research on sustained cognitive performance.

Acoustic Control and Speech Intelligibility

Security rooms need quiet without deadening communication. I target ambient noise levels around 35–40 dBA, add high-NRC ceiling tiles, and treat side walls with broadband absorption to tame mid-frequency chatter. Partial-height screens with absorptive cores between stations reduce cross-talk while preserving supervisory oversight. Zoning paging speakers away from operator clusters prevents masking of radio and phone audio.

Thermal Comfort and Air Quality

Thermal drift erodes focus. Maintain 22–24°C with minimal drafts, and supply dedicated ventilation to equipment nodes. WELL v2 emphasizes particulate control and CO2 thresholds that align with cognitive performance; I keep sensors visible to supervisors and position intakes away from heat loads behind racks. When equipment rooms adjoin, pressure differentials and vestibules prevent heat and noise bleed.

Power, Cabling, and Redundancy

Redundancy is non-negotiable. Dual power feeds with UPS and generator tie-ins, isolated circuits for critical displays, and labeled patch panels reduce fault-finding time. Cable management channels must separate data and power to mitigate interference, with service loops at each monitor arm. I keep floor boxes out of walking paths and route high-traffic cables overhead or in low-profile raceways to prevent trip hazards.

Access, Egress, and Security Protocols

Entry control belongs outside the operator sightline to avoid distraction. Badge readers and two-factor checkpoints feed into a small vestibule with observation glazing. Egress routes stay clear of equipment clusters, with illuminated exit signage that won’t reflect in screens. Incident storage should sit near the door—go bags, radios, and first-aid kits—so response teams move in seconds, not minutes.

Material Selection and Sustainability

Non-specular finishes on walls and ceilings cut glare. I favor matte, low-VOC paints, high abrasion-resistant flooring, and furniture textiles rated for cleanability without squeak or reflectivity. Sustainable choices—recycled content acoustical tiles, FSC wood, and modular carpet—support replacement cycles and minimize downtime. When selecting surfaces near screens, low reflectance values improve perceived contrast and reduce eye fatigue.

Color Psychology for Alertness

Neutral palettes with restrained accents help operators focus. Soft grays and desaturated blues maintain calm; small zones of saturated color guide wayfinding and signal priority areas (e.g., dispatch vs. analysis). Verywell Mind’s summaries on color psychology note cool hues can promote steadiness, while high-chroma reds elevate arousal—use sparingly to avoid stress spikes.

Workflow Zoning and Team Dynamics

I divide the room into monitor bays, collaboration tables, supervisor hubs, and an incident corner. Circulation loops avoid crossing sightlines, and each zone gets task-appropriate lighting and acoustics. For predesign studies or quick iterations, an interior layout planner helps test adjacency diagrams, walking distances, and oversight angles that keep communication fluid without noise spill.

Technology Integration and Future-Proofing

Plan for density: rack rooms with hot-aisle/cold-aisle management, cable trays with 30% spare capacity, and monitor arms rated for larger screens as feeds evolve. KVM switching reduces desktop clutter, and standardized quick-release mounts expedite replacement. I embed device shelves for radios, body cams, and tablets near charging hubs, with lockable drawers to support chain-of-custody.

Testing, Commissioning, and Training

Before handover, I run luminance checks at multiple stations, verify acoustic targets, and perform mock incidents to test sightlines and egress. Training covers adjustable ergonomics, lighting presets, and equipment protocols so the space supports operators from day one.

FAQ

What illuminance levels work best for monitoring tasks?

Target 300–500 lux on work surfaces with controlled glare and balanced vertical illuminance, reflecting IES guidance for screen-centric tasks.

How high should a video wall be?

Keep the primary content at or slightly above eye level, with viewing distances around 1.2–1.6 times the screen height to preserve legibility.

What chair features matter for long shifts?

Adjustable lumbar, seat depth, armrests, and easy posture changes. Neutral wrist support and monitor arms reduce strain, echoing findings reported by Herman Miller and Steelcase research.

How do I control acoustics without isolating the team?

Use high-NRC ceilings, absorptive side walls, and partial-height screens between stations. Maintain sightlines and avoid over-absorbing the room to keep speech intelligible.

Which color temperatures keep operators alert?

Neutral white around 4000–4500K supports alertness without harshness; pair with dimmable task lights and indirect wall illumination to reduce contrast fatigue.

How do I future-proof cabling?

Provide dual power feeds, segregate data and power runs, label patch panels, and design 30% spare capacity in trays and conduits for growth.

What layout mistakes slow incident response?

Crossed circulation paths, poor oversight angles, equipment blocking egress, and reflective finishes near screens. Validate with a layout simulation tool before build.

Can daylight work in a security room?

Yes, if filtered and controlled. Use blackout strategies when needed and supplement with indirect lighting to prevent screen wash and glare.

How close should collaboration tables be to operator bays?

Keep them within visual reach but outside the main acoustic field—typically several meters offset with absorptive boundaries to avoid distractive chatter.

What thermal settings maintain focus?

Maintain 22–24°C with stable airflow. Separate equipment heat loads and monitor CO2; WELL v2 emphasizes air quality for cognitive performance.
