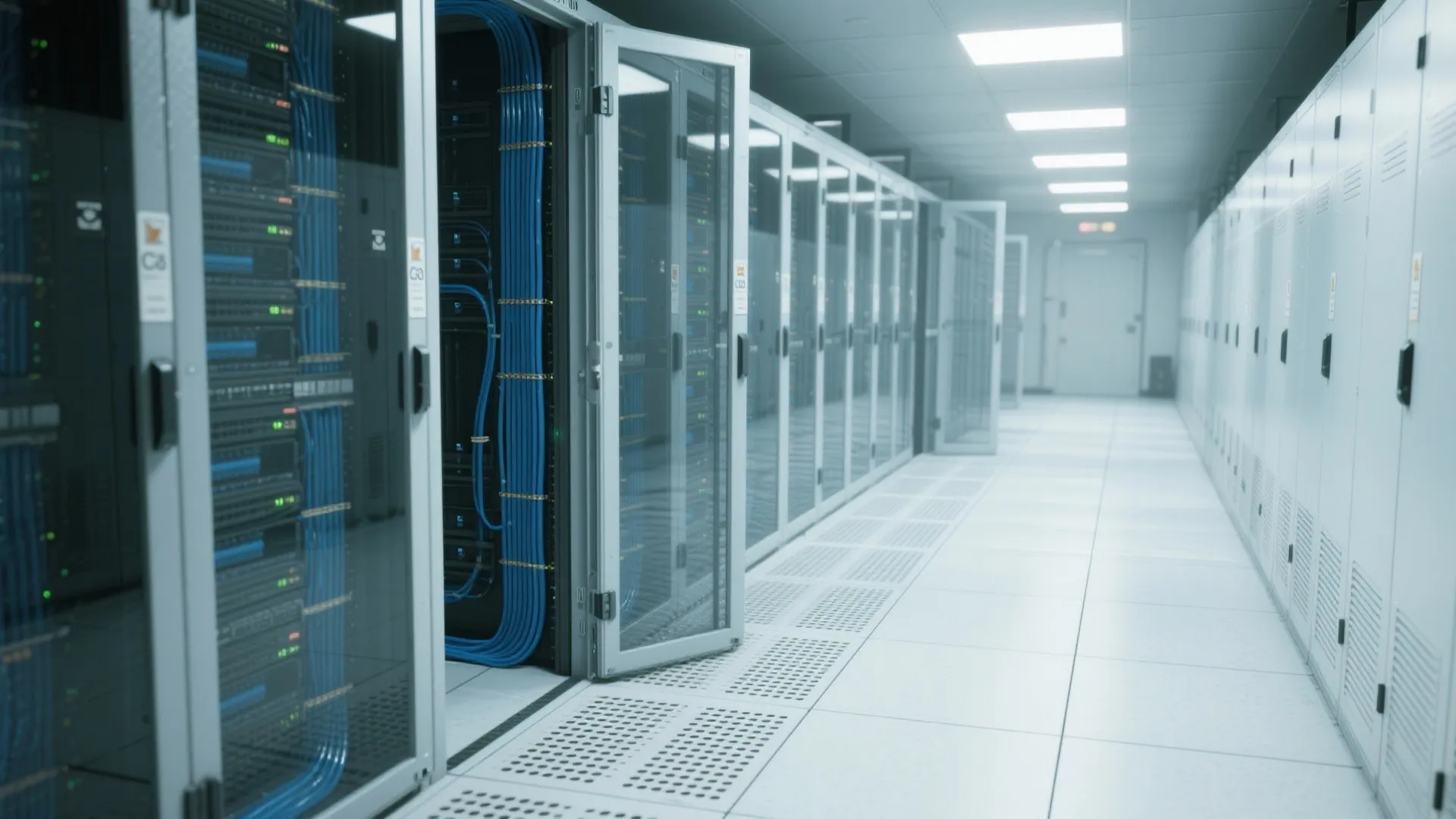

Server Room Raised Floor: The Essential Guide for Modern Data Centers: Fast-Track Guide to Installing Efficient Raised Floors for Your Server Room

I design raised-floor server rooms to stay cool, safe, and adaptable under relentless load. In high-density environments, airflow, cable segregation, and weight distribution decide uptime just as much as your power path or redundancy tier. Getting the platform right reduces hotspots, cuts energy spend, and future-proofs the room for the next refresh cycle.

Two data points frame the brief. First, inadequate thermal management remains a primary cause of IT downtime; research from Steelcase’s workplace studies notes that environmental conditions directly impact performance and reliability in technical environments, while WELL v2 highlights temperature, air distribution, and noise as key determinants of occupant and system performance (see WELL v2 Air and Thermal Comfort features at WELL v2). Second, lighting and glare control matter even in server rooms: IES recommends appropriate illuminance for technical tasks to reduce error rates and improve maintenance safety (refer to IES standards at IES standards). These standards guide how I compose the raised floor, from perforation ratios to service corridors and service lighting lines.

In practice, I treat the raised floor as an engineered plenum, structural platform, and service highway. My typical goal: even-pressure supply from CRAC/CRAH units, predictable return paths, and zero cable obstruction within the air plenum. The result is tighter delta-T across rack faces, simpler maintenance, and stable acoustics.

Core Functions of a Raised Floor

A raised floor in a server room performs four non-negotiables: (1) airflow delivery via underfloor plenum; (2) cable management and segregation (power, data, and fiber in defined routes); (3) structural loading for racks and PDUs; (4) access for change and maintenance. When densities exceed 6–8 kW per rack, balancing airflow with leakage control becomes decisive; above 12–15 kW, selective containment and precision perforation mapping are essential.

System Components and Specifications

Panel core and finish: I favor high-density calcium sulfate or steel-encapsulated panels for stiffness and fire performance. Standard 600×600 mm modules with 30–40 mm thickness simplify swaps and cut costs. For finishes, anti-static high-pressure laminate (HPL) with conductive backing helps keep surface resistivity in the 10^6–10^9 Ω range, mitigating ESD risk during service.

Pedestals and stringers: Pedestal heights typically range 300–600 mm in server rooms, enough to form a usable plenum and route power/data without choking air. At higher clearances, add stringers for lateral stability and to maintain panel seating under rolling loads.

Airflow tiles: Deploy perforated tiles (20–45% open) and directional grilles where rack face temperature control is critical. Adjustable dampers under tiles let me tune CFM by aisle. For very high density, consider chimneys or in-row cooling plus containment to protect return paths from mixing.

Layout and Zoning Strategy

I start with a hot-aisle/cold-aisle rhythm and align perforated tiles only in cold aisles in front of server intakes. No perforation belongs in hot aisles. I reserve continuous “service lanes” for moves/adds/changes so maintenance never compromises airflow. When I plan alternate growth scenarios, I use a layout simulation approach to test rack adds, aisle extensions, and CFM impacts; a room layout tool like the Coohom room design visualization tool helps visualize geometry, clearances, and access zones before procurement.

Airflow Engineering and Thermal Control

My baseline rule set: seal cable cutouts with grommets, foam, or brush kits; pressure-test the plenum for leakage; tune tile dampers based on ΔT and face velocity readings; and keep the return path as short and unmixed as possible. Use blanking panels, end-of-aisle doors, and containment to reduce bypass air. If I see supply temperature 18–20°C and return near 27–30°C with consistent rack intake below 24°C, the system is generally in a safe band for typical equipment recommendations.

Electrical, Cable, and Safety Integration

Power distribution units should run in segregated channels, isolated from data and fiber to minimize interference and ease tracing. Underfloor pathways must not obstruct airflow; I route bulk copper at slab level with stand-offs and keep fiber in dedicated microducts. Grounding every pedestal string and ensuring an equipotential plane reduces ESD risk. For life safety, keep clear egress routes and label lift points; integrate smoke detection that accounts for underfloor volumes.

Structural Loads and Resilience

Check both point load (for rack posts, lifters) and rolling load (for populated rack moves). I specify panels rated at or above expected worst-case rolling load with safety margin. If deploying 42–48U racks with high battery or storage mass, confirm pedestal spacing and anchor pattern with vendor load tables. Where seismic activity is possible, add bracing, wider bases, and rack anchorage kits.

Acoustic and Lighting Considerations

Server rooms are loud and visually demanding during maintenance. I choose perforated tiles and finishes that avoid whistling at typical velocities; consistent underfloor pressure reduces tonal noise. For lighting, I target illuminance suitable for technical inspection—IES recommendations guide my selection of neutral-white 4000–5000 K with low glare optics to avoid reflected glare on labels and screens. Task lighting at entry and work zones reduces errors and speeds interventions.

Fire, Smoke, and Materials

Calcium sulfate cores offer better fire resistance than chipboard and have lower smoke toxicity. Seal penetrations with intumescent materials and maintain underfloor compartmentalization where required by code. Avoid finishes that off-gas under heat; anti-static laminates with low VOC adhesives keep maintenance safer.

Commissioning and Performance Tuning

Before go-live, I run a tile-by-tile airflow map, verify underfloor pressure uniformity, and confirm rack intake temperatures at multiple elevations. I adjust damper settings, replace any mis-seated panels, and add blanking where bypass persists. Post-occupancy, I trend inlet temperatures and CRAC fan speeds to detect drift. Quarterly checks on grommets, tile alignment, and cable discipline preserve performance.

Future-Proofing and Scalability

Scope spare plenum capacity, reserve empty tile positions for future perforation, and keep a documented tile map. If densities will rise, plan early for containment, in-row cooling, or rear-door heat exchangers. A modular approach to underfloor pathways prevents painful rework in year three.

Cost and Lifecycle Considerations

Total cost isn’t just panels and pedestals. It’s the energy saved by lower fan speeds, the downtime avoided through safer access, and the flexibility to reconfigure without major demolition. Durable finishes, correct load ratings, and smart airflow tiles often repay their delta quickly in energy and labor.

Common Pitfalls I Avoid

- Randomly scattered perforated tiles that dump cold air into hot aisles

- Unsealed cable cutouts bleeding plenum pressure

- Overstuffed underfloor conduits obstructing supply paths

- Ignoring rolling load during commissioning moves

- Lighting that creates glare or shadow at critical labels and breakers

Quick Planning Checklist

- Define kW per rack and growth curve

- Select panel core, load ratings, finish, and anti-static targets

- Set pedestal height for both airflow and cable pathways

- Map hot-/cold-aisle layout and perforated tile densities

- Engineer segregation of power, copper, and fiber

- Specify containment strategy and grommet sealing

- Validate lighting levels and CRAC/CRAH integration

- Commission with airflow and temperature mapping

FAQ

Q1. Do all server rooms still need raised floors?

A1. Not always. Slab-based designs with overhead distribution work well for certain densities and ceiling heights. I choose raised floors when underfloor supply improves thermal control, cable discipline, and future access—especially in retrofit shells with limited overhead space.

Q2. What pedestal height is ideal for the plenum?

A2. Between 300–600 mm in most cases. Lower heights reduce usable CFM and make routing tough; higher clearances need bracing but deliver more uniform pressure.

Q3. How many perforated tiles should a cold aisle have?

A3. Start with two to three perforated tiles per rack pair, then tune based on intake temperatures and underfloor pressure readings. Adjustable dampers let you match supply to actual load.

Q4. How do I prevent bypass air?

A4. Seal cutouts, use blanking panels, align tiles only in cold aisles, and add end-of-aisle doors or full containment. Maintain consistent supply temperature and monitor ΔT across racks.

Q5. What load rating should I specify for heavy racks?

A5. Verify both point and rolling loads. I typically specify panels and pedestals rated above the heaviest expected lifter and populated rack move, with a safety margin aligned to local code and manufacturer tables.

Q6. How does lighting affect reliability?

A6. Adequate, low-glare lighting reduces maintenance errors and speeds interventions. I align illuminance to IES guidance and use neutral-white (around 4000–5000 K) to improve label legibility and color accuracy.

Q7. Can I mix power and data under the floor?

A7. Keep them segregated. Dedicated pathways for power, copper, and fiber reduce interference, improve airflow, and make tracing faster during incidents.

Q8. What’s the best floor finish for ESD control?

A8. Anti-static HPL with conductive backing is my default. Pair it with good grounding, humidity control, and ESD-safe footwear during service windows.

Q9. How often should I re-balance airflow?

A9. After any equipment change and at least quarterly. I trend inlet temperatures and adjust tile dampers or containment as loads shift.

Q10. When do I need containment?

A10. Above roughly 10–12 kW per rack or when you see intake temperatures creeping despite added airflow tiles. Containment preserves supply temperatures and reduces fan energy.

Q11. Is a calcium sulfate core worth the cost?

A11. For many rooms, yes. It offers better fire performance, dimensional stability, and lower smoke toxicity compared to chipboard, which pays back in risk reduction.

Q12. How do standards factor into design?

A12. I use WELL v2 for environmental quality targets and IES for lighting levels. These references shape decisions on air distribution, temperature bands, and visual comfort, supporting safer operations and better reliability.
