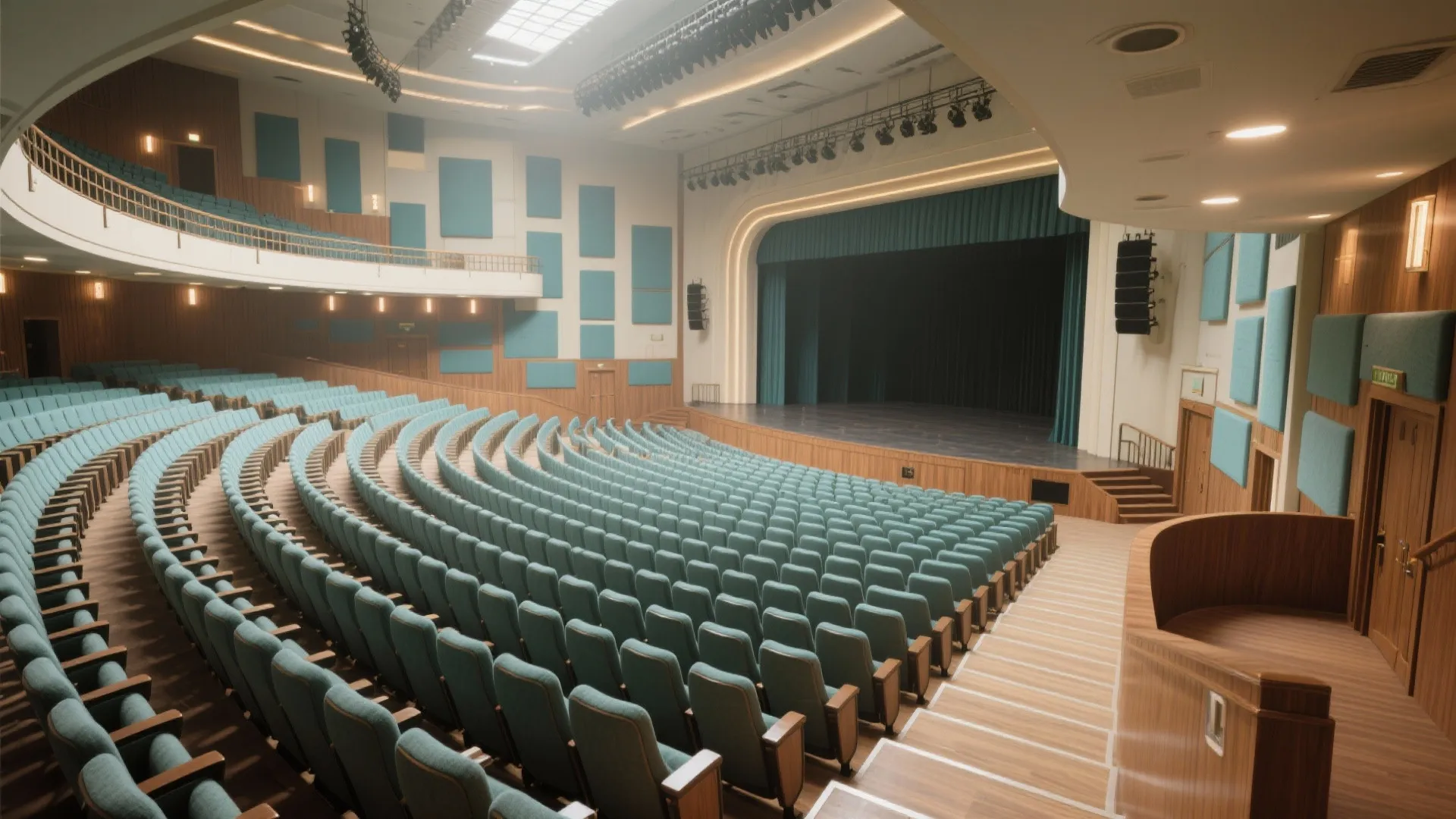

Shanmukhananda Hall Seating Layout: A Complete Guide: Fast-Track Guide to Finding the Perfect Seat in 1 Minute

I have planned and optimized seating for auditoriums ranging from 500-seat civic venues to 4,000-seat multi-use halls, and Shanmukhananda Hall’s reputation for large-scale cultural programs, conferences, and performances makes its seating layout both a design challenge and a user-experience opportunity. To get the best out of the hall—clear sightlines, balanced acoustics, efficient flow, and accessible comfort—you need a layout that aligns audience behavior with stage function and building services.

Two data points help anchor the decisions. First, the International WELL Building Institute recommends maintained horizontal illuminance around 300–500 lux for multi-purpose assembly spaces to support visual comfort and alertness (WELL v2 L04–L07 guidance at WELL v2). Second, Steelcase research shows cognitive performance declines when background noise exceeds 55 dBA for sustained tasks; while concerts welcome higher peaks, foyers, aisles, and control zones benefit from that 55 dBA benchmark for speech and wayfinding clarity (Steelcase research). These numbers influence aisle lighting, wayfinding brightness, and the acoustic strategy for seating breaks and absorptive finishes.

Seating Typologies and When to Use Them

Different events stretch a hall in different directions. I typically work with four seating typologies:

1. Proscenium focus (concerts, dance): Fan-shaped seating maximizing sightlines to a fixed stage, with gentle curvature and staggered rows to minimize head occlusion.
2. Conference or lecture: Straighter blocks with slightly narrower chair width and added writing tablets, prioritizing central line-of-sight to screens and interpreters’ booths.
3. Multi-use hybrid: Retractable or modular front sections allowing an orchestra pit, camera platforms, or VIP boxes to be added without compromising egress.
4. Ceremonial/high-occupancy: Higher seat density in the stalls, with additional vomitories to keep travel distance to exits within code limits.

For Shanmukhananda-scale events, I favor a mild fan geometry in the stalls with two to three cross aisles, plus a balcony that carefully controls overhang so the rear stalls maintain full view to the proscenium.

Row Spacing, Sightlines, and Ergonomics

Human factors drive comfort more than any single finish. Aim for a row pitch of 900–1,000 mm (35–39 in) in the stalls for fixed seating; balconies can be tighter, but I rarely drop below 850 mm (33.5 in). Keep seat widths at 480–520 mm (19–20.5 in) clear, with arm-to-arm around 520–560 mm (20.5–22 in) for long-form performances. Stagger seats by half-seat offset to minimize straight-line occlusion. The target vertical sightline angle to the stage focal point should sit between 0–30 degrees from eye level, with 12–15 degrees a sweet spot for lectures and 18–22 degrees comfortable for concerts.

Aisles, Egress, and Flow

Good aisles are experienced, not noticed. Keep aisle widths responsive to expected peak load; for large halls, main aisles at 1,500–1,800 mm (59–71 in) and secondary aisles at 1,100–1,200 mm (43–47 in) keep flows smooth. Provide luminous contrast on aisle nosings and integrate low-glare aisle lighting at about 5–10 lux so patrons can move without visual adaptation shock from stage lighting. Where event programs vary, mapping flow with an interior layout planner is invaluable; use a room layout tool to test seating blocks, aisle nodes, and queue lines for intermissions.

Balcony Geometry and Overhang Control

Balconies create intimacy but can cripple rear-stall views if the overhang depth is excessive. Keep the balcony front nosing high enough and set back so the farthest stalls can still see the top third of the proscenium opening. A rule of thumb I use: ensure the clear view plane from the rear-stall eye level (assume 1,150 mm / 45 in seated) to the top of stage action clears the balcony soffit by at least 100–150 mm (4–6 in). Rake angles of 9–12 degrees in balconies balance sightlines and comfort; steeper rakes demand handrail and step illumination upgrades to reduce perceived pitch.

Acoustics: Seats, Gaps, and Materials

Seat selection is an acoustic choice. Upholstered chairs with consistent absorption in the mid-high frequencies help maintain similar reverberation whether occupied or empty, stabilizing rehearsals and partial-house events. Distributed gaps (intentional unseated patches) can break up lateral reflections. For speech-heavy events, target a balanced reverberation time appropriate to the hall’s volume; in multi-use houses, variable banners or retractable curtains give the flexibility you need. Aim to keep ambient noise in circulation areas near 45–55 dBA to protect speech intelligibility and reduce listener fatigue, aligning with the Steelcase comfort threshold cited earlier.

Lighting the Audience: Comfort, Safety, and Mood

House lighting should be dimmable from 300–500 lux during seating to 5–30 lux during performance interludes, per WELL v2 intent for visual comfort and circadian support. Keep correlated color temperature near 3,000–3,500K to flatter skin tones for cultural programs, with CRI 90+ over audience areas. Glare control is critical: recess aisle markers, baffle wall washers, and avoid direct sight of emitters from seated eye level. For recorded events, add discreet front-of-house fill at low intensity to maintain camera-friendly skin tones without breaking audience darkness.

Accessibility and Inclusive Design

Distribute accessible seats across price bands and vantage points—front, mid, and rear stalls, and balcony where lift access allows. Provide companion seating and clear transfer spaces. Handrails with continuous returns, tactile stair nosings, and low vertical rise per step (150–170 mm / 6–6.7 in) support a broader range of patrons. For assistive listening, ensure line-of-sight to emitters where infrared is used; for RF systems, plan antenna placement away from large metal structures to reduce multipath interference.

Camera Positions, Control Rooms, and Tech Blocks

Shanmukhananda Hall hosts a mix of classical concerts and talks; both benefit from unobstructed camera lines. Integrate two rear-stall camera wells aligned with centerline and off-center thirds, with platforms around 1,800–2,100 mm (71–83 in) above finished floor to shoot over seated heads. The front-of-house control position should remain within acoustic and visual coherence of the audience bowl—ideally mid–rear stalls—so mix engineers hear what the audience hears.

VIP, Green Rooms, and Protocol Seating

For high-profile events, reserve side boxes or the front rows of the balcony for VIPs, balancing prestige with safety and discrete access. Provide adjacent holding lounges connected to the stage via controlled corridors. In the main bowl, keep the first occupied row 1,500–1,800 mm (59–71 in) from stage edge to mitigate audio level spikes and ensure performer comfort.

Multi-Configuration Scenarios

Full-Orchestra or Dance Performance

Use the full fan layout, protect central camera sightlines, and tighten cross aisles to the rear to maximize capacity. Prioritize reverberation-preserving finishes and reduce drapery deployment.

Conference or Keynote

Straighten central seating blocks, introduce writing tablets, and deploy more absorptive banners to sharpen speech clarity. Add center aisle to reduce average travel distance for Q&A.

Community Ceremony or Graduation

Increase aisle count for frequent stage access, dedicate left–right wings for processional staging, and allocate family clusters with slightly increased lateral spacing for comfort.

Wayfinding, Signage, and Crowd Psychology

Audiences follow light and movement. Use a clear luminance hierarchy—bright foyers, softly lit aisles, and warmly washed seat letters and row markers. Color accents can steer behavior: blue-green tones in circulation cool perceived density, a principle supported by color psychology literature that links cool hues with calm and order. Keep directional signs at both 1,500 mm eye height and overhead to serve mixed sightlines during crowd surges.

Planning Workflow and Visualization

Before committing to fixed seating foundations, I simulate multiple crowd and seating scenarios, testing obstruction grids and evacuation times. A practical approach is to map seat blocks, balcony noses, and camera wells with an interior layout planner so stakeholders can compare options in plan and section. If you need a fast sandbox to visualize alternatives and aisle spacing, a layout simulation tool helps teams stress-test flow, VIP segregation, and accessible routes in one place.

Maintenance, Durability, and Sustainability

Select fabrics at 100,000+ double rubs (Wyzenbeek) or Martindale 50,000+ for heavy public use, with replaceable seat pads to extend lifecycle. Choose low-VOC finishes and formaldehyde-free substrates to align with WELL intent and occupant health. Under-seat air grilles, if present, should avoid direct drafts at shin level; balance thermal comfort with quiet performance by using low-Sones diffusers and locating mechanical returns away from high-density seating to reduce background rumble.

FAQ

How many aisles should a large auditorium like Shanmukhananda Hall have?

Two main longitudinal aisles plus at least one central or offset aisle in the largest block usually balance capacity and egress. Add cross aisles every 10–14 rows to shorten exit paths and aid ushering.

What row spacing is most comfortable for long concerts?

A pitch of 900–1,000 mm (35–39 in) provides legroom and reduces seat disturbance. Balconies can be slightly tighter but avoid dropping below 850 mm (33.5 in) unless capacity pressures are extreme.

How do I ensure good sightlines from the back rows?

Use staggered seating, maintain a 12–22 degree vertical viewing angle to stage action, and verify the rear-stall eye line clears balcony soffits by at least 100–150 mm.

What lighting levels work for safe audience movement without ruining ambience?

Target 300–500 lux during seating, dim to 5–30 lux during performance. Keep aisle markers at low glare and ensure step nosings have luminous contrast for visual cues, referencing WELL v2 visual comfort principles.

Do seat materials affect acoustics?

Yes. Upholstered seats with similar absorption whether occupied or empty stabilize reverberation, improving consistency between rehearsals and full-house shows.

How can we integrate cameras without blocking views?

Install rear-stall camera wells on platforms around 1,800–2,100 mm high, aligned with center and thirds. Reserve clear sight corridors and avoid placing cameras on central egress routes.

What’s the recommended background noise level in lobbies and aisles?

Keep it near 45–55 dBA to preserve speech intelligibility and reduce cognitive load, a threshold aligned with workplace research insights from Steelcase on noise and performance.

Where should accessible seating go?

Distribute across the hall: front, mid, and rear stalls, and balcony where lift access allows. Always include companion seats and clear transfer spaces with unobstructed views.

How do we handle VIP protocols without disrupting flow?

Use side boxes or front balcony rows with dedicated access corridors. Provide nearby lounges and discrete entries, and coordinate ushering to maintain general audience circulation.

Can the hall switch quickly between concert and conference setups?

Yes, if the front stalls use modular seating or retractable sections. Plan power/data floor boxes in a grid and store acoustic banners for quick deployment to tune the room for speech.
