Simple DIY Home Elevators: A Practical Guide: Fast-Track Guide to Building Your Own Home Lift System

Residential mobility has moved beyond stair lifts and ramps. For certain homes, a small, low-speed elevator can make daily life safer and more comfortable—especially for aging-in-place, multigenerational households, or anyone managing heavy loads between floors. I approach compact home elevators as a hybrid of architecture, ergonomics, and building safety: the easiest installs respect structural constraints, power supply, and clear egress paths while keeping operations quiet and intuitive.

Early decisions hinge on data-backed human factors. The WELL v2 Movement concept encourages minimizing physical barriers and supporting accessible circulation, and its guidance aligns with practical realities like adequate door clearances and safe step-free transitions between rooms. Lighting inside and around the cab should target comfortable illuminance levels; typical residential task lighting of 300–500 lux reduces missteps and improves wayfinding, while glare control matters in reflective enclosures (IES illumination practices are a helpful benchmark via ies.org/standards). For layout planning, I often map turning radii of 1500 mm where possible to accommodate walkers or wheelchairs and ensure straightforward entries.

Cost and footprint must be grounded in what’s feasible for DIY-minded homeowners. Most simple residential elevators (vacuum tube or compact traction) require a shaft or vertical clearance of roughly 800–1200 mm diameter for tube systems or a rectangular 900–1200 mm by 1200–1500 mm for small cabs, plus overhead clearances per manufacturer. While exact models vary, I aim for a structural opening sized to local code and a load rating that meets typical personal transport ranges (often 350–500 lb minimum for small systems). For research on accessibility and movement patterns, the WELL Building Standard overview helps keep both circulation and comfort front and center: wellcertified.com.

Choosing the Right DIY-Friendly Elevator Type

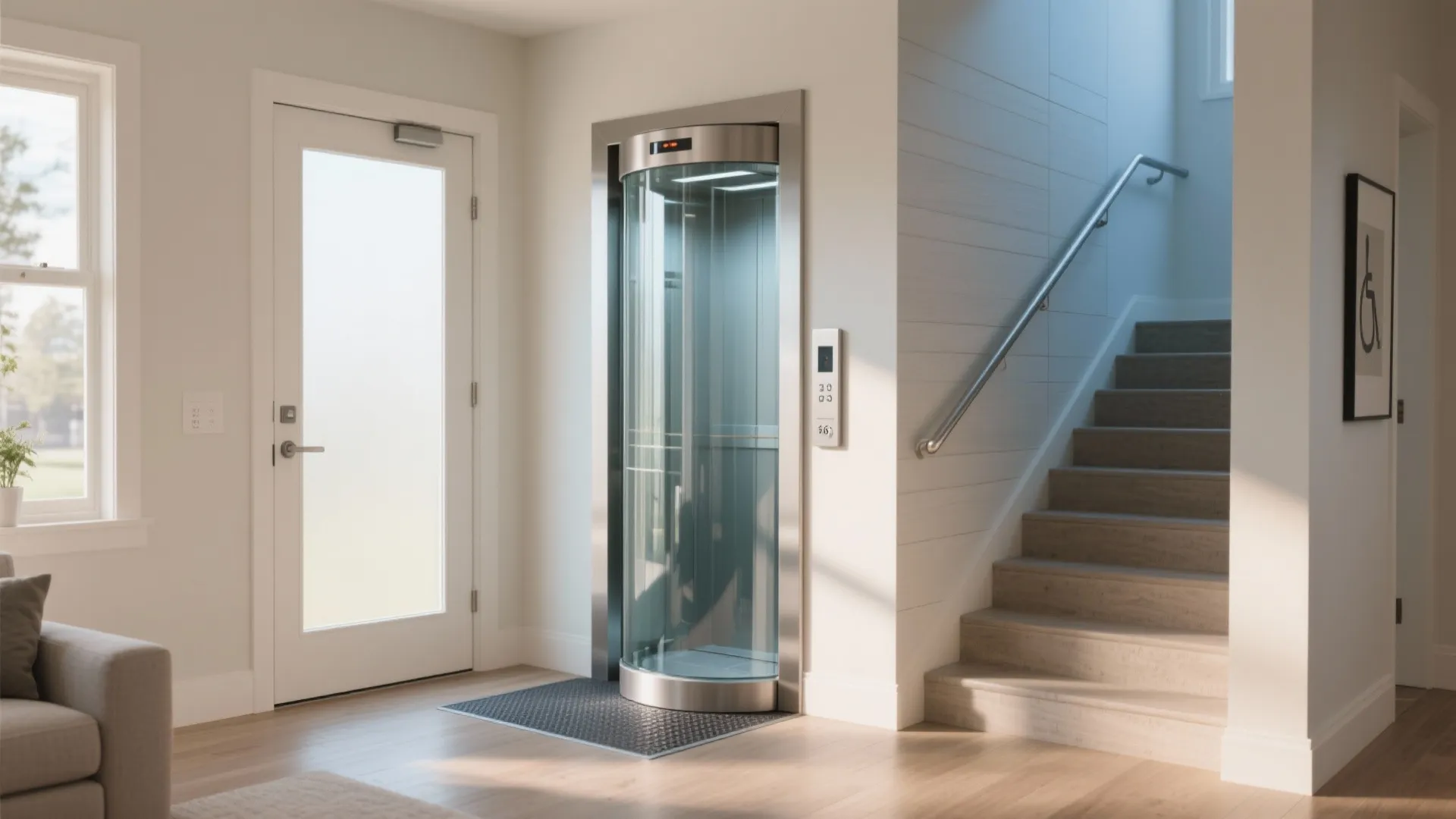

Compact home elevators generally fall into three categories: pneumatic vacuum (tube), traction with machine-room-less (MRL) systems, and hydraulic units. Vacuum units are popular for retrofits because they avoid a full pit and machine room; they rely on air pressure differences to move the cab and can be installed with minimal structural changes. MRL traction systems offer smooth ride quality and energy efficiency but need precise alignment and anchoring. Hydraulic options deliver strong lifting capacity and forgiving ride dynamics but add complexity with pumps, fluid management, and pits—usually better suited to professional installs.

Space Planning and Structural Considerations

I start by testing multiple locations: near the stairwell, in a corner stack, or adjacent to closets that can be vertically aligned. Prioritize clear approach paths, 36-inch doorways where possible, and a landing with non-slip flooring. If you are experimenting with floor-by-floor layouts and circulation, a room layout tool can speed up sightline checks, approach clearances, and transfer points: room layout tool.

Structure dictates feasibility. Identify load-bearing walls, joist directions, and potential transfer points to the foundation. For lighter tube systems, floor penetration and ring support might suffice; for traction or hydraulic systems, plan anchorage to studs, beams, or added steel posts. I typically consult a local structural engineer for verification—especially when cutting joists or creating new openings. Remember to keep emergency egress routes uncompromised and maintain code-required landing sizes.

Power, Controls, and Safety Layers

Small elevators often require dedicated circuits, stable voltage, and emergency lowering features. Place the controller in a dry, accessible location, with clear labeling. Add redundant lighting inside the cab at neutral color temperatures (around 3000–3500K) to reduce contrast and glare, and an emergency battery-backed light. Controls should be mounted between 34–48 inches high to support users of different statures, following common accessibility ergonomics. Limit sound transfer with acoustic gaskets around the door and soft-close hardware; basic acoustic comfort matters in open-plan homes where elevator noise can travel.

Ventilation, Lighting, and Interior Finishes

In small cabs, stale air builds quickly. Provide passive vents at high and low points or a low-watt fan for air exchange. For lighting, I lean on an even, diffuse source—recessed or linear LED—to reach 300–500 lux inside the cab, and 100–200 lux at landings for safe entry. Warm-neutral color temperatures keep faces legible and avoid harshness. Material choices should balance slip resistance (rubber or textured vinyl flooring), tactile comfort (rounded handrails), and low-reflectance wall panels to cut glare. Consider antimicrobial surfaces and durable laminates; they simplify cleaning and withstand daily wear.

Code Awareness and Permits

Even with DIY ambitions, most jurisdictions require permits and inspections for home elevators. Expect requirements around pit depth, door interlocks, emergency communications, and load ratings. Keep a record of installer manuals, wiring diagrams, and maintenance logs. If your plan includes platform lifts or enclosed chairs, check whether they fall under different classifications. I advise coordinating early with the local building department so you can time rough-in inspections with structural framing milestones.

Installation Phases I Recommend

1) Feasibility and location study: Verify structure, clearances, landing layouts, and power route. 2) Engineering check: Confirm loads, anchorage, and any joist alterations. 3) Permits and scheduling: Book inspections aligned with framing, electrical, and final sign-off. 4) Rough-in and shaft prep: Frame openings, reinforce supports, and route electrical. 5) Equipment install: Position the tube or cab, mount rails or hoist, integrate controls. 6) Safety commissioning: Test door interlocks, emergency lowering, lighting, and ventilation. 7) Final finishes: Seal trims, add handrails, and tune acoustic seals. 8) Maintenance plan: Monthly checks for ride smoothness, light function, and emergency systems.

Ergonomics, Behavior, and Color Psychology

Inside the cab, users benefit from intuitive orientation. A single handrail at 34–38 inches helps balance while turning. Control buttons should have high contrast and tactile feedback; color accents can cue behavior (soft green for open, clear white for floor indicators). Verywell Mind’s overview on color psychology illustrates how calming hues reduce stress responses in confined spaces; muted blues and warm neutrals are reliable choices for small enclosures.

Noise, Vibration, and Comfort

Pneumatic systems emit a distinct but manageable hum. Dampen resonance with rubber isolation pads at floor interfaces and acoustic backing behind wall panels. For traction systems, keep rails plumb and lubricated to prevent chatter. If family bedrooms are adjacent, consider offsetting the shaft or adding a resilient channel within walls. Quiet operation dramatically improves perceived quality and reduces nighttime disturbance.

Sustainability and Maintenance

Energy use in compact elevators is modest, but efficiency adds up. LED lighting, standby power management, and regular lubrication prevent unnecessary draw. Choose low-VOC finishes and durable materials to extend lifecycle. Set a quarterly checklist: inspect fasteners, test emergency descent, clean vents, and verify interlock timing. Keep a spare battery for lights and a clear contact path for service support—even DIY installs benefit from an annual professional safety review.

Common Mistakes to Avoid

- Undersizing landings or door widths, creating awkward entries.

- Ignoring structural loads and joist directions when cutting openings.

- Skipping permits and inspections, which can stall resale or insurance claims.

- Overlooking lighting levels and glare control inside the cab.

- Inadequate ventilation leading to uncomfortable rides.

- Poor acoustic detailing that amplifies noise into living spaces.

FAQ

Q1: What is the smallest practical footprint for a DIY home elevator?

A1: Tube-style units often fit within 800–1200 mm diameter clearances. Rectangular cabs typically need around 900–1200 mm by 1200–1500 mm plus overhead clearance and door approach space. Always verify with the manufacturer and local code.

Q2: Do I need a pit and machine room?

A2: Many pneumatic and MRL traction models avoid dedicated machine rooms. Pits may be minimal or unnecessary for tube systems, but traction and hydraulic units could require specific pits. Your local code and the chosen system dictate these needs.

Q3: How much electrical power is required?

A3: Expect a dedicated circuit sized per the equipment manual. Some compact systems run on standard residential voltage with controlled amperage; include emergency lighting on battery backup and test monthly.

Q4: What lighting levels are best inside the cab?

A4: Aim for 300–500 lux inside the cab for clear visibility and safe use, and 100–200 lux at landings. Neutral color temperatures around 3000–3500K reduce glare and improve facial recognition.

Q5: Can I install a DIY elevator without professional help?

A5: Portions of framing, finishing, and placement can be DIY, but most projects benefit from a structural engineer’s review and licensed electricians. Permits and inspections are commonly required for safety and compliance.

Q6: What are the main safety features to include?

A6: Door interlocks, emergency lowering, battery-backed lighting, clear controls within 34–48 inches, and handrails at 34–38 inches. Ventilation and acoustic seals also improve comfort and safety.

Q7: How noisy are compact elevators?

A7: Pneumatic systems produce a soft hum; traction units can be quiet when rails are true and maintained. Noise control improves with isolation pads, resilient wall channels, and gasketing around doors.

Q8: What finishes work best for small elevator cabs?

A8: Low-reflectance wall panels to reduce glare, textured vinyl or rubber flooring for slip resistance, rounded handrails for comfort, and durable laminates that clean easily.

Q9: How do I plan the elevator around existing rooms?

A9: Test vertical stacks near stairwells or closets and ensure clear 36-inch doorways when possible. Use an interior layout planner to simulate approach paths, turning radii, and sightlines before cutting openings.

Q10: Is there guidance on accessibility and movement?

A10: The WELL v2 Movement concept promotes accessible, barrier-free circulation. Its principles support practical choices like clear landings, step-free entries, and intuitive controls aligned to common reach ranges.

Q11: How often should maintenance be done?

A11: Monthly checks for lighting and basic functions, quarterly inspections of fasteners and ventilation, and an annual professional safety review keep small systems reliable.

Q12: Will a DIY elevator affect home resale?

A12: When permitted, inspected, and installed cleanly with good finishes, an elevator can be a positive for accessibility-minded buyers. Unpermitted or poorly executed installs may hurt resale—documentation matters.
