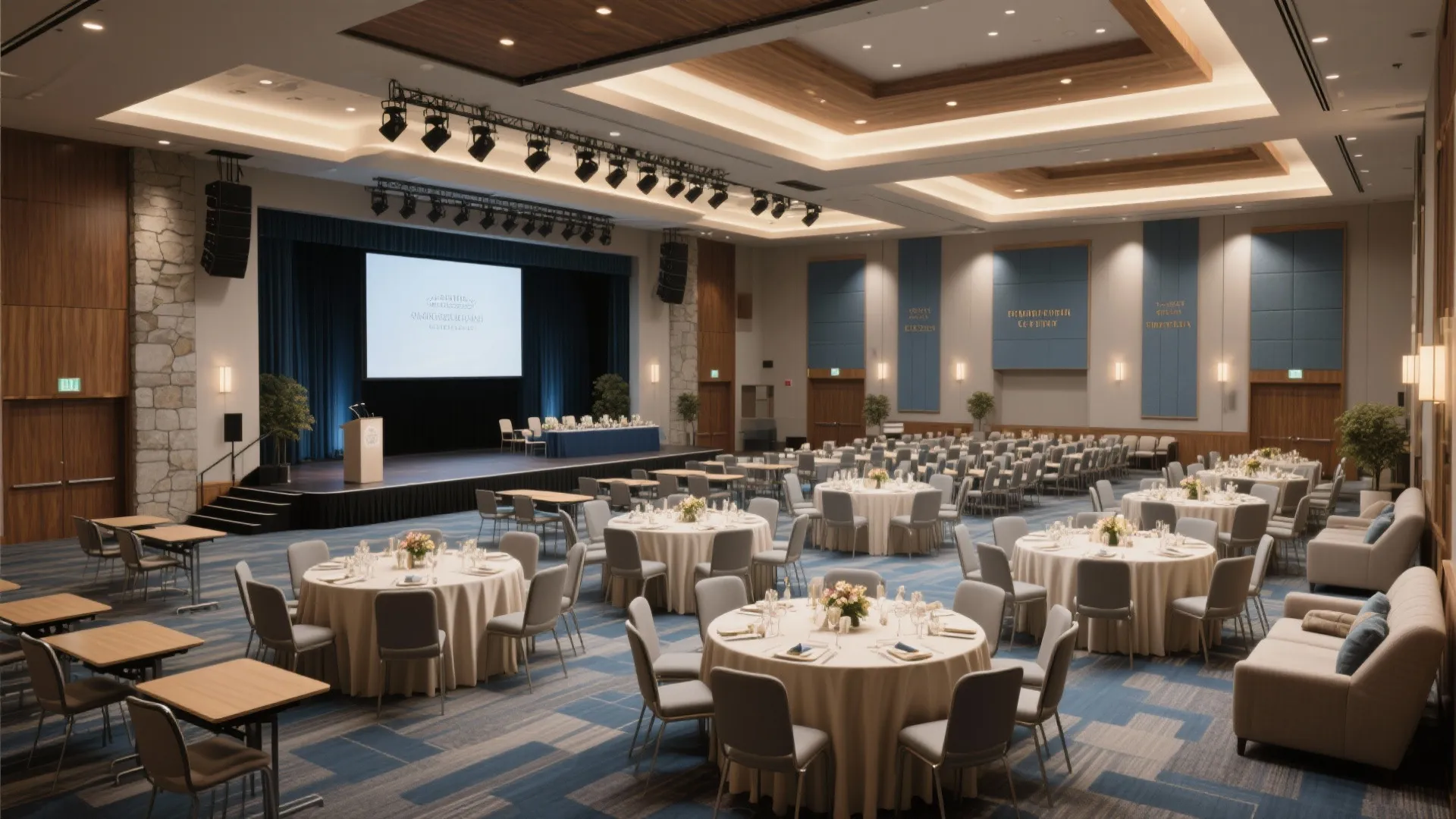

SKS Function Hall Design: Maximize Your Event Space: Fast-Track Guide to Planning the Perfect SKS Function Hall Layout

I approach every function hall as a flexible canvas: it must host a gala on Friday, a regional conference on Saturday, and a family celebration on Sunday without missing a beat. Getting there requires precise spatial ratios, smart circulation, lighting discipline, and acoustics that can swing from keynote clarity to dance-floor energy—all without sacrificing comfort.

To calibrate comfort and performance, I anchor decisions in credible benchmarks. WELL v2 recommends 300–500 lux for general ambient lighting, rising to 500–1,000 lux for task-intense activities, while controlling glare and contrast for visual comfort; these targets keep eyes relaxed during long programs (source: WELL v2 Light feature at wellcertified.com). For seats and tables, I plan around ergonomic zones: a 760 mm (30 in) table height with 460–480 mm (18–19 in) seat height and at least 460–610 mm (18–24 in) of table clearance per person to keep posture neutral across multi-hour events. Color plays a role too: research on color psychology notes that blues can support calm focus, while warm hues can energize social interaction (verywellmind.com/color-psychology).

Define the Space DNA: Capacity, Program, and Flow

I start by mapping the event mix and capacity bands. For banquet rounds (60 in/152 cm), I budget 10–12 sq ft per guest; for classroom setups, 14–20 sq ft per guest; and for theater rows, 6–8 sq ft per guest, depending on local code and aisle requirements. Translating this into a day-to-day plan prevents overbooking and awkward transitions. I keep the primary circulation loop at 1.8–2.4 m (6–8 ft) clear width, with secondary aisles at 1.2–1.5 m (4–5 ft), so service can flow without brushing guests. When exploring layout permutations, a room layout tool lets me simulate seating counts, aisle logic, and service routes before I commit on-site: interior layout planner.

Stage, AV Sightlines, and the 60/40 Rule

For most halls, I apply a 60/40 balance: 60% audience footprint, 40% support (stage, back-of-house, aisles, and service). A stage height of 610–760 mm (24–30 in) keeps sightlines clear for rooms up to ~30 m (100 ft) deep; beyond that, projectors and IMAG screens become non-negotiable. I model cone-of-vision angles so no seat exceeds a 30–35° off-center viewing angle to the main screen. Keep front-row distance to screen at 1.5× the screen height and back-row distance at 6× for legibility in keynote modes.

Lighting Layers that Work Hard

I design three layers: ambient, focal, and effect. Ambient at 300–400 lux for receptions, bumping to 500 lux for workshops. Focal lighting picks out podiums, buffet runs, and signage—narrow-beam spots keep contrast without glare spill. Dimming curves should allow smooth transitions from 100% to 10% without flicker; use 2700–3000K for dining warmth and 3500–4000K for presentations that need alertness. Glare control is critical: keep Unified Glare Rating low and shield downlights over reflective surfaces. For compliance and good practice, I reference IES recommendations for event and assembly spaces (ies.org/standards).

Acoustic Comfort: Keep Voices Clear, Energy High

Large rooms can turn into echo chambers. I aim for a reverberation time (RT60) around 0.6–1.0 seconds for speech-forward programming. Achieve this with a mix of absorptive ceiling clouds, upholstered seating, drapery, and wall panels placed at first-reflection points. Isolate mechanical noise (NC 30–35 target) and keep subwoofers decoupled from the slab to avoid structure-borne boom. For flexible partitioning, use operable walls with high STC ratings to support concurrent breakouts.

Seating Strategies that Max Out Capacity Without Feeling Cramped

For banquet rounds, I prefer 8 per 60-inch table for comfort; 10 is possible but compromises egress and server reach. Maintain 1.8 m (6 ft) between table centers for clean aisle runs. In theater configurations, stagger rows to protect sightlines, and keep a minimum 1,120 mm (44 in) cross-aisle every 10–12 rows. Accessible seating should be integrated throughout, not relegated to corners—level changes need compliant ramps with 1:12 slope and 1.5 m (5 ft) landings.

Back-of-House: The Hidden Performance Multiplier

What guests never see often determines event quality. I allocate 15–20% of floor area to service: pantry with handwashing, hot/cold holding, ice, and 1.5 m (5 ft) turning radii; AV control with direct line-of-sight to stage; storage bays for three complete layout kits (banquet, theater, classroom) to accelerate flips. A dedicated vendor load path with at least 2.4 m (8 ft) clear height protects the front-of-house finishes and keeps event set-up punctual.

Color, Materials, and Mood that Adapt

I build a neutral base palette—stone, timber veneers, and acoustic fabrics in balanced mid-tones—so lighting can paint the mood. Warm neutrals soften formal dinners; cooler tones sharpen conferences. Choose durable, cleanable finishes with solid noise absorption coefficients: fabric-wrapped panels (NRC 0.7+) and carpet tiles with cushion backing to tame footfall. Chairs need robust upholstery (100,000+ double rubs, Wyzenbeek) and stack-friendly frames to turn over quickly.

Power, Data, and Technology Readiness

Nobody complains about too many floor boxes. I grid power and data at 6–8 m (20–25 ft) centers, with supplementary wall drops near stage wings. Plan for hybrid events with ceiling microphone arrays, PTZ camera sightlines, and blackout strategies for daytime projection. Provide secure, ventilated AV racks and clearly labeled patch panels so traveling crews can plug in without guesswork.

Wayfinding, Entries, and Guest Experience

First impressions start at the threshold. A vestibule with acoustic separation prevents outdoor spill. I like a pre-function zone sized at 0.6–0.9 sq m (6–10 sq ft) per guest for registration tables, sponsor walls, and mingling. Wayfinding should be modular—magnetic or slot-in signage—to change identity per event. Keep restrooms on a direct path from the hall without crossing catering routes.

Sustainability and Operations

LED fixtures with high efficacy and good TM-30 color rendition reduce energy while keeping skin tones natural. Specify low-VOC materials and durable finishes to cut lifecycle costs. Stackable furniture, modular stages, and standardized linen sizes reduce storage volume and laundering.

Test Your Layout Before the First Booking

Before I sign off, I pressure-test three layouts: maximum-capacity theater, mid-capacity banquet, and workshop classroom. I simulate egress, tray service, and cable runs to catch bottlenecks early. A room design visualization tool helps teams align on counts, service access, and AV placement in minutes rather than days: room layout tool.

Checklist: Dimensions I Trust in Most Halls

- Table clearances: 1.5–1.8 m (5–6 ft) between table centers; 1.2 m (4 ft) minimum from table edge to wall.

- Stage: 1 m (3.3 ft) depth per presenter, plus 1.2–1.5 m (4–5 ft) for lectern and gear.

- Buffet: 1.5 m (5 ft) guest lane, 0.9 m (3 ft) staff lane behind.

- Bar: 1 per 75–100 guests for cocktail-heavy events.

- Doors: 1 m (3 ft 3 in) clear width minimum; double leaves for primary entries.

- Ceiling height: 4.5–6 m (15–20 ft) preferred to support lighting truss and acoustics.

FAQ

How much space do I need per guest for different setups?

Plan 6–8 sq ft per person for theater rows, 10–12 sq ft for banquet rounds, and 14–20 sq ft for classroom. These bands keep aisles functional and respect typical egress needs; always cross-check with local code.

What lighting levels work for mixed-use halls?

Target 300–400 lux ambient for receptions, ~500 lux for workshops, and flexible accent layers. This aligns with WELL v2 guidance on comfortable task illumination and glare control.

How do I improve speech clarity in a large hall?

Reduce reverberation to about 0.6–1.0 seconds using ceiling clouds, wall panels, and soft finishes. Position loudspeakers for even coverage and isolate mechanical noise to NC 30–35.

What’s the ideal stage height and screen placement?

Stage at 610–760 mm (24–30 in) for typical rooms up to 30 m (100 ft) deep. Keep front-row viewing distance at 1.5× screen height and back-row at about 6× for legibility.

How can I flip the room quickly between events?

Store three layout kits, use stackable chairs and modular staging, and keep clear service corridors. A pre-visualized plan with an interior layout planner shortens changeovers and avoids rework.

Which colors help different event types?

Neutral base finishes keep versatility. Cool blues and blue-greens support focus for conferences; warmer ambers and terracottas boost sociability for receptions, consistent with color psychology research.

What power and data should I provision?

Floor boxes on a 6–8 m (20–25 ft) grid, extra drops at the stage, and dedicated AV circuits. Add ceiling points for projectors and camera mounts to support hybrid and streaming needs.

How do I keep the space from feeling cramped at maximum capacity?

Respect aisle widths, stagger seating for sightlines, and integrate accessible positions across the room. Use lighter finishes and layered lighting to maintain visual depth and comfort.

Do I need operable partitions?

If your program includes simultaneous breakouts, choose high-STC operable walls. They expand revenue opportunities by allowing concurrent events without sound bleed.

What finishes are both durable and acoustic-friendly?

Carpet tiles with cushion backing, fabric-wrapped acoustic panels (NRC 0.7+), and high-durability upholstery (100,000+ double rubs) balance noise control with long service life.
