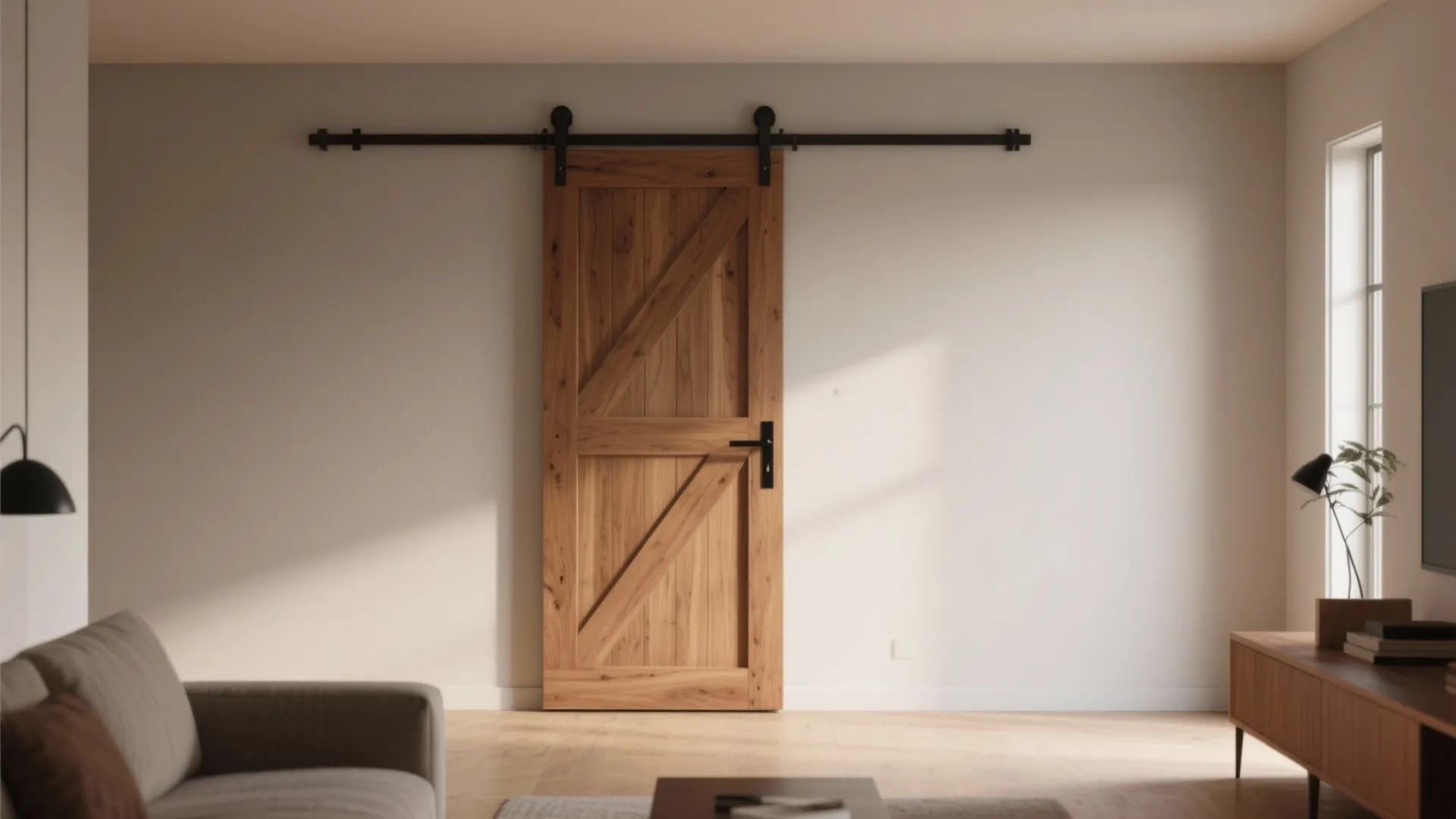

Sliding Barn Door DIY: A Step-by-Step Guide for Beginners: Fast-Track Guide to Creating Your Own Sliding Barn Door in No Time

I’ve installed more sliding barn doors than I can count—both in modern apartments and century homes—because they save floor space, hide clutter, and add warmth. A successful DIY install comes down to accurate planning, stable structure, and smooth hardware alignment. I’ll walk through the essentials, from measuring and materials to mounting, clearances, and finishing, including safety notes and troubleshooting.

Before drilling a single hole, confirm door size and wall structure. For smooth travel, aim for a door 1–2 inches wider than the opening on each side; this improves privacy and light control. Ergonomically, handle centerlines between 34–38 inches above finished floor tend to suit most users—a band often referenced in workplace and interior ergonomics guidance. On comfort: glare and bright contrast at entries reduce visual clarity; the Illuminating Engineering Society recommends balancing light levels and minimizing direct glare near task and circulation paths (IES standards).

From a workflow standpoint, a sliding door can reduce swing clearance conflicts in tight homes. Research on space efficiency and circulation highlights how clear paths improve perceived usability and stress; Gensler’s workplace studies repeatedly emphasize uninterrupted movement and intuitive wayfinding as factors in user satisfaction. If you’re planning multiple doors or a closet wall, run a quick layout simulation to validate overlaps and stop points using a layout simulation tool: room design visualization tool.

Plan the Opening and Choose the Door

Measure the finished opening width and height, then add 2–4 inches to door width to cover trim and maintain privacy. For height, typical barn doors are 80–84 inches, but ensure you have at least 6–7 inches of clear space above the opening for track hardware. If there’s crown molding, either remove it locally or set the track below and accept a slightly lower door head.

Pick a style that suits your interior palette and natural light. A solid wood plank door dampens sound better than hollow-core. If daylight is crucial, consider a glazed or frosted panel—but plan privacy accordingly. From color psychology, warmer neutrals (taupe, clay, soft oak) read inviting and reduce visual strain; cooler tones (slate, cloud gray) feel clean and contemporary, especially with black hardware.

Confirm Structure and Backer Board

Sliding tracks need a secure substrate. Find studs with a reliable stud finder and mark centerlines. In older homes with inconsistent studs, install a continuous backer board: a 1x4 or 1x6 hardwood or plywood strip, anchored into studs with structural screws. The track then fastens to the backer, distributing load evenly and avoiding drywall failure.

Allow a 1/2–3/4 inch gap between door and wall to clear casing and prevent rubbing. If you have protruding trim or a thermostat, add stand-off spacers supplied with the hardware or choose low-profile trim around the opening.

Select Hardware and Track Length

Choose a track at least twice the opening width for full clear. For a 36-inch door, a 72-inch track is typical. Opt for steel tracks with ball-bearing rollers; they run quieter and resist flat spots. Soft-close kits are worth the upgrade—less impact on stops and improved user experience.

Confirm hardware finish in relation to your interior metals: black (matte) is forgiving; brushed nickel pairs well with cooler palettes; aged brass elevates warm woods. If your home is near the coast, powder-coated hardware resists corrosion more than raw steel.

Materials and Tools

Materials: door slab, sliding track kit (rollers, standoffs, stops, floor guide), backer board (optional), structural screws, trim screws, shims, wood filler, finish (paint or stain), handle/flush pull, soft-close kit (optional). Tools: level (at least 24 inches), tape measure, square, drill/driver, impact driver (for structural screws), studs finder, miter saw or circular saw (if adjusting door height), countersink bit, sanding block, and personal protective equipment.

Step-by-Step Installation

1. Prep and Finish the Door

Sand edges and faces; pre-drill handle holes before finishing to avoid chipping. Prime and paint or stain and seal. For stain, apply in thin coats and seal with a polyurethane or waterborne clear—low-VOC products improve indoor air quality and are easier to live with while drying.

2. Mount the Backer Board

Cut the backer to track length plus 1–2 inches for aesthetics. Level it above the opening, confirm stud locations, and drive structural screws at least 2.5–3 inches into studs. Check level twice; the track will mirror any tilt.

3. Install the Track

Position the track so the door clears the floor by 1/2–3/4 inch once hung. Fasten through the standoffs into the backer. Add end stops loosely for now.

4. Attach Rollers to the Door

Follow the kit’s hole spacing exactly. Keep rollers equidistant from the door edges to prevent skew. Tighten hardware snugly and recheck with a square.

5. Hang the Door and Set the Floor Guide

Lift the door onto the track. Install the floor guide aligned with the door’s bottom groove so the panel does not swing out from the wall. A T-guide or U-guide works; ensure it’s centered and clears baseboards.

6. Fine-Tune Stops and Soft-Close

Set the open and closed stops to protect trim and fingers. If using a soft-close kit, mount catches per the instructions, test engagement at both ends, and adjust for smooth deceleration.

7. Install Handle or Pull

For overlapping doors, use a flush pull on the backside to avoid wall contact. Mount the primary handle at a comfortable height (34–38 inches AFF is a proven ergonomic zone) and ensure screw ends do not protrude through thin doors.

Clearances, Ergonomics, and Safety

Maintain 1–2 inches overlap past the opening edge for privacy. Keep 2–3 inches from the door edge to the handle centerline to avoid finger pinch when sliding into stops. If children use the door, consider soft-close and anti-jump brackets. Lighting matters: avoid placing bright downlights directly above the track; aim for consistent ambient light and a vertical wash on the door face to reduce contrast and glare (aligned with IES guidance).

Acoustics and Material Choices

Solid core doors reduce transmission and feel more substantial. Add a thin felt or silicone strip along the door’s perimeter if you need quieter closure—mind friction near the floor guide. Hardware with nylon wheels is quieter than metal-on-metal rollers. Finish choices affect perceived texture; matte paints hide fingerprints better than gloss and reduce visual glare.

Common Mistakes to Avoid

Skipping stud anchoring (drywall alone won’t hold), misaligning the floor guide, ignoring door warp (check squareness), and mounting tracks without verifying plumb on adjacent trim. Also, under-sizing the door leads to light leaks; over-sizing beyond trim can snag on casings or outlets.

Layout Planning for Multiple Doors

If you’re stacking two doors on one long track, ensure each door has its own stop position and that handles clear each other. For intersecting doors (e.g., closet plus bathroom), simulate paths and stop zones with an interior layout planner: room layout tool. Check switch locations and thermostat protrusions; relocate if necessary to maintain flush travel.

Finishing Touches and Maintenance

After a week of use, retighten roller bolts and verify stop screws. Wipe tracks with a dry cloth; avoid heavy lubricants that attract dust—use a light silicone if needed. Repaint scuffs promptly and maintain the floor guide alignment after seasonal floor movement.

FAQ

What size should my barn door be relative to the opening?

Choose a door 1–2 inches wider than the opening on each side and at least the opening height. This overlap improves privacy and sightline coverage.

Do I need a backer board if I have solid studs?

If your studs align with the track holes and you can anchor every point, you may skip a backer. A backer adds distribution and is safer on older or irregular framing.

How high should I mount the handle?

Set the handle between 34–38 inches above finished floor for comfortable reach across most users, consistent with ergonomic practice.

What track length is best?

Use a track at least twice the opening width to allow the door to fully clear. If space is limited, accept partial clear or consider a bi-parting setup.

Can sliding doors provide good acoustic privacy?

Better than curtains, less than a well-sealed swing door. Solid core doors and perimeter seals help, but expect some sound leakage at the sides.

Is soft-close worth it?

Yes. It reduces force at stops, lowers noise, and improves safety for kids. It also prevents hardware loosening over time.

How do I avoid glare on a dark door with black hardware?

Keep ambient light even and avoid intense downlights directly above the track. A wall wash or diffused lighting reduces harsh reflections, aligning with IES recommendations on glare control.

What floor guide should I choose?

A T-guide or U-guide that matches the door’s bottom groove works well. Ensure the guide is aligned and clears baseboards to prevent rubbing.

Can I install over tile or concrete?

Yes. Use appropriate masonry anchors for the backer board and floor guide. Confirm drill points to avoid cracking tiles—mask and start with a small pilot.

How do I plan two doors on one wall?

Stagger handles, set dedicated stops, and confirm overlap zones. Validate with a room layout tool to prevent collisions and switch obstructions.

What finish resists fingerprints?

Matte paints and satin polyurethane topcoats hide smudges better than gloss. Brushed hardware shows fewer prints than polished finishes.

How often should I maintain the system?

Check fasteners after the first week and every six months. Keep the track clean and re-align the floor guide if seasonal movement occurs.
