Small Bathroom Laundry Combo: 5 Layout Ideas: Space-saving layouts and practical tips for a small bathroom with shower and laundry (5 smart inspirations)

I once had a client insist their new tiny bathroom should feel like a spa, store a week’s worth of towels, and hide a washer-dryer all behind a single sliding door — I nearly asked them to move into a yacht. That challenge forced me to think differently about zoning, and it’s how I started treating every cramped bathroom as a design puzzle rather than a limitation. If you’re curious about turning a compact space into something both functional and pleasantly surprising, you’re in the right place. For quick visualization I often start with a compact layout study to test placement before committing.

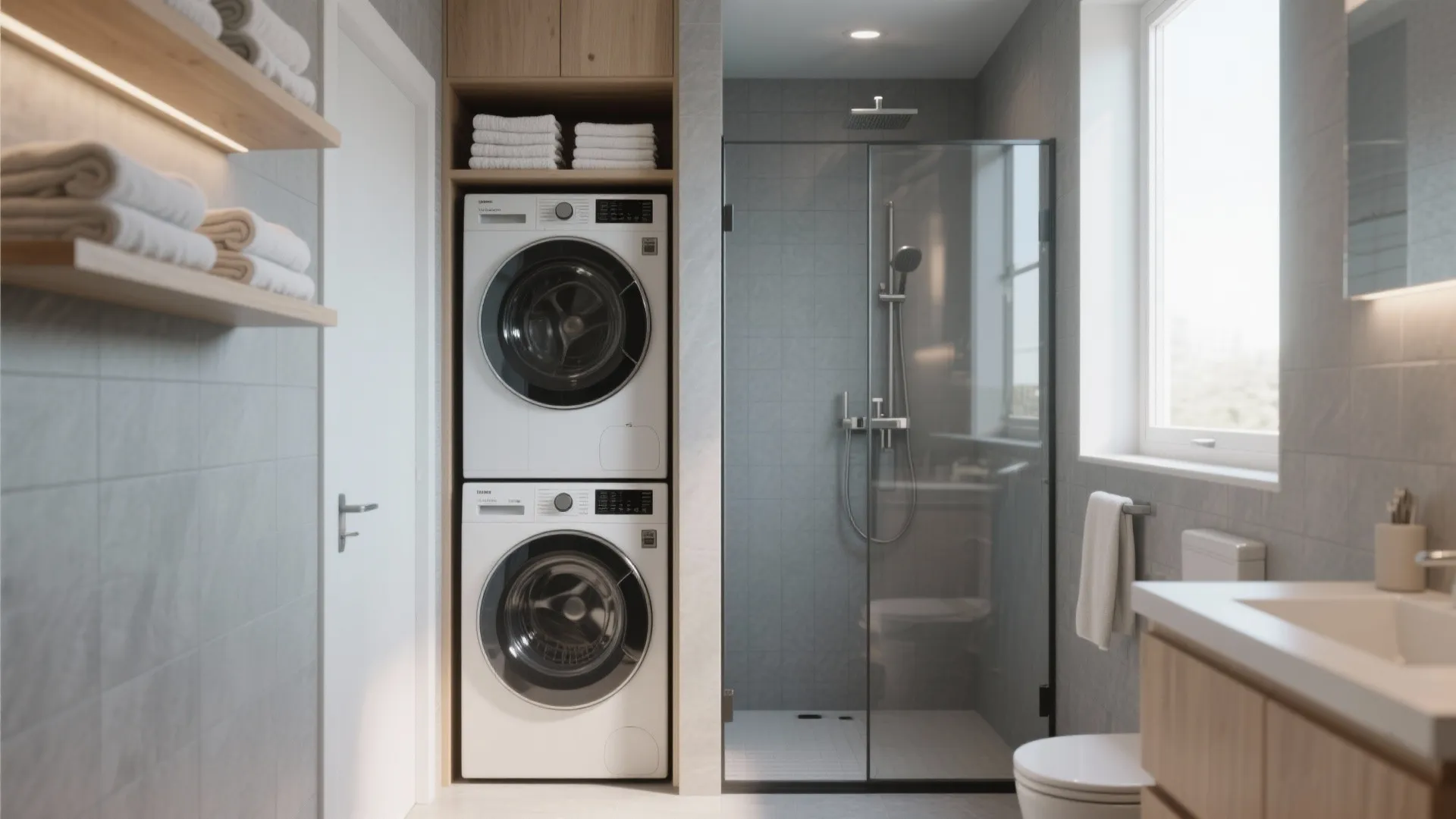

1. Stacked Laundry Beside the Shower

My go-to for really narrow footprints: stack a washer and dryer in a shallow closet right next to the shower. It keeps plumbing lines grouped, saves floor area, and lets you run a shared vent/laundry drain if local code allows. The trade-off is less storage and potentially tighter access to the shower door, but with a glass shower panel and slim shelves above the stack, it feels airy rather than cramped.

save pin

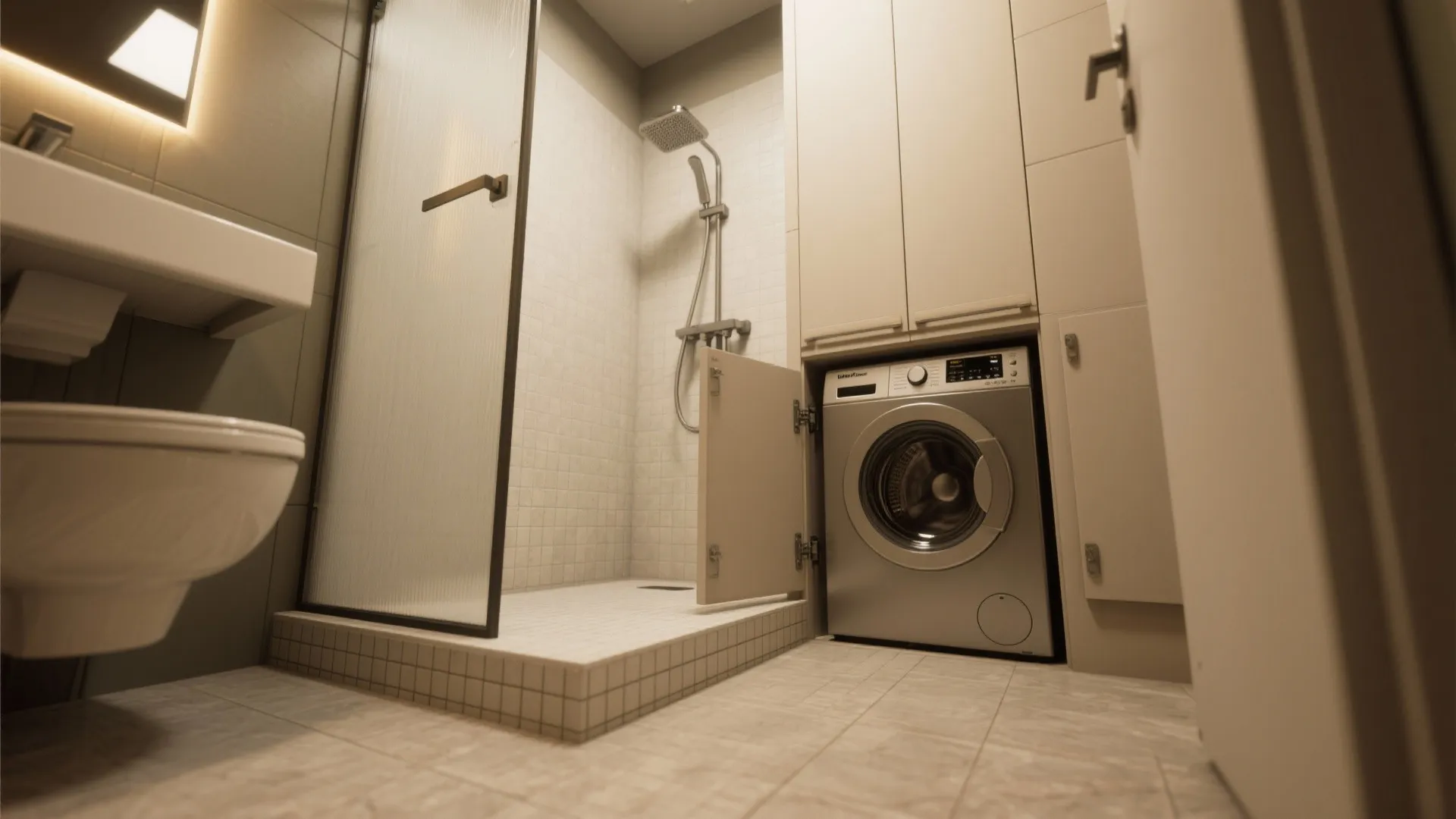

2. Shower-Over-Laundry with a Raised Platform

Yes, it looks weird in sketches, but a raised shower platform that hides the washer beneath can work in apartments with low ceilings and lots of vertical tolerance. I used this once when floor replacement was planned anyway — we built a shallow pit for the washer and kept the plumbing accessible via removable panels. It’s bold and requires careful waterproofing, but the payoff is a completely open floor area and hidden laundry noise.

save pin

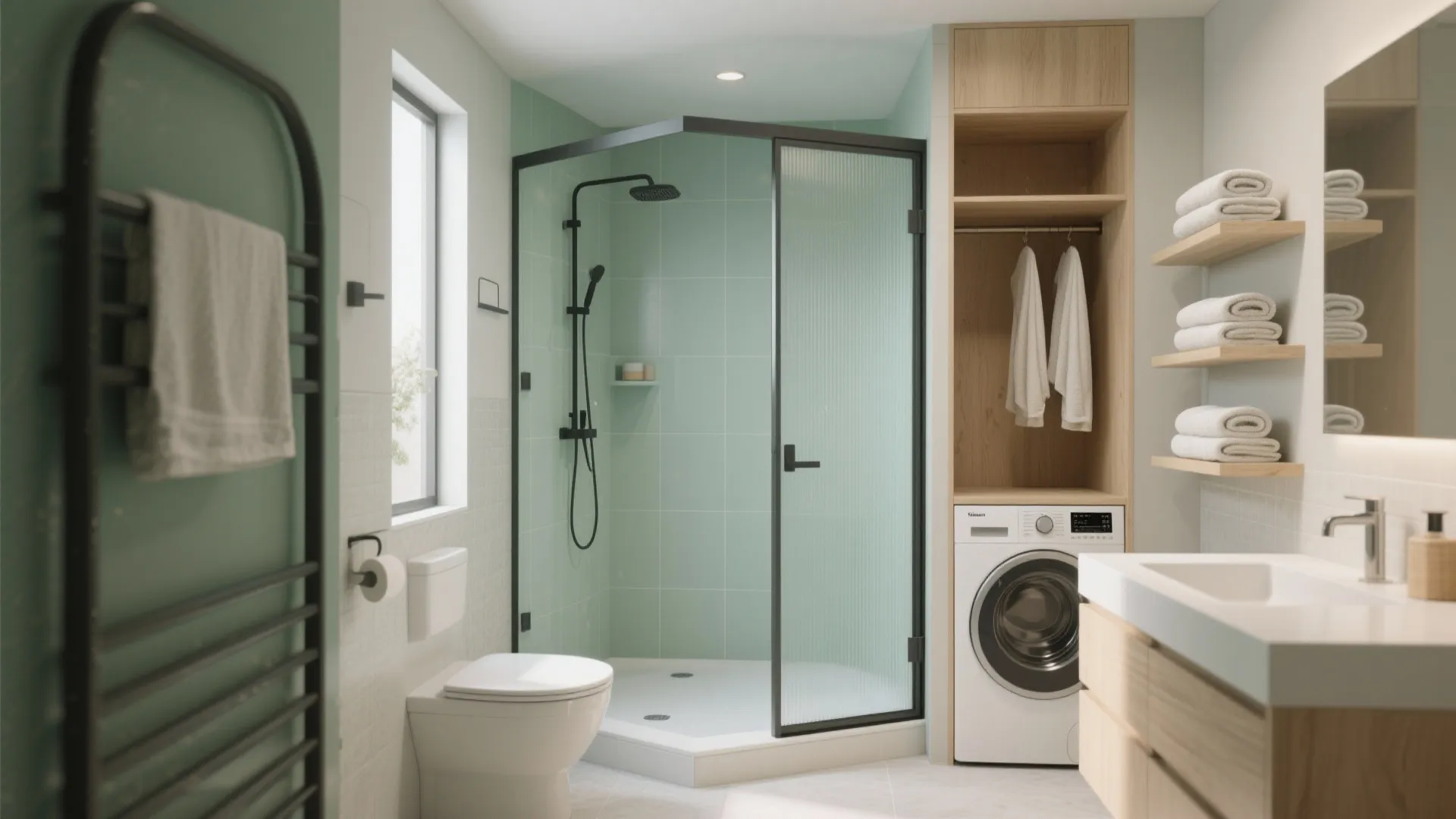

3. Corner Shower + Closet-Style Laundry Nook

Turning a corner into a tidy laundry nook next to a quadrant or neo-angle shower is one of my favorite crowd-pleasers; it maximizes circulation and creates a visual break between wet and dry zones. If you want to mock this up quickly, I recommend you draw a precise plan to test door swings and towel reach. Downsides? You’ll need slim appliances and possibly a custom bifold door to keep the footprint efficient.

save pin

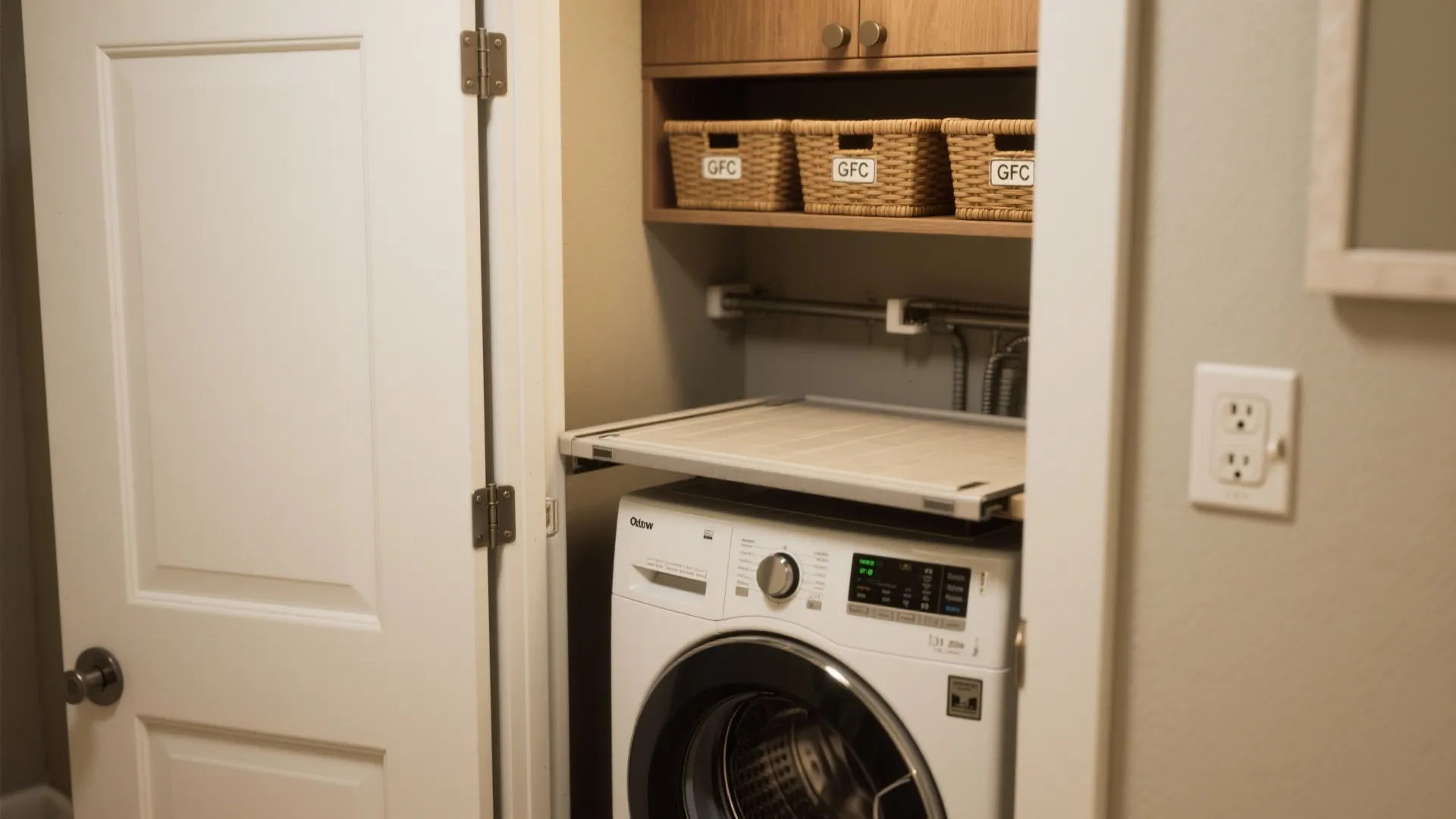

4. Pocket Door + Fold-Down Laundry Counter

Never underestimate the magic of a pocket door — it frees up swing space and instantly improves flow. Paired with a fold-down folding counter over front-load laundry, you get a flexible prep surface that disappears when not in use. It’s low cost and high convenience, though hinges and supports need good detailing so you don’t end up with a wobbly counter after a year of use.

save pin

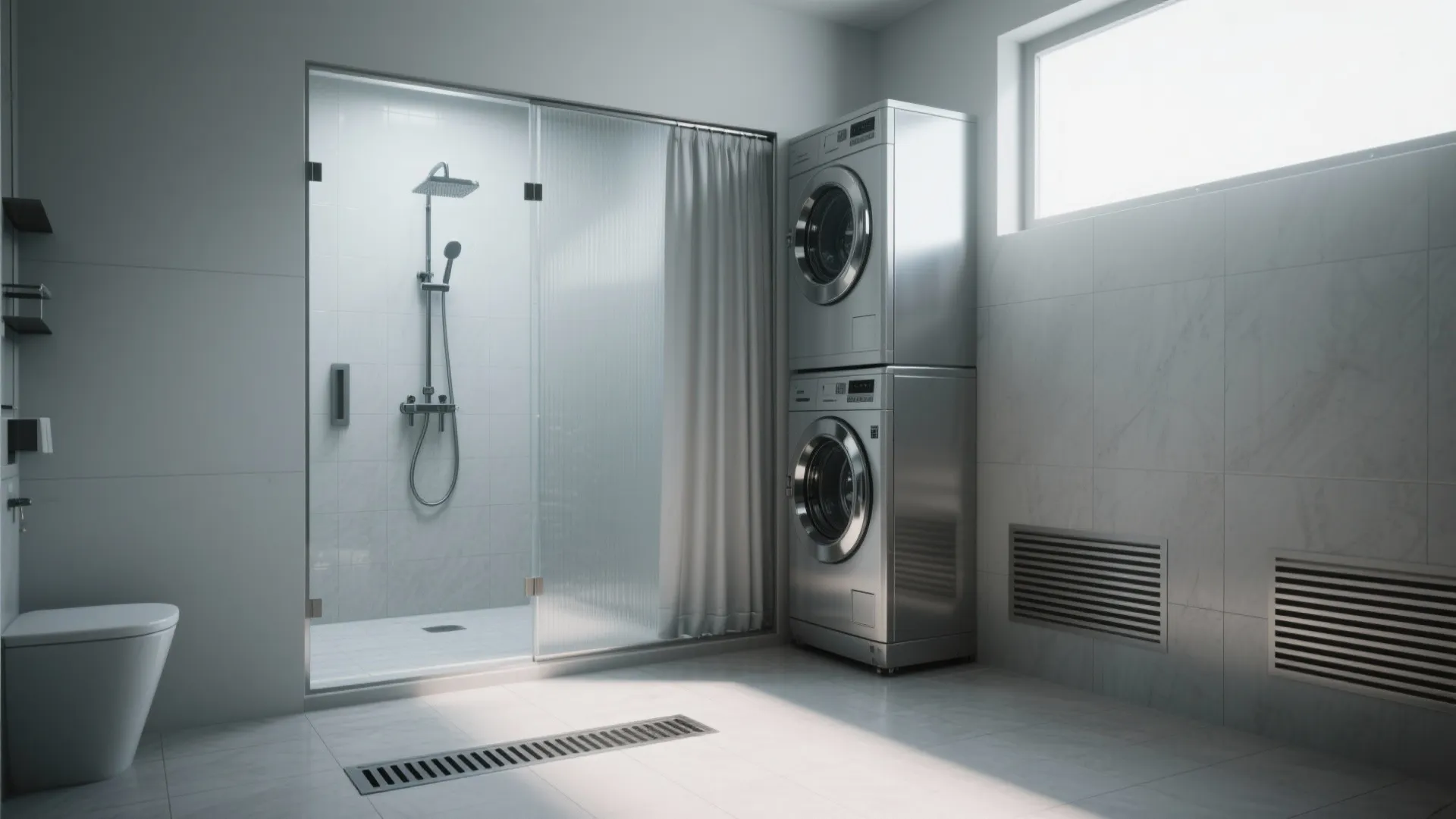

5. Wet Room Approach with Concealed Laundry Tower

If waterproofing and drainage aren’t an issue, turning the whole room into a wet room gives you the freedom to tuck a laundry tower behind a waterproof partition or curtain. I once remodeled a small flat where the wet-room approach allowed us to fully integrate the shower and laundry without awkward pockets. It’s sleek and minimal, but expect higher upfront waterproofing costs and careful ventilation planning.

save pin

Practical budget and installation tips

Plumbing adjacency saves money: cluster shower, sink and washer to minimize new piping runs. Invest in good ventilation and a condensate plan for stacked units to avoid mold and odors. When in doubt, visualize the layout with a 3D mock-up — I often render the final layouts for clients so they can ‘walk’ the space and catch clearance issues before installation. For realistic previews, try visualizing the layout in 3D.

save pin

FAQ

Q1: Can I legally put a washer and dryer in a bathroom?

A: That depends on local building and electrical codes. Many areas allow it if appliances are properly grounded, on GFCI circuits, and if ventilation meets code; always check your municipality’s rules before buying equipment.

Q2: How much clearance does a washer need in a small bathroom?

A: Plan for at least 1–2 inches on the sides for connections and a few inches behind for hoses and venting. Allowing extra space makes maintenance and cleaning far easier than a tight, immovable fit.

Q3: Is stacked laundry safe next to a shower?

A: Yes, if you ensure splash protection and use moisture-rated cabinets or finishes; keep electrical outlets high and GFCI-protected. Regular inspection of seals and hoses reduces risk.

Q4: Do I need a vented dryer in a bathroom?

A: Vented dryers require thoughtful routing for the exhaust; if venting through an exterior wall isn’t feasible, consider a high-quality condenser or heat-pump dryer. Proper dryer venting also reduces lint buildup and fire risk.

Q5: What about ventilation and humidity control?

A: A powerful exhaust fan rated for the room size and a sensible run schedule are essential; consider a humidity-sensing fan so it runs when needed and conserves energy.

Q6: Can I use a combination washer-dryer?

A: Combo units save space because they wash and dry in one drum, but they typically take longer to dry and may have smaller capacities; they’re ideal for singles or couples but less so for families with heavy laundry loads.

Q7: Any safety resources I should read for dryer fires?

A: Yes — according to the National Fire Protection Association (NFPA), clothes dryers are a leading cause of household fires, and they recommend regular lint cleaning and professional vent installation (source: https://www.nfpa.org).

Q8: How can I hide laundry clutter without losing function?

A: Use sliding or bi-fold doors, removable panels for service access, and a fold-away counter for folding. Keep frequently used supplies on open, labeled baskets to avoid opening cupboards every time.
