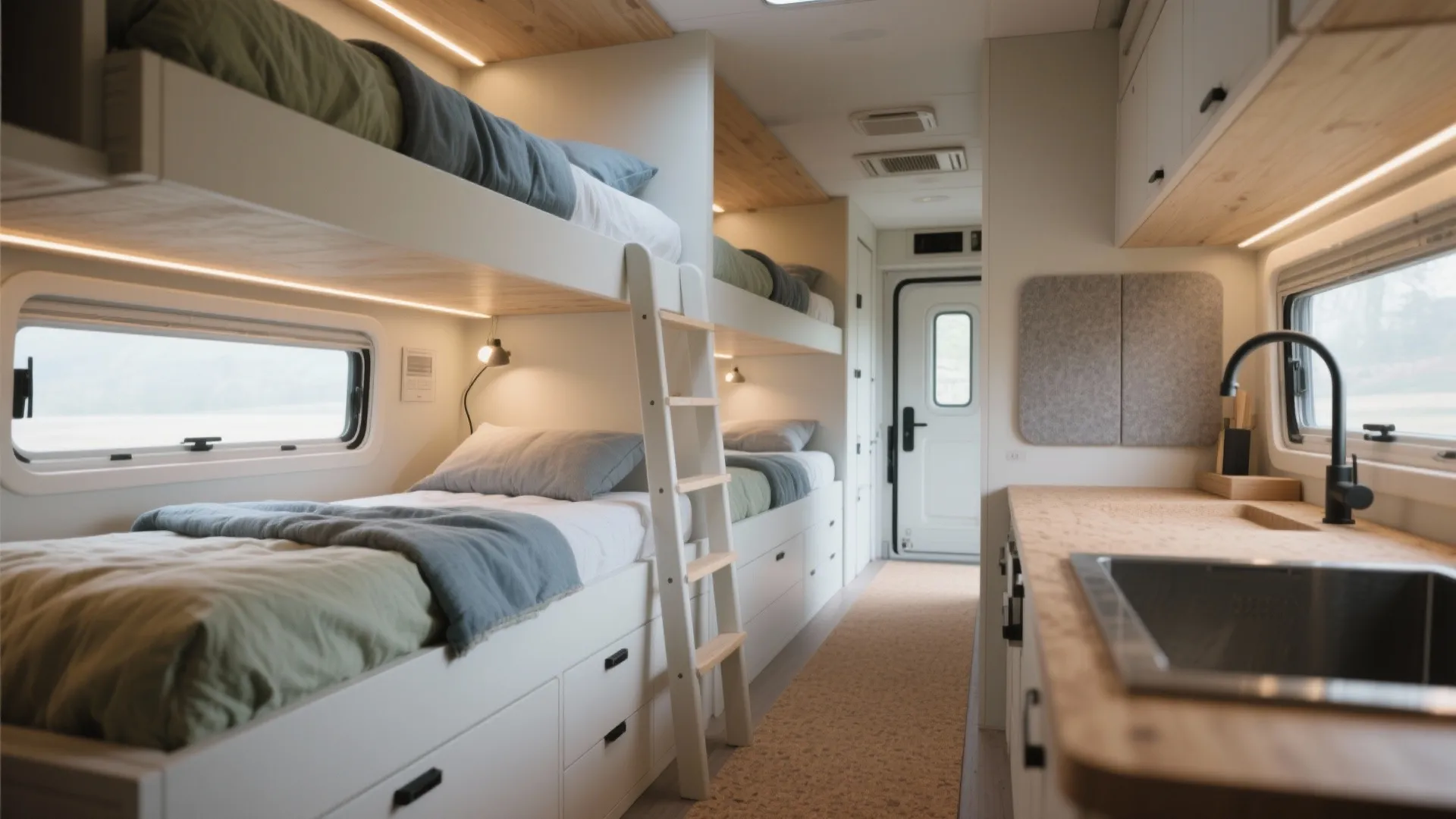

Small Camper with Bunk Beds: Smart Space Solutions: 1 Minute to Clever Camper Layouts for Busy Travelers

I’ve spent years designing small, high-function interiors, and few challenges are as rewarding as a compact camper with bunk beds. When space is tight, every inch must serve a clear purpose—sleeping, stowing, lounging, and moving safely. The goal is a calm, adaptable layout that feels bigger than it is, supports good sleep, and stands up to life on the road.

Data consistently shows that design choices impact comfort and performance. Steelcase research notes that well-considered spatial planning improves perceived comfort and supports activity effectiveness, a principle that translates cleanly to tiny mobile environments. Meanwhile, WELL v2 Guidance emphasizes adequate lighting levels and glare control for visual health; adopting task illumination in campers (targeting ~300–500 lux at work surfaces per IES recommendations) keeps evening prep and navigation safe while preventing eye strain. For color selection, Verywell Mind summarizes how cooler hues like soft blues can reduce heart rate and promote calm, a helpful cue for bunk zones.

In small campers, bunk beds are both a structural element and a behavioral cue. They define privacy, anchor storage, and influence circulation. Herman Miller’s research on ergonomics highlights how neutral body postures and reach zones reduce strain; applying that to bunks means right-height ladders, rounded edges, and shelf depths that keep essentials within a comfortable 10–15 inches of reach. I build layouts that enable smooth movement paths and minimize nighttime disturbances—especially important when two or more people share a tight footprint.

Plan the Core: Bunks as a Spatial Spine

Start by choosing the bunk orientation that preserves a primary corridor. Longitudinal bunks along one wall free the opposite side for a galley or compact lounge; transverse bunks can shorten overall length but risk blocking flow. I design for a minimum 22–24 inches of clear passage so people can pass without turning sideways. If you’re iterating on layout, a room layout tool can quickly test clearances and ladder placement: room layout tool.

Ergonomics and Safety: Sleep Without Compromise

Ergonomics in motion spaces is non-negotiable. Ladder rungs should be 10–12 inches apart with non-slip surfaces; guard rails on upper bunks need at least 5 inches above the mattress edge to prevent roll-offs. Round-over bunk edges to avoid bruises in night movements. Herman Miller’s principles on neutral reach inform bedside cubbies: keep small items (glasses, phones) at shoulder height to avoid bending. If ceiling height is tight, tilt the upper bunk a few degrees or use a slim mattress profile (4–6 inches) to maintain headroom.

Lighting: Layered, Low-Glare, and Adaptive

In compact campers, lighting must be layered. I combine warm ambient LED strips (2700–3000K) for evening wind-down with neutral task lights (3500–4000K) over prep areas. Follow IES guidance by aiming for 100–150 lux ambient in sleeping zones and 300–500 lux task illumination at counters or tables. Use dimmable drivers and frosted diffusers to cut glare, and mount reading lights with narrow beam spreads to avoid spill onto neighboring bunks. Motion-activated toe-kick lights along the corridor reduce trips after dark.

Acoustic Comfort: Quiet Bunks in a Small Shell

Tiny volumes can amplify noise. I specify soft finishes—felt panels on bunk undersides, wool-blend curtains, and cork or rubber underlayment—to dampen sound. Locating the bunks away from the galley reduces clatter transfer. For privacy, a fabric privacy screen on a ceiling track adds a visual and acoustic buffer without consuming much space.

Storage Strategy: Every Inch Works

With bunks as the anchor, storage tucks into dead zones. Under-bunk drawers on full-extension slides store soft goods; shallow head-end cubbies keep books and chargers close. I avoid deep overheads over upper bunks to prevent head strikes. Use vertical peg rails on the bunk side for jackets and towels, and mount a slim shoe rack under the lower bunk ladder. Keep heavy items low and centered to maintain stability while driving.

Material Selection: Lightweight, Durable, and Healthy

Pick materials that resist abrasion, clean easily, and don’t off-gas. High-pressure laminate on bunk faces, solid wood for ladder rails, and marine-grade vinyl for wear zones balance durability and weight. Where possible, choose low-VOC finishes. Rounded hardware reduces snags, and micro-suede or wool-blend textiles maintain tactile comfort without harboring dust.

Color Psychology: Calm Bunks, Energized Commons

Color can subtly zone behavior. Borrowing from verywellmind.com/color-psychology insights, use cooler, desaturated hues (blue-gray, sage) in sleeping areas to cue rest, and slightly warmer neutrals (sand, light clay) in the galley to invite activity. Keep high-chroma accents minimal; small spaces saturate quickly and may feel visually noisy. A single accent stripe can help kids orient top versus bottom bunk.

Ventilation and Thermal Comfort

Bunks trap heat. Install low-profile vents near the upper bunk with a gentle crossflow to avoid stale pockets. A quiet DC fan with multiple speeds improves sleep quality. Thermal curtains around bunks let you fine-tune microclimates when one sleeper runs warmer or cooler.

Safety and Power Management

Route low-voltage USB outlets to each bunk with integrated overload protection. Keep 120V outlets outside sleeping zones and use cord management clips to prevent snagging. Night switches should be reachable from lying positions. Choose flame-retardant textiles and verify fasteners are vibration-resistant to withstand road movement.

Flexible Day Modes

When the bunks are not in use, convert lower bunks into lounge benches with hinged backs. A fold-down table aligned with the corridor becomes a shared work surface. Anchor these transformations to consistent sightlines so the space still feels coherent.

Layout Moves That Add Breathing Room

- Slide the ladder to the far end to preserve the central corridor.

- Stagger bunk entry points to reduce collision at bedtime.

- Use a pocket door or soft divider to separate bunks from the galley.

- Place mirror panels opposite the bunks to extend perceived depth.

- Keep the ceiling uncluttered; mount storage below 5'8" where possible.

Design Trends 2024–2025 for Micro Campers

- Warm-dim LED drivers that shift from 3000K to 1800K for circadian support.

- Textured, sound-absorbing wall panels in natural fibers.

- Modular cushion systems using recycled foam blends.

- Slim solar-harvesting arrays paired with low-draw fans and lights.

- Soft-edge carpentry profiles that reduce impact injuries in tight quarters.

Common Mistakes to Avoid

- Overloading upper bunks with deep cabinetry.

- Ignoring ladder ergonomics and rung spacing.

- Single-source lighting that creates harsh shadows.

- Dark, high-gloss finishes that show scuffs and shrink the feel of the space.

- Storing heavy gear high, which affects stability while traveling.

FAQ

Q1: How wide should a camper bunk be for adult comfort?

A: Aim for 28–32 inches minimum. If length is constrained, prioritize shoulder clearance and rounded edges to reduce contact points.

Q2: What lighting levels work best in bunk zones?

A: Keep ambient around 100–150 lux for relaxation and use focused reading lights. Task areas like the galley should target 300–500 lux per IES guidance.

Q3: How do I reduce noise between bunks?

A: Add felt under-panels, use wool-blend curtains, and introduce soft storage (fabric bins) that absorb sound. Separate bunks from the galley where possible.

Q4: What ladder specs improve safety?

A: Rungs spaced 10–12 inches, anti-slip treads, rounded edges, and secure top hooks. Keep the ladder clear of the main corridor to avoid trip hazards.

Q5: Which materials balance durability and weight?

A: High-pressure laminate for faces, solid wood or aluminum for rails, and low-VOC finishes. Use marine vinyl or performance textiles in high-contact zones.

Q6: How can I manage heat around upper bunks?

A: Provide a small vent near the top bunk, a quiet multi-speed fan, and thermal curtains to create microclimates for different sleepers.

Q7: What color palette helps kids sleep?

A: Soft blues, blue-grays, or sage greens. Avoid intense reds or high-contrast patterns that stimulate rather than soothe, per color psychology findings.

Q8: How do I add storage without making the camper feel smaller?

A: Use under-bunk drawers, shallow head cubbies, and peg rails. Keep heavy items low and avoid deep overheads near upper bunks.

Q9: Can bunks convert for daytime use?

A: Yes. Design the lower bunk with hinged backs or a fold-down table to create lounge seating. Maintain clear sightlines to prevent visual clutter.

Q10: Any guidance on power outlets in bunks?

A: Use low-voltage USB outlets with overload protection near the sleeper’s shoulder and keep 120V outlets out of the bunk area. Integrate cord clips.

Q11: What minimum corridor width keeps movement comfortable?

A: Target 22–24 inches where possible to allow passing and reduce shoulder contact.

Q12: How do I prevent glare from reading lights?

A: Choose fixtures with narrow beams, add diffusers, and position lights slightly off-axis from eye level. Dimming controls help fine-tune comfort.
