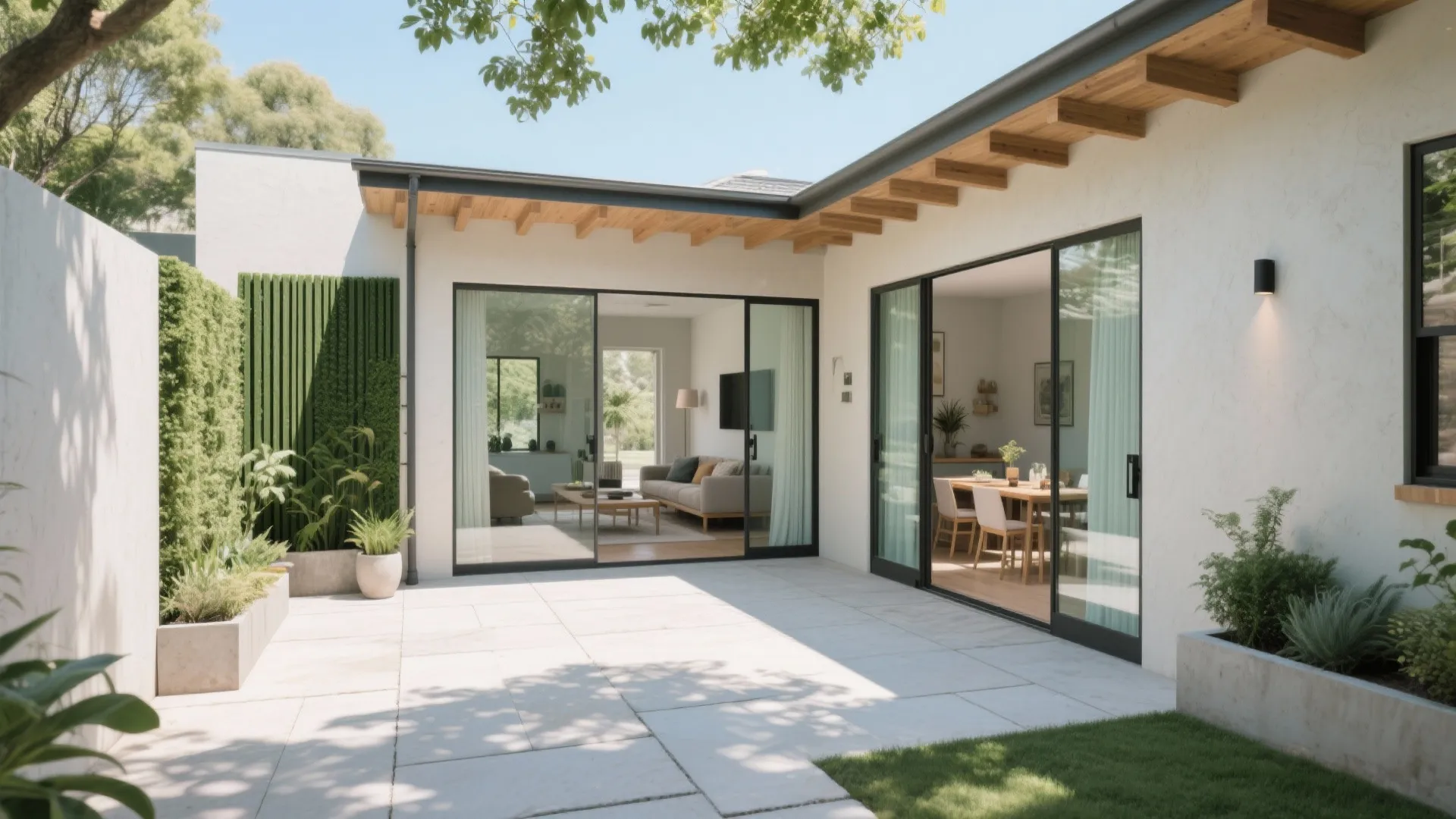

Small Courtyard House Design: Big Ideas for Compact Spaces: 1 Minute to Master Your Dream Courtyard Layout

I’ve long favored courtyard houses for their ability to turn compact footprints into luminous, restorative homes. A well-placed courtyard can solve for privacy, daylight, and ventilation without expanding the building envelope. In smaller lots, the courtyard becomes the spatial lung—pulling in light, air, and views to anchor daily rituals.

Daylight quality shapes how a compact home feels. The Illuminating Engineering Society notes recommended daytime illuminance in living areas typically ranges around 300–500 lux, while tasks like reading benefit from 500 lux and above (IES standards). In practice, a modest south-facing courtyard with light, reflective finishes can consistently deliver this level to adjacent rooms. On the health side, WELL v2 emphasizes glare control and balanced circadian lighting; integrating matte surfaces, shaded openings, and a layered lighting plan helps maintain visual comfort while aligning with these evidence-based principles (WELL v2).

Behavior in small homes is highly sensitive to layout. Steelcase research on workplace focus highlights the importance of visual boundaries for reducing cognitive load; that translates directly to residential life: a courtyard offers a subtle buffer, allowing moments of retreat between public and private zones. I often vary thresholds—low garden walls, planters, and screened entries—so the courtyard acts as a mediator, softening transitions while preserving flow.

Courtyard Typologies for Compact Lots

In constrained urban sites, three courtyard archetypes tend to perform well: side courtyard for row-house conditions; pocket courtyard carved from the center; and split-level courtyard for sloped lots. Each depends on orientation and local climate. In temperate zones, a south or southeast courtyard invites low winter sun, while overhangs temper summer glare. In hot-dry climates, a narrower, taller courtyard encourages stack ventilation as warm air rises. I prioritize a floor-to-wall proportions between 1:1 and 1:1.5 to balance enclosure with sky exposure—enough verticality to create privacy, enough openness to sustain daylight.

Light, Shade, and Glare Control

Circadian-friendly light without glare is the goal. I work with layered shade: deciduous planting overhead, perforated screens at eye level, and deep window reveals. Side-lighting through the courtyard, coupled with matte interior finishes (LRV 60–70 for walls) keeps contrast ratios comfortable. For reading nooks and kitchen prep, we target task lighting 500–750 lux and use warm-white LEDs (2700–3000K) in evening zones, reserving 3500–4000K for daytime, high-activity areas. Indirect wall washing from courtyard-facing luminaires preserves softness and reduces specular highlights.

Room-Adjoining Strategies

Courtyards perform best when they touch multiple programs. I typically pin three at minimum: living, dining, and circulation spine. If space allows, adding a bedroom onto the courtyard edge creates morning light without sacrificing privacy. When reworking a tight plan, I use a room layout tool to simulate door swings, furniture clearances, and view corridors—especially critical where inches matter. Keep primary paths at 900–1000 mm, and compress secondary routes to 750–800 mm, provided egress and accessibility standards are respected.

Acoustic Comfort in Hard-Edged Volumes

Small houses can magnify noise. Courtyard walls may reflect sound; I introduce absorptive surfaces: planted beds, timber slats backed with acoustic fleece, and soft landscaping that breaks flutter echo. Inside, upholstered seating, woven rugs, and curtains along courtyard glazing stabilize reverberation time while keeping thermal performance in check.

Material Selection and Micro-Climate

Materials should temper heat and bounce light. High-albedo paving brightens the courtyard but can glare; I often choose honed limestone or light terrazzo with low specularity. Timber ceilings in the colonnade lend warmth and reduce harsh reflections. Permeable paving supports stormwater management and mitigates heat island effects. In dry climates, vertical green screens cool the air through evapotranspiration; in humid regions, prioritize airflow with open joints and raised planting to prevent moisture buildup.

Color Psychology for Compact Serenity

Soft desaturated greens, warm neutrals, and muted blues promote calm and perceived spaciousness, aligning with research on color-emotion links captured by Verywell Mind. I keep accent hues concentrated at focal points—a painted garden wall or a tiled bench—so the eye rests and the plan feels legible without visual clutter.

Privacy without Isolation

Court yards excel at privacy, but small homes risk feeling sealed. I design layered transparency: translucent glazing to neighbors, clear glazing to the courtyard, and selective sightlines from street to garden for a sense of belonging. Screens with 20–40% open area maintain airflow while diffusing views. Courtyard entries positioned off-axis from the front door prevent direct visibility into living spaces.

Ergonomics and Human Factors

Daily use dictates details. Comfortable seating depth (500–550 mm), table-to-wall clearances (900 mm), and door hardware positioned at ~1000–1050 mm enhance usability. Bench heights at 450 mm make garden edges sit-friendly. Step risers around 150–170 mm with generous treads improve safety for kids and elders. Low-maintenance planting—evergreen structure with seasonal highlights—reduces effort while keeping the courtyard active year-round.

Ventilation: Breathing Room in Small Plans

Cross-ventilation is easier with a courtyard; I pair operable windows on opposing sides at different heights to drive airflow. Tall clerestory vents in the courtyard aid stack effect. In hot seasons, ceiling fans at 2.4–2.7 m mounting height improve perceived cooling. In cooler climates, I incorporate sheltered sun pockets and thermal mass—south-facing masonry that stores daytime heat and releases it in the evening.

Layout Rhythm and Spatial Ratios

A compact home benefits from a clear rhythm: short sequences of compression and release around the courtyard. Low vestibules open to higher garden rooms, then compress into intimate alcoves. I aim for a 1:2 ratio between courtyard and primary living area to keep the garden generous enough to function without overpowering the interior. Aligning major axes to the longest courtyard dimension improves wayfinding and light catchment.

Furnishing and Flex Zones

Furniture should reinforce circulation. Float sofas perpendicular to the garden to preserve flow, and use narrow-depth consoles and wall-mounted storage to free floor area. Sliding doors to the courtyard transform dining into an outdoor room; a fold-down table or movable banquette lets the space adapt for gatherings. Compact outdoor kitchens—single-burner with prep shelf—keep cooking smells manageable while extending living space.

Sustainable Moves for Small Footprints

Courtyards invite passive strategies: rainwater harvesting from inward-sloping roofs, drip irrigation for planters, and solar access for compact PV arrays. Choose durable, repairable materials that age gracefully—lime plaster, brick, and timber—with low-VOC finishes for indoor air quality. Where budget permits, integrate shading trellises with native plantings that support pollinators and reduce irrigation demand.

Construction Practicalities

On tight lots, staging is critical; design courtyard components—pavers, planters, screens—to be modular and carried through the building. Use prefabricated steel or timber frames for pergolas to minimize site time. Keep drainage straightforward: perimeter gravel trenches, gentle falls to a central scupper, and leaf guards to prevent clogging.

Common Pitfalls to Avoid

Overscaling the courtyard diminishes interior flexibility; underscaling yields dim rooms. Watch glare from pale paving; test finishes on site. Avoid symmetrical planting that fights circulation—use asymmetry to guide movement. Finally, don’t overlook nighttime lighting; subtle path markers and warm ambient glows make small spaces feel secure without over-illumination.

FAQ

Q1: How large should a courtyard be in a small house?

A: Aim for a 1:2 ratio between courtyard and main living area. Practically, 10–20% of the total floor area often balances light, ventilation, and program needs.

Q2: What orientation works best?

A: South to southeast typically offers balanced seasonal light. In hot climates, prioritize shade depth and high vents; in cold climates, maximize winter solar gain with deciduous canopy.

Q3: How do I control glare while keeping rooms bright?

A: Use matte finishes, deep window reveals, and layered shading (screens, planting, overhangs). Keep wall LRV around 60–70 and position task lights to avoid direct line-of-sight reflections.

Q4: Can a courtyard improve acoustics?

A: Yes—soft landscaping, timber slats with acoustic backing, and upholstered interiors reduce echoes. Avoid fully hard, parallel courtyard walls to prevent flutter.

Q5: What are ideal circulation widths in compact plans?

A: Primary paths at 900–1000 mm maintain comfort; secondary paths at 750–800 mm are workable where code allows. Use pocket doors to save swing clearance.

Q6: How does color affect perceived size?

A: Desaturated, lighter hues expand perceived volume. Concentrate accents at focal points to anchor views without visual noise; this supports calm and clarity as documented by color psychology resources.

Q7: Is cross-ventilation possible with only one courtyard?

A: Yes—pair operable windows across the plan and vary heights to create pressure differences. Tall clerestory vents in the courtyard amplify stack effect.

Q8: What lighting color temperature should I use?

A: Daytime task zones benefit from 3500–4000K; evening living areas feel more relaxing at 2700–3000K. Maintain 500 lux for tasks like cooking and reading per common practice aligned with IES guidance.

Q9: What materials reduce maintenance outdoors?

A: Honed stone, powder-coated metal, and dense hardwoods perform well. Choose permeable paving to manage runoff and stick to native plants to lower irrigation.

Q10: How can I keep privacy without feeling closed off?

A: Use screens with 20–40% openness, translucent glazing to neighbors, and clear glazing to the courtyard. Offset entries to prevent direct sightlines.

Q11: Can technology help plan compact layouts?

A: A interior layout planner lets you test furniture footprints, door swings, and view lines before committing, reducing costly changes during construction.

Q12: What are budget-friendly courtyard upgrades?

A: Focus on shade first—planting, simple trellis, and movable umbrellas—then add permeable gravel beds, modular planters, and string lighting with warm-white lamps.
