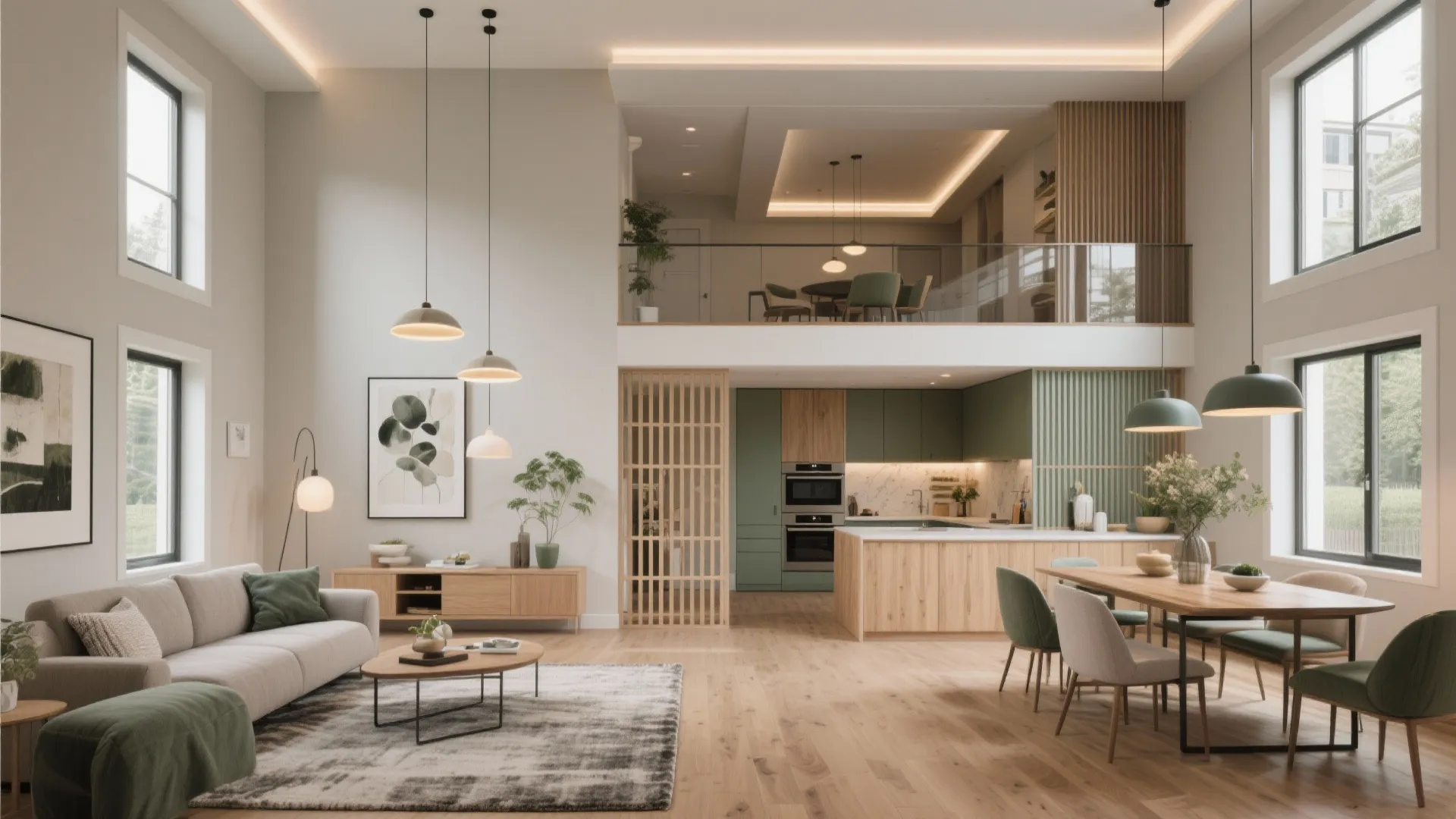

Small Duplex House Design: Maximize Space & Comfort: 1 Minute to Understand Small Duplex House Essentials

I approach small duplex design with a clear goal: make every square foot work harder without sacrificing comfort. In compact footprints, circulation efficiency, natural light, and acoustic zoning shape daily life. A well-resolved duplex can feel 15–25% larger through precise layout ratios, layered lighting, and smart storage integration. Recent workplace research shows how space affects performance and wellbeing: Steelcase found that employees who have control over their workspace report a 32% increase in engagement; that same principle of control translates directly to residential planning—flexible, user-tuned environments consistently feel more livable. WELL v2 further aligns with this: access to daylight and visual connection are linked to better mood and circadian health, with recommended illuminance targets around 300–500 lux for living areas and 2700–3000K warm tones in evenings.

Lighting design sets the baseline for perceived spaciousness. The Illuminating Engineering Society recommends task illuminance in the range of 300–500 lux for kitchens and desks, and lower ambient levels in bedrooms for relaxation. Dialing color temperature across zones—2700K in bedrooms, 3000–3500K in living rooms, and up to 4000K in kitchens—creates an intuitive spatial rhythm. To ground these choices, WELL v2’s Light concept outlines circadian-supportive strategies, emphasizing glare control and uniformity to avoid visual fatigue. For broader insights on how flexible environments impact satisfaction and performance, Steelcase’s research library offers relevant human factors data. See: Steelcase Research (steelcase.com/research) and WELL v2 Light (v2.wellcertified.com).

Plan with Purpose: Flow, Ratios, and Vertical Logic

In a duplex, the vertical split is your advantage. I allocate social functions to the brighter level—usually the upper floor—to capture daylight and views, and tuck private functions into the quieter level. Ideal spatial ratios I use: 35–40% living/dining/kitchen, 25–30% bedrooms, 10–15% bathrooms/laundry, and the remainder to circulation and storage. Keep primary circulation below 12% of the total area by aligning doors and stacking services; this reduces wasted space and noise travel. When testing options, a room layout tool helps simulate furniture footprints, clearances, and switching between open-plan vs. semi-partitioned schemes: room layout tool.

Light Strategy: Layered, Glare-Free, and Circadian-Friendly

Compact rooms benefit from three layers: ambient (ceiling or wall wash), task (pendants, under-cabinet), and accent (art wash or cove). I avoid single overhead points because they create contrast glare and shrink the room visually. Dimmers allow 20–100% output to adapt to morning routines and evening wind-down. In stairwells, low-glare wall sconces at 300–350 lumens every 6–8 feet establish safe vertical movement without harsh shadows. Stainless or satin fixtures minimize reflectivity and sparkle, preserving calm.

Color Psychology: Quiet Warmth, Depth Without Clutter

Color frames perception. Soft neutral bases—warm greige, oyster, or muted sand—keep daylight balanced. According to Verywell Mind’s color psychology overview, warm tones can feel inviting while cool tones lend calm; in small homes, I combine warm neutrals with cooler accents (sage or slate) to avoid visual monotony. Depth comes from texture: limewash, matte plasters, and natural wood grains provide richness without adding objects. I keep high-chroma colors to removable elements (throws, art) so seasonal changes are easy.

Ergonomics in Tight Rooms: Clearances, Heights, and Handles

Human factors matter more when space is scarce. I work with minimum clearances of 30 inches for pathways, 36 inches around dining tables, and 42 inches in working kitchen aisles when possible. Counter heights at 36 inches, bar heights at 42 inches, and dining at 28–30 inches support posture variety. Lever handles trump knobs for accessibility, and soft-close hinges prevent impact noise. Maintain a maximum reach of 24 inches for upper cabinets; beyond that, use pull-down hardware to protect shoulders.

Kitchen-Living Synergy: Open Sightlines with Acoustic Control

Open plans amplify light but can spread noise. I address it with a mix of soft surfaces and targeted absorption: ceiling baffles or felt panels above dining, fabric upholstery with dense batting, and underlayment beneath engineered wood. Keep refrigerators and dishwashers away from shared walls with bedrooms. If cooking odors are a concern, select hoods with 300–500 CFM for small kitchens and ensure make-up air via a trickle vent. Sightlines stay open using half-height partitions or slatted screens that interrupt sound paths but maintain visual continuity.

Bedroom and Bath: Retreats with Quiet Tech

Bedrooms rely on thermal and acoustic comfort. Aim for 30–40 dBA background noise; seal door frames and use solid-core doors to reduce transmission. Blackout shades with side channels block spill light and improve sleep quality. In bathrooms, prioritize vapor control with a fan rated at 1 CFM per square foot (minimum 50 CFM), and specify slip-resistant tiles (R10–R11) with warm lighting around 2700K to soften reflections. Wall niches keep surfaces clear, supporting mental calm.

Storage That Disappears: Vertical, Integrated, and Multifunctional

I plan storage before furniture. Under-stair drawers, bed bases with lift storage, and full-height wardrobes with 70/30 hanging-to-shelf ratios fit most small-home wardrobes. In living rooms, 12–14 inch deep wall units maintain walking clearance while housing books and AV. Use pocket doors on closets to avoid swing conflicts. Mirror-front cabinets expand perceived width, especially opposite windows.

Stairs and Safety: Code-Aware and Space-Savvy

Compact stairs should still feel generous. Go for 7–7.5 inch risers and 10–11 inch treads with continuous handrails. Closed risers limit object falls (especially with children). Integrate LED step lights at 2700–3000K to reduce fall risk during night movement. If headroom is tight, run the stringer along the tallest wall and keep landing depths equal to stair width for a visual reset.

Materials and Sustainability: Durable Calm

Material choice drives acoustics and maintenance. I use engineered wood or cork for floors to balance softness and resilience, wool rugs for sound absorption, and low-VOC paints to protect indoor air quality. In kitchens, composite stone resists staining without the upkeep of marble. For wet areas, porcelain with rectified edges allows thinner grout lines, reading cleaner in small rooms. Choose FSC-certified woods and recycled content where possible to align with responsible sourcing.

Layout Simulation: A/B Testing Before You Build

Before finalizing, I run A/B tests of layout options. Shifting a sofa by 12 inches, rotating a dining table 90 degrees, or splitting a long wall with a shallow built-in can change the whole feel. Rapid digital mockups help evaluate circulation and light. For quick iterations, an interior layout planner lets you visualize furniture clearances, storage walls, and stair positions without guesswork: interior layout planner.

Acoustics: Zoning and Material Mix

Sound behaves unpredictably in stacked living. I zone activities vertically: social above, sleep below or vice versa based on street noise. Seal penetrations around plumbing stacks, and wrap them with mass-loaded vinyl behind finishes. In living areas, break up parallel surfaces with bookshelves or slatted panels to diffuse sound. Rugs, curtains, and upholstered seating lower reverberation time, making conversations more comfortable.

Outdoor Extensions: Micro-Balconies and Thresholds

Even small balconies can feel generous if doors stack fully and thresholds are flush. Opt for slender furniture—bistro tables, narrow benches, and vertical planters. Lighting should be warm and shielded to prevent glare back into interiors. Plants with fine foliage filter views and add privacy without heavy visual mass.

Future-Proofing: Flex Rooms and Wiring

Plan for change. A secondary bedroom can serve as an office with dual circuits for task lighting and equipment. Run conduit to key walls for later AV upgrades. Choose modular sofas and tables with expanding leaves to adapt to gatherings. Storage walls with adjustable shelves evolve with life stages, reducing churn.

FAQ

How do I make a compact duplex feel larger without removing walls?

Use layered lighting, neutral palettes with textured finishes, and integrate storage into architecture. Align circulation to reduce wasted space and keep sightlines open with half-height or slatted dividers.

What illuminance and color temperature should I target?

Living areas work well at 300–500 lux with 3000–3500K; bedrooms at lower ambient levels around 2700K; kitchens can go up to 4000K for task clarity, in line with IES guidance and WELL v2 Light strategies.

How can I control noise between floors?

Use solid-core doors, acoustic underlayment under floors, felt ceiling baffles over dining, and seal penetrations around plumbing stacks. Position noisy appliances away from bedrooms.

What are ideal circulation clearances?

Keep pathways at 30 inches minimum, 36 inches around dining, and 42 inches for kitchen work aisles when space allows. Align doors to reduce conflict points.

Which colors suit small duplexes?

Warm neutrals for base layers with cooler accents like sage or slate. High-chroma colors should be in removable accessories. This balances warmth and calm in compact rooms.

How do I integrate storage without clutter?

Plan built-ins: under-stair drawers, bed bases, and full-height wardrobes. Use 12–14 inch deep living room units and pocket doors for closets to minimize swing conflicts.

What’s a practical stair spec for small homes?

Risers at 7–7.5 inches, treads 10–11 inches, continuous handrails, and LED step lights at 2700–3000K. Keep landings equal to stair width for safety and visual relief.

How do I plan lighting for comfort at night?

Install dimmers to tune output from 20–100%. In bedrooms and stairwells, low-glare fixtures with warm tones (2700–3000K) reduce visual fatigue and support circadian comfort.

What materials improve acoustic comfort?

Wool rugs, upholstered seating with dense batting, cork or engineered wood floors with acoustic underlayment, and slatted panels or bookshelves to diffuse reflections.

Can I test layouts before committing?

Yes. Use a room design visualization tool to A/B test furniture positions, storage walls, and stair configurations and quickly evaluate circulation and sightlines.
