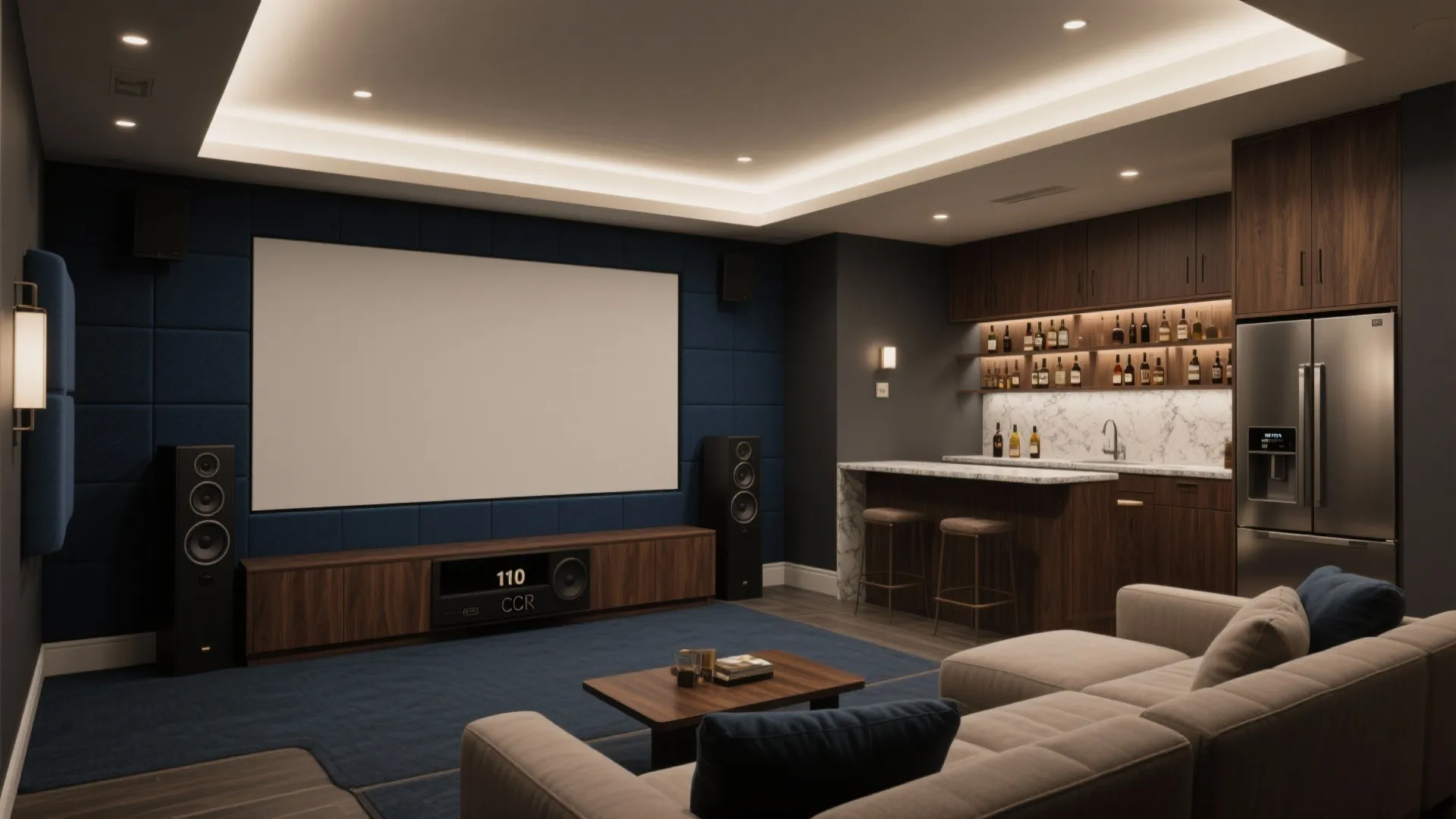

Small Home Theater Room with Bar: Maximize Fun in Minimal Space: Fast-Track Guide to Designing a Small Home Theater Room with Bar in Minutes

I’ve designed dozens of compact home theater rooms with integrated bars, and the best results come from treating the space like a tiny performance venue: tight sightlines, controlled light, tuned sound, and a workflow that keeps snacks and conversation flowing without breaking the cinematic spell.

Space is usually the constraint and the creative spark. In rooms under 140–180 sq ft, seating, screen distance, and acoustics dictate the layout more than anything else. Gensler’s workplace research found that 44% of people value spaces that support social connection as a key driver of experience quality—your bar becomes the social anchor that elevates the theater beyond passive viewing (source: Gensler Research Institute, U.S. Workplace Survey 2023). For comfort, the WELL v2 standard recommends maintaining ambient noise around NC 35–40 in rooms intended for focused activities; in a home theater-bar, that translates to limiting mechanical noise and isolating bar prep sounds during playback (source: WELL v2, Sound concept).

Lighting is the second lever. The Illuminating Engineering Society recommends approximately 2–5 footcandles for cinema-style ambient light during viewing, with task lighting at 20–50 footcandles for safe movement and bar tasks—delivered via dimmable, indirect fixtures to prevent glare on the screen (source: IES Recommended Practices). Warm color temperatures around 2700–3000K help viewers relax and maintain evening circadian cues.

Zone the Room: Cinema Front, Social Back

I keep the viewing zone forward—screen, speakers, first row—then stack the bar behind or to the side, depending on door and window locations. This separation protects sightlines and acoustics while keeping the bar accessible. If you’re iterating layouts, a room layout tool helps visualize seat-to-screen distances and bar clearances without guesswork: room layout tool.

Screen Size, Distances, and Sightlines

For a 100–120" screen, place the primary seating 10–12 feet away, maintaining a viewing angle near 36° (THX-style guidance) to avoid neck strain. If the room is shorter, reduce screen size rather than cramming seats; ergonomically, a narrower angle beats visual fatigue.

Acoustic Strategy for Small Rooms

Small volumes exaggerate reflections. I balance absorptive panels (first reflection points at sidewalls and ceiling) with diffusion behind the seating to keep sound lively. Carpeting or large rugs help tame flutter echo. Separate the bar’s refrigeration and ice machine from the seating—put them in an acoustically damped cabinet or foyer to meet the WELL v2 noise comfort guidance. Keep subwoofers off corners unless you’re measuring response; try mid-wall placement or dual subs for smoother bass.

Lighting Layers: View Mode vs. Social Mode

Two presets: View Mode at 2–5 fc, warm 2700–3000K, indirect wall washers and cove lighting; Social Mode at 10–20 fc ambient with 30–50 fc task light on countertops. Use low-glare baffles and dim-to-warm LEDs. Avoid downlights directly over the screen or first row—stray reflections break immersion.

Bar Design That Works Quietly

A narrow back bar (14–18" deep) with undercounter refrigerator and drawer freezer feels generous without eating floor area. Choose soft-close hardware and acoustic gasketed doors. For finishes, matte laminates or wood veneers minimize specular reflections. Countertops in honed quartz or solid surface are durable and reduce sparkle under low light. I like open shelves for bottles above eye level and closed base storage for clinking glassware.

Seating: Rows, Risers, and Multifunction

In tight rooms, a single primary row with a counter-height bar behind it is versatile. The bar becomes secondary seating with stools—choose footrests and seat heights that align with a 42" counter. If you build a riser, keep it 6–8" high with a deep tread to maintain safe circulation. Ergonomically, chair arms should align within 1–2" of neighbor armrests to reduce shoulder collisions.

Color and Material Psychology

Deep, desaturated hues—charcoal, ink blue, forest—compress visual boundaries and make the room feel cocooned. Verywell Mind highlights that blues can reduce heart rate and support calm, while reds heighten arousal—great for sports but fatiguing in long films (source: Verywell Mind, color psychology). Use warm neutrals for the bar to cue hospitality, balancing the cooler palette of the theater zone.

Storage, Cable Management, and Tech Flow

Plan a dedicated low cabinet for AVR, streaming devices, and power conditioning with front venting and rear service space. Conduit paths to the projector or display keep upgrades painless. Place charging drawers near the bar so phones stay off seats. Include a mute-automation (e.g., master dim and audio standby) that temporarily lifts light and lowers sound for quick bar runs during intermission.

Ventilation and Thermal Comfort

Projectors and AV racks shed heat. Quiet inline fans with variable speed, intake near the bar and exhaust near equipment, maintain comfort without audible turbulence. Aim for supply diffusers with low face velocity to avoid hiss during quiet scenes.

Small-Room Layouts That Punch Above Their Size

Three reliable schemas: (1) Screen on short wall, single sofa row, bar behind with narrow aisle; (2) Screen on long wall, sectional at mid-room, side bar with banquette; (3) Projector shelf at rear, retractable screen, peninsula bar doubling as second row. Test clearances virtually with an interior layout planner before construction: interior layout planner.

Acoustic Finishes and Sustainability

Opt for low-VOC paints and FSC-certified wood veneers. Felt wall panels and recycled PET acoustic boards deliver absorption with sustainability merits. Heavy drapery over doors and the bar niche helps isolate prep noise.

Lighting Controls and Scene Crafting

Program scenes: Pre-show (20 fc ambient, bar task on), Showtime (3 fc ambient, path lights only), Intermission (10 fc ambient, task on, audio -20 dB). Label wall plates clearly; guests should be able to operate without instructions.

Budget Priorities

Put money into seating ergonomics, acoustic treatment, and lighting control before luxury finishes. A mid-tier projector with good calibration beats oversizing the screen. Bar upgrades that reduce noise—quality refrigeration, soft-close hardware—pay dividends every night.

Common Pitfalls

Glossy paint near the screen, bright task lights spilling into the viewing cone, bar fridges whirring in the same room, and seats too close to sidewalls causing uneven audio. Fixes are usually simple: matte finishes, shielded lighting, equipment isolation, and modestly re-centered seating.

FAQ

How much space do I need for a small theater with a bar?

Work comfortably within 120–180 sq ft. A single row plus a back bar fits in roughly 10' x 14'. Tight rooms below 10' depth typically favor smaller screens and side bars.

What lighting levels are best during movies?

Keep ambient around 2–5 footcandles with 2700–3000K color temperature. Provide 20–50 footcandles for bar tasks, all on dimmers to avoid wash on the screen (aligned with IES guidance).

How do I reduce bar noise during playback?

Place refrigeration in a damped cabinet or adjacent closet, use soft-close hardware, and add heavy drapery around the bar niche. Aim for overall noise near NC 35–40 per WELL v2 comfort targets.

Can I use a sectional instead of theater chairs?

Yes. A low-back sectional with chaise keeps sightlines clean. Pair with a counter-height bar behind for overflow seating.

What screen size works in a 12-foot-deep room?

Typically 100–110" diagonal with the primary seats at 10–11 feet. Prioritize comfortable viewing angle over raw size.

Which colors help small rooms feel cozy?

Deep, matte charcoals, blues, or greens on walls and ceiling. Use warm wood or brass accents at the bar to signal hospitality. Blues are associated with calm per Verywell Mind’s color psychology resources.

Do I need acoustic panels?

In small rooms, yes at first reflection points. Combine with plush rugs and soft furnishings. Add diffusion behind seating to avoid a dead sound.

Is a projector better than a TV in small spaces?

Projectors offer large images with flexible placement, but TVs provide higher native contrast and simpler light control. In rooms with lighter walls or higher ambient light, a high-quality TV may be the easier choice.

How high should my bar counter be?

Standard 42" height with 10–12" knee clearance and stools at 29–30" seat height. Ensure 36–42" aisle behind stools for circulation.

What’s the best way to plan the layout before building?

Use a layout simulation tool to test seating distances, bar clearances, and lighting positions, then mock up with painter’s tape to verify paths. A layout simulation tool can shorten the iteration cycle.
