Small Kitchen with Washer and Dryer: Layout & Design Guide: Fast-Track Guide to Fitting Laundry Into Compact Kitchens

Fitting a washer and dryer into a small kitchen can be seamless when circulation, task zones, and services are planned first. In compact homes, I prioritize clean vertical stacking, quiet cycles, and safe clearances so cooking and laundry workflows coexist without friction. Gensler’s U.S. Workplace Survey notes that environments supporting task switching improve performance; translated to the home, concise zoning reduces context switching and visual stress, helping you cook while a load runs in the background. WELL v2 also emphasizes acoustic comfort and glare control, underscoring that sound and light strategy matter as much as inches when appliances share a tight room.

Clearances are nonnegotiable. The National Kitchen & Bath Association recommends at least 36 inches of walkway for one cook and 42 inches for two, which guides corridor widths even in small kitchens. For lighting, the Illuminating Engineering Society suggests 30–50 footcandles for kitchen task areas; I aim for this on counters and the laundry fold zone to reduce eye strain when sorting or reading labels. Steelcase research links visual comfort to reduced fatigue during repetitive tasks—keep brightness balanced across cooktops, counters, and the laundry niche so no area feels like a visual hotspot.

Core Layout Strategies

I map the kitchen triangle first (sink–range–fridge), then introduce laundry as a parallel workflow. The washer/dryer cluster should not interrupt the primary food-prep path. In studios and narrow galley kitchens, a single-wall layout with a stacked laundry column at one end avoids cross-traffic. When space allows, a shallow utility closet with bifold or pocket doors absorbs sound and visual clutter, preserving a clean cooking line.

Best Positions for Washer & Dryer

1. End-of-Run Column: Place a stacked unit (24–27 inches wide) at the end of a cabinet run. This limits vibration transfer to cooktops and keeps venting short. A 3–4 inch side buffer helps doors clear adjacent walls.
2. Shallow Utility Niche: A 30–34 inch–deep niche with pocket doors lets you close off noise during spin cycles. Add a louvered top panel for ventilation if the dryer is ventless/condensing.
3. Opposite Wall in Galley: If depth is tight, set laundry opposite the main prep run, aligning doors so they open away from the cooking side. Maintain a minimum 36-inch aisle.

When testing multiple footprints in a tight plan, I often use a room layout tool to simulate clearances and door swings: room layout tool.

Ventilation, Noise, and Vibration Control

Acoustic comfort is a quality-of-life factor. WELL v2 highlights background noise targets and recommends controlling mechanical noise. Choose washers with vibration reduction and dryers rated below ~60 dB during normal operation. Add anti-vibration pads under feet, line the niche with mineral wool, and specify a solid-core pocket door. If venting outside isn’t feasible, a heat-pump or condensing dryer limits ductwork and reduces heat spill into the kitchen. Keep make-up air in mind; provide a 1-inch undercut at the door or a discreet grille to avoid negative pressure.

Plumbing and Electrical: Plan Before Cabinets

Stacked units typically require a 240V circuit for electric dryers (or gas provision where allowed), a 120V circuit for the washer, and a drain with a standpipe and trap. I place a leak pan with a drain if the floor allows, plus an accessible shutoff box above the counter line within arm’s reach. Consolidate services on the same wall as the sink to minimize wet-wall duplication and keep maintenance straightforward.

Door Swings, Access, and Ergonomics

Human factors matter when doors and drawers collide. Set appliance doors to open away from the cooking workflow, and confirm that combined arcs of the washer and adjacent pantry do not overlap. Mount the stacked dryer 6–8 inches higher than standard if possible so the drum center sits near elbow height, reducing forward reach. Keep a 15-inch-wide landing surface nearby for detergents and folded items—just enough for daily use without crowding the prep counter.

Lighting and Color to Reduce Visual Load

Task lighting should deliver the IES-recommended 30–50 footcandles at counters and the laundry zone. I specify 3000–3500K color temperature for a neutral, food-true palette, and high-CRI (90+) sources to read stains and garment labels accurately. To mitigate glare, recess or shield under-cabinet LEDs and use matte finishes on adjacent doors. From a color psychology perspective, soft neutral fronts with a desaturated accent (sage, slate blue) keep the laundry niche visually calm; Verywell Mind notes that overly saturated reds can elevate arousal, which is unhelpful in small, multifunctional rooms.

Storage That Doubles Up

Integrate a tall pull-out for detergents and cleaning supplies next to the washer/dryer, plus a slim hamper drawer (12–15 inches wide) below counter height. If the unit is in a closet, hang a shallow rail on the inside of the door for stain pens and mesh bags. Overhead, use 12-inch-deep cabinets to avoid head bumps and maintain sightlines across the kitchen, improving perceived spaciousness.

Materials, Moisture, and Heat

Choose durable, low-porosity surfaces—laminated plywood carcasses with edge banding, compact laminate or quartz counters, and moisture-resistant paint (eggshell/satin) around the niche. Install a continuous vinyl or porcelain tile floor under appliances to protect against leaks; avoid thresholds that can trap water. For sustainability, consider Energy Star washers and heat-pump dryers to cut energy use and ambient heat.

Three Space-Proven Layouts

1) Galley with Stacked Laundry at Entry

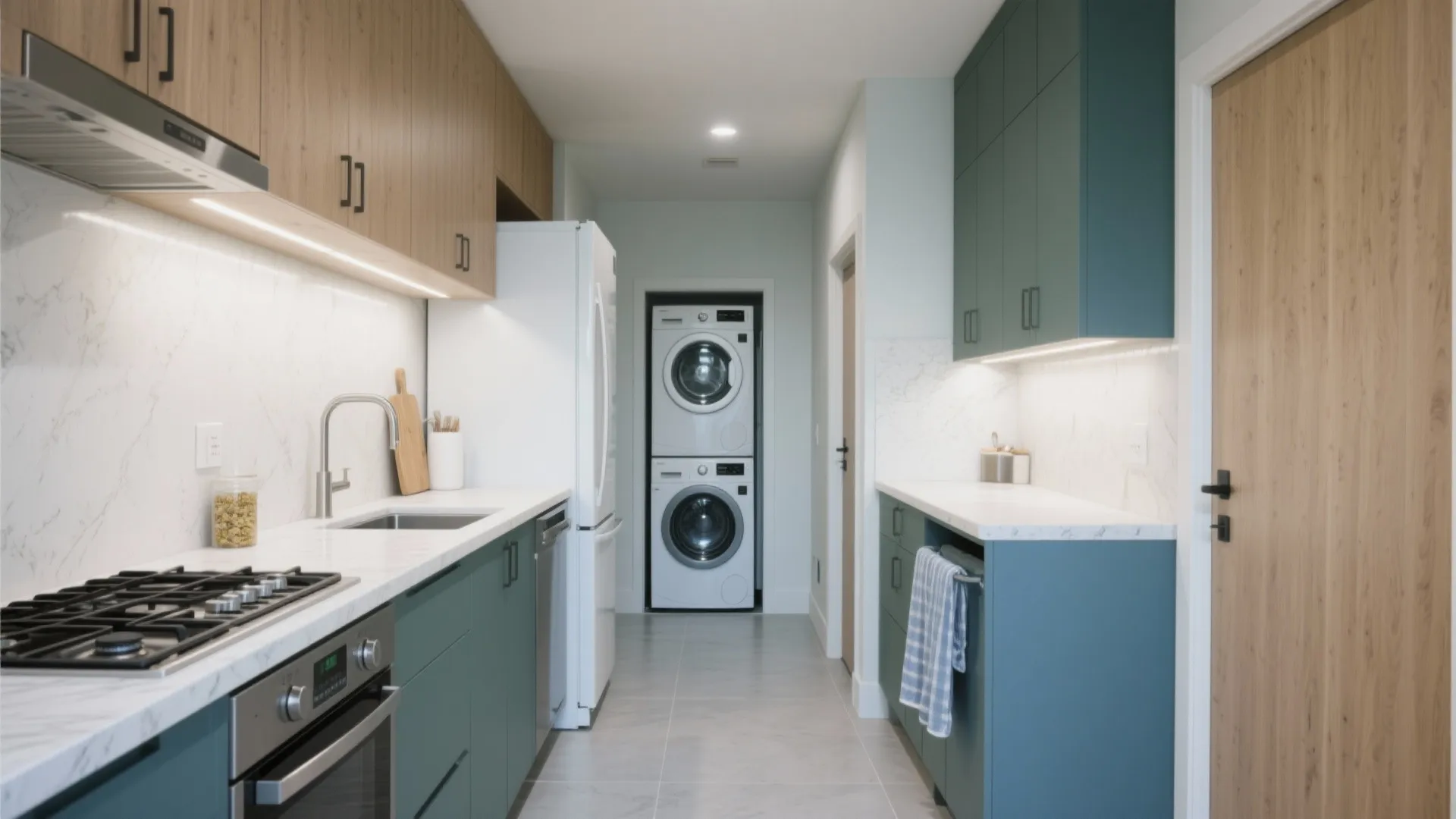

Place the stacked unit at the doorway end, then fridge–sink–prep–range along the main run. On the opposite wall, add a shallow pantry and a 24-inch counter segment as a fold zone. Keep a 36–40 inch aisle; if narrower, use counter-depth appliances.

2) L-Shape with Pocketed Laundry Niche

In the short leg of the L, recess a 30–34 inch–deep niche with pocket doors. Adjacent counter becomes a laundry landing. The long leg handles sink–range–fridge. This arrangement isolates noise while preserving a continuous prep surface.

3) Single-Wall with Utility Column

Run fridge–sink–prep–range in sequence, then end with a utility column (stacked W/D plus tall storage). Opt for a ventless dryer to avoid long duct runs. Upper cabinets remain continuous to keep visual rhythm.

Safety and Code Notes

Confirm local code for venting, GFCI protection within 6 feet of sinks, dryer transition duct specifications, and combustion air if using gas. Provide a smoke alarm nearby and a heat detector if codes require it in kitchen areas. Maintain manufacturer clearances for service access; I leave a minimum 1–2 inches behind units for hoses and power cords without kinking.

Budget and Phasing

Allocate funds first to services (electrical, plumbing, venting), then acoustic measures, then casework. Swapping to a 24-inch heat-pump dryer may cost more upfront but saves on venting complexity and energy. If renovating in phases, rough-in plumbing and a dedicated circuit early, then add millwork and doors later; this avoids opening walls twice.

Quick Specification Checklist

1. Units: 24–27 inch compact, stacked if possible; target quiet operation (~60 dB or less).
2. Clearances: 36 inch aisle minimum; 3–4 inch side buffer; 1–2 inches rear for services.
3. Services: 240V (electric dryer), 120V (washer), leak pan, accessible shutoffs.
4. Lighting: 30–50 fc task level, 3000–3500K, CRI 90+; glare control on glossy fronts.
5. Acoustics: Solid-core pocket/bifold door, mineral wool in niche, anti-vibration pads.
6. Storage: Slim pull-outs, hamper drawer, overhead 12-inch-deep cabinets.
7. Materials: Moisture-resistant cabinetry, quartz/compact laminate counters, continuous resilient flooring.

FAQ

What’s the smallest space that can fit a washer and dryer in a kitchen?

A compact stacked set can fit in about a 30–34 inch–wide by 30–34 inch–deep niche, plus door clearance. You still need a 36 inch aisle in front for safe access.

Is a ventless dryer a good idea for small kitchens?

Yes. Heat-pump or condensing dryers eliminate long ducts, reduce heat loss, and simplify placement. Provide ventilation in the closet and manage condensate per manufacturer guidance.

How do I reduce noise from laundry when I’m cooking?

Use anti-vibration pads, pick machines with low dB ratings, line the niche with mineral wool, and specify a solid-core pocket door. Keep the unit at the end of the run to limit resonance through cabinets.

What lighting levels should I target?

Aim for 30–50 footcandles on counters and the fold/sort zone, in 3000–3500K with CRI 90+. Layer with under-cabinet task lights and a dimmable ambient source to balance brightness.

How do I plan door swings to avoid conflicts?

Set doors to open away from the cooking side and check the combined arcs of washer, dryer, pantry, and fridge. Use a layout simulation tool to confirm clearances.

Can I hide the washer and dryer behind cabinet fronts?

Yes, with pocket or bifold doors rated for appliance duty and proper ventilation. Maintain service access and keep a 1-inch undercut or grille for air exchange.

What materials hold up best near laundry?

Moisture-resistant carcasses (laminated plywood), quartz or compact laminate counters, and continuous porcelain or vinyl floors. Choose matte finishes to cut glare and fingerprints.

How do I keep the kitchen from feeling cluttered?

Use consistent cabinet rhythms across the laundry niche, concealed storage for detergents, and a calm color palette. Maintain sightlines with 12-inch-deep uppers and limit open shelves near the appliances.

Is stacking always better than side-by-side?

In small kitchens, stacking saves 24–27 inches of width. Side-by-side can work if you need a continuous folding counter on top, but it demands more horizontal space.

What’s the best place to put a folding surface?

Adjacent to the laundry niche or opposite in a galley, at standard counter height (34–36 inches). A 24-inch segment is enough for daily loads without stealing prep space.
