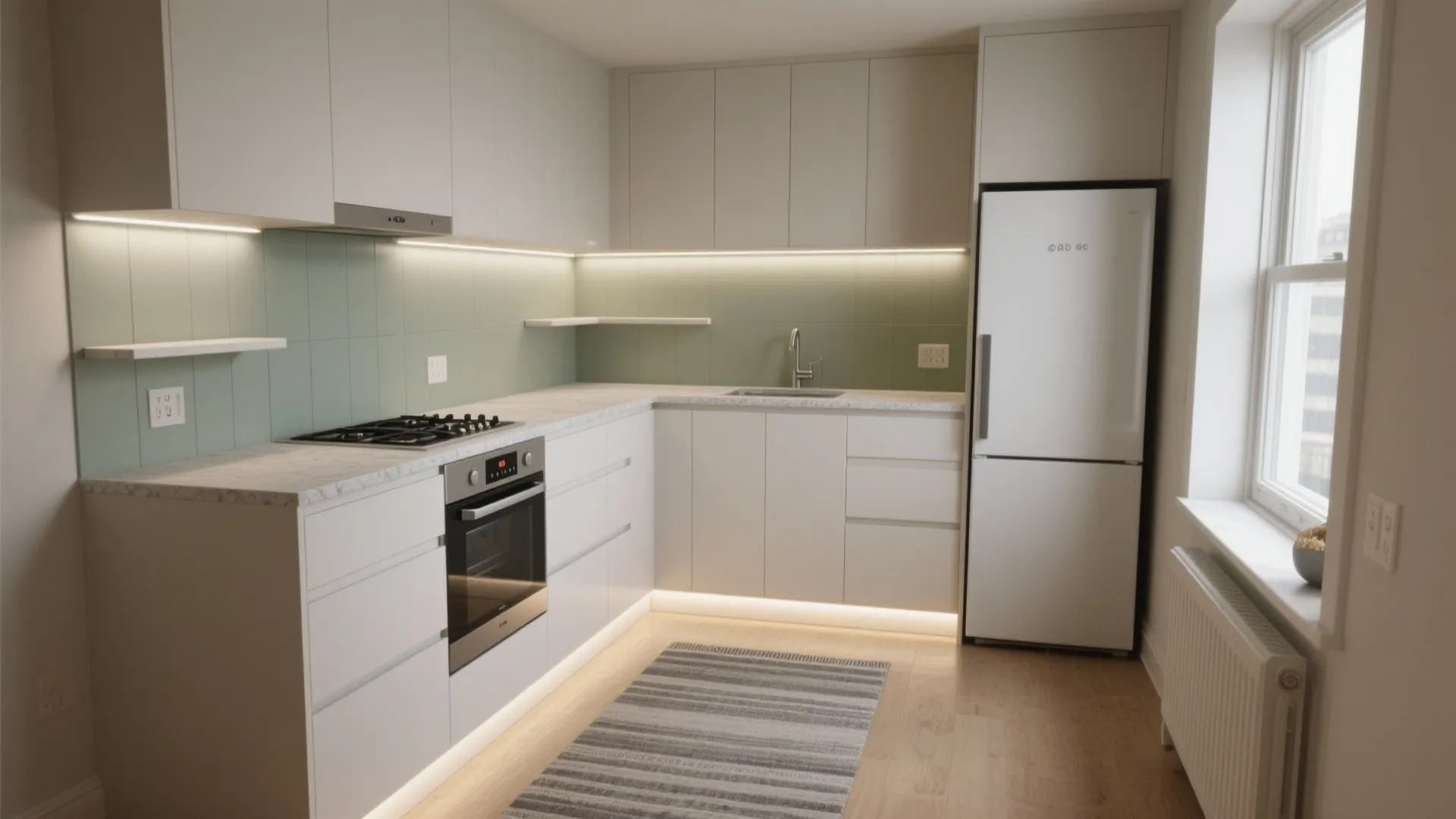

Small Modular Kitchen Design Ideas That Maximize Every Inch: 1 Minute to Cleverly Upgrade Your Compact Kitchen Space

I’ve designed dozens of compact modular kitchens where every inch has a job, and the best results come from treating space like a system. In small footprints, circulation, sightlines, and storage must be orchestrated so cooking remains fluid and tidy.

In tight kitchens, performance hinges on ergonomics and light. WELL v2 recommends task illuminance in the 300–500 lux range for food prep, with glare control to reduce strain, and correlated color temperature around 3000–3500K to keep color rendering accurate without fatiguing the eyes (source: WELL v2). Steelcase research indicates visual clutter and poor organization increase cognitive load, undermining productivity; structured storage and clear work zones reduce that load and improve focus (Steelcase Research). Those baselines anchor every choice below.

Color impacts perception and behavior. Verywell Mind notes warmer neutrals can feel welcoming while cool hues aid focus; in compact kitchens, balanced palettes—soft greige, warm white, and a muted accent—help the room feel larger without sacrificing energy. Pair color strategy with lighting that meets IES task guidance for counters and avoids specular highlights on glossy finishes (IES Standards).

Plan the Envelope: Proportions, Sightlines, and Flow

Start with circulation. A comfortable in-kitchen path should be 36–42 inches where possible; in micro layouts, 32–34 inches can work if cabinet pulls are low profile and appliances open opposite to travel. Keep primary sightlines to the brightest surface—usually the window or illuminated backsplash—to expand perceived depth. In galley kitchens, stagger tall elements so one side carries full-height storage while the opposite maintains counter continuity and daylight bounce.

When testing variations—single-wall, L-shape, or compact galley—use a room layout tool to simulate clearances, appliance swing, and triangle distances:

room layout tool

Optimize the Working Triangle for Small Spaces

The classic triangle (sink–cooktop–refrigerator) still works, but in small modular plans I compress legs to 4–6 feet each and prioritize the sink as the anchor. If a full triangle is impossible, create a working line: sink and cooktop on one run with the refrigerator at the end. A 24–27 inch landing on either side of the cooktop and a 30 inch landing at the sink keep tasks fluid. Place the dishwasher adjacent to the sink with at least 21 inches of standing room in front when open.

Vertical Storage that Doesn’t Crush the Room

Use a tiered strategy: drawers at base for heavy items, mid-height pull-outs for daily use, and one or two full-height columns for pantry and broom storage. Break the upper line with open shelves or short uppers near the window to maintain light spread. Pull-down racks inside upper cabinets bring rarely used tools within reach without adding visual mass.

Thin, Strong, and Easy: Materials for Compact Kitchens

Countertops with slim profiles (12–20 mm) in engineered stone or sintered surfaces keep the look light while resisting stains. Matte cabinetry fronts minimize reflections and hide fingerprints—a practical win in tight quarters. Integrate antimicrobial pulls or edge profiles and select low-VOC finishes to improve indoor air quality. Sustainable options like FSC-certified plywood boxes and recycled-content quartz reduce environmental impact while maintaining rigidity.

Lighting Layers: Task, Ambient, and Accent

Layer light deliberately. Under-cabinet task lighting should deliver 300–500 lux on the counter. Pair that with dimmable ambient lighting—flush mounts or linear tracks—to avoid shadows, and add a soft accent at the backsplash or toe-kick for depth. WELL v2’s guidance on glare control translates to shielding under-cabinet LEDs and choosing diffusers with high-quality optics. Warmer evening settings around 2700–3000K increase comfort after cooking.

Appliance Strategy: Scale Down, Maintain Function

Compact 24 inch appliances can be highly capable. Consider an induction cooktop with bridging zones and a combi-steam oven to replace both microwave and traditional baking in one cavity. Counter-depth refrigerators keep the line clean; panel-ready models reduce visual interruptions. Ventilation matters—aim for quiet hoods with capture efficiency and a sone rating under 3 to keep noise from dominating a small room.

Ergonomics: Heights, Handles, and Movements

Base counter heights at 35–37 inches suit most users; I adjust within that based on posture and tasks. For serious prep, a secondary board at 33–34 inches improves leverage. Choose D-shaped or integrated pulls that don’t snag clothing, and specify soft-close hardware to reduce impact noise. Locate daily-use items between knee and shoulder height to minimize bending and reaching.

Smart Zoning: Prep, Cook, Clean, and Serve

Divide the kitchen into slim but clear zones. Prep sits between sink and cooktop with knives, boards, and mixing bowls; cooking zone centers on the hob with spices and pans within 18 inches; cleaning zone includes sink, dishwasher, and waste separation; serving zone occupies the end cap or peninsula. In a single-wall plan, stack zones linearly; in an L-shape, pivot around the sink corner to keep steps short.

Built-In Organization: Drawers and Inserts

Deep drawers outperform fixed shelves in small kitchens. Use full-extension slides and modular inserts: knife blocks, spice trays, and vertical dividers for pans. Consider a narrow 6–9 inch pull-out for oils near the cooktop, and a double-decker cutlery system to condense utensils. Inside-cabinet hooks for measuring tools and colanders reduce countertop scatter.

Surfaces and Color Psychology for Scale

To visually enlarge, keep the lower plane calm and let the upper plane breathe. Use a single-tone base cabinet run with a slightly lighter wall and ceiling. Verywell Mind’s take on color psychology supports using calming neutrals to reduce stress; add a controlled accent—muted green or soft blue—on a backsplash to signal freshness without shrinking the room. High-CRI LEDs preserve color accuracy for food.

Acoustic Comfort in Compact Kitchens

Small spaces amplify sound. Choose appliances with low sone ratings, add soft materials—runner rugs, fabric blinds, or acoustic wall panels—and specify felt bumpers on door fronts. Seal gaps around built-ins to prevent resonance. Acoustic comfort reduces fatigue and supports better conversation in open-plan studios.

Flexible Dining: Perch, Fold, or Slide

Integrate a slim breakfast ledge on a peninsula or a fold-down wall table with locking hardware rated for dynamic loads. Slide-out worktops give 12–18 inches of extra surface when needed. If the kitchen opens to living space, align dining with the brightest zone to keep the kitchen feeling less congested.

Retrofit-Friendly Modular Moves

When retrofitting, prioritize upgrades that multiply utility: add a 15 inch pull-out pantry, convert one cabinet to full-depth drawers, and install under-cabinet lights with magnetic tracks for easy wiring. Swap a double-bowl sink for a single large bowl plus a roll-top grid to add prep surface on demand.

Safety and Maintenance in Tight Quarters

Maintain clearances from heat sources, use induction to minimize open flame risk, and add child-safe latches if the kitchen doubles as a family zone. Choose easy-clean backsplashes—large-format tile or slab—and specify a sealed grout. Keep a maintenance kit: touch-up paint, spare hinges, LED strips, and filter replacements.

When to Use Open Shelving

Open shelves are great for display and quick access but need discipline. Limit them to the prep side, store uniform items, and light them softly from above. In very small rooms, one short open run near daylight keeps the space airy while closed storage handles the rest.

Layout Scenarios

Single-Wall

Ideal for studios. Place the sink centrally, cooktop to one side, and refrigerator at the far end. Keep tall pantry at the opposite end to frame the run without blocking light. Use the interior layout planner to test appliance spacing and drawer conflicts.

interior layout planner

Compact L-Shape

Works well with a window. Keep the sink on the short leg, cooktop on the long, and use the corner for prep with a lazy Susan or blind-corner pull-out. Reserve one tall cabinet away from the window to avoid daylight loss.

Micro-Galley

Parallel runs with 32–36 inch aisle. Put continuous counter and sink on the bright side, cooking on the other. Stagger heights and keep uppers lighter or open on the daylight side to offset compression.

FAQ

Q1: How much counter lighting do I need for safe prep?

A1: Target 300–500 lux at the work surface, delivered by shielded under-cabinet LEDs with high CRI. That range aligns with WELL v2 guidance and keeps chopping and reading labels comfortable.

Q2: What’s the minimum aisle width for a small galley?

A2: Aim for 36–42 inches; in micro kitchens 32–34 inches can function if appliance doors open away from the main path and cabinet hardware is low profile.

Q3: Are 24 inch appliances enough?

A3: Yes. A 24 inch induction cooktop with bridging zones, a combi-steam oven, and a counter-depth refrigerator can handle daily cooking while preserving valuable inches.

Q4: Which storage upgrades make the biggest difference?

A4: Full-extension deep drawers, a 6–9 inch pull-out for oils and spices, and one tall pantry with adjustable shelves. Add modular inserts to prevent clutter and reduce cognitive load, a point supported by Steelcase research.

Q5: What colors help a small kitchen feel larger?

A5: Calm neutrals—warm whites, soft greige—paired with a muted accent. Verywell Mind notes warm tones feel welcoming, while cooler accents aid focus. Keep lower cabinetry uniform to ground the space.

Q6: How do I reduce noise in a compact kitchen?

A6: Select low-sone appliances, add soft finishes (rugs, fabric blinds), and use felt bumpers on doors. Seal gaps around built-ins to prevent resonance and rattling.

Q7: What’s the best way to plan the working triangle in small layouts?

A7: Compress each leg to 4–6 feet and center the sink. If a triangle isn’t feasible, create a working line with adequate landing zones: 24–27 inches beside the cooktop and about 30 inches at the sink.

Q8: How can lighting make my kitchen look bigger?

A8: Combine bright, glare-controlled task lighting with dimmable ambient light and a subtle accent at the backsplash or toe-kick. Keep upper areas lighter and avoid glossy surfaces that bounce hard highlights.

Q9: Is open shelving practical in a small kitchen?

A9: Use it sparingly for uniform items near daylight. Limit open runs to maintain visual calm; let closed storage handle the rest.

Q10: Which materials are most durable and slim?

A10: Engineered stone or sintered slabs in 12–20 mm thickness for counters, matte laminates or painted MDF for fronts, and FSC-certified plywood boxes for strength and sustainability.
