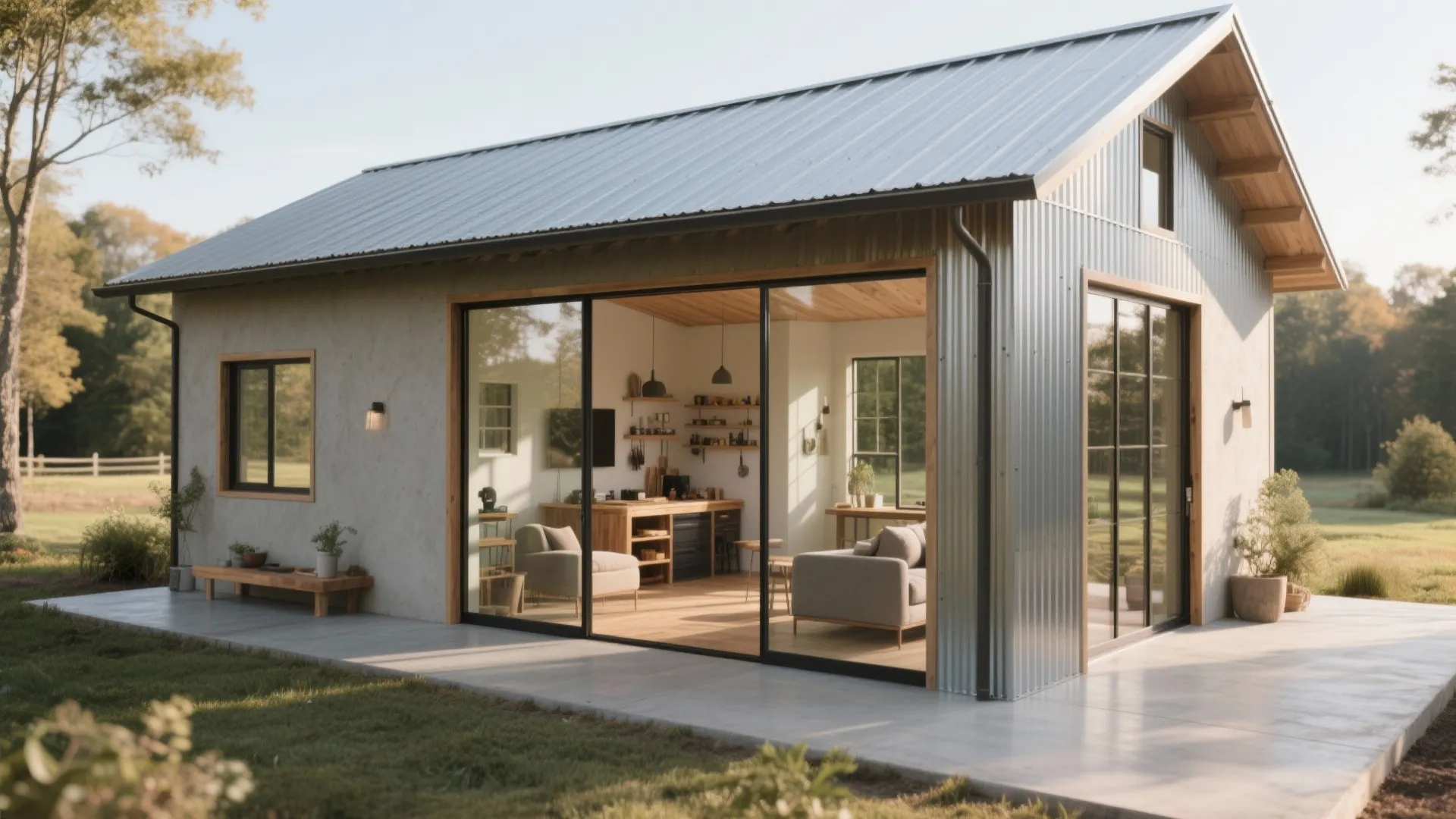

Small Pole Barn with Living Quarters: Space-Smart Design Tips: Fast-Track Guide to Cozy & Functional Barn Living

I’ve planned a number of small pole barns with living quarters where every square foot had to work twice as hard—durable enough for utility, refined enough for daily life. The most successful projects blend compact zoning, daylighting, and resilient finishes with a clear rhythm of circulation so the home feels generous without growing the footprint.

Space performance is measurable. Steelcase research has shown that workplaces with clearly zoned neighborhoods can improve perceived productivity and well-being—principles that translate to hybrid utility‑residential barns by reducing task switching and noise conflict. The WELL Building Standard (v2) highlights daylight access, glare control, and thermal comfort as foundational to health, guiding decisions like window orientation and operable shading in metal-clad environments. You’ll see those cues woven through each recommendation below.

On the spatial side, I anchor living quarters along the quieter edges while reserving the center bays for storage, workshop, or hobby functions. Gensler’s research on activity-based environments underscores that proximity and acoustic boundaries influence satisfaction; keeping high-impact tasks buffered from sleeping spaces helps maintain a serene core.

Plan the Footprint by Ratios, Not Just Rooms

In compact barn homes, I size the footprint using spatial ratios: 35–40% for living/dining/kitchen, 25–30% for bedroom(s) and bath, 15–20% for circulation and storage, and the balance for utility or shop. This ratio prevents oversized corridors and keeps mechanical runs efficient. When layouts become tight, I’ll prototype adjacency options with a room layout tool like interior layout planner to simulate traffic and furniture clearances before committing to slab penetrations or anchoring posts.

Daylighting and Glare Control in Metal Skins

Metal buildings amplify daylight and heat. I orient major glazing south or southeast for consistent luminance and add deep overhangs or adjustable exterior shades to hit target illuminance in living areas—generally 300–500 lux for reading and socializing per common lighting practice, while task surfaces in the shop aim higher. To mitigate glare on reflective siding, I prefer low‑e coatings, light shelves where wall height allows, and matte interior finishes to diffuse bounce. WELL v2’s Light concept encourages individual control; dimmable LEDs and layered circuits let the home flex from dawn chores to evening rest.

Acoustic Zoning That Protects Sleep

Barn shells can drum if untreated. I place bedrooms away from roll-up doors and mechanical bays, then add staggered-stud partitions, mineral wool, and resilient channels around sleeping and office nooks. Hard-wearing concrete floors stay, but I break them acoustically with area rugs and cork underlayment in living zones. Doors matter: solid-core with perimeter seals for rooms adjacent to the shop.

Thermal Comfort and Envelope Strategy

Small volumes swing temperatures quickly. I favor continuous exterior insulation wrapped over girts, then closed‑cell spray foam at rooflines for air sealing, with a ventilated rainscreen when budget allows. Zonal mini‑splits give precise control, and ceiling fans support mixed-mode comfort. Keep operable windows on opposite walls in living quarters to promote cross‑ventilation during shoulder seasons.

Kitchen and Bath: Compact, Durable, Easy to Clean

Galley or L‑shaped kitchens with a 42–48 inch aisle keep movement smooth. I lean on stainless or quartz worktops, high backsplashes, and integrated rails for hanging tools (blending home and hobby without clutter). In baths, curbless showers and linear drains simplify waterproofing over slab. Fixture clearances and lever hardware ensure accessibility without telegraphing it.

Storage That Disappears

Wall bays between posts are storage gold. I design full‑height built‑ins with sliding fronts to avoid swing conflicts, and mount micro‑lofts above utility rooms for seasonal gear. In living areas, benches under windows hide deep drawers; in the shop, pegboard backers and adjustable shelves keep heavy items off the floor, maintaining clear egress.

Material Palette: Tough Outside, Warm Inside

Exterior panels and standing‑seam roofs are workhorses; inside, I temper the industrial feel with FSC‑certified plywood, oiled oak, and textured plaster or limewash for softer light diffusion. Where moisture is frequent—entry, mud, bath—I specify epoxy or high‑build polyurea coatings; elsewhere, low‑VOC finishes support indoor air quality.

Color Psychology for Compact Volume

Color can stretch space. Verywell Mind’s color psychology guidance notes that blues and greens support calm; I use desaturated tones on large planes and richer accents on joinery to add depth without visual noise. Warm whites (2700–3000K lighting) soothe evenings; cooler task light (3500–4000K) keeps prep surfaces crisp.

Circulation and Furniture Rhythm

Keep main paths 36–42 inches wide and uninterrupted from entry to kitchen to bath. Float the sofa to form a micro‑hall behind it, and cluster seating to avoid perimeter clutter. In tight rooms, wall‑mounted tables and folding desks create flexible moments for work or dining without sacrificing flow.

Safety, Codes, and Planning

Even small barn homes juggle mixed uses. Ensure proper fire separations between habitable space and any garage/shop zone, confirm egress window sizes, and keep electrical runs protected in high‑impact areas. I coordinate exhaust paths early so the bath and kitchen don’t short‑circuit fresh air strategies.

Site Orientation and Water Management

Set the long elevation to harvest winter sun and shield summer exposure with landscape or shade structures. Grade the apron away from doors, add generous gutters, and consider a simple cistern to keep mud at bay while feeding garden irrigation.

Layout Scenarios You Can Trust

For one-bedroom living quarters, I often stack kitchen and bath back-to-back to consolidate plumbing, place the bedroom on the quiet gable end, and float the dining table as a multiuse island. For two-bedroom versions, I split rooms across the living core for privacy. If you’re iterating options, a layout simulation tool such as the room design visualization tool helps test furniture scale and clearances against the post grid.

Lighting Layers That Work

Ambient pendants or linear LEDs for general light, task spots over counters and benches, and warm accent lamps for evening. Add occupancy sensors in the utility bay and garage doors to keep energy use smart.

Budget Moves With Big Impact

Spend on envelope and HVAC first; finishes can upgrade over time. Use modular cabinets and standardized door sizes to control cost and simplify replacement.

FAQ

Q1: How do I prevent workshop noise from disrupting sleep?

A1: Separate bedrooms from shop bays, add staggered-stud walls with mineral wool, use resilient channels, and install solid-core doors with seals. Soft finishes and rugs in living zones further dampen transmission.

Q2: What window orientation best supports comfort?

A2: South or southeast glazing provides stable daylight. Pair with exterior shading and dimmable LEDs to meet WELL v2 Light concepts for control and glare reduction.

Q3: Which layout keeps plumbing costs down?

A3: Stack kitchen and bath back-to-back along a shared wet wall and keep runs short to the mechanical room. This reduces penetrations through the slab and simplifies maintenance.

Q4: How wide should circulation paths be in compact spaces?

A4: Maintain 36–42 inches for main paths to support safe, comfortable movement, even with furniture or storage built-ins.

Q5: What materials handle moisture and wear near entries?

A5: Epoxy or polyurea floor coatings, cement board behind wet areas, and stainless or quartz worktops. Use low‑VOC finishes elsewhere to protect indoor air quality.

Q6: How can color make my small barn feel larger?

A6: Use desaturated blues/greens for calm on large planes, warm whites for evening light, and richer accents on furniture to add depth. This aligns with insights on color and mood referenced by Verywell Mind.

Q7: Do I need special fire separation between living and shop areas?

A7: Yes. Provide rated assemblies as required locally, seal penetrations, and ensure self-closing doors where codes dictate. Confirm egress windows and smoke/CO detection throughout.

Q8: What lighting levels should I target?

A8: Living areas typically feel comfortable around 300–500 lux, with higher task lighting over prep and work benches. Layer ambient, task, and accent, and include controls to tune output.

Q9: How can I keep the space flexible for guests or hobbies?

A9: Use wall‑mounted folding tables, movable screens, and storage integrated between posts. Furniture on glides and modular shelving let zones expand or shrink as needed.

Q10: Any tips for heating and cooling efficiency?

A10: Continuous exterior insulation, air‑sealed rooflines, zonal mini‑splits, and ceiling fans help regulate comfort. Cross‑ventilate with operable windows during mild weather.

Q11: What’s the best way to plan before pouring the slab?

A11: Prototype multiple layouts with a room layout tool to verify clearances, plumbing positions, and post grid impacts. Lock mechanical locations early to avoid costly rework.

Q12: How do I manage water and mud at entries?

A12: Grade away from doors, add generous gutters and downspouts, and consider a simple cistern. Durable floor finishes and mats protect interiors.
