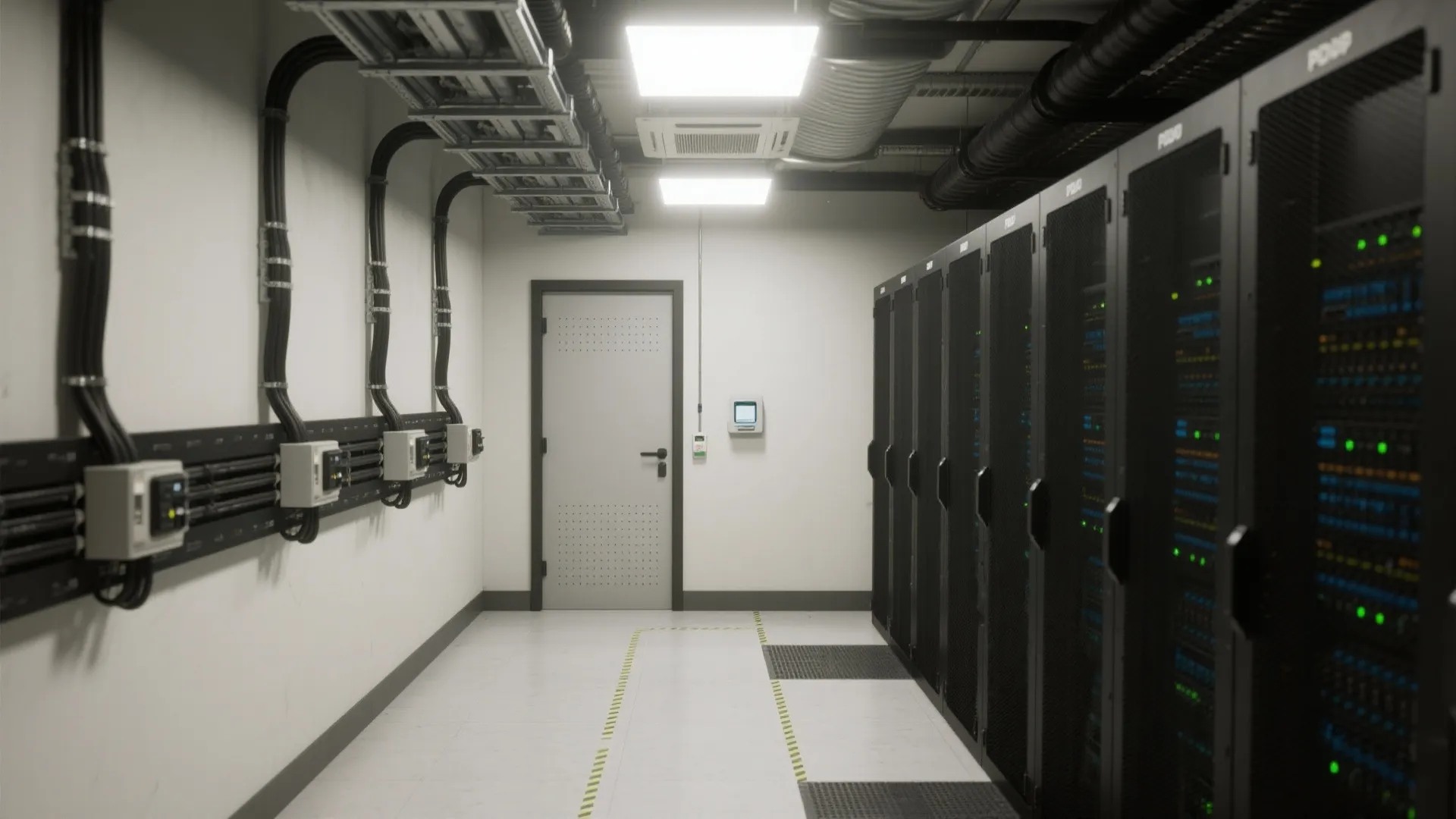

Small Server Room Design: Maximize Efficiency in Limited Space: Fast-Track Guide to Organizing a Small Server Room in 1 Minute

Designing a compact server room is less about squeezing racks into a closet and more about orchestrating airflow, power, acoustics, and workflow so the environment stays stable under load. I prioritize thermal discipline, clean cable architecture, and clear service paths before any aesthetic decision. In small footprints, each inch affects uptime.

Heat is the first constraint. WELL v2 suggests thermal comfort bands that correlate with cognitive performance and occupant wellness, while data center best practice targets 18–27°C (64–80°F) and 40–60% RH for IT gear; staying within these bounds reduces failure risk and fan noise. Steelcase research links environmental comfort to productivity, reminding me that adjacent work areas benefit when the server room is acoustically isolated and thermally balanced. I specify temperature and humidity monitoring at rack and return air points to catch drift quickly.

The second constraint is airflow. ASHRAE TC9.9 guidance (commonly referenced by workplace and facility teams) supports the hot-aisle/cold-aisle strategy even at micro scale: orient rack fronts toward supply, backs toward return, and avoid short-circuiting. From my projects, a 600–800 mm clear front service corridor allows filter changes and cable work without blocking intake. I use blanking panels and brush grommets to force cold air through equipment, not around it. The WELL Building Standard also emphasizes air quality and filtration; integrating differential pressure monitoring helps confirm containment integrity. For broader performance implications, Gensler’s workplace findings continue to show that controlled environments drive reliability—critical when business operations depend on edge servers.

Plan the Envelope: Clearances, Zoning, and Layout Rhythm

Small rooms succeed when the shell supports equipment. I maintain 900 mm minimum egress paths and 1,000–1,200 mm swing clearance in front of electrical panels. Rack-to-wall distance of 300–450 mm behind the hot side keeps returns effective and admits cable ladders. If you need to visualize scenarios, a room layout tool helps test aisle spacing and access points before committing to penetrations.

In very tight footprints, a single-row cold-front/hot-back arrangement can work if the return is ducted high and the supply diffusers deliver laminar flow toward rack intakes. I avoid mixing supply and return on the same wall, and I isolate UPS and batteries from the hottest zone. I use floor markings to reinforce workflow routes and service zones.

Cooling Strategy: Right-Sized, Redundant, and Contained

For light-to-moderate loads, dedicated split systems with variable speed compressors provide stable control and part-load efficiency. I size capacity based on actual nameplate TDP plus growth, not just rules of thumb. Where possible, separate returns from the general office HVAC; shared returns can recirculate dust and heat. If the load profile is volatile, in-row cooling or rear-door heat exchangers compress the thermal loop and reduce room volume requirements. Redundancy matters: N+1 cooling keeps uptime viable during maintenance windows. WELL v2 performance verification supports continuous monitoring; I pair environmental sensors with alerts and trend logs.

Power Architecture: Distribution, Redundancy, and Maintenance Access

I standardize on dual-cord PDUs where equipment supports it, fed from separate UPS channels. Battery runtime should cover graceful shutdown plus restart—typically 10–15 minutes for small rooms, scaled to workload. I use color-coded whips and label conventions visible from the front of the rack to cut human error. Keep the electrical panel within the service corridor, not behind racks. A structured power tree—panel → ATS (if dual utility/generator) → UPS → PDU—simplifies troubleshooting.

Cable Management: Order, Airflow, and Future Moves

Cable mass is an airflow killer. I route data above on ladder trays with drop points per rack, and power below in segregated paths. Velcro over zip ties preserves conductors and simplifies rework. I keep 20–30% free capacity in trays and patch panels for growth. Brush grommets on floor or wall penetrations reduce bypass air. Label every run at both ends with human-readable and QR references tied to the inventory.

Noise and Acoustics: Shield the Adjacent Workplace

Small rooms often sit beside open offices. Equipment fans can exceed 60–70 dBA under load. I specify STC 50 partitions with mineral wool infill, sealed penetrations, and acoustically rated doors. Mechanical vibration decoupling on condensers and racks reduces structure-borne transfer. Steelcase research has long connected unwanted noise to cognitive fatigue; isolating the sound envelope maintains focus for nearby teams.

Fire Safety, Egress, and Materials

Use non-combustible wall linings and low-smoke, zero-halogen cabling. Keep handheld extinguishers rated for electrical fires accessible at the entry, and verify that detection (VESDA or spot detectors) aligns with airflow patterns. Floor finishes must resist rolling loads and static discharge; antistatic tiles or conductive flooring help where sensitive equipment is present. Doors should open outward with panic hardware when occupant load warrants it.

Monitoring and Controls: Data-Driven Reliability

I deploy sensors for temperature (rack intake and exhaust), humidity, differential pressure, power load per PDU, and leak detection near condensate and entry points. Trend logs guide maintenance intervals. Alarm thresholds should escalate: local notification, facilities alert, and remote notification. A simple SOP binder at the door with QR codes to digital runbooks speeds response under stress.

Color, Lighting, and Human Factors

Neutral, low-reflectance finishes reduce glare and make labeling readable. Task lighting at 500–750 lux for service work, with ambient around 300–500 lux, follows IES recommendations for technical spaces. Correlated color temperature around 4000–5000K keeps color rendering consistent for cabling identification without fatiguing the eyes. I use anti-glare housings and maintain vertical illumination on rack fronts to minimize shadows.

Security and Access Protocols

Badge-controlled entry, camera coverage of rack faces, and audit logs protect assets. I separate visitor standing space from the service corridor so technicians can work while oversight happens safely. Lock PDUs and network gear; never leave exposed fiber vulnerable to snagging.

Sustainability and Heat Reuse

Small rooms can still contribute to sustainability goals. High-SEER cooling, ECM fans, right-sized UPS systems, and blanking panels cut waste. Where practical, reclaim heat to adjacent utility areas. Material choices—low-VOC paints, durable recycled-content floor tiles—reduce lifecycle impact without compromising performance.

Commissioning Checklist

- Verify cold/hot zoning with smoke tests or thermography

- Validate UPS runtime under real load and failover paths

- Calibrate sensors and confirm alert routing

- Confirm service clearances and egress

- Label, document, and photograph every panel and rack face

- Train the team on SOPs and lockout/tagout

Reference Insights

For design standards and performance verification, WELL v2 provides structured criteria for thermal and air quality. Gensler research reinforces the productivity link between controlled environments and reliable workflows. These sources keep my decisions grounded while project constraints shift.

FAQ

Q1: What temperature and humidity targets should I maintain?

A1: Aim for 18–27°C (64–80°F) and 40–60% RH, with stable airflow across rack intakes. Keep sensors at intake and exhaust to catch drift.

Q2: Do I need a hot-aisle/cold-aisle layout in a small room?

A2: Yes, even a single row benefits from front (cold) and back (hot) zoning with sealed paths, blanking panels, and directed returns.

Q3: How much clearance is enough for service?

A3: Maintain roughly 600–800 mm at the rack front for routine tasks and 900 mm for egress, with 300–450 mm behind to manage cables and heat.

Q4: What lighting levels support safe maintenance?

A4: Provide 500–750 lux task lighting at racks, 300–500 lux ambient, 4000–5000K CCT, and anti-glare fixtures to keep labels legible.

Q5: How should I structure power redundancy?

A5: Dual-cord equipment on separate UPS channels, with N+1 cooling and clear labeling. Test failover and monitor load per PDU.

Q6: What acoustic targets reduce disruption?

A6: Use STC 50 partitions, sealed penetrations, and vibration isolation. Keep the server room door closed and gasketed to prevent spillover noise.

Q7: What cable practices preserve airflow?

A7: Separate power and data paths, use ladder trays, keep 20–30% spare capacity, install brush grommets, and label both ends of every run.

Q8: How do I plan for growth in a tight space?

A8: Reserve 20–30% capacity in power, cooling, and cabling; document an expansion path; and use modular racks and in-row cooling if loads rise.

Q9: Should the server room share office HVAC?

A9: Avoid shared returns; dedicated cooling with controlled supply and return protects equipment and prevents heat and dust recirculation.

Q10: What security measures are essential?

A10: Badge access, cameras on rack faces, locked PDUs and panels, and audit logs. Separate visitor oversight from technician work zones.
