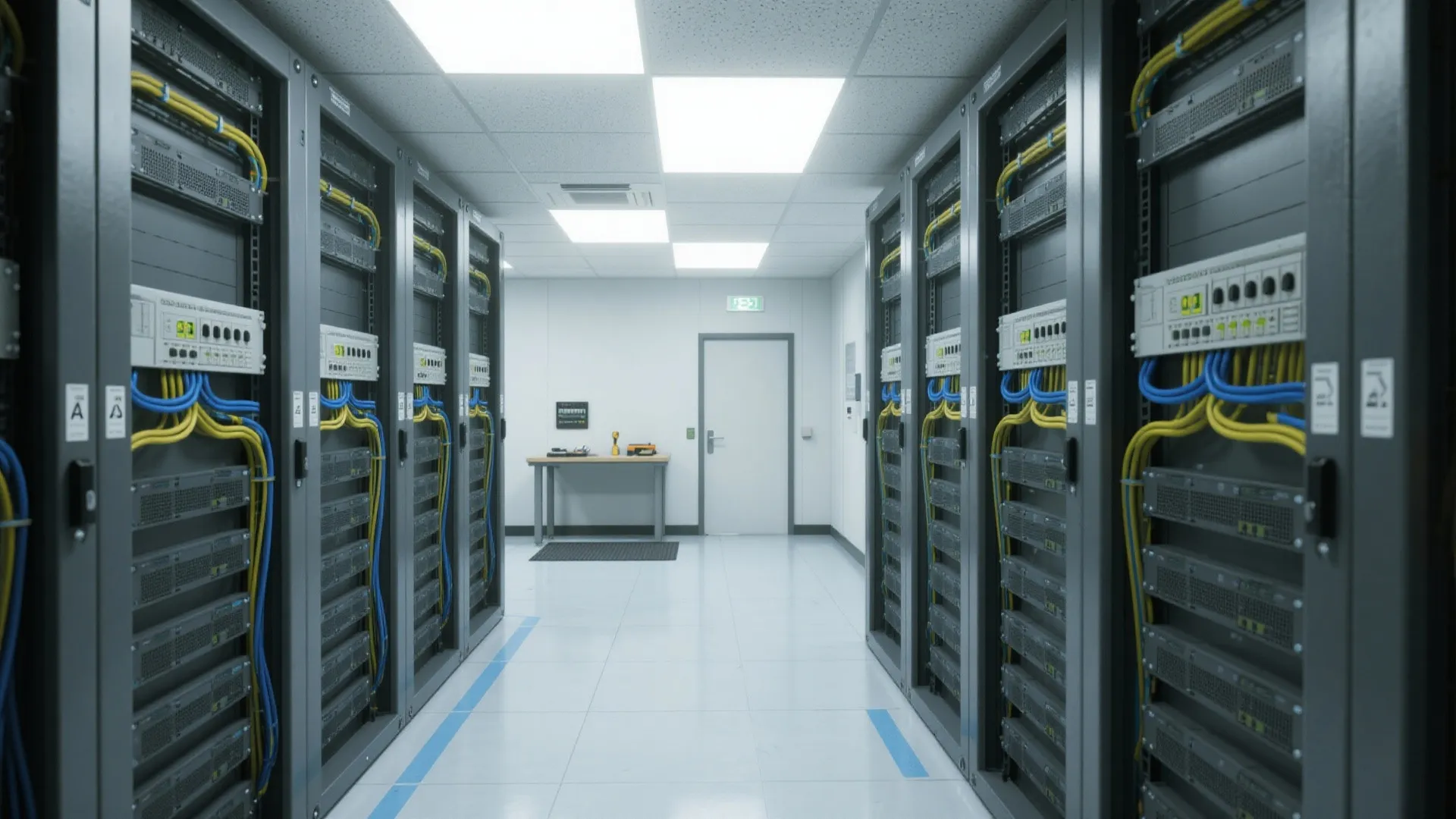

Small Server Room Design: Maximize Space & Efficiency: 1 Minute to a Smart, Space-Saving Small Server Room Setup

I’ve planned and retrofitted dozens of compact server rooms in offices and mixed-use buildings, and the most successful spaces share one theme: every square foot works hard. In tight footprints, it’s about balancing airflow, power density, cable discipline, and human access without compromising uptime or safety.

Right-sizing cooling and airflow is the first lever. WELL v2 recommends maintaining thermal comfort in occupied spaces within roughly 20–25°C for most users, and server rooms typically perform best with an intake temperature in the 18–27°C ASHRAE-recommended range; the WELL framework also underscores monitoring and maintaining indoor environmental quality (source: WELL v2). For lighting, the Illuminating Engineering Society provides guidance that general task illumination should be around 300–500 lux in technical support areas, with careful glare control to reduce errors during maintenance (source: IES standards). A disciplined pathway for technicians, at least 900 mm clear in front and behind racks, keeps work safe and efficient.

Space efficiency and ergonomics go hand-in-hand. Steelcase research has shown that environments designed around human factors reduce error rates and improve workflow precision in technical settings (source: steelcase.com/research). In small rooms, ergonomics translates to reachable patch fields, labeled cable routes, racks that open fully without collision, and audible noise kept within safe limits during routine checks. Linking behavior to layout, I stagger racks to avoid face-to-face hot air recirculation and reserve a corner for a compact work surface and display used for quick diagnostics.

Plan the Rack Footprint and Clearances

In small rooms, start with the rack count and power density. Map present loads and 24–36‑month growth. Maintain clear working aisles: 900–1000 mm in front of racks and 800–900 mm behind for rear access, while ensuring doors can swing safely. If the space is irregular, use a layout simulation tool to test aisle widths and service paths in 3D with a room layout tool: room layout tool. I aim for rail-to-rail alignment and keep patch panels at shoulder height for fast swaps.

Thermal Strategy: Contain, Cool, Monitor

For compact rooms, passive discipline beats expensive equipment. Orient racks front-to-front (cold aisle) and back-to-back (hot aisle) to minimize recirculation. If full containment isn’t feasible, soft containment—vinyl curtains or baffling above racks—often cuts intake temperatures by 2–4°C without a major retrofit. Keep cable cutouts sealed, and block unused rack U positions with blanking panels. Install differential pressure sensors or simply use smart temperature probes at top, middle, and bottom of each rack to verify gradients.

Cooling should match the load profile. For rooms under 10–20 kW, high-efficiency split systems or dedicated CRAC with hot aisle return typically suffice. For micro rooms under 5 kW, consider wall-mount DX units with return ducting from the hot side. Always provide emergency ventilation pathways—louvered transfer grilles or a fail-safe exhaust—so heat can escape during an HVAC fault. I set alarms at 26–27°C intake to trigger rapid response while staying within the accepted equipment envelope.

Power Resilience and Cable Discipline

Two independent power paths (A/B) with separate UPS units increase resilience. Keep UPS batteries in a ventilated enclosure and size them for critical runtime—often 10–15 minutes is enough to bridge generator start or perform orderly shutdowns. Color-code power cords and data trunks, and route copper and fiber separately. Velcro ties rather than zip ties make changes painless and reduce cable strain. Use ladder racks or wall‑mounted trays to avoid cluttered floors; raised floors in very small rooms rarely justify the loss of headroom.

Fire Safety and Compliance

Compact rooms need clean-agent protection where water could damage equipment. FM‑200 or Novec 1230 systems are common in small spaces, paired with photoelectric smoke detection and pre‑action logic. Maintain sealed cable penetrations and keep combustibles out—no cardboard boxes, no paper storage. Confirm door seals and pressure relief provisions so a suppression discharge does not over‑pressurize the room.

Lighting and Acoustic Comfort

Set uniform lighting around 300–500 lux with neutral white 4000–4500K fixtures to avoid color cast when reading labels. Minimize glare with prismatic diffusers or indirect lighting to keep reflective server bezels readable. Noise can exceed comfortable levels in small rooms; I target reverberation control using mineral-fiber ceiling tiles and limited wall acoustic panels. Keep NRC around 0.7 where feasible to damp fan noise without restricting airflow.

Security, Access, and Human Factors

Badge-controlled entry, camera coverage of rack aisles, and logging of access events are baseline. From an ergonomics standpoint, I place a small, standing-height workbench near the entry, with ESD matting, spare SFPs, and labeled patch cords. Ladder storage and a compact tool cabinet help avoid tripping hazards. Behavioral patterns matter: technicians prefer quick reach zones for most‑used components; seldom-used gear belongs higher or lower in the rack.

Environmental Monitoring and Alerts

Use networked sensors for temperature, humidity (keep 40–60%), and leak detection under CRAC units and along cable trays. Alarms should escalate—local beacon, email/SMS, then building management notifications. A weekly walk‑through to verify LED status, filter condition, and cable strain pays dividends. I keep a laminated one‑page escalation plan at the door.

Materials and Sustainability

Choose low‑VOC finishes and durable, cleanable surfaces—epoxy floors, anti‑static vinyl, and powder‑coated metal furniture. Sealant and gaskets around penetrations improve energy performance by preventing bypass air. For sustainability, high‑SEER cooling and variable‑speed fans reduce energy use. If retrofitting, re‑use racks and trays where structurally sound and upgrade to efficient power strips and sensor‑based lighting.

Commissioning and Maintenance Rhythm

Before go‑live, perform a heat‑load test using portable heaters or staged equipment boot to verify air paths and alarms. Document every circuit, patch run, and asset ID. Quarterly, clean filters, verify UPS battery health, and test suppression systems. Semi‑annually, retighten rack hardware and recalibrate sensors. A small room stays reliable when small rituals are non‑negotiable.

FAQ

How much aisle clearance do I need in a small server room?

Aim for 900–1000 mm in front of racks and 800–900 mm behind to enable safe maintenance, door swing, and equipment removal without collisions.

What intake temperature is safe for servers?

Keep intake between roughly 18–27°C, aligned with common industry recommendations. Set alerts around 26–27°C to trigger corrective action before risk rises.

Do I need full hot/cold aisle containment in a tiny room?

Not always. Soft containment—curtains or above‑rack baffles—can reduce mixing and intake temperatures by a few degrees with minimal cost.

What lighting spec works best?

Provide uniform 300–500 lux at 4000–4500K with glare control. This supports label reading, patching accuracy, and reduces eye strain.

How should I structure power resilience?

Use dual A/B feeds with separate UPS units and clear cord color‑coding. Size UPS for 10–15 minutes of runtime to bridge generator start or shutdown.

Can I combine fiber and copper in the same pathway?

Route them separately to reduce strain and interference. Use ladder racks or wall trays; avoid tight bends and use velcro ties for changeability.

What suppression system suits a small server room?

Clean agents like FM‑200 or Novec 1230 paired with photoelectric detection are common; ensure sealed penetrations and pressure relief provisions.

How do I manage noise?

Add acoustic ceiling tiles and limited wall panels to raise NRC near 0.7 while keeping airflow unrestricted. Confirm fans don’t reflect noise into work zones.

What humidity range is appropriate?

Maintain 40–60% RH to avoid static and condensation risk. Monitor continuously and alarm on deviations.

What’s the best way to prevent cable sprawl?

Label ruthlessly, color‑code, separate power/data, and use ladder racks. Reserve shoulder‑height for patch panels to expedite changes.
