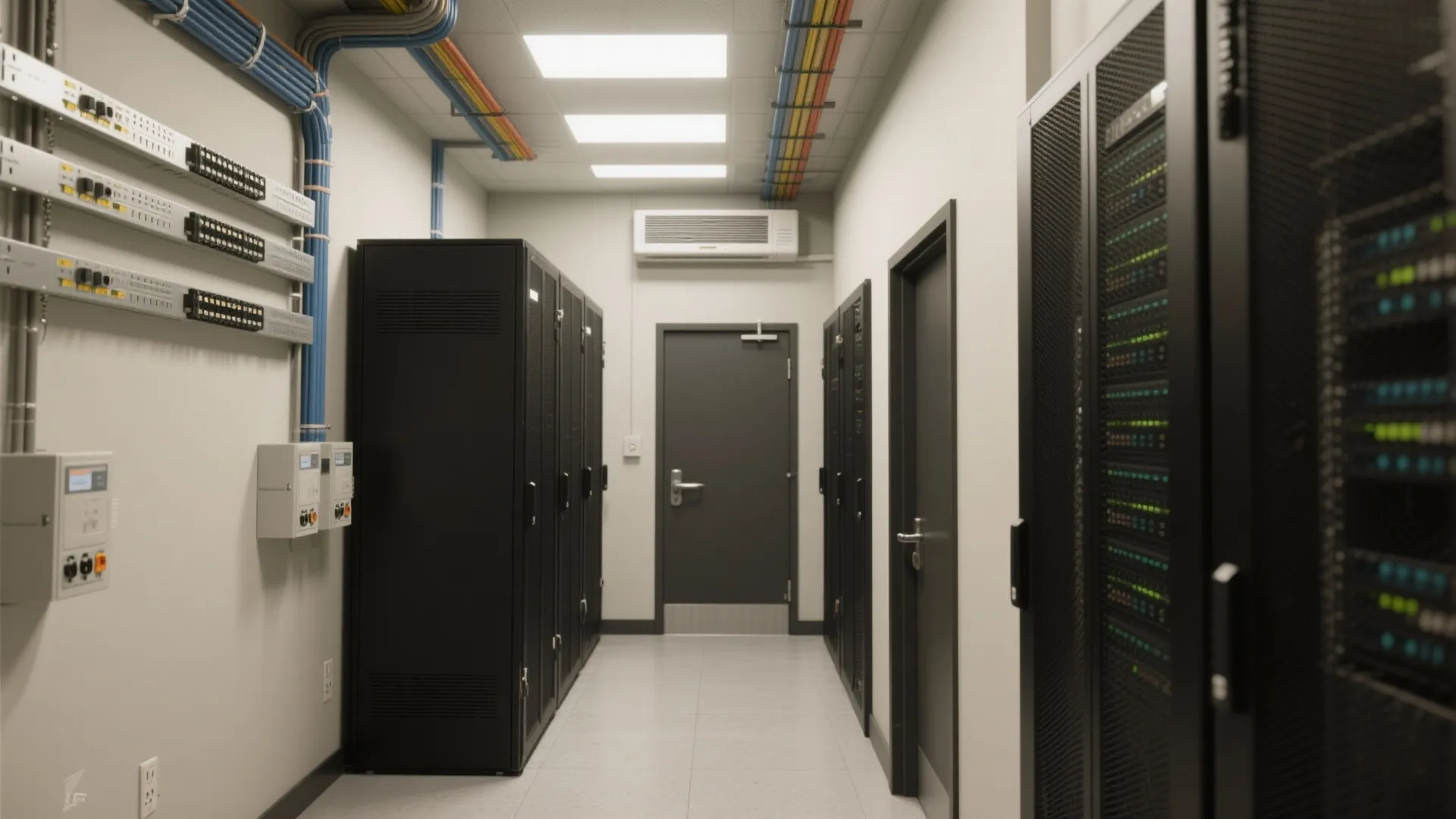

Small Server Room Design: Optimize Every Inch: Fast-Track Guide to Maximizing Small Server Rooms

I’ve planned and upgraded dozens of small server rooms tucked into offices, retail back-of-house areas, and light industrial suites. The constraints are real: limited square footage, variable building HVAC, and tight budgets. The goal is to achieve reliable uptime, safe maintenance access, and future-ready capacity without wasting a single inch.

Space planning and environmental control drive performance and longevity. According to Gensler’s workplace research, improving environmental quality (temperature, acoustics, lighting) correlates with higher perceived performance and fewer disruptions across knowledge work environments—an insight that extends to mission-critical support spaces. WELL v2 also anchors acceptable thermal comfort and air quality: the Thermal Comfort feature builds on ASHRAE 55 frameworks to keep operative temperatures and humidity within safe ranges for human access and maintenance, which helps prevent error-prone interventions. I follow those targets and adapt them for equipment tolerances, focusing on stable temperature (typically 72–78°F) and relative humidity between 40–60%.

Noise is often neglected until fans ramp up. Steelcase research indicates noise is among the most frequently cited workplace stressors; for server rooms adjacent to open offices, I treat walls and doors with higher STC assemblies and add perimeter seals to stop high-frequency fan noise and the low-frequency rumble of compressors bleeding into work areas. Combine that with a clear rack layout that preserves airflow, cable discipline, and safe egress, and even the smallest rooms can run cool and quiet.

Right-Size the Footprint

Start with inventory, growth assumptions, and clear maintenance zones. For 2–4 racks, I plan a minimum 36 in (914 mm) front clearance and 36–42 in rear clearance, with 24 in side clearance if side-access gear is present. Keep pathways unobstructed; technicians must be able to service PDUs, UPS batteries, and patch fields without contortions. If the room doubles as telecom or AV, create distinct vertical cable managers per discipline to prevent crosstalk and service conflicts.

For tight shells, I simulate rack positions, cold/hot aisle orientation, and door swing early with a room layout tool to avoid surprises during install. Using an interior layout planner also reveals whether existing columns, baseboard heaters, or low sills will restrict airflow or cable bend radii.

room layout tool

Cooling That Actually Fits the Room

Small rooms fail from heat more than anything else. Aim for dedicated cooling where possible. For loads up to ~8–12 kW, consider a wall-mounted split with inverter compressor or a small CRAC/CRAH unit with ducted return to avoid hot spots. Keep supply and return paths clean: cold air should flood the front of racks, with hot return air captured from the rear and kept separate. If using building HVAC, install return grilles near the hot aisle and supply near the cold aisle; avoid mixing that short-circuits the thermal gradient.

Control matters more than raw tonnage. Set tight deadbands and monitor with at least two calibrated probes—one at mid-rack intake and one near top-of-rack exhaust—to catch stratification. Maintain 40–60% RH to protect both human comfort during maintenance and equipment integrity; this aligns with WELL v2’s humidity guidance and typical manufacturer recommendations. In true micro rooms, supplement with blanking panels, brush grommets, and under-rack airflow baffles to prevent bypass and recirculation.

Power Discipline: Clean, Redundant, Documented

Specify a UPS sized for present load plus 25–30% growth, with network cards for remote alerts and battery health. Separate critical and non-critical circuits; never share with space heaters or janitorial outlets. Label every panel, PDU, and circuit path. Keep cabling paths segregated: power on one side, data on the other, crossing at 90° to mitigate interference. If budget allows, A/B feed with dual PDUs and dual-corded equipment; if not, at least upstream surge protection and a maintenance bypass for UPS replacement without downtime.

Grounding and bonding are non-negotiable. Verify rack bonding, cable tray bonding, and continuity back to building earth. Keep neutral and ground isolated per code; I’ve seen nuisance trips and odd equipment behavior from sloppy bonding in older buildings.

Layout: Cold/Hot Logic in Compact Rooms

Even with a single rack, maintain front (cold) and rear (hot) orientation. With 2–3 racks, create a narrow cold aisle facing supply air and a rear hot aisle aligned to return. Exhaust management is crucial: avoid blowing hot air toward doorways or ceiling plenum without proper capture. If ceiling height is low, use rear-door heat exchangers or top-ducted returns to prevent hot layers at head height. In highly constrained closets, half-depth racks can help, but confirm equipment depth and cable bend requirements first.

Plan cable routes before the rack anchors go in. Overhead trays work best in tiny rooms; underfloor is rarely viable unless you already have a raised floor. Keep fiber and copper in separate managers, and size vertical managers generously—overstuffed managers kill serviceability.

Lighting That Helps, Not Hurts

Task clarity matters when you’re reading tiny port labels. Provide 300–500 lux at working height, with neutral-white 4000–4500K to balance visibility and eye comfort. Position fixtures to avoid harsh shadows at the front of racks; I often add a slim task light under the first tray for patching work. Limit glare off glossy rack doors and use matte finishes for wall panels. IES lighting guidance supports adequate task illumination for technical rooms; a simple choice of LED troffers plus a dedicated task light covers most needs.

Acoustic Control in Shared Buildings

Equipment fans produce broadband noise; compressors add low-frequency hum. If the room shares a wall with occupied spaces, aim for STC 45+ assemblies: double layer gypsum, resilient channels, and mineral wool in the cavity. Seal all penetrations, especially cable pass-throughs and duct connections. For doors, use solid-core with perimeter seals and an automatic drop seal. Keep the noisiest gear away from the door leaf to reduce flanking.

Fire, Water, and Access Risks

Use clean agent suppression (e.g., inert gas or FK-based agents) when possible; water mist or preaction systems are acceptable if coordinated with equipment protection. Avoid locating the room under restrooms or near roof drains to reduce water ingress risk. Elevate UPS and critical gear off the floor and add leak detection under CRAC units and near entry thresholds. Keep the entry clear; 36 in egress is a good rule, and door swing should not collide with racks. Secure access with controlled entry and logging; treat it like a small data center, not a storage closet.

Materials, Finishes, and Thermal Behavior

Choose low-VOC, durable finishes to protect air quality during maintenance. Avoid carpet; antistatic vinyl or rubber tiles make cable drops and cleanup easier. Matte, light-colored walls help with light distribution and visual clarity. Seal the slab and penetrations to control dust, which can clog filters and fans. Cable trays and racks should be powder-coated to reduce sharp edges and improve longevity.

Monitoring: See Problems Before They Escalate

Deploy environmental monitors for temperature, humidity, differential pressure, and leak detection. Log data and alert on trend deviations, not just absolute thresholds. Add power monitoring at the UPS and PDU level to understand growth and spot anomalies. A network camera helps audit cable discipline and identify accidental obstructions in tiny rooms.

Human Factors and Maintenance Ergonomics

Server rooms are serviced by people, sometimes under stress. Maintain reach zones: heavy gear at waist-to-chest height, rarely accessed equipment higher, and batteries never above shoulder height. Keep a fold-down work shelf near the patch field. Color-code cabling (data, voice, management) and label both ends. Good ergonomics reduce service time and error rates, which aligns with broader findings from workplace studies (see gensler.com/research) on human performance and environmental quality.

Future-Proofing in Small Envelopes

Plan for 30% cable pathway and PDU capacity headroom. Use blanking panels to modularly expand cooling, and select racks with adjustable rails for mixed-depth gear. If virtualization reduces physical servers later, reclaim the hot aisle with additional returns or close off unused rack space to tighten airflow.

Quick Checklist

- Document load and growth; right-size UPS and cooling

- Maintain 36 in front/rear clearances; cold/hot aisle logic

- 300–500 lux at 4000–4500K; task light at patch areas

- STC 45+ assemblies if adjacent to occupied spaces

- Clean agent suppression; leak detection under cooling

- Segregated power/data paths; clear labeling and bonding

- Continuous environmental and power monitoring

- Reserved capacity in trays, PDUs, and cooling

FAQ

Q1: What temperature and humidity should a small server room maintain?

A: Target 72–78°F with 40–60% RH. Keep a tight control band and monitor at intake and exhaust to prevent stratification. These ranges align with common manufacturer guidance and support maintenance comfort referenced by WELL v2.

Q2: Can I rely on building HVAC for cooling?

A: It’s possible for very low loads, but dedicate return near the hot aisle and supply near the cold aisle. Once loads exceed ~8–12 kW, install dedicated cooling with proper return capture to avoid hot spots.

Q3: How much clearance do I need around racks?

A: Provide about 36 in front and rear clearance. Add 24 in side clearance if side-access is required. This ensures safe servicing of PDUs, patch fields, and deep gear.

Q4: What lighting level works best?

A: Aim for 300–500 lux at working height with 4000–4500K neutral-white LEDs. Add a dedicated task light near patch panels to reduce errors and eye strain.

Q5: How do I cut noise transfer to adjacent offices?

A: Build STC 45+ wall assemblies, seal penetrations, use solid-core doors with perimeter seals, and position noisy gear away from the door to minimize flanking paths.

Q6: Do I need dual power feeds?

A: Dual A/B feeds with redundant PDUs and dual-corded equipment improve uptime. If budget is tight, at least specify a quality UPS with maintenance bypass, surge protection, and clear circuit labeling.

Q7: What cable management prevents service headaches?

A: Separate power and data paths, use generous vertical managers, label both ends, and color-code by function. Overhead trays typically beat underfloor in small rooms.

Q8: What fire suppression is appropriate?

A: Clean agents (inert gas or FK-based) minimize equipment damage. Preaction or water mist can work with careful coordination. Always add leak detection near cooling units.

Q9: How can I plan layouts in a very tight room?

A: Use a layout simulation tool to validate rack orientation, door clearance, cable bend radii, and airflow paths. It prevents costly repositioning during install.

Q10: What monitoring should I install?

A: Temperature, humidity, differential pressure, leak detection, and power monitoring at UPS/PDU. Alert on trends to catch failing fans or creeping loads early.

Q11: Are blanking panels really necessary?

A: Yes. They block bypass air, sustain front-to-back cooling, and reduce recirculation—critical in partially populated racks common to small rooms.

Q12: How do ergonomics influence reliability?

A: Clear reach zones, labeled cabling, and a small work shelf reduce error-prone maintenance. Better human factors correlate with fewer mistakes and faster interventions.
