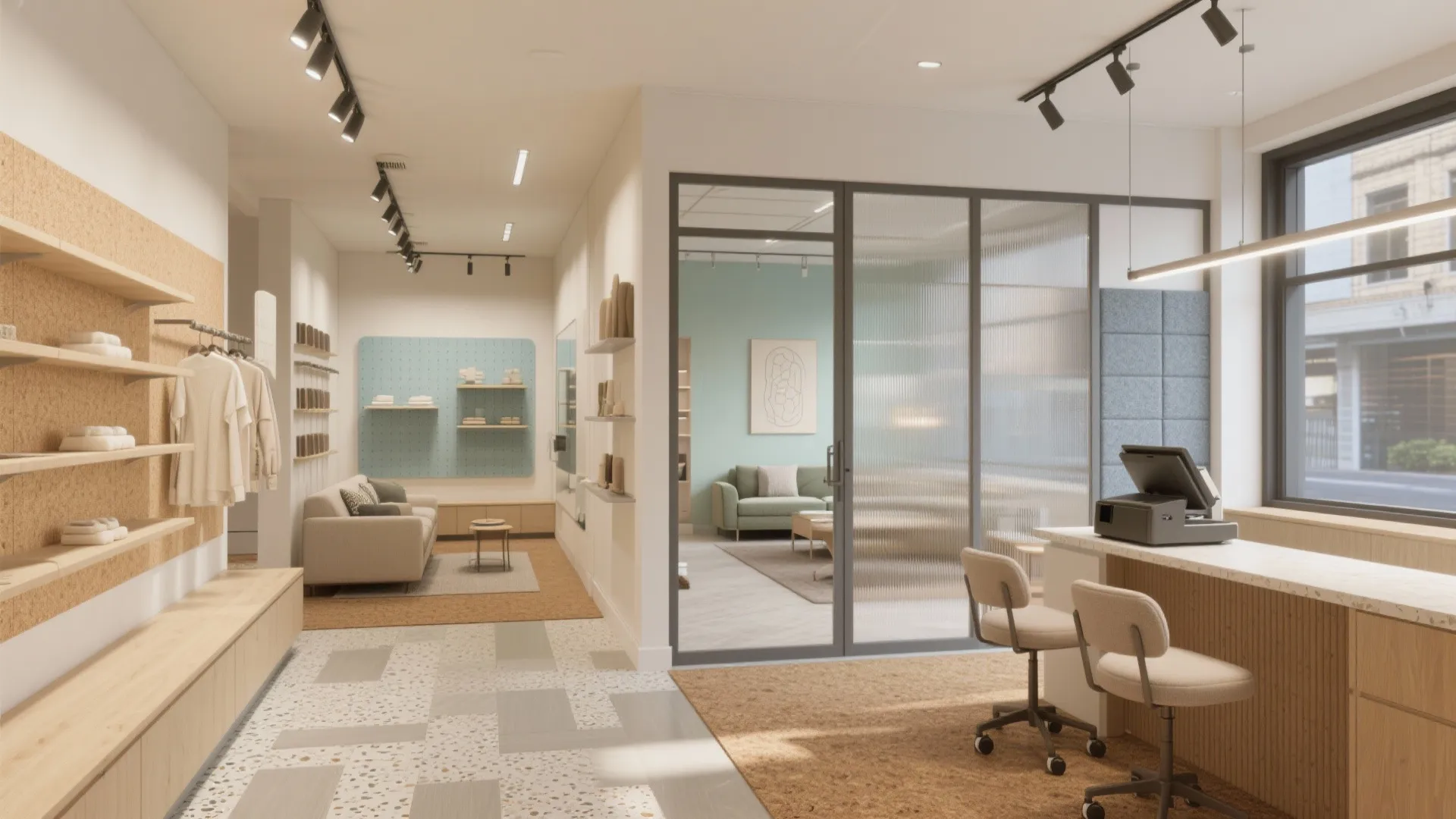

Small Shop With Living Quarters: Design Ideas for Multi-Use Spaces: Fast-Track Guide to Combining Retail and Residential Spaces

I’ve designed dozens of compact storefronts that double as homes, and the best ones feel seamless—no awkward overlap between retail workflow and private life. The goal is to protect merchandising clarity while maintaining a calm, healthy residential core. In mixed-use spaces under 800–1,200 sq ft, I prioritize circulation, acoustic separation, and flexible furniture to switch modes in minutes.

Retail effectiveness and living comfort depend on measurable standards. Gensler’s 2024 Workplace research highlights that spatial choice increases performance metrics—people with access to multiple settings report higher effectiveness, which parallels small-shop multi-use planning. For well-being, WELL v2 recommends ambient light levels around 215–300 lux for common areas and task lighting rising to 300–500 lux depending on activity; maintaining appropriate levels across shop and living zones prevents eye strain and supports circadian stability. I align display lighting to 300–500 lux and keep living rooms at 150–300 lux with warm 2700–3000K lamps to reduce evening glare. See WELL Performance concepts at wellcertified.com for guidance.

Color direction deserves rigor beyond taste. Verywell Mind’s color psychology overview notes warmer hues can feel inviting and energizing, while blues and greens promote calm and focus. Translating that to mixed spaces: use desaturated warm neutrals (sand, mushroom) in the shop to invite and highlight merchandise, and cooler hues (sage, soft blue) in sleeping or reading corners to lower heart rate and signal rest. In micro footprints, color zoning also doubles as a subtle boundary—retail vs. residential.

Shopfront Layout: Clear Entry, Fast Orientation

Customers must understand the store within five seconds. I put a clean visual axis from door to focal display, with point-of-sale off to the side to avoid bottlenecks. A 36–42 inch aisle works for two-way browsing, while a 60-inch turning radius solves ADA maneuvering at tight corners. If you're testing multiple furniture and display arrangements, use a room layout tool to simulate circulation before committing: room layout tool.

Back-of-House to Living Core: Graded Privacy

Think of a three-tier gradient: public (shop), semi-private (prep/storage), and private (living quarters). I prefer a lockable pocket door or acoustic sliding panel between semi-private and private zones. A small “airlock” vestibule—just 24–36 inches deep—prevents sound and smell transfer and gives visual decompression when switching roles.

Acoustic Comfort Without Thickness

Open shelves and hard floors bounce sound. To control noise from retail to living quarters, I add a layered strategy: 1) mineral wool within partition walls (NRC ~0.9), 2) acoustic fabric panels or cork wall sections on the shop side, and 3) a rug runner (dense underlay) along the boundary corridor. Keep background music under 70 dB and choose speakers with tight dispersion to avoid spill into sleeping areas.

Lighting: Merchandising vs. Rest

In the shop, a track system with 24–36° beam spots highlights hero products; CRI 90+ maintains accurate color rendering. Aim for 300–500 lux on display surfaces per retail task guidance, with 3500–4000K color temperature to energize browsing. In living quarters, layer warm ambient (200–300 lux at 2700–3000K), task lamps for reading (300–500 lux), and very low night lights (~5–10 lux) to protect melatonin. Shield all fixtures to limit glare; if you have combined ceilings, use asymmetric wall-wash to avoid direct view of sources when seated.

Storage That Works Twice

Double-duty storage is a lifesaver: bench seating with concealed bins near entry, tall cabinets separating shop and kitchen, and ceiling-mounted racks for off-season stock. In micro kitchens, 24-inch counter depth with a 15-inch landing zone on either side of cooktop keeps prep clear, while undercounter drawers house POS supplies after hours.

Material Selection: Durable, Cleanable, Calm

Retail floors take abuse; I specify commercial LVT or sealed terrazzo in the shop, then transition to cork or engineered wood in living areas for comfort and warmth. Countertops that meet food-contact safety simplify life if you use the kitchen to package goods. Low-VOC finishes and wipeable paints (eggshell) keep maintenance simple. If the shop involves fragrance or food, consider a recirculating hood with high-MERV filtration to prevent odors migrating to bedrooms.

Micro-Furniture and Conversion Moments

A wall-bed or folding daybed turns a sitting room into a guest zone. Nesting tables become product plinths during events. A drop-leaf dining table can expand for workshops, and fold away to maintain residential calm. Keep all rolling pieces with soft casters; mark “parking” zones with a subtle floor inlay or rug border to anchor them visually.

Circulation and Sightlines

I design the primary path as a loop where possible—entry to display, to fitting or service, then to the living threshold—so staff can monitor without intruding. Eye-level sightlines should stop at the semi-private boundary; use translucent partitions (reeded glass) that diffuse light yet maintain privacy. Mirror placement is strategic: one in the shop for merchandising breadth, none directly facing the living entrance to avoid glare and privacy leaks.

Ergonomics for Dual Roles

Standing tasks in retail benefit from 36–38 inch counter height. For seated home work, 28–30 inch desks paired with adjustable chairs keep wrists neutral. If you operate POS for long stretches, add a footrest to reduce lower back load. Keep frequently used items between 20–50 inches from the floor to limit bending and reaching fatigue.

Ventilation and Thermal Zoning

Split HVAC zones or at least independent thermostats are worth the cost. In small footprints, cross-ventilate through high operable windows in shop and low vents in living to drive stack effect. Use door sweeps and weatherstripping at the privacy boundary; tight envelopes reduce odor drift and conserve energy.

Branding Meets Home Identity

Let brand color live in the shop signage, displays, and textiles, while the living zone keeps a quieter palette. Shared materials—like a single wood species—create cohesion without blurring the boundary. Keep merchandise storage out of view from the living core; a simple curtain on a ceiling track can be enough.

Security and After-Hours Protocol

Install a camera focused on the entry and POS, never pointed into the living area. A keyed or coded secondary barrier protects private quarters during late browsing or events. After closing, the shop lighting should shift to low-level accent and perimeter glow, signaling off-hours without exposing the residence.

Day-to-Night Transitions

I set up a three-step close-down: 1) convert mobile pieces to their “home” positions, 2) scent and sound neutralization (airing out, white-noise machine in living room for 30 minutes), and 3) lighting temperature shift toward warm tones. Small rituals maintain psychological separation and make the home feel intact.

Zoning and Compliance Basics

Confirm local mixed-use codes, egress requirements, and fire separations. Provide a secondary exit for the living quarters if the shop locks separately. If you have cooking facilities, verify hood and detector placement, and keep fire extinguishers accessible yet discreet.

Small Spatial Ratios That Help

In compact rooms, I balance solids to voids at roughly 60:40 in the shop (more display mass), and 40:60 in living (more breathing space). Keep vertical storage to 9–10 ft max to avoid looming; introduce a 12–18 inch reveal under upper shelving to make it feel lighter. Rhythm matters: repeating a 24-inch module across fixtures simplifies reconfiguration.

Case-Back Conversion: A Quick Concept

A 900 sq ft footprint with a 20 ft frontage: 400 sq ft retail, 150 sq ft prep/storage, 350 sq ft living. Entry at center, POS to the right, hero wall on the back left. A sliding acoustic panel opens to a galley kitchen and compact living room. Bedroom tucked behind with pocket door and borrowed light via high transoms. I’ve used similar layouts to host evening workshops while keeping the residence sealed and quiet.

FAQ

Q1: How do I separate retail noise from the bedroom?

A: Use a layered approach—mineral wool in the partition, a solid-core door with seals, and soft finishes (rug, fabric panels) on the shop side. Keep music under 70 dB and direct speakers away from the boundary.

Q2: What lighting temperatures work for both shop and home?

A: Retail displays thrive at 3500–4000K for clarity, while living areas feel better at 2700–3000K. Maintain 300–500 lux on merchandising surfaces and 200–300 lux ambient at home per WELL v2 guidance.

Q3: Can one counter serve as POS and dining?

A: Yes—use a 36–38 inch height island with undercounter storage. Keep modular accessories so the POS clears quickly, and add task lighting with dimming to shift from retail to residential.

Q4: What’s the best floor material for durability and comfort?

A: Commercial LVT or terrazzo in the shop for durability; cork or engineered wood in living for softness and thermal comfort. Use washable rugs to bridge zones.

Q5: How do I plan circulation in a tight footprint?

A: Establish a primary loop and maintain 36–42 inch aisles. Test multiple arrangements with an interior layout planner before installing fixed millwork: interior layout planner.

Q6: What colors reduce stress at home while keeping the shop inviting?

A: Warm neutrals in the shop (sand, tan) keep merchandise welcoming; soft blues or sages in living reduce arousal, consistent with color psychology guidance.

Q7: How do I manage odors from the shop?

A: Create an “airlock” vestibule, add door sweeps, and consider a recirculating hood with high-MERV filtration. Separate HVAC zones or independent thermostats help.

Q8: What security measures protect privacy?

A: Aim cameras at entry and POS only, install a secondary lockable barrier to the living quarters, and set distinct lighting scenes for after-hours to signal closure without exposing the residence.

Q9: How big should aisles be to meet accessibility?

A: Keep a 36–42 inch clear aisle and a 60-inch turning circle at key points to support maneuvering, aligning with common accessibility best practices.

Q10: How can I host events without disrupting the home?

A: Use mobile fixtures, fold-away seating, and a clear conversion plan. Slide closed acoustic partitions, shift lighting to cooler tones in the shop, and keep the living zone sealed.

Q11: What’s the simplest way to improve acoustic comfort?

A: Add a dense rug, soft wall panels, and limit hard parallel surfaces. Even small cork sections can reduce reverberation in compact shops.

Q12: How do I avoid visual clutter?

A: Set a 24-inch module for shelving, hide bulk storage behind curtains or cabinets, and keep brand color mostly in the shop while the living palette stays subdued.
