Small Wet Room with Tub and Shower: Space-Savvy Design Guide: Fast-Track Guide to Making the Most of Your Compact Wet Room

Designing a small wet room that fits both a tub and a shower demands precision: millimeter-true planning, reliable waterproofing, and a lighting and material strategy that makes the space feel larger than it is. In recent workplace and residential research, layout and user comfort consistently drive satisfaction. Steelcase reports that environments supporting user control over settings (light, posture, privacy) correlate with higher well-being and performance; similar principles translate beautifully into residential bathing where control of water, light, and temperature shape daily routines. WELL v2 also emphasizes glare control, acoustic comfort, and slip resistance as key health criteria in wet zones, all directly applicable to compact bathrooms.

Real-world data helps set the bar. The WELL v2 Water, Light, and Materials concepts underscore low-glare illumination, moisture management, and VOC-conscious finishes. For task visibility, I follow IES recommendations toward 300–500 lux at the vanity zone with lower, dimmable ambient levels in the shower/bath to minimize glare and support evening wind-down. Steelcase research further links sensory comfort to stress reduction; in tiny wet rooms, that means tuned color temperature (2700–3000K), tactile materials, and controlled reverberation to avoid the “tile echo” that makes small spaces feel clinical.

Plan the Envelope First: Waterproof, Then Design

I always start with the shell. A continuous tanked membrane (floors up the wall 200–300 mm and fully behind the tub and shower) comes before any aesthetic decision. Pre-slope the floor toward a linear drain at 1.5–2% to move water quickly; place that drain along the longest wall to avoid cut tiles and maintain visual calm. If your footprint is under 40–50 sq ft, a compact soaking tub (120–140 cm length) combined with an overhead shower lets you keep one wet zone instead of two. Where layout exploration is needed, I sketch multiple drain and partition schemes and pressure-test them with a room layout tool to preempt clashes between door swings, tub rims, and towel clearances: room layout tool.

Smart Layouts for Micro Footprints

Two patterns work best in my projects:

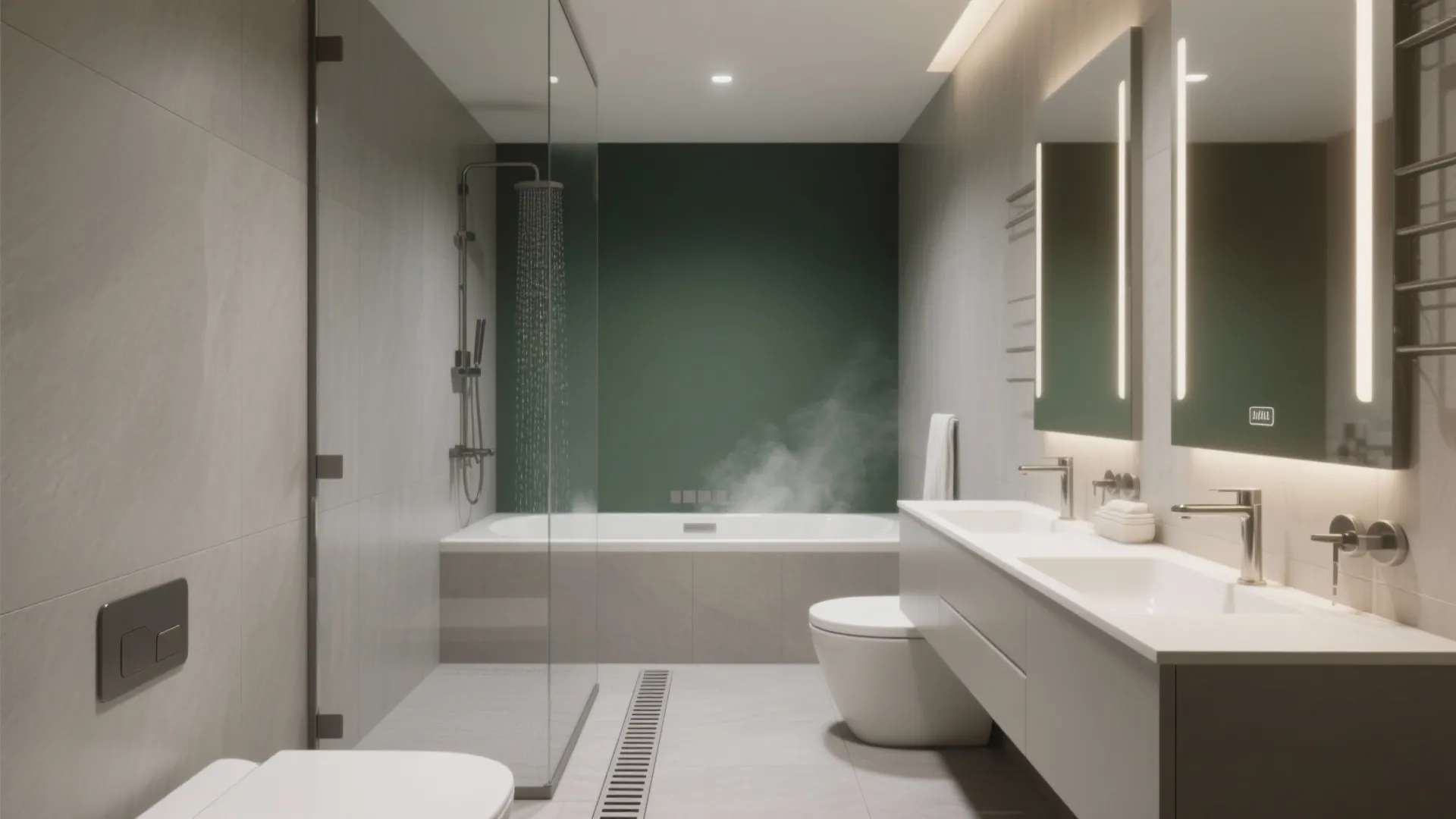

1. In-line layout: tub set tight to the back wall, linear drain at the entry threshold, ceiling-mounted rainfall plus a handheld on a slide bar. A single fixed glass panel (800–1000 mm) shields splash while keeping sightlines open.
2. Peninsula tub: the tub’s long side against the wall, with a 300–450 mm dry ledge behind it for niche storage and concealed valves. The shower shares the tub footprint, reducing secondary waterproof transitions.

Keep a minimum 700–760 mm clear path from door to vanity. Elevate the tub on a micro-plinth (40–60 mm) only if you need concealed waste routing; otherwise, a low-profile waste strengthens the “one plane” effect that visually expands the floor.

Light That Flattens Shadows and Calms the Eye

I layer three lighting types: low-glare ambient, vertical face light, and accent. Aim for 300–500 lux at face height near mirrors using vertical fixtures at 90+ CRI, 2700–3000K. In the wet zone, use recessed, wet-rated fixtures with proper trim baffles to cut sparkle on glossy tile. Dimmers allow pre-sleep lighting at 10–20% output. This mix aligns with IES task lighting ranges and supports circadian-friendly evening cues when you keep CCT warm and glare minimal.

Color Psychology for Small Wet Rooms

Cool near-whites with a soft grey or mineral undertone calm the space without the clinical feel of stark white. A gently saturated accent—deep green, slate blue, or clay—anchors the tub wall and provides depth. For stress reduction and perceived spaciousness, matte or eggshell finishes tone down specular highlights that otherwise reveal tight dimensions.

Materials, Slip Resistance, and Cleanability

I specify large-format porcelain (600×1200 mm or larger) to minimize grout lines and create longer sightlines. On the floor, choose R10–R11 slip ratings for wet barefoot areas; honed finishes beat high gloss in traction and glare. For grout, a fine aggregate epoxy reduces staining and biofilm. If you love timber warmth, use wood-look porcelain; it pairs well with brushed stainless or PVD gunmetal fixtures for a modern, low-maintenance palette.

Ergonomics: Where Hands, Knees, and Valves Go

Valve placement: 900–1100 mm AFF (above finished floor) so you can start the shower without stepping into the spray. Handheld dock at 1100–1200 mm for quick rinsing and tub cleaning. Tub rims at 500–520 mm support comfortable entry; add a 300–350 mm deep built-in bench or a broad rim segment for seated washing. Niches sit 1050–1350 mm for showers and 300–450 mm above tub rims for bathing essentials. Radius all niche edges to spare elbows and forearms in tight quarters.

Acoustics and the “Tile Echo” Problem

Small wet rooms amplify sound. I use one or two absorptive moves that tolerate moisture: a micro-perforated ceiling panel over the dry threshold, or a water-resistant acoustic plaster in the entry third of the room. Soft textiles (a single bath mat outside the wet zone) and even a fabric-clad vanity stool help. Keep the exhaust fan quiet (≤ 1.0 sone) and target 8–10 air changes per hour to clear steam without drone.

Ventilation, Heat, and Condensation Control

Continuous or humidistat-triggered ventilation keeps RH in check; specify a fan with a short, straight duct run and backdraft damper. For comfort, add electric underfloor heat below the shower approach and near the tub—not under the drain itself—to dry films fast and prevent cold-foot shock. A heated towel rail doubles as a mild radiant panel in winter.

Glass, Partitions, and Sightlines

Use a single, fixed screen instead of a swinging door to reduce hardware clutter. Clear tempered glass maximizes depth perception; if you need privacy, sandblast a mid-band rather than frosting the whole pane. Maintain a 10–20 mm threshold upstand only if your membrane detail requires it; otherwise, finish flush to emphasize continuity.

Storage That Doesn’t Steal Space

Recessed niches sized to common bottles (75–100 mm depth, 300–450 mm height) prevent visual mess. A medicine cabinet with shallow shelves keeps the vanity slim. I prefer a wall-hung vanity at 300–350 mm depth, leaving 100–150 mm toe clearance so the footprint reads lighter.

Sustainability Moves That Pay Back

Thermostatic valves, low-flow showerheads (7.6–9.5 L/min), and dual-flush WCs cut consumption with minimal comfort sacrifice. Choose low-VOC sealants and grouts to align with wellness standards. Durable porcelain and stainless fittings extend replacement cycles, reducing embodied impacts over time.

Step-by-Step Layout Process

1. Map constraints: window, stack, joist direction, door swing.
2. Fix the drain and waterproof details first; confirm slope paths.
3. Place the tub within the primary wet zone, share floor drain if possible.
4. Add a single glass panel to contain spray without boxing in the room.
5. Lock in valve and niche ergonomics.
6. Test sightlines, clearances, and reach using an interior layout planner: interior layout planner.
7. Set lighting layers, dimming, and 2700–3000K lamps.
8. Finalize materials with slip ratings and grout strategy.

Client-Favorite Combinations

1. Warm modern: oak-look porcelain floor, bone wall tile, brushed brass hardware, 3000K lighting, linen-textured shower curtain across the dry zone only.
2. Minimal spa: large-format light grey porcelain, matte black fittings, clear glass, linear drain, 2700K dim-to-warm downlights.
3. Urban slate: charcoal floor (R11), white ribbed wall tile for rhythm, stainless fixtures, walnut veneer vanity to soften the contrast.

FAQ

How small can a wet room with a tub realistically be?

I plan from about 40–50 sq ft upward. Below that, you’ll sacrifice either comfortable clearances or storage unless the tub is a very compact soaker.

Do I need a door on the shower area?

No. A single fixed glass panel (800–1000 mm) and smart drain slope usually contain splash, especially if the shower head is oriented away from the opening.

What lighting levels should I target?

300–500 lux at the mirror for grooming, with dimmable 100–200 lux ambient in the wet zone. Keep CCT warm (2700–3000K) for evening routines per good practice aligned with IES task ranges.

Which floor tile finish is safest?

Look for R10–R11 slip resistance in wet barefoot areas. Honed or structured porcelain balances grip and easy cleaning.

Can I combine a tub filler with a shower valve set?

Yes. Use a thermostatic mixer with a diverter to switch between tub spout and shower heads. Place controls where you can reach them from dry ground.

How do I prevent “tile echo” in a small space?

Introduce moisture-tolerant absorption: acoustic plaster at the entry zone, a soft mat outside the wet area, and a quiet fan (≤ 1.0 sone). Avoid all-hard, all-gloss surfaces.

Is underfloor heating worth it?

In compact wet rooms, a small heated zone near the tub and shower approach speeds drying and ups comfort with low energy use.

What’s the best way to hide clutter?

Recessed niches sized for standard bottles, a mirrored cabinet, and a slim wall-hung vanity keep the plan airy without sacrificing function.

Do I need a linear drain?

It’s not mandatory, but along the longest wall it simplifies tile layout and creates a single, clean slope—ideal for small continuous floors.

What color palette makes a small wet room feel larger?

Light, warm neutrals with one deeper accent wall. Matte or eggshell finishes reduce glare and visually smooth the envelope.

How do I maintain the waterproofing long-term?

Use a continuous membrane, epoxy grout in high-splash zones, and re-seal penetrations at fixtures periodically. Inspect silicone joints annually.

Where should towel storage go in a tiny footprint?

Over-door hooks, a heated rail on the dry side, or a recessed niche near the entry keep textiles reachable and out of the spray.
