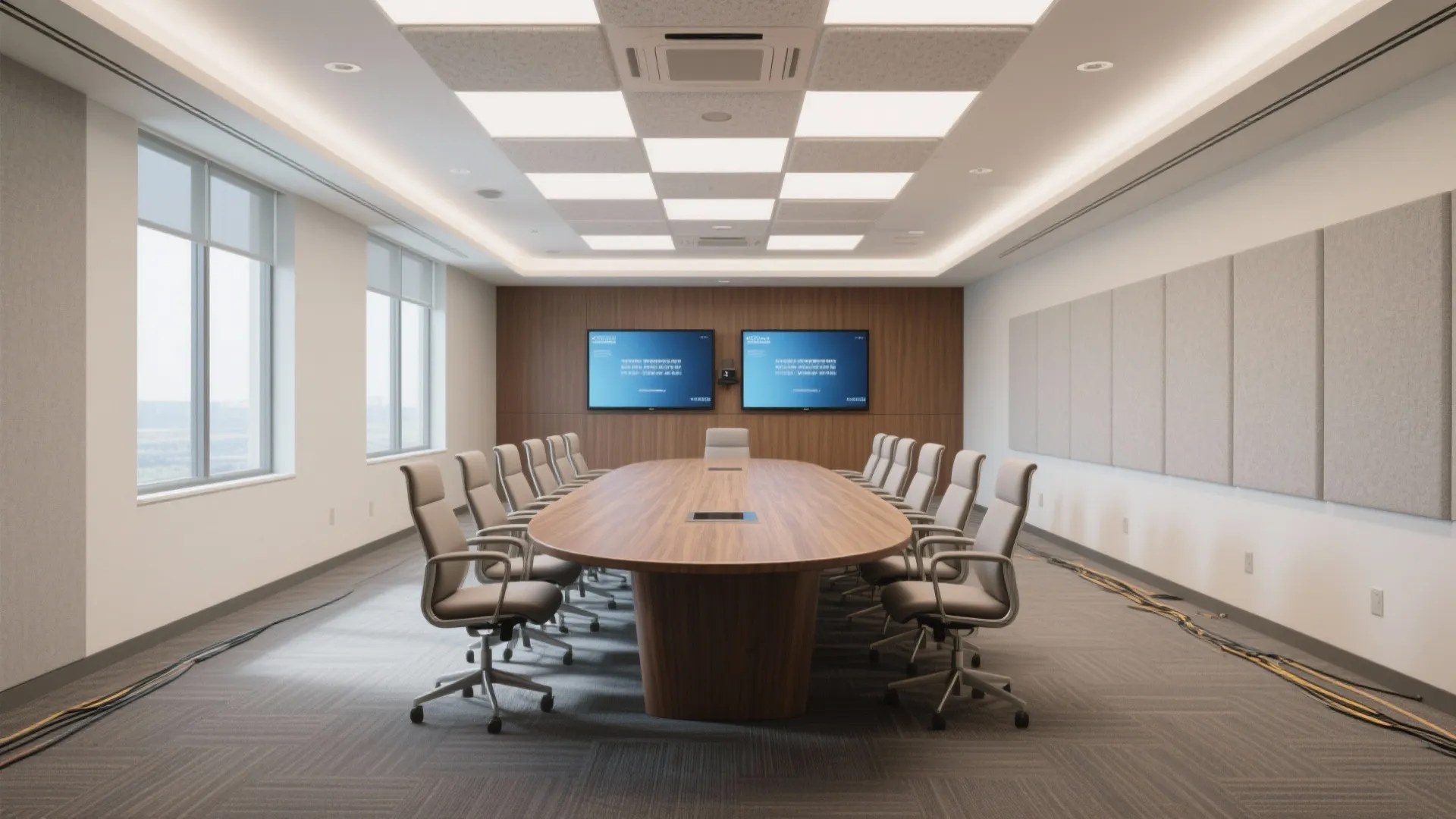

Standard Conference Room Dimensions: A Complete Guide: 1 Minute to Master Your Conference Room Planning

I approach conference rooms as performance spaces: the geometry, clearances, light, and acoustics directly shape how decisions get made. The right dimensions are less about one “standard” than about matching seating capacity with human factors—sightlines, reach, legroom, and technology. Over the past decade, my rule of thumb has been to size by seat count first, then stress-test circulation and AV sightlines before finalizing furniture.

Numbers matter. WELL v2 recommends maintained average lighting levels of 300–500 lux for offices and meeting spaces, with glare control and dimming for presentations; that range supports visual acuity while avoiding fatigue under screens. Steelcase research notes that rooms sized appropriately for task and group size increase perceived effectiveness; their workplace studies consistently show that misfit rooms (too large or too small) reduce engagement and time-on-task. For table heights and ergonomics, the NKBA’s typical table height of ~29–30 inches aligns with comfortable forearm posture, and leg clearance should be ~24 inches minimum for most adults. Integrating these baselines early keeps proportions honest.

Seating density is equally governed by behavior. Herman Miller’s research into meeting typologies found stand-ups average 15 minutes with minimal seating, while decision-making sessions stretch 45–90 minutes and require full ergonomic support and clearer sightlines across the table. Short-form collaboration can thrive in tighter footprints; however, anything beyond 30 minutes benefits from added elbow width (at least 24 inches per person) and a quieter acoustic envelope around NC 30–35.

Capacity-Based Dimensions

I size conference rooms by the number of seated participants and the meeting style. These are practical starting envelopes that include table, chairs, primary circulation, and AV wall:

6–8 Person Room

• Typical room: 12' x 16' to 12' x 18' (3.7 x 4.9–5.5 m).

• Table: 36–42 inches wide; 8–10 feet long for 8 seats.

• Clearances: 42–48 inches from table edge to wall for chair slide and circulation.

• Notes: Maintain direct sightlines to a 65–75" display; keep lighting ~300–500 lux with dimming. WELL v2 encourages tunable lighting to reduce fatigue under screens.

10–12 Person Room

• Typical room: 14' x 20' to 16' x 22' (4.3 x 6.1–4.9 x 6.7 m).

• Table: 42–48 inches wide; 12–16 feet long depending on seat count.

• Clearances: Target 48 inches minimum at ends for presenter movement; 42 inches along sides.

• Notes: Dual displays or a single 85" screen improve legibility. Maintain balanced sound absorption with ceiling NRC ~0.7 and soft finishes to reach NC 30–35.

16–20 Person Room

• Typical room: 18' x 28' to 20' x 32' (5.5 x 8.5–6.1 x 9.8 m).

• Table: 48–54 inches wide; 18–24 feet long. Consider racetrack or boat-shaped for improved sightlines.

• Clearances: 48–60 inches around ends; 48 inches minimum along sides for service and cable management.

• Notes: Larger rooms benefit from distributed ceiling speakers, acoustic wall panels, and task lighting at 300–500 lux near the table with lower ambient levels for screen work. IES conference guidance favors uniformity and controllability.

Key Ratios and Clearances

• Per-person elbow width: 24 inches minimum; 26–28 inches feels premium for long sessions.

• Table-to-wall distance: 42–48 inches for comfortable chair movement; 54–60 inches if the room frequently hosts presenters or catering.

• Chair depth allowance: 20–24 inches plus 12 inches to stand behind the chair.

• Display viewing distance: 1.5–2.0 x screen diagonal for legibility in typical office lighting; keep the first row at least equal to screen diagonal.

• Microphone and camera sightlines: center the camera at eye height across the long axis; avoid seating directly outside the camera’s field.

Room Proportions and Shapes

Rectangular rooms are the workhorse. A 1:1.3 to 1:1.6 ratio tends to produce better sightlines and acoustic diffusion than long, narrow galleries. For 12-person rooms, I often specify ~15' x 21'—this ratio reduces parallel-wall flutter and fits a boat-shaped table that subtly improves edge visibility. If your plan allows, test layouts with a room layout tool for chair clearance and AV lines of sight: room layout tool.

Table Geometry and Height

• Height: 29–30 inches, aligned with standard task seating per NKBA norms.

• Width: 42–48 inches supports shared laptops and paper spread without inducing reach fatigue.

• Shapes: Racetrack (rounded ends) improves circulation; boat-shaped (slight convex long edges) enhances sightlines. Rectangular remains efficient for power/data routing.

• Edge detail: Soft radii reduce wrist pressure; matte finishes cut glare under 300–500 lux meeting conditions.

Lighting and Glare Control

I keep ambient lighting around 300–500 lux per WELL v2 recommendations and layer task lighting to avoid hotspots. High CRI (90+) improves skin tones for video, while a 3500–4000K color temperature balances alertness with comfort. Control glare on displays with indirect ceiling lighting and low-reflectance table finishes. For presentation mode, dim ambient down ~30–50% while maintaining vertical illumination on faces for camera fidelity. WELL’s guidance on lighting quality and visual comfort is a useful reference at WELL v2.

Acoustic Comfort

Conference rooms perform best with background noise criteria around NC 30–35. I aim for a composite NRC of ~0.6–0.8 across ceiling and wall panels to dampen reverberation without deadening. Carpet tiles with cushion backing, upholstered seating, and a perforated ceiling or clouds can tame mid-frequency reflections. Keep doors solid-core and consider seals if privacy is critical.

AV Wall and Technology Zones

Mount displays at eye height for the seated group; the center of the screen typically lands 42–48 inches above finished floor in rooms with standard seating. Provide 18–24 inches behind credenzas for cable management. Power/data grommets should align with seat pairs; I prefer one dual outlet per two seats. Cameras go midline on the long axis to avoid skew, and microphones should be mapped to table zones rather than relying on a single ceiling array in larger rooms.

Doors, Circulation, and Code Awareness

Keep 36-inch minimum door widths, and avoid placing the door directly behind the presenter’s back. A 48–60-inch landing inside the door prevents collisions with chair backs. If the room hosts more than 50 occupants (rare for conference rooms), consult local egress requirements just as you would for training rooms.

Small vs. Large: Behavioral Patterns

Short daily huddles thrive in compact rooms with tighter clearances and writable walls within arm’s reach. Decision-making sessions need broader elbow room, higher acoustic absorption, and stable lighting with glare control. Steelcase’s research into collaboration modes underscores this: match room size to task intensity for better engagement and less time lost to discomfort.

Material Selection and Sustainability

Favor low-VOC finishes and acoustic materials with recycled content. Matte laminates or wood veneers reduce specular glare, and lighter midsaturation colors keep vertical illuminance comfortable around 300–500 lux. If the building demands durability, mineral fiber acoustic ceilings paired with PET wall panels are a good balance of performance and maintenance.

Planning and Visualization

Before locking dimensions, simulate seating and sightlines. I rapidly iterate between 3D visualizations and plan checklists to catch pinch points around doors and corners. Use an interior layout planner to test seat counts, display distances, and cable routing in minutes: interior layout planner.

Quick Reference Sizes

• 4–6 seats: 10' x 12' to 11' x 14'. Table ~6–8'.

• 6–8 seats: 12' x 16' to 12' x 18'. Table ~8–10'.

• 10–12 seats: 14' x 20' to 16' x 22'. Table ~12–16'.

• 16–20 seats: 18' x 28' to 20' x 32'. Table ~18–24'.

• Large boardroom (20+): 22' x 34'+, with layered AV and advanced acoustics.

FAQ

Q1: What is the minimum clearance from table edge to wall?

A: Plan 42 inches as a baseline for chair slide and passage. Increase to 48–60 inches where presenters move frequently or catering service is common.

Q2: How wide should a conference table be?

A: 42–48 inches suits laptops, papers, and shared devices without overreaching. For 16+ seats, 48–54 inches prevents mid-table congestion.

Q3: What lighting levels work best?

A: Maintain 300–500 lux ambient per WELL v2 guidance, with dimming for presentation mode. Keep glare down using indirect fixtures and matte table finishes.

Q4: What screen size should I choose for a 12-person room?

A: An 85-inch display or dual 75-inch screens typically deliver legible text at common viewing distances. Aim for 1.5–2.0 x the diagonal for the furthest seat.

Q5: How much elbow room per person is comfortable?

A: 24 inches per seat is the functional minimum; 26–28 inches enhances comfort for 60–90 minute sessions.

Q6: What acoustic targets should I set?

A: Background noise criteria around NC 30–35 with a combined NRC of ~0.6–0.8 across ceiling and wall surfaces yields clear speech without harshness.

Q7: Are boat-shaped tables worth it?

A: Yes for mid-to-large rooms. The slight convex long edges improve sightlines and perceived inclusivity, especially in decision-making sessions.

Q8: Where should the camera be mounted for video?

A: Centered on the long axis at seated eye height, aligned with the table centerline. Avoid placing seats outside the camera’s field to prevent participants from disappearing on calls.

Q9: What color temperature should I use?

A: 3500–4000K balances alertness and comfort. High CRI (90+) supports natural skin tones on video and better material rendering.

Q10: How do I plan for power and data?

A: Provide one dual outlet per two seats, routed through table grommets. Maintain 18–24 inches behind credenzas for cable management and service.

Q11: What door placement works best?

A: Keep the door off the main presentation wall and provide a 48–60-inch landing inside. Avoid doors opening directly into the chair backs.

Q12: How do I scale a room for huddles vs. board meetings?

A: Huddles can be tighter with 10' x 12' envelopes and writable surfaces; board meetings require larger rooms (20'+ tables), more acoustic absorption, and dual displays.
