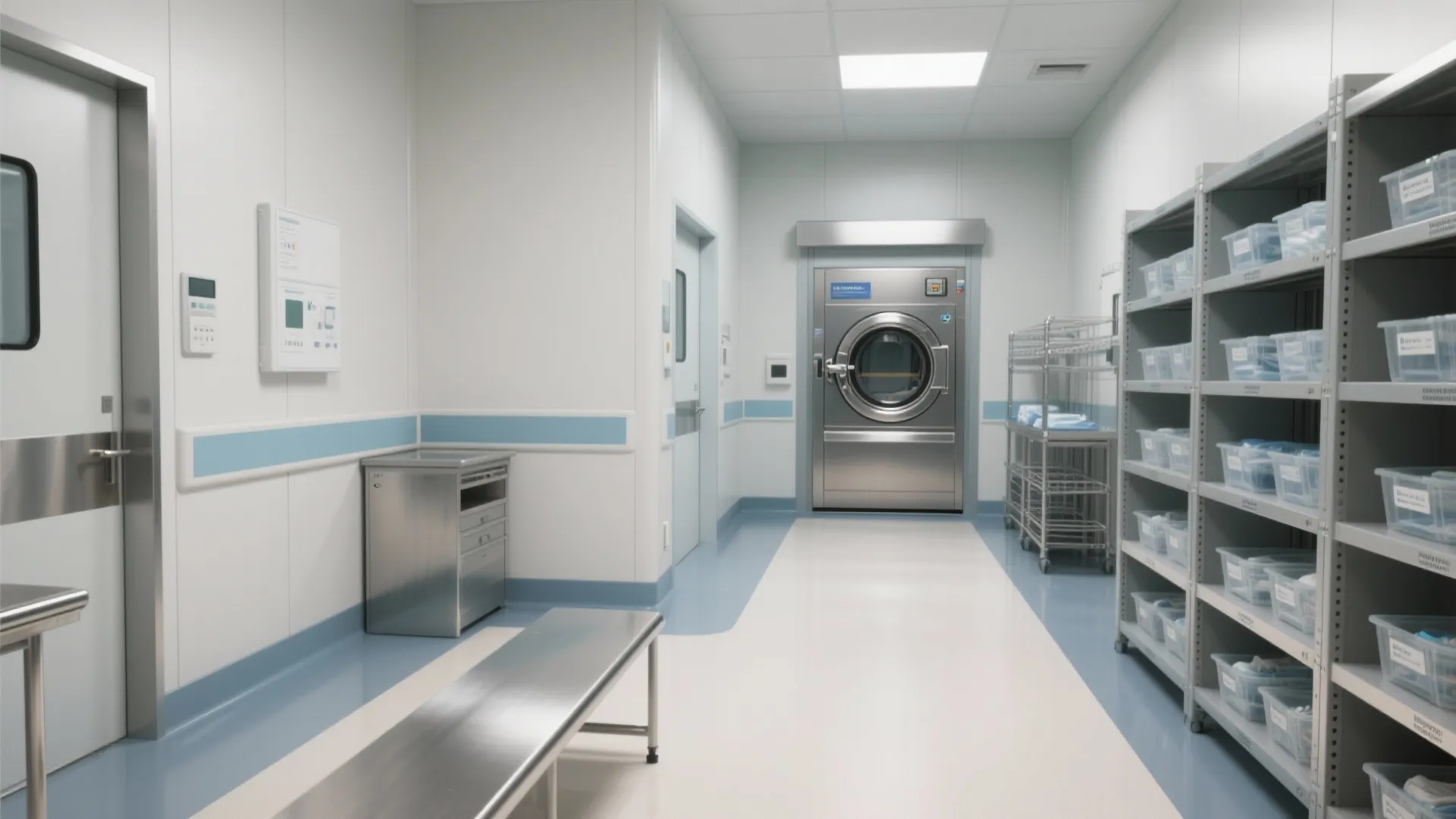

Sterilization Room Design: Smart Solutions for Small Spaces: 1 Minute to an Efficient, Hygienic Sterilization Room Layout

I’ve designed and upgraded sterilization rooms in hospitals, dental clinics, and outpatient centers where every square foot has to work hard. Small footprints don’t excuse compromised sterilization; they demand sharper planning, cleaner workflows, and disciplined material choices. The goal is simple: reduce bioburden risk, prevent cross-contamination, and keep staff moving efficiently through decontamination, preparation/packaging, and sterilization phases—without spatial overload.

Quantifying Performance in Compact Sterile Areas

Flow clarity and ergonomics must sit on data. The WELL Building Standard (WELL v2) highlights the relationship between environmental quality and health outcomes; WELL’s Light concept encourages illuminance targets in task-intensive zones around 300–500 lux, with glare control and color rendering suitable for fine inspection tasks. The Illuminating Engineering Society (IES) commonly recommends 500 lux for detailed tasks and higher vertical illuminance to improve visual clarity on instruments and labels, which I find critical during inspection and packaging. On the human side, Herman Miller research reports that improved ergonomic fit reduces musculoskeletal complaints and boosts task accuracy—vital when staff are handling delicate instruments across repetitive cycles. I calibrate these measures early to lock in safer, faster throughput.

Small Footprint, Big Outcomes: Layout Logic

Space planning starts with a non-negotiable unidirectional flow: dirty in → decontamination → clean assembly/packaging → sterilization → cooling and sterile storage → dispatch. For tight rooms, I prefer a shallow U or L-shaped sequence with physical and visual separations (opaque panels, doors, or pass-through washers) to prevent backflow. Steelcase research on workplace performance supports clear wayfinding and minimized task switching; applying that to sterile processing means reducing crossovers and unnecessary reach distances. If you need quick visualization and traffic simulation in a tight footprint, a layout simulation tool like this room layout tool can help plan relationships and adjacency constraints smartly: room layout tool.

Decontamination Zone: Wet Work, Heat, and Noise

In small rooms, the decon zone must be acoustically buffered; continuous equipment cycles (washers, ultrasonic cleaners) can drive noise above comfortable thresholds and impede communication. Aim for durable, cleanable finishes—epoxy floors, integral coved bases, and sealed wall surfaces—that withstand high moisture. Provide negative pressure relative to clean areas with well-balanced supply and exhaust to contain aerosols. Lighting here can stay at ~300–500 lux with neutral-white (around 4000K) to reduce eye strain in wet environments, and matte finishes minimize veiling reflections. Hand sinks with hands-free controls and clearly separated splash zones keep contamination contained; I build in staging racks that align with equipment feed paths to spare staff from tight turns and awkward lifts.

Preparation and Packaging: Precision and Visual Comfort

Inspection and packing require steady, glare-free light and high CRI to read color-coded indicators. I set task lighting at 500–750 lux with uniformity ratios that avoid hot spots; under-shelf LED with diffusers works well in small spaces. According to IES task lighting guidance for detailed work, consistent horizontal illuminance is essential for accuracy. Ergonomically, worksurfaces should sit between 34–38 inches (adjustable if possible), with seating that supports neutral postures. Storage should be vertical and sectional—clear bins for peel pouches, tamper-evident seals, and biological indicators placed within arm’s reach. Keep clean air pathways simple, and integrate pass-through cabinets that open only to the clean side, protecting sterile flow.

Sterilization and Cooling: Thermal Safety and Cycle Clarity

Packaged instruments enter sterilizers (steam, low-temp hydrogen peroxide, etc.), then cool before storage. In compact rooms, heat load management is often overlooked. Provide dedicated make-up air and local exhaust near sterilizers to avoid thermal stress on staff and products. Mark clear cooling racks with time stamps to prevent premature handling. Control glare and reflective surfaces; a 4000K–4500K white maintains color fidelity for indicator strips without fatiguing eyes. Smooth metal edges, insulated handles, and slip-resistant flooring around sterilizers reduce incidents during high-turnover sessions.

Sterile Storage: Density Without Compromise

Narrow aisles are risky if they force contact with sterile packaging. I specify mobile high-density shelving with anti-tip rails and smooth, cleanable finishes. Shelf depths should match typical tray sizes to avoid overhang; label holders reduce handling time. Positive pressure relative to decon, balanced humidity, and particulate control maintain sterile integrity. Vertical utilization is key, but keep top shelves within safe reach to avoid overhead strain.

Materials and Finishes: Cleanability First

Select non-porous, chemical-resistant, and low-VOC materials that tolerate frequent disinfection. Continuous, sealed seams at floors and counters, integral backsplashes, and radius corners reduce dirt traps. Use color intentionally: neutral cool palettes signal cleanliness, while controlled accent bands help wayfinding—dirty (cool gray/blue), clean (neutral white), sterile (soft neutral). Verywell Mind’s color psychology reporting notes that blues are often associated with cleanliness and calm, which aligns with staff comfort in high-focus zones.

Lighting Strategy in Tight Rooms

Balance general illumination with task lighting; keep unified CCT (around 4000K) across zones to avoid visual adaptation fatigue. Avoid mirrored surfaces near task lights to reduce glare. For compact ceilings, recessed LED panels with high CRI and low UGR improve comfort. IES standards emphasize uniformity; so I avoid spotlight effects in inspection areas. Emergency lighting should cover egress and the sterile storage aisle for safe operations during outages.

Ergonomics and Human Factors

Small spaces amplify fatigue and errors. Adjustable benches, anti-fatigue mats in wet zones, and carts with large, low-rolling-resistance casters maintain smooth flow. Handle heights and shelf spacing should align with 5th–95th percentile reach envelopes. Herman Miller’s research into posture and repetitive tasks supports varied working positions; alternating sit-stand tasks across a shift reduces strain in packaging.

Workflow Behaviors and Zoning Discipline

Post clear protocols at each zone, with visual cues reinforcing directionality. Color-coded lines on floors and cart parking reduce confusion. Batch instruments by type to shorten setup time at packaging. I prefer pass-through washers that physically enforce dirty-to-clean transfer and prevent staff from cutting corners under time pressure.

Ventilation, Pressure, and Acoustic Comfort

Maintain negative pressure in decon and positive pressure in sterile storage, with balanced air changes per hour (ACH) per local codes. Acoustic absorption (ceilings rated for healthcare cleaning, sealed perforations, and acoustically backed panels) keeps ambient noise down. Steelcase research on acoustic comfort links noise reduction with improved focus; in sterilization, that translates to fewer labeling mistakes and cleaner handoffs.

Technology Integration in Small Rooms

Barcode tracking, load validation systems, and simple digital boards cut cognitive load. Mount screens above eye level on the clean side, avoid cluttering bench space. Compact, stackable carts and modular bins adapt to turnover spikes. When reworking adjacency, use an interior layout planner to test scenarios before buying equipment: interior layout planner.

Commissioning and Training

Run mock cycles with full staff before opening. Measure task illuminance, verify pressure differentials, and check reach envelopes for the smallest operators. Create quick-reference cards for cycle parameters, emergency shutdowns, and chemical handling. Continuous feedback loops surface bottlenecks in tight rooms faster than formal audits.

Maintenance and Longevity

Design for easy wipe-down and rapid part replacement: removable kick plates, accessible plumbing chases, and protected data lines. Build spare capacity into shelving and electrical circuits for future growth. Keep consumables in FIFO rotation and calibrate lighting annually to maintain inspection accuracy.

References and Standards to Anchor Decisions

For lighting levels, follow IES task guidance for detailed inspection work. WELL v2 provides health-focused criteria that align with air, light, and comfort in clinical spaces. For user performance and ergonomic insights that inform bench heights and postural variety, Herman Miller’s research library offers practical evidence.

FAQ

1. What minimum lighting levels should a compact packaging area meet?

Target 500–750 lux at the work surface with high CRI task lighting. Maintain uniformity and minimize glare for precise inspection and labeling, consistent with IES guidance for detailed tasks.

2. How can I prevent cross-contamination in a very small sterilization room?

Enforce unidirectional flow with physical separations, pass-through equipment, and distinct pressure regimes: negative in decon, positive in sterile storage. Color cues and strict cart routes reduce accidental backflow.

3. What materials are best for high-frequency cleaning?

Non-porous, chemical-resistant finishes: epoxy floors with coved bases, sealed wall panels, stainless steel benches, and integral backsplashes. Avoid open joints and exposed wood.

4. Which color temperatures work across all zones?

Use a consistent neutral-white around 4000K to balance visual comfort and color fidelity for indicator reading. Add dedicated task lights in packaging to reach higher illuminance.

5. How do I handle heat from sterilizers in tight rooms?

Provide local exhaust, adequate make-up air, thermal insulation on equipment contact points, and designated cooling racks with time tracking. Avoid placing sterilizers adjacent to inspection benches.

6. What ergonomic dimensions should I prioritize?

Adjustable bench heights (roughly 34–38 inches), anti-fatigue mats in wet zones, and shelf placement within comfortable reach ranges. Alternate sit-stand tasks to reduce repetitive strain.

7. Can I increase storage without compromising sterile integrity?

Yes—use high-density mobile shelving, ensure positive pressure and clean air, keep aisles clear of protrusions, and set shelf depths to the exact tray sizes to avoid overhang.

8. What technology helps in small sterilization rooms?

Barcode tracking, digital load boards, and modular bin systems streamline inventory and cycles. Use a room design visualization tool to test adjacency changes before construction.

9. How much general illuminance should decontamination have?

Keep it around 300–500 lux with glare control and moisture-resistant fixtures. Provide vertical illuminance so staff can read labels and gauge soil levels effectively.

10. What acoustic strategies reduce fatigue?

Install cleanable acoustic ceilings and sealed absorptive panels, and separate noisy washers from packaging areas. Lower ambient noise supports concentration and fewer labeling errors.

11. How do I plan circulation in a single-room setup?

Use an L or shallow U with clear zone demarcations, pass-through washer doors, and floor markings. Map cart paths to avoid intersecting dirty and clean traffic.

12. Which standards should guide design decisions?

Use IES standards for lighting, WELL v2 for environmental health criteria, and evidence from Herman Miller’s research for ergonomics and human performance insights.
