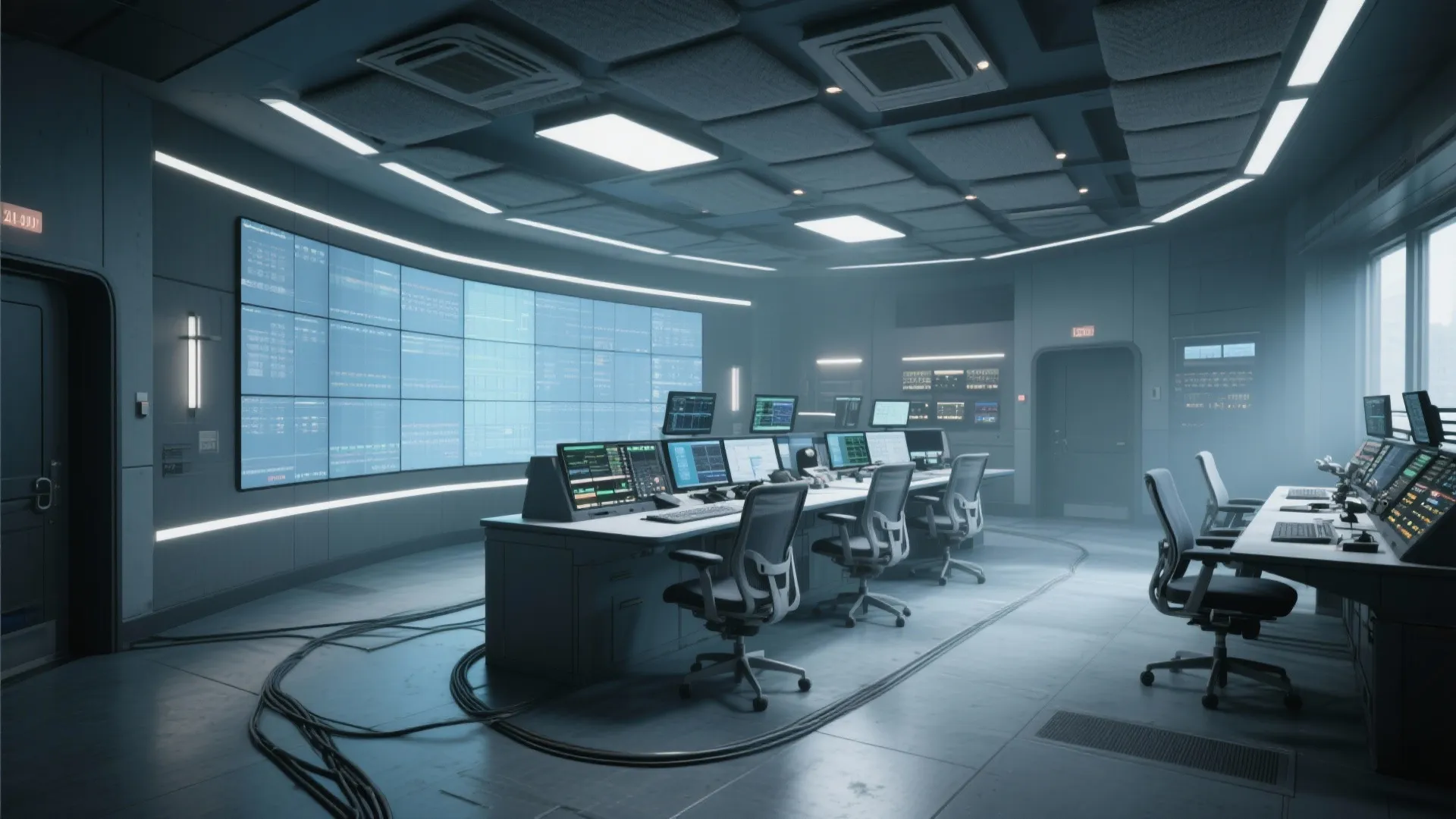

Surveillance Room Design: Essential Tips for Smart Spaces: Fast-Track Guide to Efficient Surveillance Room Layouts and Setup

I design control and surveillance rooms to function flawlessly under pressure. A strong surveillance environment balances technical precision with human factors: uninterrupted sightlines, ergonomic stations, glare-free lighting, and acoustic control that keeps operators focused. The goal is simple—clear information, quick decisions, and sustained comfort across long shifts.

Design choices must be validated with data, not just intuition. WELL v2 recommends task lighting illuminance in the 300–500 lux range to support visual acuity while minimizing eye strain, and the Illuminating Engineering Society (IES) suggests low-glare luminance ratios for screens and surrounds to reduce visual fatigue over time. Workplace studies from Steelcase indicate that poor ergonomics and noise are among the top factors driving cognitive load and performance drops, especially in high-focus tasks.

Operator well-being drives vigilance, and the research backs it. Herman Miller’s ergonomics insights show that neutral postures—supported by adjustable chairs with lumbar support, a 90–100° knee angle, and monitor heights aligned with eye level—reduce musculoskeletal strain over extended use. In parallel, Gensler research highlights that environments designed around behavior—clear workflows, predictable circulation, and intuitive zoning—enable faster decision-making and fewer errors in mission-critical spaces.

Control Room Layout Fundamentals

I start with sightlines and zones. Primary monitoring stations face central video walls with uninterrupted fields of view; secondary analysis and incident response zones sit within a short pivot or walk. Paths must be wide, predictable, and free of cable clutter. For early planning and team buy-in, I simulate seating density, screen angles, and circulation using a room layout tool: room design visualization tool. It helps verify camera feeds, operator adjacency, and response flows before construction.

Ergonomics for 24/7 Teams

Continuous monitoring demands precise anthropometrics. I set monitor top edges at or slightly below eye level, 50–70 cm viewing distance for standard displays, and angle screens to reduce neck rotation. Desks should accommodate sit-stand ranges (approximately 65–125 cm) with memory presets to encourage posture variation. Chairs require adjustable lumbar, seat depth, and armrests; footrests support shorter operators. I use rounded desk edges and soft-touch materials at wrist rest areas to avoid contact stress, and I separate hot equipment zones from operator knees to avoid heat discomfort.

Lighting: Visual Clarity Without Glare

Lighting must be layered and tunable. Ambient levels around 150–300 lux keep the room calm, while task lighting at 300–500 lux supports detailed work. I use 3000–4000K color temperature for balanced alertness—cooler tones can feel clinical over long shifts, warmer tones can dull acuity. Indirect, wall-washed ambient lighting controls contrast with displays, and localized task lights minimize shadowing. Glare control is critical: matte finishes, baffles, uplighting, and avoiding direct luminaires within operator sightlines protect screen readability.

Acoustic Comfort: Keeping Focus Intact

Surveillance rooms benefit from speech privacy and low noise floors. I target NC 25–30 for general background noise and deploy sound-absorbing ceiling tiles, wall panels, and carpet tiles with high NRC. Soft seating and fabric-wrapped partitions near collaborative zones dampen bursts of conversation. Equipment racks go in isolated, ventilated rooms with lined doors and decoupled mounts. If incident escalation zones require quick huddles, a semi-enclosed acoustic pod keeps discussions from bleeding into monitoring areas.

Video Walls and Display Strategy

Clarity and hierarchy matter. I prioritize critical feeds at center and eye height, with secondary data staggered to minimize head rotation. Bezels and transitions should be seamless to prevent visual fragmentation. Calibrate brightness to the room’s ambient levels; overly bright walls cause operator fatigue and reduce peripheral visibility. For multi-role teams, assign profiles for layout presets that match incident types—traffic management, facility security, emergency response—so the wall reconfigures quickly on demand.

Workflow Zoning and Intention

Every zone supports a behavior: monitoring, analysis, escalation, and recovery. Monitoring stays quiet and visually controlled; analysis areas allow collaborative dialogue; escalation provides quick access to comms and leadership; recovery includes a micro-break nook with softer lighting and quieter acoustics. Circulation routes avoid crossing the main sightlines and keep emergency exits unobstructed. I use visual rhythm—consistent panel lines, aligned desk runs, and controlled color accents—to reduce cognitive clutter.

Color Psychology and Visual Balance

Color should steady operators, not stimulate them. Desaturated blues and cool grays promote composure and perceived control; small, intentional use of greens can reduce stress. Saturations stay low to avoid competing with screen content. I keep high-contrast accents only for wayfinding or critical zones—too many visual signals compete with the data on displays. Verywell Mind’s overview of color psychology notes that blues are commonly associated with calm and focus, aligning with long-duration vigilance needs.

Materials and Thermal Comfort

Choose durable, cleanable finishes with low reflectance: matte laminates, micro-textured paints, and acoustic fabrics. Maintain thermal stability—24/7 electronics add heat, so zoned HVAC, underfloor air distribution, and vented equipment rooms keep operators comfortable. I avoid glossy floors and polished metals near displays, and I specify anti-static flooring where racks and cable management are dense.

Data, Power, and Redundancy

Resilience is non-negotiable. I plan dual power feeds for essential stations, UPS coverage sized to hold operations through transfer, and cable management that is labeled, accessible, and color-coded. Network drops are generous; future-ready conduits allow upgrades without disruption. Equipment racks should have hot-aisle/cold-aisle separation and clear service paths. Document all changes; the room is a living system.

Human Factors: Breaks, Biophilia, and Shift Rotation

Long vigilance requires humane rhythms. Micro-break areas with softer lighting, plants, and acoustic shielding help reset attention. If the room has exterior exposure, control daylight with automated shades and avoid direct sun on displays. Shift rotations benefit from consistent lighting and temperature profiles to avoid circadian confusion. Simple rituals—stand-up stretches at set intervals, brief screen calibration checks—keep the team steady.

Planning and Simulation

Before build-out, I validate the layout with digital simulations—camline angles, seat spacing, traffic patterns, and emergency egress. Sharing these visualizations with stakeholders prevents surprises and shortens decision cycles. Rapid mock-ups using an interior layout planner help catch practical issues early: microphone reach, armrest collisions, and glare at specific times of day. Try a layout simulation tool to iterate quickly: interior layout planner.

Trusted References for Standards and Behavior

For lighting, glare, and task visibility, I look to IES standards, and WELL v2 provides actionable guidance on light levels, ergonomics, and comfort protocols. For behavioral and productivity insights, Steelcase and Herman Miller research informs seating, posture, and cognitive load considerations. These sources keep the room grounded in proven performance.

Tips 1: Design for Clarity First

Prioritize sightlines, minimize visual noise, and keep critical data at central, comfortable viewing angles. Use consistent desk orientation and cable discipline.

Tips 2: Tune Light and Sound

Dial ambient light to avoid screen contrast spikes; use task lighting for precision. Target low background noise and absorb speech in collaboration zones.

Tips 3: Engineer Ergonomics

Adjustable seating, sit-stand desks, neutral postures, and monitor alignment reduce fatigue. Small details—edge radius, wrist supports, footrests—matter.

Tips 4: Build Redundancy

UPS, dual feeds, documented cabling, and clear service paths prevent downtime. Plan for future capacity with extra conduits and labeled ports.

Tips 5: Calibrate Displays

Match brightness and color temperature to ambient conditions; keep critical feeds at primary eye levels. Pre-set layouts for different incident types.

Tips 6: Support Human Rhythms

Provide micro-break spaces, biophilic elements, and consistent environmental settings across shifts. Encourage routine movement and eye-rest practices.

FAQ

Q1: What lighting levels work best for surveillance rooms?

A: Aim for ambient lighting around 150–300 lux and task lighting at 300–500 lux, following guidance aligned with WELL v2 and IES practices, to support clarity without glare.

Q2: How should monitors be positioned for long shifts?

A: Place the top of the monitor at or slightly below eye level, with a viewing distance of 50–70 cm and slight tilt to minimize neck strain. Keep primary data within the central field of view.

Q3: What acoustic targets should I set?

A: Keep the background noise around NC 25–30, add high-NRC treatments on ceilings and walls, and isolate noisy equipment rooms to preserve focus.

Q4: Which colors improve vigilance?

A: Desaturated blues and cool grays promote calm and focus. Use low-saturation accents for wayfinding; avoid highly stimulating hues that compete with screen content.

Q5: How do I design circulation without disrupting sightlines?

A: Route primary paths behind or to the sides of operator stations, avoid crossing in front of video walls, and maintain generous clearances free of cables and equipment.

Q6: What redundancy should be built into power and data?

A: Provide dual power feeds for critical stations, UPS coverage sized for controlled transfer, labeled cable management, and extra conduits for future expansions.

Q7: How can I reduce glare on displays?

A: Use indirect ambient lighting, matte finishes, baffles, and carefully position luminaires out of operator sightlines. Calibrate display brightness to the room’s light level.

Q8: Are sit-stand desks worth it in control rooms?

A: Yes. Alternating postures reduces musculoskeletal strain and fatigue. Pair sit-stand desks with high-adjustability chairs and set routine posture changes.

Q9: What materials work best for durability and comfort?

A: Matte, low-reflectance laminates; acoustic fabrics; micro-textured paints; and anti-static flooring near equipment racks. Choose cleanable, robust finishes.

Q10: How do I plan for multi-role operations?

A: Create layout presets on the video wall for different incident types, locate adjacency zones for analysis and escalation, and use configurable furniture clusters.

Q11: How should daylight be handled?

A: Control exterior light with automated shades, avoid direct sun on displays, and maintain consistent ambient conditions to protect visibility and circadian comfort.

Q12: What’s the best way to test a design before build?

A: Use digital layout simulations to validate sightlines, circulation, and ergonomics, and share visualizations for stakeholder feedback to catch issues early.
