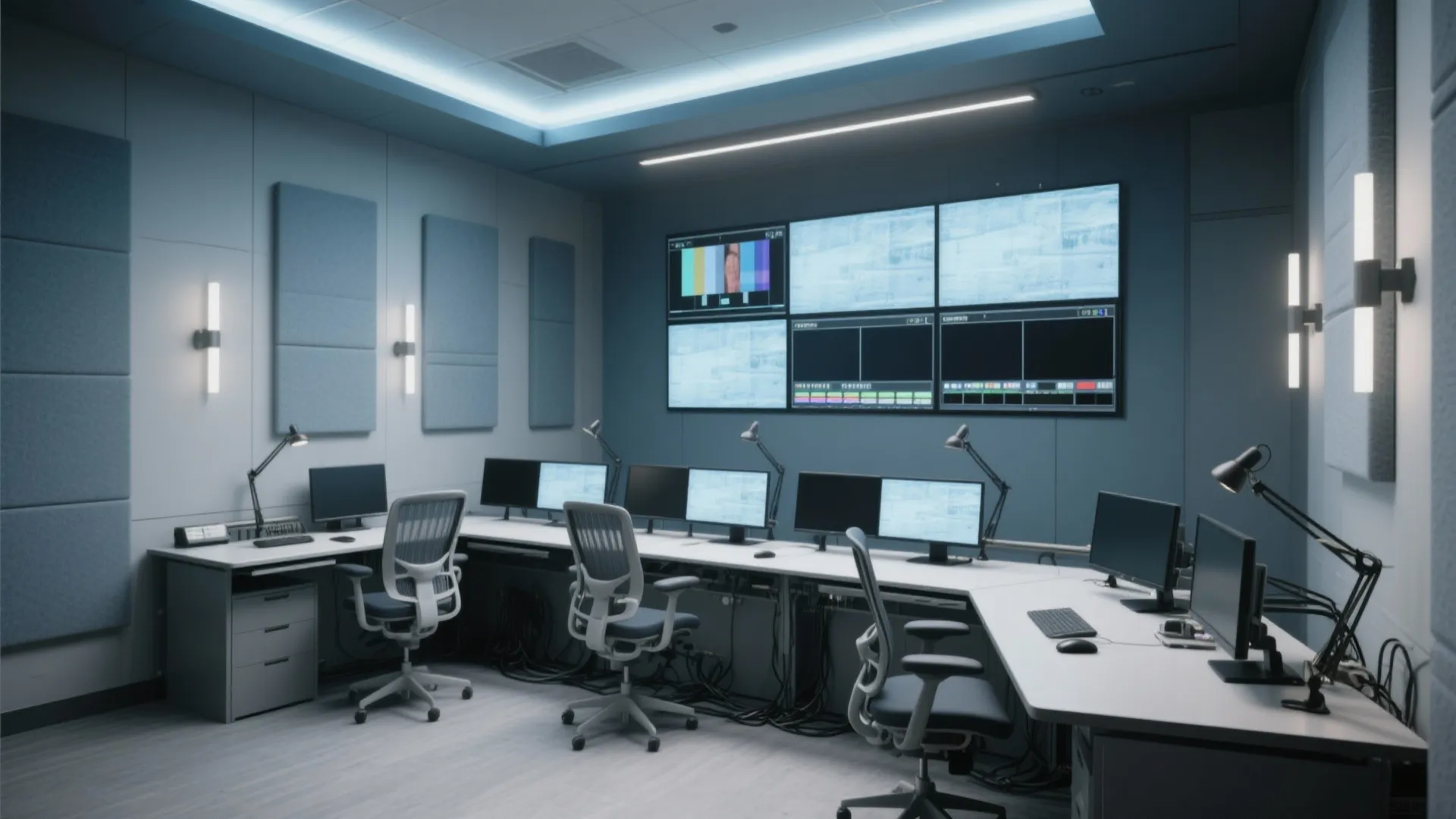

Surveillance Room Design: Space-Saving Solutions for Modern Security: Fast-Track Guide to Optimizing Small Surveillance Rooms

I’ve designed surveillance and security control rooms in footprints as tight as 120–200 sq ft, where every inch has to work twice as hard. The goal is simple: compress hardware, expand visibility, and sustain operators over long shifts without fatigue. In 2023, Steelcase research highlighted that 45% of workers cite physical discomfort as a major performance drain—an issue that compounds in 24/7 monitoring environments. WELL v2 also ties optimized lighting and ergonomics to measurable improvements in alertness and cognitive performance, especially under low-glare, circadian-supportive lighting strategies.

In compact security suites, workstation geometry and sightlines dominate outcomes. The International WELL Building Institute notes that glare control and balanced vertical luminance reduce eye strain, while the Illuminating Engineering Society recommends layered lighting with task levels around 300–500 lux for detail work, dropping ambient levels to limit screen reflections. From my projects, we reduce neck rotation by up to 30–40% through correct screen arc radius and mounting heights; paired with sit-stand desks and neutral elbow angles (90–110°), this setup maintains operator focus during 12-hour rotations.

Plan the Core: Console-First, Not Room-First

Start with the console footprint, then wrap the room around it. For single-operator rooms, a 1.6–1.8 m wide console with an 800–900 mm depth typically supports 3–5 monitors plus integrated KVM. For dual-operator setups, angle consoles 10–15 degrees toward a shared video wall to preserve peripheral awareness and keep cable runs short. When testing sightlines and reach envelopes, a room layout tool such as the interior layout planner helps simulate monitor arcs, chair travel, and door clearances before you buy the first bracket.

Video Wall vs. Distributed Displays

In tight rooms, a modest 2x2 video wall (bezel-aware, 49–55 inches) can replace six to eight single displays and consolidate power and heat. However, a distributed setup with three 32–34 inch curved monitors per operator often yields better ergonomics. Keep the primary display centerline 15–20° below eye level; set the viewing distance at 1.2–1.6 times the diagonal. If multiple feeds require constant monitoring, dedicate the upper-left quadrant for alarms and analytics, as operators tend to scan left-to-right, top-to-bottom in English-language environments—reducing missed alerts.

Lighting That Works With Screens, Not Against Them

Layer ambient, task, and accent lighting to control contrast and glare. Ambient: indirect ceiling or wall-wash lighting at 100–200 lux to soften the room and prevent edge shadows. Task: 300–500 lux at the console via low-glare desk lights with 3000–4000K CCT. Accent: dimmable perimeter strips (2700–3000K) to stabilize peripheral luminance. WELL v2 encourages tunable white to support circadian rhythms; I aim for cooler 4000K during early shifts and warmer 3000K for night. Keep Unified Glare Rating low by shielding LEDs from direct sightlines and using matte finishes on ceiling and console surfaces.

Ergonomics for 12-Hour Rotations

Select chairs with 4D armrests, lumbar depth adjustment, and a waterfall seat edge. Monitor arc radius should typically span 700–900 mm for wrap-around clarity without extreme neck rotation. Keyboard-tray tilt at −5° to −10° can reduce wrist extension, and footrests help operators of smaller stature maintain neutral hips. Place primary input devices within a 350–450 mm reach to reduce shoulder load. Steelcase and Herman Miller research both correlate posture variability with reduced fatigue—mix sit-stand periods every 45–60 minutes and standardize console heights (650–1250 mm range for adjustables) to suit different shifts.

Acoustics in Compact Rooms

Noise quickly degrades vigilance. Target an NC 25–30 environment using sealed doors, perimeter gaskets, and soft finishes (NRC 0.7+ wall panels, acoustic ceiling tiles). Position servers in a separate closet with lined returns; if not possible, use low-noise fans and baffled racks. Space microphones and speakers away from reflective corners to avoid feedback during incident calls. Floor finishes should combine anti-static performance with underlayment that dampens footfall; rubber or dense carpet tile with cushion backing is reliable.

Thermal and Airflow Management

Equipment heat is the enemy in small rooms. Cluster high-load devices in ventilated racks with front-to-back airflow and blanking panels; provide a minimum of 1.0–1.5 m clear aisle in front of racks for service. Use dedicated split systems or supplemental cooling where building air cycles down at night. Keep supply diffusers away from microphones to prevent noise and use return grilles above heat-intensive zones. Real-time temperature monitoring at rack height prevents hot spots.

Cable Discipline and Power Redundancy

In limited footprints, cable chaos erodes usable space. Plan horizontal and vertical pathways before furniture procurement. Color-code by function (video, data, power) and label both ends. Position PDUs with surge protection under consoles, and separate low-voltage from power to reduce interference. Provide UPS coverage for critical nodes with clear runtime targets (e.g., 15–30 minutes) to bridge to generator transfer. Quick-release cable raceways make overnight swaps painless during system upgrades.

Storage Without Bulk

Wall-mounted shallow cabinets (250–300 mm depth) hold binders, radios, and spare peripherals without stealing circulation. Under-console drawers for personal items reduce desktop clutter, keeping sightlines clean. A slim evidence/fridge station near but outside operator elbow zones maintains food safety and reduces crumbs near keyboards—small, but it preserves equipment and keeps operators at post.

Color and Visual Hierarchy

Use low-chroma, mid-value neutrals (LRV 30–45) on walls to reduce reflected glare. Slightly darker finishes behind screens improve contrast without creating a cave effect. Verywell Mind’s research on color psychology notes blues and muted greens support calm focus, while saturated reds increase arousal—fine for accent markers or emergency signage, not entire walls. Keep the console surface matte and darker than the wall to visually anchor equipment and minimize specular highlights.

Security Workflow and Zoning

Define a clean circulation loop from door to console to equipment rack, with a minimum 900 mm clear path. Place visitor or supervisor perch seating behind operators, not beside them, to reduce lateral distractions. If the project allows, separate an incident room with glass partitions and acoustic seals; visual access remains, but conversations don’t flood the main space. For multi-operator rooms, soft boundaries—low planters or acoustic screens—keep focus without blocking sightlines to shared displays.

Future-Proofing in Small Footprints

Choose consoles with scalable rails and modular monitor arms; leave 20–30% spare power and network capacity. Favor software-based video walls where possible to reduce proprietary lock-in. Mount hardware on slotted channels so additional devices can be added vertically without widening racks. Use a room design visualization tool like the layout simulation tool to test new gear before procurement—for small rooms, mistakes get expensive fast.

Materials and Cleanability

Specify antimicrobial, low-VOC finishes that withstand frequent cleaning. Edge-banded HPL for work surfaces, vinyl-wrapped wall panels in high-touch areas, and powder-coated metals throughout. Select display bezels and peripherals in low-sheen finishes to hide fingerprints and glare. Cable grommets with brush inserts keep particulates down while allowing airflow.

Commissioning Checklist

- Verify lux levels at task and ambient positions, logging readings across shifts.

- Confirm monitor height/tilt per operator anthropometrics; record preferences in a handover sheet.

- Sound test with all equipment fans active; treat hotspots with additional absorption.

- Run a thermal load test, doors closed, peak rack usage—all alarms silenced only after thresholds stabilize.

- Conduct a power-fail drill to ensure UPS-to-generator continuity covers critical feeds.

- Validate camera layouts on the video wall, ensuring alarm tiles remain within central viewing cone.

References Worth Bookmarking

For ergonomic and performance evidence, I frequently reference WELL v2 and Steelcase research when calibrating lighting, posture variability, and alertness targets. Both bodies provide practical, human-centered metrics suited to security environments.

FAQ

Q1: What’s the ideal lighting level for surveillance work?

A1: Keep ambient around 100–200 lux and task lighting at 300–500 lux with 3000–4000K color temperature. This balances screen contrast and reduces glare while maintaining detail visibility.

Q2: How many monitors can a single operator manage effectively in a small room?

A2: Typically three to five primary screens within a 700–900 mm arc. Use a small 2x2 wall for shared feeds or alarms; prioritize critical views in the central monitor.

Q3: What console dimensions work best in compact surveillance rooms?

A3: Aim for 1.6–1.8 m width and 800–900 mm depth per operator. Ensure cable channels, power, and KVM access are integrated to avoid desktop clutter.

Q4: How do I control noise without a full rebuild?

A4: Add NRC 0.7+ wall panels, swap in acoustic ceiling tiles, use door seals, and relocate or baffle noisy equipment. A target of NC 25–30 keeps speech clear and fatigue low.

Q5: What color palette supports sustained focus?

A5: Mid-value neutrals with muted blues/greens. Avoid bright whites near screens and limit saturated reds to small accents or wayfinding.

Q6: Can sit-stand desks fit in very small rooms?

A6: Yes—choose compact sit-stand consoles with integrated cable management. Maintain at least 900 mm clearance behind chairs for safe transitions.

Q7: How should equipment heat be managed in tight spaces?

A7: Use front-to-back rack airflow, seal gaps with blanking panels, and provide dedicated cooling or supplemental units. Monitor temperatures at rack height and near operator stations.

Q8: What’s the best way to plan upgrades without disrupting operations?

A8: Model changes with a room layout tool to validate sightlines and cable paths, use quick-release raceways, and schedule swaps during low-incident windows with a rollback plan.

Q9: Do curved monitors help?

A9: For multi-screen arcs, 32–34 inch curved displays can reduce neck rotation and improve immersion, provided the curvature matches the viewing distance (commonly 1500R–1800R).

Q10: How much power redundancy is enough?

A10: Cover critical devices with UPS for 15–30 minutes to bridge to generator transfer. Separate circuits for video processing and workstation power reduce cascade failures.

Q11: What flooring works best?

A11: Static-dissipative carpet tile or rubber with cushion backing to limit footfall noise and support long standing periods. Ensure cable access panels are flush and well-labeled.

Q12: How can I preserve visibility while adding acoustic separation?

A12: Use glass partitions with acoustic interlayers or framed systems with high STC ratings, paired with ceiling absorption to prevent flutter echoes.
