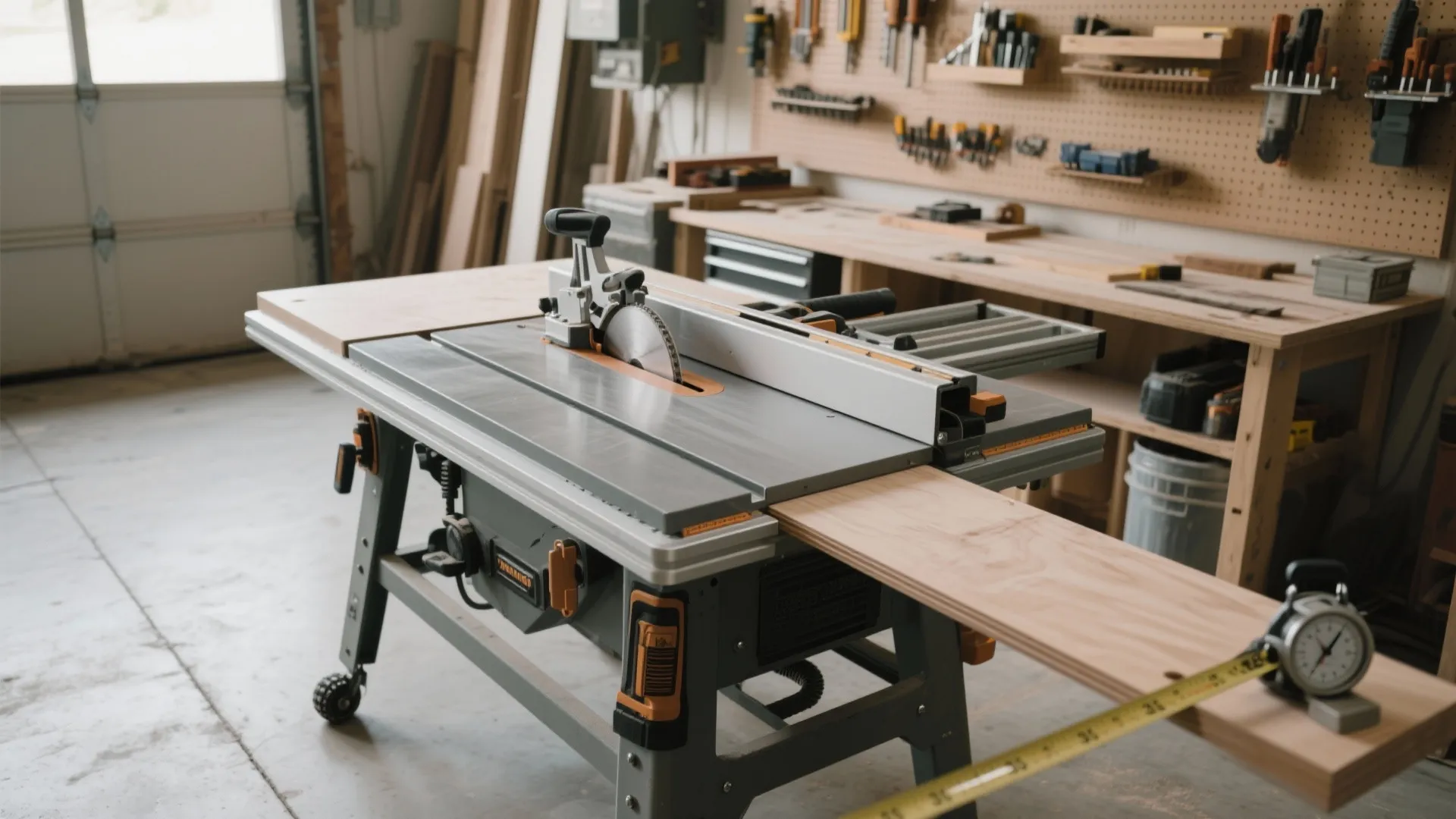

Table Saw Extension DIY: Build Your Own Affordable Solution: Fast-Track Guide to Expanding Your Workspace with a Table Saw Extension

I’ve built and tuned table saw extensions for client shops and my own over the past decade. A well-designed extension increases rip capacity, stabilizes long workpieces, and creates a landing zone for jigs without compromising safety. The payoff is measurable: Steelcase research notes that well-organized work zones can reduce task switching and motion waste, improving efficiency by up to 10–12% in craft and assembly environments—benefits you feel at the saw when your outfeed and side support are dialed in.

Safety and ergonomics lead the design choices. The WELL Building Standard (WELL v2) highlights the impact of proper task heights and reduced reach on musculoskeletal strain; keeping your extension flush with the saw table (around 34–36 inches high for most contractor/cabinet saws) aligns with typical ergonomic ranges while minimizing lift and twist. To protect sight lines and reduce eye fatigue when measuring or aligning cuts, I keep overhead task lighting in the 300–500 lux range and use neutral, matte surfaces to avoid glare—practice informed by IES task lighting guidance.

Plan the Extension: Size, Structure, and Function

Start by defining your goals. If you regularly rip 8-foot stock, prioritize lateral support on the right side to complement the rip fence. For sheet goods, add an outfeed lip that sits 1–2 mm lower than the saw table to prevent edges from catching. Typical side extensions range 18–30 inches wide and 24–36 inches deep; for compact shops, 20 × 30 inches offers meaningful support without blocking walkways. If you’re reworking your shop layout, prototype clearances and workflow around the saw with a room layout tool to simulate turning radius and safe feed paths.

room layout tool

Materials: Stable, Flat, and Easy to Maintain

I favor a torsion-box top for stiffness with minimal weight. A common stack is: 3/4-inch MDF or high-quality plywood top, 1/2-inch ribs on edge at 6–8 inch spacing, and a 1/4–1/2 inch hardboard or plywood skin below. Edge-band with hardwood or melamine to resist dings. For a simpler build, use a single 3/4-inch Baltic birch sheet with two front-to-back stiffeners and a center brace; finish with a matte laminate for low friction and easy cleanup. Use corrosion-resistant fasteners and lock washers to keep your settings over time.

Structure and Mounting: Keep It Square and Flush

Extension sag ruins accuracy. Tie the extension into the saw’s existing fence rails or add a dedicated angle-iron subframe. I typically mount two 1-1/2 × 1-1/2 × 1/8 inch steel angles front and rear, drilled to match factory rail holes. Add vertical legs under the far right corner: 1-1/2 inch square steel tube or adjustable cabinet feet rated ≥ 200 lb. Shim with phenolic shims to get dead-flush with the cast-iron top. Confirm square with a machinist’s straightedge and feeler gauges—aim for ≤ 0.005 inch variance across the seam.

Fence Integration and Accuracy

If you run a T-square fence, extend the front rail so the fence glides onto the new surface without racking. Wax the laminate top with a paste wax (no silicone near finishes). Check fence parallelism to the blade with a dial indicator; target ≤ 0.002 inch toe-in at the rear or neutral, depending on manufacturer guidance. After mounting, cut test strips and measure with calipers to verify repeatability across the extension zone.

Outfeed Strategy and Workpiece Support

An outfeed that’s 1–2 mm lower than the saw surface prevents binding at the seam. Rollers can mark soft wood; a smooth laminate outfeed is kinder to finish-grade stock. If space permits, a folding outfeed hinged with torsion hinges saves floor area and makes cleanup easier. Ensure at least 5–6 feet of clear outfeed for full-size sheets; model foot traffic and turning space with an interior layout planner before committing to fixed legs that could become trip hazards.

Dust, Noise, and Shop Comfort

Acoustics matter during long ripping sessions. Adding dense edge-band and a torsion box reduces resonance. Keep dust collection efficient by routing a 4-inch hose to the cabinet and a 2-1/2 inch overhead drop to a blade guard if your setup allows; fewer airborne fines improves visibility and reduces fatigue. Soft rubber feet under support legs damp vibration and protect concrete floors.

Lighting, Glare Control, and Marking Surfaces

Overhead task lighting around 300–500 lux keeps markings legible without harsh reflections. Choose a matte, neutral gray laminate top to improve contrast with pencil lines and tape markings. Avoid high-gloss surfaces that can glare under LED strips. If you add embedded measuring tapes, verify scale against a steel rule; adhesives can creep over time, so use mechanical stops or recessed tracks.

Ergonomics and Workflow

Keep the most-used jigs—crosscut sled, featherboards, push sticks—within a single step of the operator position. A shallow drawer or French-cleat panel under the extension organizes accessories without adding bulk. Center of gravity matters: distribute storage so the saw doesn’t tip when moving. For multi-user shops, label safe feed paths and keep 36-inch minimum aisles around the operator zone for clear egress.

Finishes and Durability

Laminate or hardwax oil on hardwood edges resists glue and stain. Round over edges at 3–4 mm radius to prevent splinters and clothing snags. Periodically re-wax or clean with mineral spirits to maintain glide. If you work with sheet metal, add a removable sacrificial top to prevent burr damage to the primary surface.

Cost Breakdown and Time

A torsion-box extension with laminate typically lands between $80–$180 in materials: plywood/MDF ($40–$90), laminate or melamine ($25–$60), steel angle/legs ($15–$40), fasteners and hardware ($10–$20). Expect 4–6 hours for a straightforward build with basic tools: drill/driver, circular saw or table saw, clamps, and a router for edging.

Step-by-Step Build Summary

1) Measure your saw height, rail spacing, and desired extension size. 2) Cut torsion ribs and skins; glue and clamp square on a flat reference. 3) Add edge-band and finish. 4) Fabricate angle-iron brackets and drill to match rails. 5) Mount and shim until flush. 6) Add legs or adjustable feet. 7) Verify flatness and fence alignment. 8) Wax the surface and run test cuts. 9) Organize jigs and mark safe feed paths.

Troubleshooting

If the extension sags, add a center brace or upgrade legs. If cuts burn near the extension, re-check fence alignment and consider micro toe-out. If sheet goods catch, drop the extension 1–2 mm below the main table. Persistent vibration often points to uneven feet—shim to level and add rubber pads.

FAQ

How large should a side extension be for cabinet-grade plywood?

For 4×8 sheets, 24–30 inches wide and 30–36 inches deep gives comfortable lateral support without overloading rails. Keep at least 5 feet of clear outfeed.

Is MDF or Baltic birch better for the top?

Baltic birch is stiffer and holds screws better; MDF is flatter and cheaper. In a torsion box, MDF skins with birch ribs create a stable, affordable hybrid.

What height should the extension sit relative to the saw?

Flush or up to 1–2 mm lower for outfeed. Staying at the saw’s typical 34–36 inch height supports natural ergonomics and reduces lift strain.

Do I need legs, or can rails alone support it?

Small extensions can hang off reinforced rails. Anything larger than about 20×30 inches benefits from at least one leg to prevent sag and racking.

How do I handle fence alignment across the seam?

Extend the front rail and verify with a dial indicator; aim for ≤ 0.002 inch variance. Wax the top to reduce fence friction and avoid racking.

What surface finish reduces glare and sticking?

Matte HPL laminate in neutral gray offers low glare and smooth glide. Paste wax improves slip and protects against glue drips.

Can I add storage without destabilizing the saw?

Yes—use shallow drawers or a French-cleat panel. Distribute weight to keep center of gravity over the saw base, especially if it’s mobile.

How do lighting levels affect accuracy at the saw?

Task lighting in the 300–500 lux range makes measurements readable without harsh reflections; neutral matte surfaces help maintain contrast.

What if my shop is small—will a folding extension work?

Absolutely. Use torsion hinges or removable pins so the panel folds or lifts off. Ensure legs are collapsible and lock positively when deployed.

How can I plan safe feed paths around obstacles?

Mock up with tape and cardboard, or pre-visualize using a room design visualization tool to ensure 36-inch minimum aisles and clear outfeed.
