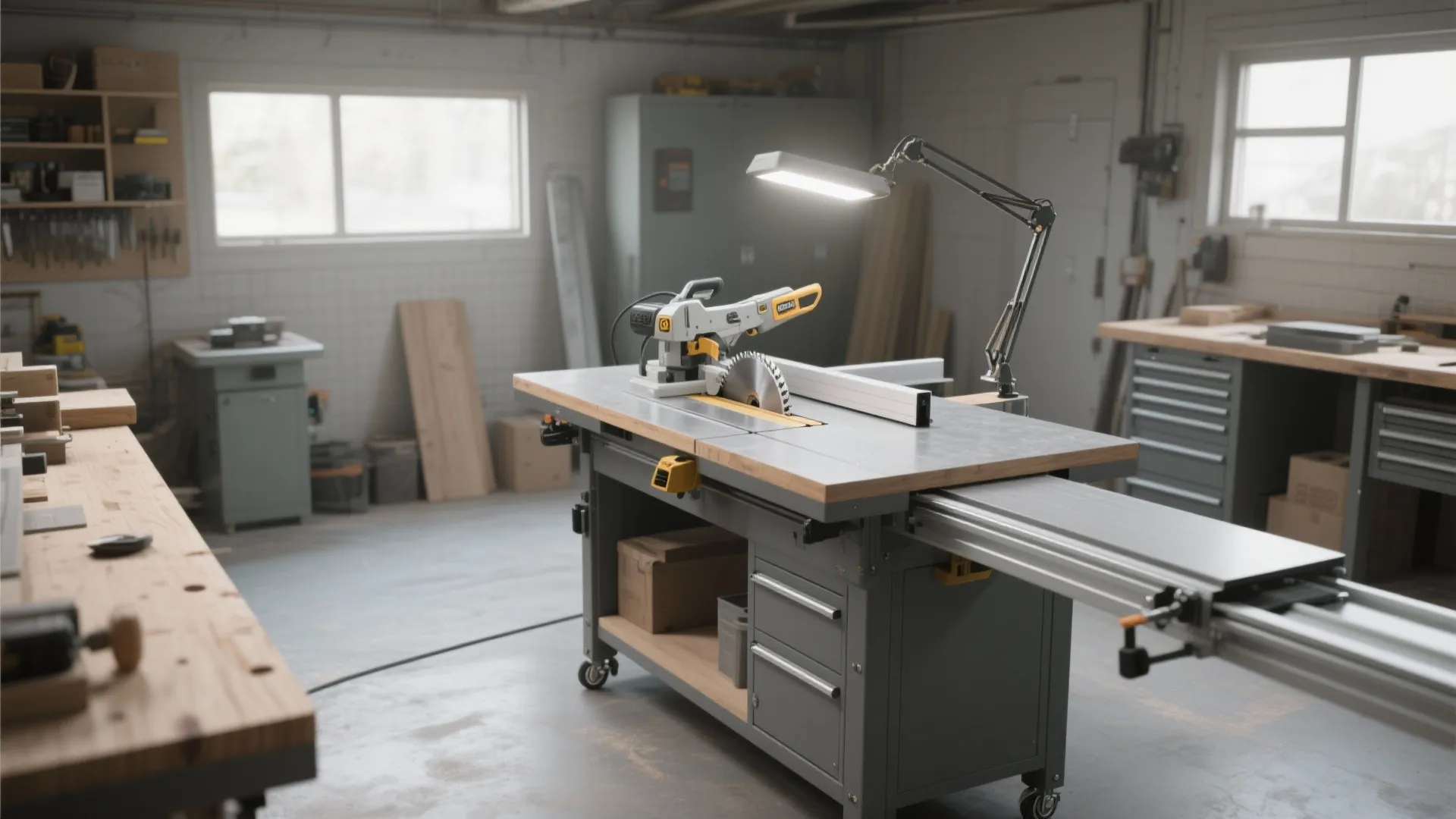

Table Saw Extension DIY: Maximize Your Workspace with Ease: Fast-Track Guide to Building a Custom Table Saw Extension in Minutes

I’ve learned that a well-built table saw extension isn’t just about more surface; it’s about safer handling, straighter cuts, and smoother workflow. When I extend a saw’s working surface to support sheet goods or long rips, my accuracy improves measurably and my body works less to control the workpiece. Workplace research echoes this: Steelcase notes that reducing awkward reaches and unstable postures correlates with fewer errors and better performance, a principle that applies in the shop as much as the office (Steelcase research). WELL v2 also emphasizes task lighting levels in the 300–500 lux range for detailed work—vital for reading cut lines and calibrating fences safely (WELL v2).

From my projects, the biggest gains come from controlling ergonomics and lighting at the extension. Keep the primary work height near 34–36 inches for most users so wrists stay neutral during feed. Maintain 48–60 inches of clear outfeed behind the blade; that buffer markedly reduces catching and kickback risk. In multi-tool spaces, I treat the saw + extension as a mini workflow island: infeed left, saw center, outfeed right, with storage below. This mirrors layout logic used in high-function workplaces where reducing steps between tasks boosts throughput; Gensler’s research consistently connects frictionless flow to performance across environments (Gensler research).

Plan the Extension: Capacity, Clearance, and Control

Start with your typical stock: if you regularly cut 4x8 plywood, plan an outfeed that supports at least the final 36–42 inches of the sheet past the blade. For ripping long hardwood, extend the infeed to stabilize the first 24–30 inches. Keep 36 inches of clear aisle on the operator side for body movement and stance. I prefer an L-shaped extension that adds both right-of-blade support and outfeed, anchored to the saw’s rails and a freestanding leg near the far corner for rigidity without telegraphing vibration into the saw.

Materials and Structure: Rigid, Flat, and Repairable

Flatness is non-negotiable. I build torsion-top extensions with a 1/2 inch MDF or Baltic birch skin over a lightweight grid, then cap with high-pressure laminate for low friction and durability. Aim for total thickness of 1 1/4–1 1/2 inches so the top stays co-planar with the cast iron. Hardwood edging protects corners. Use threaded inserts for removable fence hardware or jigs. If you’re adding a router lift, isolate that pocket with extra ribs so the table doesn’t sag.

Joinery and Fastening: Keep It Adjustable

I bolt the extension to the saw’s fence rails using slotted holes that allow micro-adjustment in height and yaw. Underneath, add a diagonal brace from the outer leg back to the rail to counter racking. Where the extension meets the iron top, leave a paper-thin gap and bridge it with a flush laminate shim to avoid catching workpieces. Every connection should let you fine-tune flushness—plan on a straightedge and feeler gauges during setup.

Leveling and Alignment: The 3-Tool Check

Co-planarity beats size every time. My routine: a 36 inch straightedge to check across the saw-to-extension seam, a set of feeler gauges to confirm tolerances within 0.004–0.006 inches, and a dial indicator to confirm fence parallel to the miter slots. Lock the height on the leg first, square the front edge to the fence scale second, then shim the seam last. Take your time—the payoff is frictionless feeding.

Integrated Storage and Dust Paths

Use the dead space under the extension for push sticks, featherboards, and crosscut sleds. Keep heavy items low for stability. If you route dust, a 4 inch line under the outfeed with a narrow slot along the blade path can pull fines downward. Keep the slot beveled so edges don’t snag sheets. Inside the cabinet, matte finishes reduce glare and make it easier to spot dust buildup.

Lighting the Work Zone

Task lighting at the blade line prevents misreads when sighting cut marks. I place a high-CRI (90+) LED task light on an articulating arm just ahead of the operator, angled to minimize glare. Target 300–500 lux on the table per WELL v2 guidance for fine tasks. Warmer 3000–3500K reduces eye strain for long sessions; cooler 4000–4500K can help when aligning markings on pale woods. Keep reflectors out of the direct sightline to control veiling reflections on laminate.

Ergonomics and Safety Cues

Feet should plant shoulder-width with elbows slightly bent at the start of the cut. The extension table’s edge becomes a tactile cue; I break the edge with a 1/16 inch roundover so I can slide work comfortably. Apply a different color laminate or edge strip at the blade’s outfeed path to signal caution without visual clutter. Consistent feed pressure—helped by the low-friction surface—keeps body mechanics neutral and lowers the risk of sideways torque.

Modular Add-Ons: Router, Miter, and Sleds

If you install a router lift in the extension, add T-track for stops and featherboards. For crosscut accuracy, I sometimes embed a secondary miter track parallel to the saw’s slots for a long sled. Keep clearances generous so dust doesn’t bind accessories. Mark any track centers on the table edge for repeatable setups.

Finishes and Maintenance

Laminate surfaces get a dry wax to reduce friction; avoid silicone products that can contaminate finishes. Check fasteners quarterly and re-level if the shop floor moves seasonally. If MDF edges take on moisture, seal with shellac or waterborne polyurethane. Small maintenance habits preserve alignment—and that preserves safety.

Layout, Mobility, and Shop Flow

In tight shops, the extension can double as a rolling workbench. I use locking casters on the leg and a drop-down foot so the structure bears weight only when parked. When planning the broader layout, map the infeed/outfeed travel paths and ensure they don’t conflict with other tools. If you’re experimenting with footprint and clearances, a lightweight interior layout planner can help you test aisle widths and move lines before you build a base: room layout tool.

Cut List and Build Notes

- Top skins: 2 pcs 3/4 inch Baltic birch or 1/2 inch MDF + laminate

- Grid ribs: 3 inch wide, 1/2–3/4 inch material, spaced 6–8 inches

- Edge band: 3/4 x 1 1/2 inch hardwood

- Leg: 1 1/2 inch square tubing or laminated maple, adjustable foot

- Hardware: threaded inserts, 1/4-20 bolts, leveling feet, T-track as needed

Dry-fit before laminate. Keep the seam to the saw front-to-back, not at a diagonal, so you can register square cuts reliably.

Acoustics and Vibration Considerations

Large tops can amplify noise. Line the underside cavities with thin cork or mass-loaded vinyl in high-noise shops to damp resonance. Decouple the leg from slab or resonant floors with rubber feet. A quieter station reduces fatigue and helps you hear subtle changes in blade sound that often precede binding.

Color and Visual Rhythm

I choose neutral mid-gray laminate for the extension. It offers contrast with pencil lines on light and dark woods while keeping glare down. A consistent color palette across tools creates visual rhythm, making it easy to scan for hazards and tools—an overlooked benefit of color psychology that improves wayfinding and reduces cognitive load.

Final Fit: Test Cuts and Micro-Tuning

With the extension aligned, run test rips on scrap to check feed feel and edge burn. If the work wants to drift at the seam, you’re either a hair proud or low—adjust in 0.002 inch steps using card shims or jack screws. Verify fence-to-miter slot parallel, then confirm the outfeed doesn’t push back on the stock. When it all feels neutral, you’re done—your saw will feel bigger, safer, and more precise.

FAQ

How big should a table saw extension be?

Size it to your work. For sheet goods, support at least the last 36–42 inches past the blade. For long rips, add 24–30 inches of infeed. Maintain 48–60 inches of clear outfeed behind the saw for safe egress.

What’s the ideal height for the extension?

Match the saw’s table height exactly. For most shops that’s around 34–36 inches. Use adjustable feet for micro-leveling within 0.004–0.006 inches across the seam.

Which surface material is best?

High-pressure laminate over MDF or Baltic birch offers a flat, durable, low-friction surface. Wax lightly to reduce drag; avoid silicone-based polishes.

Can I add a router table to the extension?

Yes. Reinforce the grid around the router pocket, install a lift, and add T-track. Keep dust management separate so fines don’t accumulate around the saw blade.

How do I keep the extension perfectly flush?

Use slotted bolt holes to the fence rails, set a rigid leg with a leveling foot, then shim the seam with laminate or brass shims. Check with a straightedge and feeler gauges.

What lighting should I use at the saw?

High-CRI LED task lighting providing roughly 300–500 lux at the table line helps with marking and safety. Position it to avoid glare and shadows across the blade path.

Will a large extension make the saw louder?

It can. Dampen cavities with cork or mass-loaded vinyl and use rubber feet to decouple the leg from the floor. The reduced resonance makes blade feedback easier to hear.

How do I plan shop layout around infeed and outfeed?

Map full-length travel paths for your largest boards, ensuring at least 36 inches of operator aisle. If space is tight, simulate options with an interior layout planner to test clearances: interior layout planner.

What’s the safest edge treatment on the extension?

A small 1/16 inch roundover on all exposed edges prevents catching and reduces wrist pressure during long feeds.

How often should I re-level the extension?

Quarterly checks are prudent, or whenever seasons change and floors shift. Re-verify co-planarity, fence parallel, and fastener tightness.
