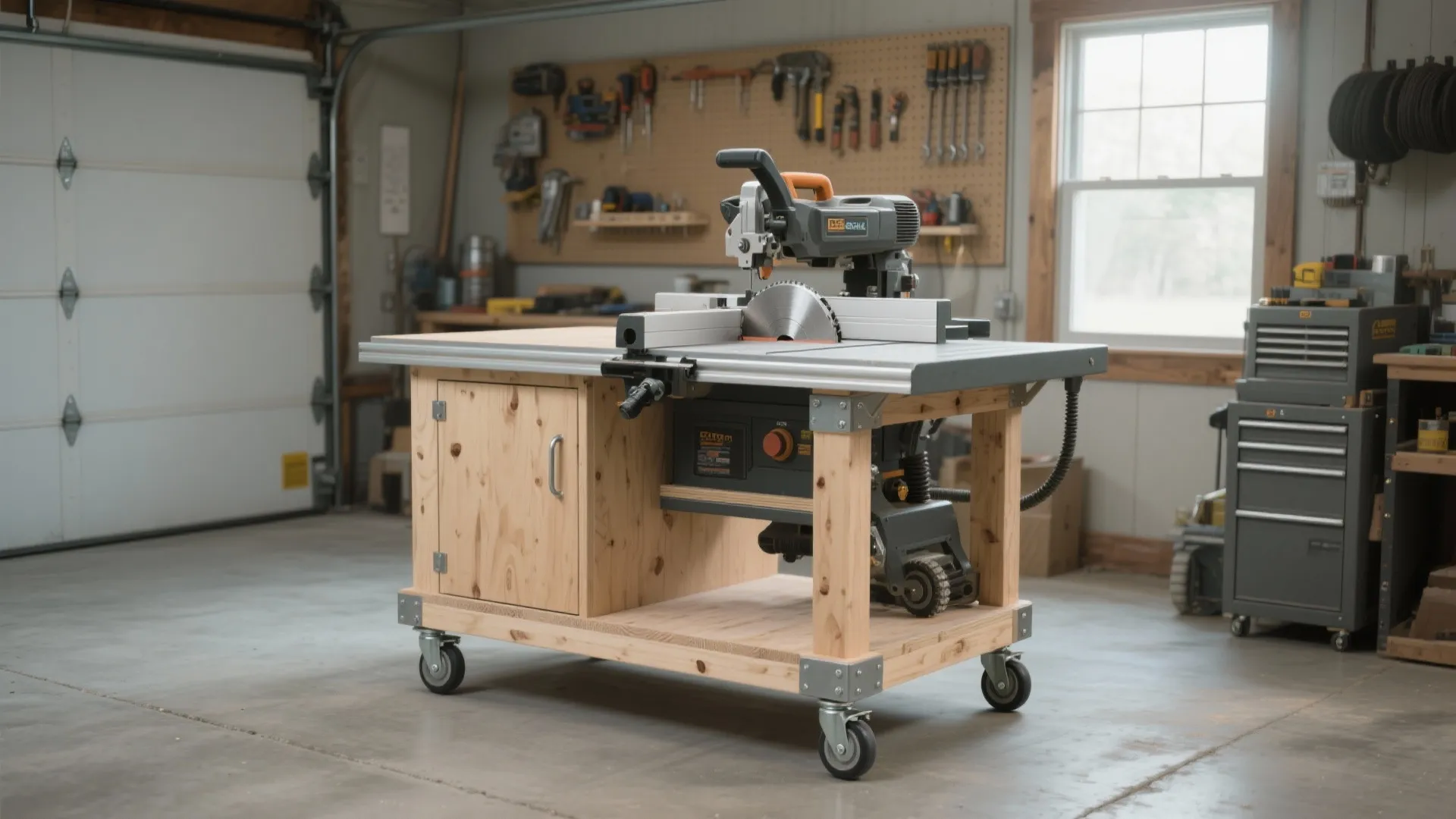

Table Saw Mobile Base DIY: Easy Step-by-Step Guide: Fast-Track Guide to Building a Mobile Table Saw Base in Minutes

I’ve rolled heavy cabinet saws across tight garages and nursed contractor saws through multi-purpose studios. A mobile base changes the daily workflow: it saves space, improves safety, and protects your back. Below is my streamlined approach to building a sturdy, smooth-rolling mobile base that won’t flex, shimmy, or transmit too much vibration.

Safety and ergonomics are my first checks. The WELL Building Standard highlights ergonomics and anthropometrics as factors directly affecting musculoskeletal comfort, with seated and standing work requiring neutral postures to reduce strain (WELL v2, Ergonomics concept). Steelcase research also shows that improper heights and awkward handling increase fatigue and reduce performance; ensuring handles and brakes sit roughly at 34–42 inches for most adult users helps maintain neutral wrist/shoulder positions (Steelcase workplace research). Those benchmarks keep this build practical for everyday adjustments.

Weight and stability drive material choice. A typical cabinet saw weighs 400–600 lb, while contractor saws often range 250–350 lb. To make the base safe, aim for 1.5× load capacity on all casters and framing fasteners. I also manage acoustic comfort: hard floors amplify wheel noise; softer tread casters reduce transmission, and decoupling pads between saw and base cut high-frequency chatter. The result is smoother motion and less fatigue over time.

Tools and Materials

- 3/4" exterior-grade plywood or 1-1/2" laminated plywood for the deck (approx. 24" x 36" or tailored to your saw footprint)

- 2x4 or 2x3 kiln-dried lumber for perimeter frame and cross-bracing

- Four heavy-duty casters: two fixed + two total-lock swivels (rated 200–300 lb each minimum)

- Construction adhesive + wood screws (2-1/2" and 1-5/8")

- Corner brackets or steel angle (optional for metal reinforcement)

- Rubber or neoprene isolation pads (1/8"–1/4")

- Finish: polyurethane or hardwax oil for durability

- Pull handle and foot-operated brake access (integrated via caster selection)

- Anti-vibration leveling feet (optional)

- Tape measure, square, countersink bit, drill/driver, jigsaw or circular saw

Measure and Plan the Footprint

Set the saw on a clean floor and measure the footprint including motor cover, fence rails, and outfeed supports. Add 1–2 inches clearance around each side so you can grab edges safely while moving. Keep the final deck height low enough not to change the blade-to-table ergonomics—raising a saw more than 1-1/2" can push the working height beyond comfortable reach for shorter users. If you need layout validation before cutting lumber, a quick pass with a room layout tool can help visualize clearance and workflow around the saw: room layout tool.

Build the Deck and Frame

Cut the plywood deck to size. Laminate two 3/4" sheets with construction adhesive for a rigid 1-1/2" platform if your saw tops 350 lb. Build a rectangular frame with 2x lumber beneath the deck, flush to the edges. Add at least one cross-brace under the saw’s mass center (usually beneath the motor and trunnions). Pre-drill and countersink all screws to avoid splitting. For heavy cabinet saws, tie corners with steel angle and add a second cross-brace to minimize racking.

Select and Position Casters

Use two fixed rear casters and two front total-lock swivel casters (locks both wheel and swivel). Place casters near corners to distribute load, but keep at least 1-1/2" inset to avoid edge splitting. Caster diameter affects rolling resistance; 4"–5" polyurethane tread casters balance floor protection, low noise, and maneuverability. Confirm combined caster rating ≥ 1.5× your saw weight. Mount with through-bolts and washers if possible; lag screws into solid framing are acceptable for lighter contractor saws.

Vibration and Noise Control

Vibration compromises cut quality and increases fatigue. Slip neoprene/rubber pads between saw base and deck at mounting points to dampen high-frequency vibration. On the floor side, wider polyurethane wheels reduce drumming on concrete. If your shop has hard surfaces, consider a removable felt mat along travel paths; acoustic softening improves perceived noise and reduces annoyance when you move the saw.

Ergonomics: Handle, Brake Access, and Height

Install a robust handle 34–42" above floor to align with neutral wrist posture, and ensure you can kick the brakes without stooping. Keep deck height minimal; measure your current table height and stay within ±1" to maintain comfortable ripping and cross-cutting posture. Route cords and dust hose so they won’t snag during movement; strain reliefs on the rear prevent abrupt tugs.

Fastening the Saw to the Base

Through-bolt the saw cabinet to the deck where possible, using fender washers to spread load. If your saw’s base has no bolt-through points, use heavy-duty straps or custom brackets. Leave small access notches in the deck for wrench clearance. After fastening, check diagonal measurements corner-to-corner to confirm squareness.

Leveling, Stability, and Floor Interface

Add anti-vibration leveling feet if your floor isn’t perfectly flat. Before final use, engage caster locks and verify zero movement under lateral push. A base that flexes will show up in your cut accuracy; keep a rigid frame and short caster stalks. For uneven slabs, shim under feet with rubber blocks rather than wood to maintain grip.

Finish and Maintenance

Seal the deck and frame with polyurethane or hardwax oil to resist shop spills. Mark brake positions with contrasting paint for quick visual confirmation. Every few months, inspect caster bearings, re-tighten bolts, and test locks. If maneuvering feels harder, clean wheel treads—debris increases rolling resistance.

Workflow and Spatial Strategy

Plan pathways for ripping long stock and outfeed clearance. In smaller shops, park the saw so the blade aligns with the longest axis of the room. Consider a compact outfeed table that folds, attached to the mobile base, with lightweight aluminum hinges to keep mass low. If the layout changes frequently, simulate flowzones and clearance with an interior layout planner to reduce trial-and-error: interior layout planner.

Common Pitfalls and Fixes

- Underrated casters: upgrade to higher load ratings or add a fifth center caster under the heaviest section.

- Excess height: switch to low-profile plates and shorten frame members.

- Sway during cuts: add diagonal braces inside the frame or bolt the saw through to prevent sliding.

- Noisy rolling: change to softer tread wheels and clean the floor route.

Step-by-Step Summary

1) Measure footprint and clearances, target minimal height increase.

2) Cut and laminate deck if needed; build a rigid framed base with cross-bracing.

3) Select casters with a combined rating ≥ 1.5× saw weight; mount near corners.

4) Add vibration isolation pads; plan handle height and brake access.

5) Through-bolt the saw to the deck; confirm square and level.

6) Seal, test, and maintain; refine shop pathways for safe movement.

Reference Insights

For ergonomics validation and healthy posture guidelines, WELL v2 provides evidence-based criteria on workstation and movement design (v2.wellcertified.com). Steelcase research further connects posture, access, and fatigue to productivity, supporting the handle height and brake access targets (steelcase.com/research).

FAQ

Q1: How tall should a mobile base be for a table saw?

A: Keep added height under 1–1.5 inches to preserve comfortable work surface height. Taller bases can push elbows and shoulders into awkward ranges, increasing fatigue.

Q2: What caster type is best for heavy cabinet saws?

A: Use two fixed casters and two total-lock swivel casters with polyurethane treads, 4–5 inches diameter. Ensure the combined rating is at least 1.5× the saw’s actual weight.

Q3: How do I reduce vibration that affects cut quality?

A: Isolate the saw with rubber/neoprene pads at mounting points, keep the frame rigid with cross-bracing, and choose softer-tread casters. Check that locks freeze both wheel and swivel.

Q4: Should I bolt the saw to the base?

A: Yes, through-bolting with washers is the most secure method. If the saw cabinet lacks bolt holes, use custom steel brackets or high-strength straps.

Q5: What handle height reduces strain when moving the saw?

A: Aim for 34–42 inches from the floor, aligning with neutral wrist and shoulder posture, consistent with ergonomics guidance referenced by WELL and workplace studies.

Q6: How can I plan shop flow around a mobile saw?

A: Map infeed/outfeed paths and simulate clearances with a layout simulation tool to confirm long rip cuts won’t collide with walls or benches. Adjust parking spots accordingly.

Q7: Is there a benefit to larger caster diameters?

A: Larger wheels (5–6 inches) roll more easily over debris and minor floor imperfections, but may raise the saw too much. Balance diameter with height constraints.

Q8: What maintenance keeps the base smooth-rolling?

A: Clean wheel treads, lubricate bearings if applicable, tighten hardware quarterly, and inspect locks. Refinish worn deck surfaces to resist moisture.

Q9: Does floor type affect noise?

A: Yes. Concrete amplifies rolling noise; polyurethane wheels and felt route mats reduce transmission. Wood floors are quieter but can dent under hard wheels.

Q10: Can I add a fold-down outfeed to the base?

A: Absolutely. Use lightweight hinges and brace arms. Keep the added mass close to the frame and verify caster capacity with the new total weight.
