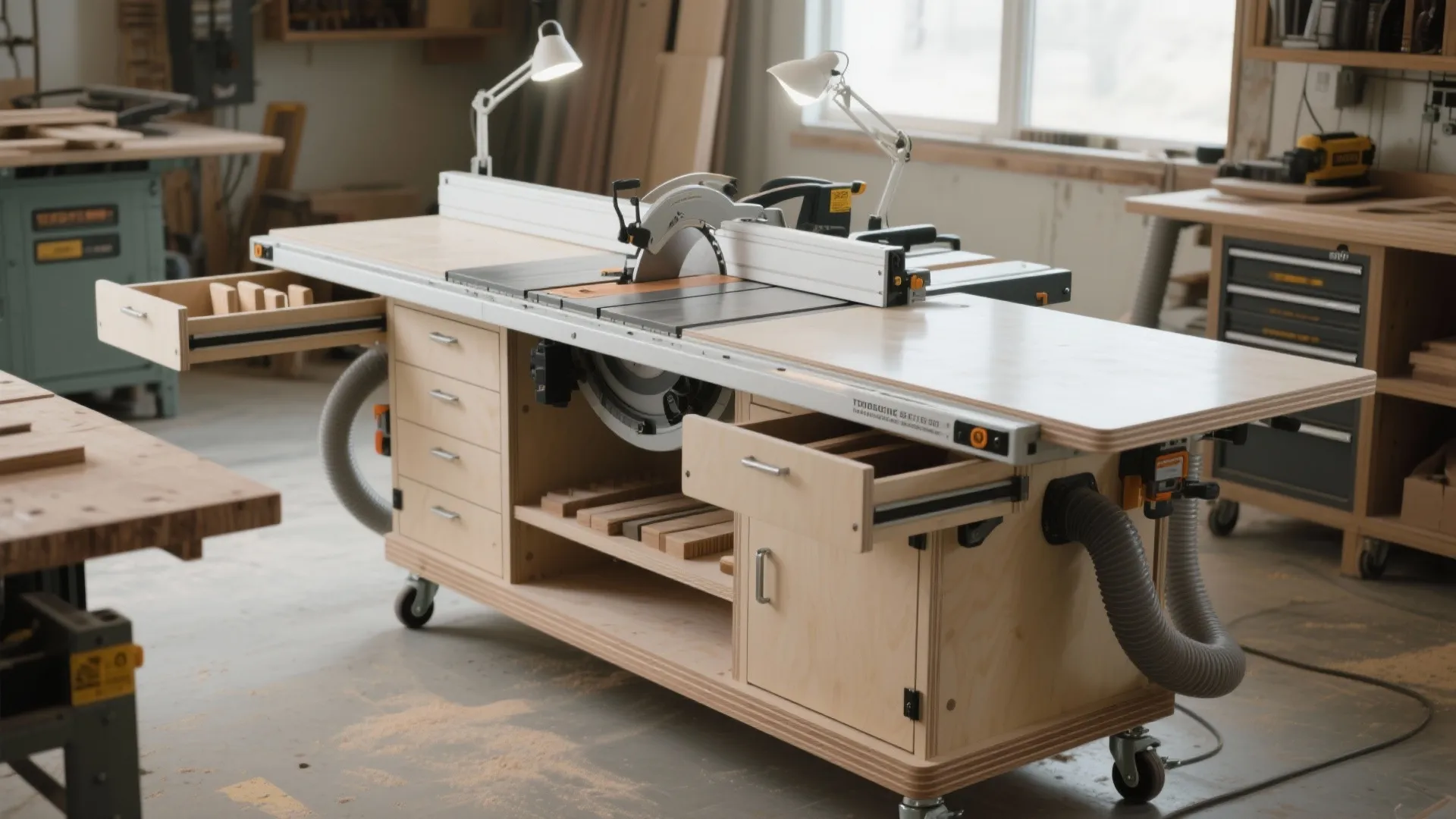

Table Saw Workbench DIY: Build Your Perfect Workspace: Fast-Track Guide to Building Your Table Saw Workbench in Minutes

I’ve spent over a decade planning productive, safe shop layouts, and the most impactful upgrade is a purpose-built table saw workbench. A well-designed workstation doesn’t just hold tools; it shapes how you move, measure, cut, assemble, and clean. When you set clear dimensions, ergonomic heights, and organized storage, your accuracy improves and fatigue drops.

Real numbers make the case. Herman Miller’s research links ergonomic alignment to reduced musculoskeletal risk and higher task efficiency; keeping work surfaces within the neutral elbow zone (roughly 36–38 inches for many users) helps sustain accuracy during repetitive motions. WELL v2 encourages glare control and task illumination in the 300–500 lux range for fine work—critical when reading blade marks or measuring to a 1/32 inch. If you routinely break down sheet goods, a 4×8 support strategy around the table saw pays off in safety and precision. For deeper reading on ergonomics and human performance, the Herman Miller Research library is a practical starting point.

Set Your Goals and Shop Constraints

Start with what you cut most: sheet goods vs. solid lumber, furniture components vs. trim. Measure your room footprint, door swings, ceiling height, and electrical runs. I keep at least 36 inches of clear lateral space and 60 inches outfeed clearance for 8-foot rips. If your shop is tight, consider folding wings and casters rated for the total workstation load. Map movement: rough stock in, break-down at the saw, outfeed to the assembly bench, and staging for finish. If you need help visualizing flow, a quick pass with a layout simulation tool can expose pinch points before you cut a single board.

Workbench Height, Clearances, and Reach

For most people, 34–38 inches bench height works; I set rip fence hand position near elbow height to prevent shoulder elevation. Keep a minimum 24-inch reach envelope for frequently used jigs and push sticks; anything beyond that risks unsafe stretching. Outfeed should be perfectly co-planar with the saw table and slightly lower (1/16–1/8 inch) to avoid catching. Ensure 48–60 inches in front of the blade for comfortable staging of sheet goods and long rips.

Core Structure: Stable, Flat, and Square

Build the carcass from 3/4-inch plywood or MDF with hardwood edging for durability. A torsion-box top (2×3-inch grid) keeps the surface flat under load. I use pocket screws and glue for the grid and add cross bracing to resist racking when rolling the bench. Check diagonals to within 1/16 inch; the table saw fence will only be as accurate as the platform beneath it.

Integrated Outfeed and Side Support

An outfeed table with low-friction laminate is non-negotiable. Target a 30–36-inch depth; for full-sheet control, extend to 48 inches if space allows. Side wings sized around 18–24 inches stabilize crosscuts and wide panel rips. If you regularly handle 4×8 sheets, design a legless drop-down wing supported by stout, locking brackets so you can reclaim aisle space when needed.

Fence, Miter Slots, and Alignment

Before fastening the workbench around your saw, square the blade to the miter slot and the fence to the slot to within 0.003–0.005 inches. Wax the top and fence faces for smooth feed. If you add a sled, ensure your workbench top leaves clear miter slot paths. A micro-adjustable stop at outfeed helps repeatable cuts without creeping.

Dust Collection and Air Quality

Dust isn’t just a mess; it’s an exposure risk. I run a 4-inch main line to the cabinet with a 2.5-inch overarm guard for blade-top capture. Keep flex runs short and smooth. Seal any cabinet gaps with foam tape, add a blast gate within arm’s reach, and sweep air toward a HEPA filter. Good air management reduces airborne fine dust and keeps your sightlines clear at the cut line.

Lighting: See the Cut, Protect the Eyes

Layer task lighting directly above the blade and fence. Aim for 300–500 lux on the table surface with 4000–4500K neutral-white lamps to preserve color accuracy of pencil lines and prevent eye strain. Minimize glare by shielding fixtures and avoiding shiny coatings that bounce light into your eyes. If you’re tuning illuminance, the IES recommendations for task work are a reliable reference worth bookmarking from IES standards.

Ergonomics: Handles, Stance, and Hand Safety

Position push sticks, featherboards, and a riving knife so you never reach across the blade. Keep feet shoulder-width, hips square to the feed direction, and elbows close to your torso. A non-slip floor mat in the feed zone reduces micro-slips and lowers fatigue on long milling sessions. Store heaviest jigs between knee and waist height to avoid awkward lifting.

Storage That Serves the Workflow

Build shallow drawers for measuring tools, blade wrenches, and consumables; deep drawers for clamps and jigs. Label dividers for blades by tooth count and grind. Mount a vertical rack for sleds and long fences. Keep the top surface clean; clamp rails along the front edge handle quick jigs without eating tabletop real estate.

Material Choices and Durability

Plywood is forgiving and stable; MDF provides flatness and dampens vibration but needs edge protection. Laminate tops resist glue and finish spills. For sustainability, select FSC-certified plywood, solvent-free finishes, and long-life LED fixtures. Avoid softwood tops near the blade; they dent and telegraph inaccuracies into your work.

Noise and Vibration Control

Decouple the bench from the floor with rubber leveling feet to cut resonance. Balance blades and ensure arbor bearings are healthy; a wobbly blade amplifies vibration and rough cuts. Lined cabinet panels with closed-cell foam reduce ringing without absorbing dust.

Power, Switches, and Safety Layout

Run a dedicated circuit with proper amperage for the saw and dust collector, and keep emergency switches at hip level within an easy swipe. Cable management matters: secure cords along the bench frame, and keep outlets off the outfeed edge where stock may catch.

Mobility vs. Mass

If your shop is multi-use, put the bench on locking casters rated well above total load. Add retractable leveling feet so the work surface doesn’t drift during heavy rips. In fixed shops, I prefer mass: a heavier torsion box plus cross-bracing keeps alignment steady over time.

Layout Planning and Simulation

Before you commit to cuts, model your bench footprint, clearances, and movement lines. A quick pass in an interior layout planner helps you test outfeed lengths, aisle widths, and turning radii for sheet goods without dragging heavy components around your shop.

Build Sequence

1) Level and square the saw. 2) Construct the torsion-box top. 3) Build the base and bracing. 4) Fit the saw into the bench cutout and check co-planarity. 5) Install outfeed and wings, re-check alignment. 6) Add storage, dust collection, and lighting. 7) Final pass: wax, mark fence scales, and test feed with scrap.

Maintenance and Calibration

Schedule quarterly checks: blade-to-slot, fence parallelism, riving knife, and miter gauge accuracy. Refresh wax and re-tighten fasteners. Replace zero-clearance inserts when edges char or chip, and keep blades cleaned to reduce feed pressure.

FAQ

Q1: What height should my table saw workbench be?

A: Aim for 34–38 inches, with the fence hand position near elbow height. This aligns with ergonomics research that supports neutral joint posture for repetitive tasks.

Q2: How much outfeed space do I need for 8-foot rips?

A: Keep 60 inches clear beyond the blade. If space is tight, use a drop-down outfeed wing or roller support you can stow when not in use.

Q3: What lighting levels are best for precise cuts?

A: Target 300–500 lux at the table surface with 4000–4500K neutral-white lighting. Shield fixtures to reduce glare and shadowing on the cut line.

Q4: How do I manage dust effectively?

A: Combine a 4-inch cabinet port with a 2.5-inch overarm guard, short smooth duct runs, and a blast gate within reach. Seal cabinet leaks and use HEPA filtration.

Q5: Which materials are best for the bench top?

A: A torsion-box with plywood skins and laminate surface balances flatness, durability, and easy cleanup. MDF works for flatness but protect edges and avoid moisture.

Q6: How precise should fence and blade alignment be?

A: Keep blade-to-miter slot and fence-to-slot alignment within roughly 0.003–0.005 inches. Wax surfaces to reduce friction and improve feed consistency.

Q7: Can I make the workstation mobile without losing accuracy?

A: Yes—use heavy-duty locking casters plus retractable leveling feet. Re-check alignment after moving and settle the bench on its feet for cutting.

Q8: What storage layout improves workflow?

A: Shallow drawers for measuring tools and consumables near the fence, deep drawers for clamps and jigs below, and vertical racks for sleds keep essentials in the 24-inch reach envelope.

Q9: How do I reduce noise and vibration?

A: Decouple with rubber feet, balance blades, check arbor bearings, and line cabinet panels with closed-cell foam to damp ringing.

Q10: Do I need a dedicated electrical circuit?

A: For most saws and dust collectors, a dedicated circuit reduces nuisance trips and voltage drops. Place emergency stops at hip level for quick access.

Q11: What’s the safest stance and hand position?

A: Feet shoulder-width, hips square to feed, elbows tucked. Keep push sticks and featherboards within easy reach; never reach across the blade.

Q12: How often should I recalibrate?

A: Quarterly checks are practical: blade alignment, fence parallelism, miter gauge, and insert condition. Re-wax and re-tighten fasteners to maintain smooth feed.
