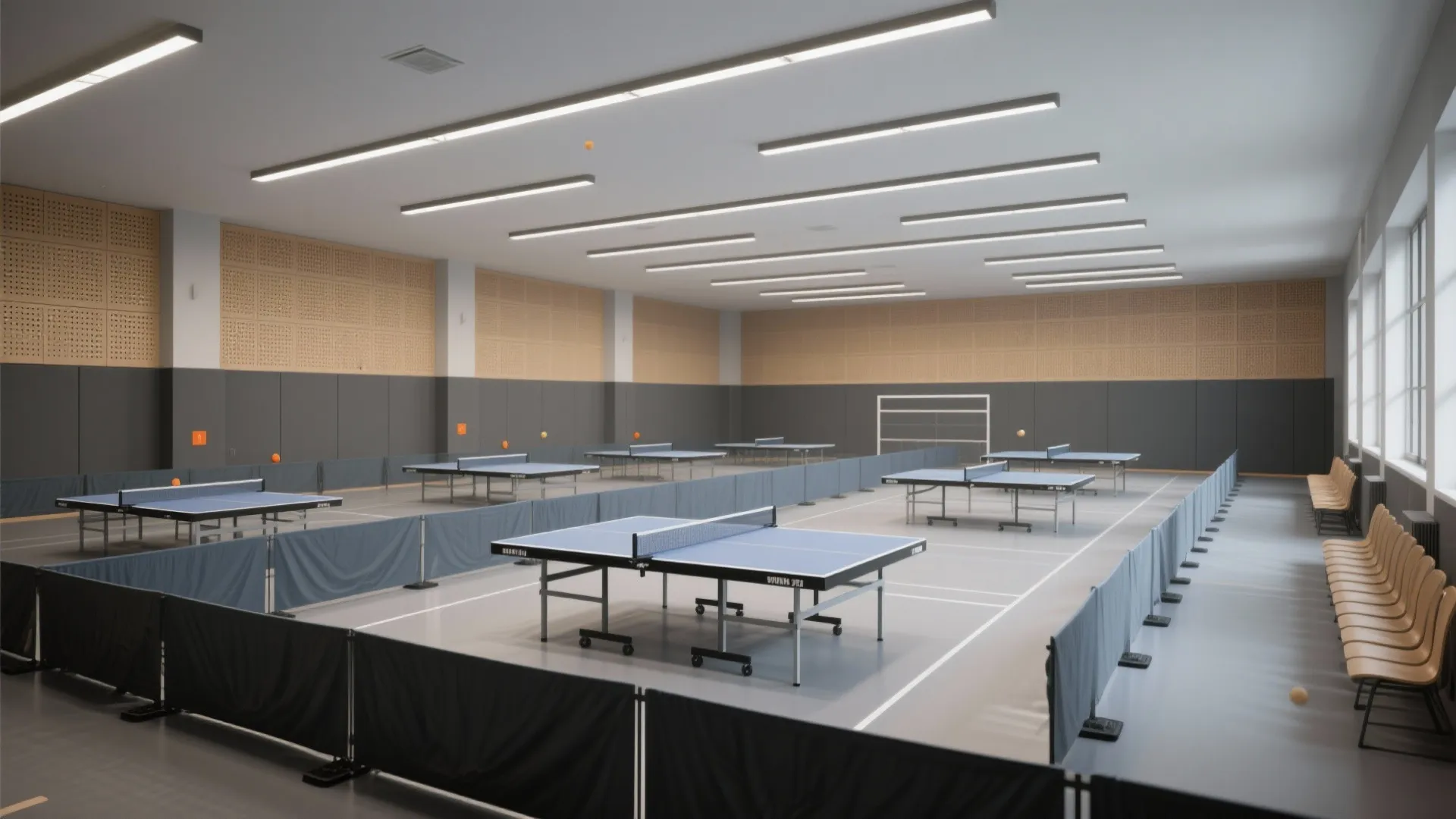

Table Tennis Hall Design: Tips for Creating the Perfect Space: Fast-Track Guide to Transforming Any Area into a Table Tennis Hall

I’ve designed and recalibrated multiple table tennis halls over the past decade—from compact community centers to semi-professional venues—and the best spaces share a few dependable principles: precise lighting, disciplined layouts, resilient materials, and acoustics that keep players focused. Spaces that nail those fundamentals consistently deliver better play and safer movement.

Lighting and human performance are inseparable in racket sports. WELL v2 recommends maintained illuminance targets and glare control strategies for task areas that require visual precision; for table tennis, a practical benchmark I work with is 500–750 lux at table height with uniformity above 0.7 and UGR ≤ 19 to reduce veiling reflections. Gensler’s workplace research also links appropriate light quality with reduced visual fatigue and higher sustained focus, a relationship I’ve observed during multi-hour training blocks when specular glare is tamed. See WELL v2’s Light concept for the underlying rationale and metrics (v2.wellcertified.com).

Spatial ratios matter just as much. International competition setups often target a 14 m × 7 m court envelope per table, but for training halls I typically allocate 10–12 m length and 5–6 m width per table with 3–4 m clear height, which keeps movement safe while fitting more units without feeling cramped. Steelcase research into movement and cognitive load echoes this: adequate personal space reduces stress and improves task persistence—behaviors that translate well to fast-reaction sports.

Plan the Playing Zones

Start from the table and work outward. Each table needs its own clear envelope: 3.0–3.5 m behind each end line and 1.5–2.0 m on the flanks for amateur to advanced training. Maintain at least 1.2 m of circulation between courts and 1.5–1.8 m for a main spine that carries spectators. If you’re testing density scenarios or wayfinding paths, a quick layout simulation with a room layout tool helps balance table count against egress and sightlines.

Lighting That Serves Speed and Spin

Uniform, glare-controlled light wins matches more often than raw brightness. I specify high-CRI (Ra ≥ 90) luminaires at 4000–5000 K to keep whites crisp and ball edges legible. Mount in continuous rows parallel to the table’s long axis, centered 2.0–2.5 m off each sideline, and keep luminaires at least 3 m above the floor to minimize direct view. Use diffused or microprismatic optics to achieve UGR ≤ 19. Reference IES sports lighting guidance for illuminance and uniformity targets (ies.org/standards). Avoid downlights directly over the net; they create hard shadows that obscure spin reads.

Color and Contrast for Ball Visibility

Table tennis lives in subtle contrast. Walls in low-chroma cool neutrals (LRV 30–45) prevent glare while making white and orange balls pop. Darker back walls (LRV 10–20) behind end lines aid tracking during smashes. Verywell Mind’s color psychology coverage notes that saturated reds can elevate arousal; I reserve them as controlled accents at spectator thresholds, not near backdrops where they can fatigue the eye. Ceilings should sit in a soft matte neutral (LRV 60–70) to lift perceived height without amplifying glare.

Flooring and Footwork

Players pivot, lunge, and micro-slide—so friction, resilience, and ball bounce matter. Use ITTF-style sport vinyl or PU systems with shock absorption in the 15–25% range and a slip resistance around 0.5–0.6 COF (wet/dry tested). Seam welding prevents edge curl. Avoid glossy finishes; they mirror luminaires and distract. Where budget pushes you to wood, go for sprung systems with matte polyurethane and area rugs only in lounges—not near courts where fibers catch soles.

Acoustics That Keep Focus

Hard balls on hard tables generate sharp mid–high frequency bursts. Without control, reverberation smears auditory cues and raises fatigue. Aim for mid-band RT60 of 0.8–1.0 s in the court zone. Combine high NRC ceiling clouds (0.8+) with wall baffles placed above impact height; perforated plywood with acoustic backing gives a durable, sport-friendly surface. Add rubber isolation under table feet in multi-table clusters to damp contact thumps. Spectator areas should have added absorption to prevent crowd build-up from bleeding into play.

Safety, Sightlines, and Barriers

Low, non-reflective court dividers (0.75–1.0 m high) keep balls contained without blocking coaches’ sightlines. Round all exposed edges on barriers and storage carts. Emergency egress paths must remain clear—plan 1.2 m minimum to exits and mark with matte, non-specular signage to avoid visual noise. If you allow multipurpose use, install retractable divider curtains with matte finish and low air permeability to avoid sail effects near HVAC diffusers.

HVAC and Thermal Comfort

Air movement should cool players without disturbing ball flight. Keep supply velocities low across courts; use high-induction diffusers at perimeter and return high to manage heat stratification. Target 20–23°C with 40–55% RH for comfort and consistent grip. Separate spectator seating with a slightly cooler setpoint to handle higher clo values. Avoid crossflows perpendicular to the net; I’ve seen subtle drafts bias toss serves.

Equipment Layout and Circulation

Store spare tables, robots, and barriers off the main spine. Robot stations sit best at the end of training bays where feeder balls won’t scatter into circulation. Provide 1.0 m clear around ball pickup stations and 1.5 m at coaching corners. For multi-purpose halls, test transformations—competition, training, youth clinics—using an interior layout planner to pressure-test turning radii and equipment swaps.

Coaching, Spectator, and Social Zones

Coaching needs proximity and perspective: a small perch with partial-height glazing lets coaches scan multiple tables. Spectator seating should sit at least 1.5 m off court edges with eye lines that avoid alignment with luminaire glare. Add soft seating and resilient tables in social nooks; the post-session dwell time becomes part of your business model, so give it power outlets, bag storage, and views into play without creating visual clutter.

Brand, Graphics, and Wayfinding

Use matte, durable graphics for court numbering, lane lines to changing rooms, and coaching boards. Keep brand elements away from back walls behind end lines. Wayfinding works best with a restrained palette and consistent typographic hierarchy—players should read a serve, not hunt for a locker room.

Lighting Controls and Energy Strategy

Layer controls for flexibility: training mode (full pitch), casual play (reduced illuminance), and competition (uniform maximum with spectator spill). Occupancy sensors should be zoned by court cluster, not the entire hall, to avoid nuisance dimming. Daylight is welcome at high clerestories, but shield direct sun with baffles to protect ball visibility and keep color rendering stable. Tie-in submetering so operations can benchmark energy per occupied court hour.

Accessibility and Inclusive Design

Provide ADA-compliant turning circles at table ends and adjustable-height practice stations. Mark floor transitions with subtle value contrast rather than high-chroma stripes, which can distract players. Dedicated quieter practice bays support neurodiverse athletes; pair lower RT and slightly warmer CCT (3500–4000 K) for comfort.

Finishes and Durability

Choose scuff-resistant, cleanable matte paints for lower walls (up to 2.4 m). Use corner guards on busy junctions and high-impact wall panels near storage rooms. Door hardware should be lever-type with durable finishes, and kicks plates are worth the small upcharge in ball-heavy environments.

Operations: Cleaning, Storage, and Maintenance

Design for quick turnarounds: dedicated ball collection zones, charging bays for robots, and mop closets within 20 m of the furthest court. Specify luminaires with field-replaceable drivers and lenses; courts can’t afford lengthy outages. Keep spare nets, posts, and barrier feet in labeled roll-in racks so staff can reset zones in minutes.

Future-Proofing and Technology

Add conduit to coaching corners for cameras and analytics. Ceiling attachment points rated for lightweight tracking systems save retrofits later. If you run events, prewire for streaming and commentary at the spectator edge with acoustically isolated booths.

Quick Reference Specs I Trust

- Per-table training envelope: 10–12 m × 5–6 m, 3–4 m clear height

- Illuminance: 500–750 lux at table height; uniformity ≥ 0.7; UGR ≤ 19

- CCT: 4000–5000 K; CRI ≥ 90

- Mid-band RT60: 0.8–1.0 s in court zone

- Floor: sport vinyl/PU, shock absorption 15–25%, COF ~0.5–0.6

FAQ

How many tables fit in a 20 m × 12 m hall?

With 10–12 m × 5–6 m per training table, you’ll comfortably fit two tables lengthwise with circulation, or three if you orient across the 12 m side and accept tighter 5 m bays. Keep at least 1.2 m for a central spine.

What lighting level is best for amateur leagues?

Target 500–600 lux at table height with UGR ≤ 19 and uniformity ≥ 0.7. Use diffused linear fixtures at 4000–5000 K and CRI ≥ 90 to read spin and edges clearly.

Can I use daylight from side windows?

Yes, if you baffle direct sun and control contrast. High clerestories with diffusing shades work; avoid low side windows that cause glare and hard shadows on the net line.

What floor should I choose on a budget?

A sport vinyl with welded seams is the most cost-effective for grip, resilience, and easy cleaning. If you must use wood, go for a sprung system with matte finish and avoid glossy coatings.

How do I reduce noise without soft walls players can damage?

Use high NRC ceiling clouds and perforated wood panels with acoustic backing at upper wall zones. Add rubber feet or pads to table legs to soften impact sounds.

What colors help ball visibility?

Low-chroma cool neutrals for side walls (LRV 30–45), darker end walls (LRV 10–20), and matte neutral ceilings (LRV 60–70). Keep bright, saturated colors away from backdrops.

How do I prevent light glare on the table?

Mount luminaires parallel to the table length, avoid direct downlights over the net, use diffused or microprismatic optics, and maintain mounting heights above 3 m.

What clearance is safe behind each end line?

For training, 3.0–3.5 m is a solid target. For competition or power players, increase to 4.0 m if the hall allows.

Do I need different modes for training vs. competition?

Yes. Program scenes: training at standard illuminance, casual play slightly reduced, competition at maximum uniformity with spectator spill controlled. Zone occupancy sensors by court.

How should HVAC be set to avoid ball drift?

Use low-velocity supply, perimeter diffusion, and high-level return. Keep 20–23°C, 40–55% RH, and avoid crossflows perpendicular to the net line.

Where should spectators sit?

Place seating at least 1.5 m off court edges with sightlines that avoid direct view of luminaires. Add acoustic absorption behind seating to reduce crowd noise spill.

How do I plan for multi-use events?

Create retractable divider systems and test transformations with a room design visualization tool. Prewire for streaming and provide storage for barriers and spare tables.

What maintenance is critical for lighting?

Specify fixtures with field-replaceable drivers and lenses, keep a spare stock, and schedule cleaning of diffusers to maintain uniformity and lux levels.

Is there a standard for ergonomic considerations?

Ergonomics principles apply: clear reach, safe turning radii, and appropriate grip conditions. WELL v2 and IES guidance on light and environment provide performance baselines that support comfort.
