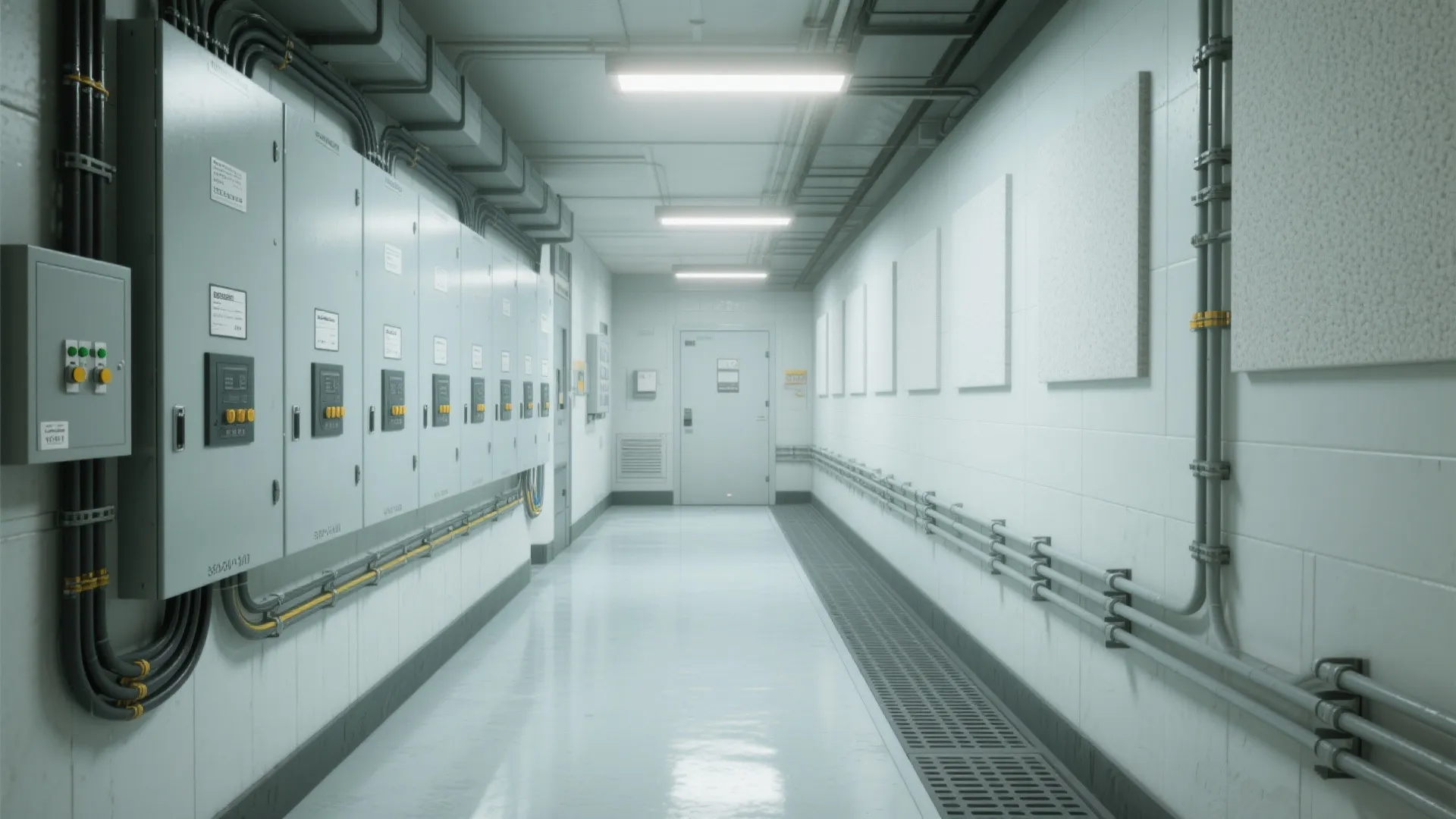

The Electric Room Design Guide: Small Space Solutions: Fast-Track Guide to Efficient Electric Room Layouts

Designing a small electrical room is a balancing act between code compliance, safe access, and efficient equipment layout. I prioritize clear working spaces, clean cable pathways, and ergonomic maintenance zones—then layer in lighting, acoustics, and materials that support reliability and technician comfort. In compact footprints, spatial ratios matter: plan vertical stacking, wall-mount strategies, and swing-clearances before routing power and data.

Clearances are non-negotiable. The WELL v2 standard highlights adequate lighting and glare control as a contributor to safer task performance in service spaces, while IES recommends task illuminance for detailed work in the 300–500 lux range, improving inspection accuracy and reducing errors (IES task lighting guidance). Steelcase research also ties environmental quality to performance and reduced fatigue, reinforcing the benefit of properly lit service zones with consistent vertical illumination for reading labels and panel schedules. I target 350–500 lux at equipment fronts, 4000–5000K neutral-white LEDs, and a UGR below 19 to manage glare. For wall-mounted panels and switchgear, maintain working depth clearance per the manufacturer and local code and keep cable management off the floor to minimize trip risks.

Human factors directly influence uptime. Herman Miller’s research on ergonomics shows reduced strain when reach and stance are optimized; I translate that into 800–900 mm clear side aisles, 1,000–1,200 mm fronts of equipment for access, and lever heights within 900–1,200 mm from finished floor where feasible. For technicians, predictable layouts and readable color coding speed troubleshooting. I avoid equipment stacking that forces overhead reaches above 1,800 mm for routine operations, reserving high elevations for passive components or conduit transitions.

Plan the Envelope First

Start with envelope constraints: wall thickness for fire rating, door swing clearances, ventilation pathways, and service routes. Keep doors free of inward swing conflicts with panel doors. I favor out-swing fire-rated doors with 1,000–1,100 mm clear opening when possible, so carts and portable testers can pass. If the room footprint is tight, consolidate cable ladders high on one wall, leaving the opposite wall for active fronts.

Compact Layout Strategies

In small rooms, sequence the layout by maintenance priority: most frequently serviced equipment gets the best access. Mount distribution boards at eye height, group metering and labeling where light is strongest, and align conduit in vertical bays for clean expansion. When multiple panels are required, align their fronts to create a unified service aisle. If simulating options, a room layout tool helps test door swings, code clearances, and technician circulation before committing to conduit runs.

Lighting: Precision and Safety

I specify uniform ambient lighting at 350–500 lux with neutral-white LEDs (4000–5000K) to avoid color cast on labels and wiring. Supplement with localized task lights above critical panels; keep fixture locations clear of conduit paths. To minimize shadows on equipment faces, place fixtures slightly forward of the working front, and balance vertical illuminance so breakers and terminal blocks are legible. Reference IES task lighting recommendations and coordinate sensor placement to avoid nuisance shutoffs during maintenance.

Ergonomics and Reach Envelope

Plan operating heights for frequent tasks between 900–1,200 mm. Keep labeling and emergency disconnects within easy reach and free of obstructions. Provide toe clearance at cabinets where technicians stand for extended testing. Where elevated terminations are unavoidable, integrate a fold-down service platform that maintains egress width when stowed.

Cable Management and Serviceability

Tight rooms demand disciplined cable routes. Use raised cable trays to clear floor space, and maintain bend radii per manufacturer specs. Separate high-voltage, low-voltage, and data to reduce interference and simplify tracing. Keep junction boxes off primary service aisles. Color-coded heat-shrink and engraved tags speed fault isolation; standardize beyond minimum code so every technician can work faster under pressure.

Ventilation, Thermal Load, and Acoustic Comfort

Electrical rooms run warm. Size ventilation for equipment heat dissipation and maintain intakes clear of dust traps. If the room shares walls with occupied spaces, add acoustic treatments: mineral wool within partitions and perforated metal with absorptive backing to reduce tonal hum. Aim for a calm acoustic profile so alarms are discernible. Avoid soft surfaces that shed or attract dust; select wipeable, non-conductive finishes.

Materials and Durability

Finish floors with anti-slip, anti-static surfaces; sealed concrete with conductive epoxy is reliable and easy to clean. Walls should be light-reflective (LRV 60–80) to boost perceived brightness without upping fixture count. Choose fire-rated panels, corrosion-resistant hardware, and high-contrast labels. Sustainability can be straightforward: high-efficacy LEDs, occupancy sensors tuned to maintenance patterns, and low-VOC coatings.

Spatial Ratios and Visual Order

Small rooms benefit from clear visual rhythms: consistent panel heights, aligned conduit, and regular cable ladder spacing. Maintain a primary axis—typically the service aisle—then set secondary rhythms across wall bays. This reduces cognitive load, making emergency procedures more intuitive.

Safety, Codes, and Workflow

Coordinate with local electrical codes for working clearances, arc-flash boundaries, and emergency egress. Label shutoff paths and keep PPE storage outside the immediate service aisle if space is constrained. Create a maintenance workflow diagram and post it inside the door: step-by-step lockout locations, panel references, and contact info.

Future-Proofing in Tight Footprints

Allow 15–25% spare capacity in panels and conduit banks for future expansion. Use modular busways and pre-labeled spare breakers. Document everything—photos, as-builts, and QR links to schematics—so technicians don’t waste time hunting.

Quick Small-Room Checklist

- Confirm code clearances and door swings.

- Target 350–500 lux at equipment fronts; 4000–5000K.

- Keep service aisle 1,000–1,200 mm clear.

- Separate power/data; elevate cable trays.

- Ventilation sized for heat load; dust control.

- Anti-slip, anti-static flooring; high LRV walls.

- Standardized labels; PPE and lockout plan.

- Reserve spare capacity and document.

FAQ

Q1: What illuminance level should I target in a small electrical room?

A1: Aim for 350–500 lux at equipment fronts with neutral-white 4000–5000K LEDs. This aligns with IES task lighting guidance for detailed visual work and improves label legibility.

Q2: How much aisle clearance is enough?

A2: For compact rooms, I plan 1,000–1,200 mm clear in front of equipment and 800–900 mm for side aisles, balancing ergonomic stance and safe egress.

Q3: Any tips to reduce glare on panel faces?

A3: Use fixtures with UGR below 19, position lights slightly forward of the equipment front, and keep walls high LRV (60–80) to boost diffuse reflection without hotspots.

Q4: How do I manage cable separation in tight spaces?

A4: Elevate cable trays, keep high-voltage and low-voltage/data in distinct routes, and maintain proper bend radii. Color-coded tags and engraved markers help fast tracing during faults.

Q5: What finishes work best on the floor?

A5: Sealed concrete with conductive epoxy or anti-static vinyl offers durable, non-slip surfaces that resist dust and support safe maintenance.

Q6: How should I address acoustics?

A6: If adjacent to occupied areas, incorporate mineral wool in partitions and perforated metal panels with absorptive backing to damp hum, making alarms clearer.

Q7: Where should PPE be stored in a small room?

A7: Keep PPE and lockout gear just outside the main service aisle or near the entry on a shallow rack, preserving clear working depth in front of equipment.

Q8: How much future capacity should I plan?

A8: Reserve 15–25% spare breakers and conduit pathways. Modular busways and clear documentation (as-builts, QR-linked schematics) make upgrades smoother.

Q9: Can motion sensors work in service spaces?

A9: Yes, but set generous timeout intervals and sensor placement that detects minimal movement to avoid lights switching off during detailed tasks.

Q10: What’s the ideal operating height for switches and disconnects?

A10: Keep frequent-use controls between 900–1,200 mm from finished floor, minimizing reach strain and improving emergency access.

Q11: How do I protect against dust and heat?

A11: Provide dedicated ventilation sized for heat loads, maintain positive airflow patterns, and select wipeable, non-shedding finishes to reduce particulates.

Q12: How can layout simulation help in small rooms?

A12: Using a layout simulation tool lets you test clearances, door swings, and technician circulation digitally before installing equipment, reducing rework.
