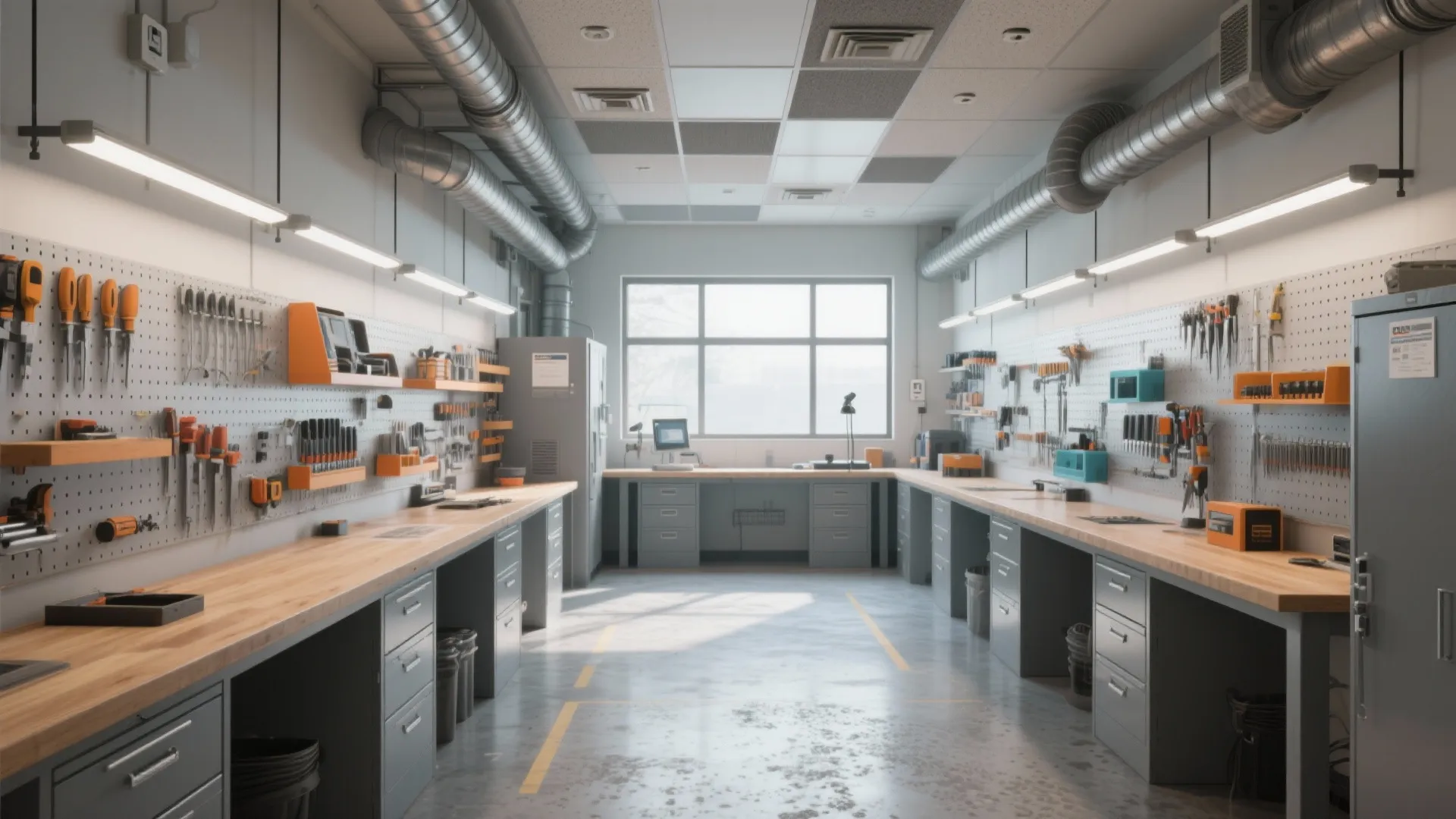

Tool Room Design: Optimize Space & Efficiency Easily: Fast-Track Guide to Functional Tool Room Design for Every Workshop

A well-designed tool room should feel intuitive the moment you step in: every tool has a logical home, movement is efficient, and safety is baked into the layout. In my workshop projects, I focus on sequencing (how tools are used across tasks), visual control (what’s visible at a glance), and human-centered reach zones that minimize bend, stretch, and search time.

Concrete performance gains are within reach. Steelcase reports that well-orchestrated environments can lift task performance and reduce cognitive load by curbing visual noise and search friction, translating into measurable time savings across daily workflows (Steelcase Research). Lighting matters just as much: IES task lighting guidance for detailed work typically targets 500–1000 lux at the work surface, while glare control keeps eyes comfortable and reduces error risk (IES standards). You can also benchmark safety and wellbeing: the WELL v2 framework emphasizes adequate illuminance, low glare, and acoustic comfort—factors that reduce fatigue during repetitive tool handling (WELL v2).

Behavior plays a role too. Color psychology research highlights that high-chroma warm hues can raise arousal and perceived energy, while cool hues promote calm and precision—useful for differentiating high-alert zones (e.g., cutting) from precision calibration areas (Verywell Mind, Color Psychology). On the ergonomics front, established human-factors guidelines position primary reach between roughly 400–500 mm from the body midline for most seated tasks and ensure that repetitive lifts stay within knuckle-to-shoulder height, cutting strain and injury risk (ergonomic best practice data reflected across Herman Miller research).

Plan the Workflow, Then the Room

Map your top five processes end-to-end: intake, staging, prep, machining or repair, inspection, and storage. Place stations in that sequence to minimize backtracking. I separate high-speed dirty work (grinding, cutting) from clean precision tasks (measuring, assembly) to reduce cross-contamination. When space allows, a U-shaped flow often beats a straight line by shortening return trips and protecting clear egress paths.

For digital planning and quick layout testing, a layout simulation tool like a room layout tool helps you visualize zones, walking distances, and storage density before you commit to anchors and power drops.

Set Clear Zones and Sightlines

Define three rings of activity: fast-access (daily-use hand tools and PPE within arm’s reach of benches), occasional-use (modular racks within 2–3 steps), and deep storage (bulk or seasonal items at the perimeter). Keep sightlines open across critical zones—rapid visual confirmation lowers search time and improves safety. I align pegboards and shadow boards at eye level for instant tool audits; empty outlines flag missing items without a word.

Lighting That Supports Precision and Safety

For bench tasks, aim for approximately 750 lux as a practical mid-point for fine work, adjustable up to 1000 lux for inspection; ambient zones can sit around 300–500 lux. Pair neutral-white LEDs (4000–4500K) for true color rendering with task lights featuring high CRI (90+) at benches. Control glare: baffles or diffusers over bright fixtures, matte finishes on worktops, and task lights with shrouds. Layer lighting—ambient grid, task lights, and accent cues—so eyes adapt less between stations. Reference: IES task lighting guidance for fine detail work aligns with these target ranges (ies.org/standards). For health and comfort framing, WELL v2 highlights visual comfort and glare management as core factors (v2.wellcertified.com).

Human Factors: Heights, Reach, and Clearances

Bench height typically lands between 860–950 mm for standing work, with heavier-force tasks at the lower end to leverage body weight. For seated precision, bench surfaces often sit 710–760 mm with adjustable chairs and footrests. Keep heavy tool storage between 450–1200 mm above the floor to avoid high lifts and deep bends. Provide a minimum of 900 mm clear circulation around benches; 1200 mm supports two-way passing near high-traffic racks. Tool handles should be within primary reach for repeat tasks—roughly a forearm’s depth from your body to reduce shoulder elevation and wrist extension.

Storage Systems That Do the Thinking

Mix storage formats: shadow boards for daily hand tools, modular drawer cabinets for bits and small parts (foam inserts stop rattle and protect edges), and pallet racking or cantilever arms for long stock. Label at the point of use, not just at the aisle end. Use color-coding to declare function—safety gear in high-visibility hues, calibration instruments in cool, calming tones. Vertical storage frees floor area for maneuvering carts and reduces trip hazards.

Power, Dust, and Safety Infrastructure

Plan power early. Ceiling drops or perimeter raceways keep floors clear. Provide dedicated circuits for heavy machines and GFCI where moisture risks exist. Dust control is nonnegotiable—central extraction with blast gates at source points, plus downdraft tables for sanding. Safety stations (PPE, first aid, eye-wash where required) should be immediately visible from entries. Mark egress paths and keep 900 mm clear.

Acoustic Comfort in a Hard-Working Room

Hard surfaces amplify noise; introduce absorptive panels or acoustic baffles over circulation paths. Mobile curtains around loud stations (grinders, air compressors) help. Keep the noisiest equipment away from precision and office-adjacent zones. Consistent background levels reduce fatigue and errors during inspection tasks.

Material Choices for Durability and Cleanability

Worktops: phenolic resin or hardwood with oil finish for general benching; steel tops where welding or heat is common. Floors: dense rubber or sealed concrete with anti-slip aggregates; avoid brittle tiles. Wall finishes around dirty zones should be scrub-resistant semi-gloss. Choose materials you can maintain in minutes—not hours.

Visual Balance and Readability

Keep the room legible at a glance. Anchor with a neutral base palette (greys, graphite) and use color only to signal categories and hazards. Repetition—same bins, same labels, same spacing—creates rhythm that speeds recognition. Mount frequently used tools at consistent heights across benches to build muscle memory.

Future-Proofing and Modularity

Mount benches and racks on adjustable feet; favor slotted uprights and modular drawer dividers. Leave at least 20% of storage capacity empty at handover—growth space avoids immediate rework. Keep a documented tool map and review quarterly as workflows change.

Authority References

Steelcase research on workplace performance and cognitive load informs layout clarity and visual control (steelcase.com/research). IES task lighting guidance supports the recommended illuminance ranges for precision work (ies.org/standards). The WELL v2 framework provides a health-centric lens for visual comfort and glare management (v2.wellcertified.com).

Step-by-Step Layout Method

1) Audit tools and frequency of use. 2) Map process sequence and adjacency needs. 3) Block zones on plan and test walking paths. 4) Fix lighting layers per task intensity. 5) Lock storage strategy and labeling. 6) Route power and dust at source. 7) Run a safety pass: clearances, egress, PPE. 8) Pilot for two weeks, then adjust.

When trialing options or presenting to stakeholders, an interior layout planner helps simulate reach zones, aisle widths, and sightlines before drilling a single anchor.

FAQ

Q1. What illuminance should I target for bench work and inspection?

Aim for around 750 lux at benches, up to 1000 lux for inspection tasks, with ambient at 300–500 lux. This aligns with IES task lighting ranges for detail-oriented work and supports accuracy and comfort.

Q2. How do I minimize search time for tools?

Use shadow boards at eye level, consistent labeling, and color-coding by category. Keep daily tools within primary reach, occasional tools within two to three steps, and bulk at the perimeter. Standardize placement heights across benches.

Q3. What bench height suits mixed tasks?

For standing force tasks (e.g., chiseling), 860–900 mm. For precision standing work, 900–950 mm. For seated precision, 710–760 mm with an adjustable chair and footrest.

Q4. How wide should aisles be?

Keep 900 mm clear as a minimum for circulation. Where carts or two-way traffic are common, expand to 1200 mm. Maintain egress routes clear and marked.

Q5. What color strategy works in tool rooms?

Use a neutral base for walls and benches. Apply high-chroma warm hues for hazard or high-alert zones, and cool hues around precision stations to cue calm focus, reflecting color psychology insights on arousal and attention.

Q6. How can I control noise without major construction?

Add acoustic baffles overhead, absorptive wall panels where reflections are strongest, and mobile curtains around loud equipment. Separate the noisiest stations from inspection areas by distance and partitions.

Q7. Which storage systems give the best density?

Modular drawer cabinets with custom foam inserts offer high density for small tools and bits. Pair them with vertical pegboards for fast-access tools and pallet or cantilever racks for long stock.

Q8. What’s the best way to plan power and dust extraction?

Place ceiling drops or perimeter raceways for power to keep floors clear; assign dedicated circuits for heavy machines. Use central dust collection with blast gates at each tool, plus localized solutions like downdraft tables for sanding.

Q9. How do I keep the space adaptable as the inventory grows?

Choose slotted uprights, adjustable feet, and modular drawer dividers. Reserve at least 20% spare storage capacity and maintain an up-to-date tool map reviewed quarterly.

Q10. What materials hold up best and stay easy to clean?

Use phenolic or hardwood tops for general work, steel where heat or welding is common. Opt for sealed concrete or dense rubber flooring with anti-slip aggregates. Specify scrub-resistant wall finishes in dirty zones.

Q11. How do I integrate safety without clutter?

Cluster PPE, first aid, and spill kits near entries with high-visibility markings. Keep 900 mm clear to exits, mount fire extinguishers at consistent heights, and add visual checks via shadow boards for critical tools.

Q12. Any digital tools to test layouts before drilling?

Yes—use a room design visualization tool to mock up stations, check reach zones, and validate aisle widths. It’s faster to tweak virtually than to re-anchor benches later.
