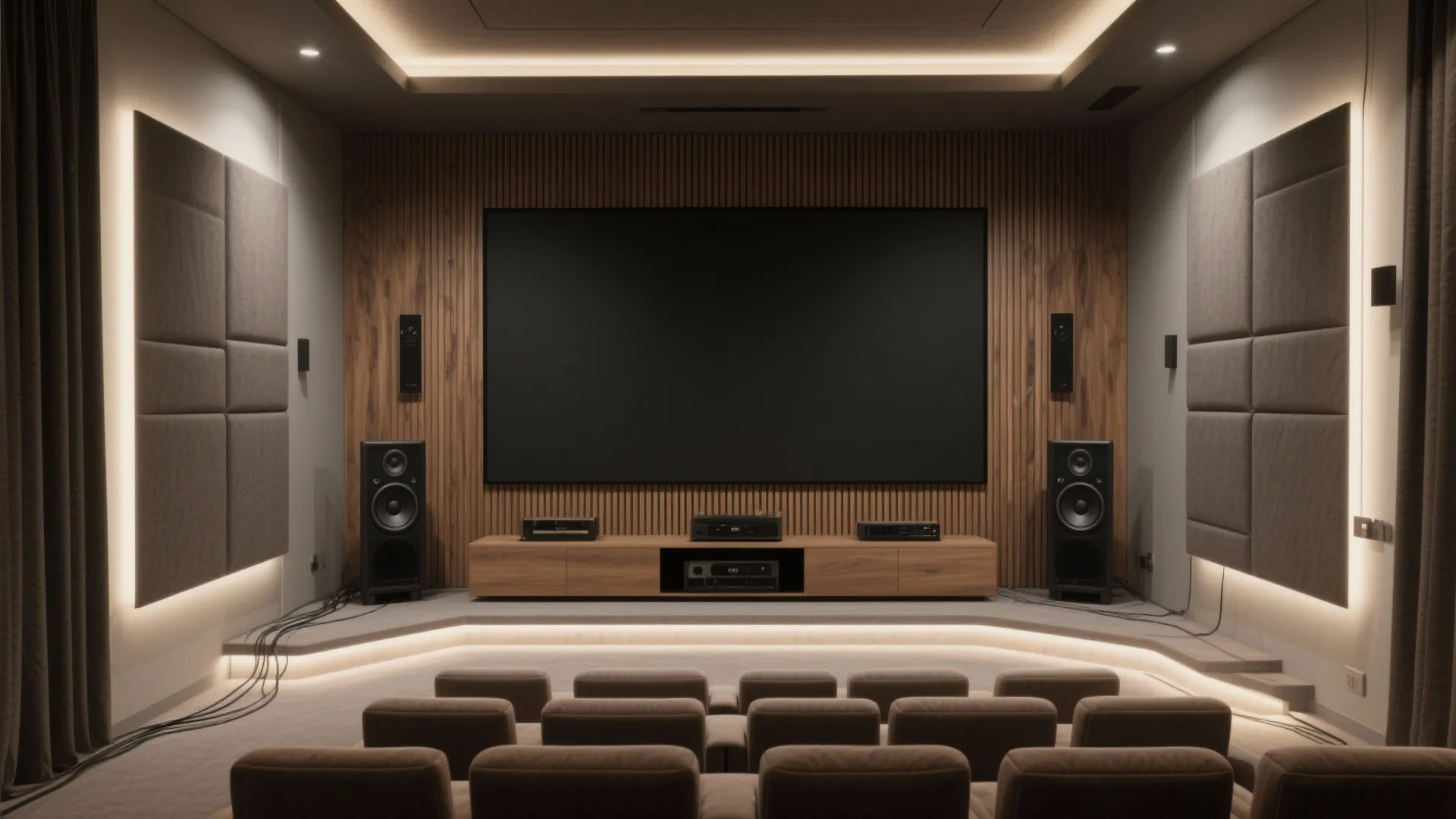

Ultimate AV Room Plan: Design Your Ideal Audio-Visual Space: 1 Minute to Nail the Perfect AV Room Layout—Even in Tiny Homes

Creating an AV room that truly elevates sound, image, and comfort starts with the fundamentals: geometry, materials, lighting, and use patterns. I approach every AV space as a finely tuned instrument—where room dimensions, seating, sightlines, and acoustic treatments work together. The first priority is getting the shell right: proportion, isolation, and controlled reflections. In rooms between 2,000–3,500 ft³, a mix of bass trapping and broadband absorption typically stabilizes low‑frequency decay to under 300 ms, improving dialogue clarity and imaging. WELL v2 guidelines recommend meeting sound masking/NC targets near NC‑25–30 for focused environments, which becomes a useful benchmark for background noise in dedicated AV rooms (v2.wellcertified.com). I build lighting around task needs and glare control, keeping vertical illuminance at seating between 75–150 lux for comfort while allowing dynamic dimming for screen modes, aligned with IES recommendations to prevent disability and discomfort glare (ies.org/standards).

Data informs small decisions that make a big difference: Steelcase research shows that visual comfort and environmental control significantly impact user satisfaction and task performance in media‑rich spaces (steelcase.com/research). Paired with color psychology insights—muted neutrals with low reflectance reduce visual fatigue and distraction—your eyes and ears stay on content instead of fighting the room. I calibrate viewing geometry so the primary seating is within 1.2–1.6x the screen diagonal, with eye height centered on the top third of the image for cinematic balance. For immersive audio, symmetrical speaker placement and matched arrival times matter more than exotic gear; the room makes or breaks the system.

Set the Foundation: Room Size, Ratios, and Isolation

Room proportion controls modal behavior—those stubborn peaks and nulls that ruin bass and voice intelligibility. Favor ratios that spread axial modes (e.g., 1 : 1.6 : 2.6 as a starting point) and avoid near‑cube volumes. Aim for ceiling heights above 8' where possible to improve modal distribution. Isolation is equally critical: double‑stud walls, staggered studs, resilient channels, and sealed doors minimize noise ingress and egress, protecting dynamic range. Plan a dedicated electrical circuit and zoning for HVAC to keep mechanical noise low; target background NC‑25–30 for film listening and NC‑30–35 for mixed‑use rooms.

Screen, Sightlines, and Viewing Comfort

Map sightlines before you buy gear. Keep the maximum vertical viewing angle under 15°, and horizontal off‑axis seating within 30° for consistent color and contrast. For projection, control stray light with dark, matte finishes around the screen wall; for large TVs, select low‑gloss finishes to prevent reflections. I set screen height so the center sits near eye level for the primary row, and introduce a shallow rake if multiple rows are needed. In multi‑purpose living rooms, use a motorized shade and dimmable layers to preserve contrast without turning the space into a cave.

Layout that Serves the Experience

Start with a clean sightline map and acoustic symmetry. The main listening position should be centered on the room’s width, with left/right speakers equidistant to side boundaries. Subwoofers benefit from asymmetry—placing two units at mid‑wall positions often smooths low‑frequency response across seats. If you’re testing seating and speaker positions, a room layout tool helps simulate clearances, viewing geometry, and cable paths before construction.

room layout tool

Acoustics: Control, Not Overkill

An AV room needs a balance of absorption, diffusion, and bass management. Treat first‑reflection points for stereo and LCR speakers with 2" broadband panels; add bass traps in corners and wall‑ceiling junctions to shorten decay below 125 Hz. Diffusion placed on the rear wall keeps spaciousness without deadening the room. Keep total treated surface area moderate—roughly 20–30%—to avoid the anechoic feel that makes dialogue sound lifeless. Calibrate with room EQ only after physical treatments are installed; electronic correction can’t fix modal chaos or flutter echo.

Lighting that Respects Screens and Sound

Layer light: low‑glare ambient, dimmable task, and accent. Use 2700–3000K warm‑neutral sources for relaxed viewing, and stay under 150 lux on vertical planes facing the screen to maintain contrast. Avoid downlights directly above the screen or reflective surfaces; indirect coves and wall grazers deliver atmosphere without hotspotting. Dimming should be smooth with a low end under 1% to avoid stepping. Keep drivers and transformers quiet—electrical noise can creep into audio circuits—so group controls away from sensitive equipment.

Ergonomics, Seating, and Human Factors

Comfort isn’t just cushion depth; it’s posture, neck angle, and thermal control. Seat pitch of 12–15° supports relaxed viewing, with lumbar support aligned at L3–L4. Armrests should clear side tables by at least 2" to reduce knocking during dark viewing. In multi‑row rooms, ensure at least 6–8" eye‑to‑eye vertical separation to keep heads out of frame. Pathways need 36" clear width for safe egress. Provide dedicated storage for remotes and headphones within arm’s reach to limit movement during quiet scenes.

Materials and Finishes: Sound‑Smart, Sustainably Chosen

Glossy paints and hard, parallel surfaces create glare and flutter echo. Use matte finishes with low specular reflectance; mix porous materials (fabric, micro‑perforated panels) with irregular textures (timber slats, ribbed upholstery) to scatter sound. Choose low‑VOC paints and formaldehyde‑free panels to keep air quality clean, and consider recycled polyester acoustical treatments. Darker palettes stabilize perceived brightness, while color accents in warm ranges reduce visual fatigue—a principle supported in color psychology literature.

Power, Ventilation, and Cable Management

AV gear runs hot. Provide quiet ventilation with low‑sone fans and a dedicated return path to avoid pressure build‑up in cabinetry. Separate high and low‑voltage runs; cross at 90° if necessary to reduce interference. Use labeled raceways and extra conduit pulls for future upgrades. Rack‑mount gear with rear clearance of 6" and service loops; a clean equipment bay is faster to troubleshoot and safer to operate.

Calibration and Commissioning

After the space is built, measure and tune. Verify noise floor, reverberation time (RT60), and seat‑to‑seat consistency. Time‑align speakers, set crossovers, and calibrate sub integration using measurement software. For display, match white balance, gamma, and peak luminance to the room’s light level; too bright in a dark room causes eye strain, too dim kills shadow detail. Document the final settings and lock controls to prevent accidental changes.

Flexible Use: Gaming, Streaming, and Live Sports

Design for quick mode shifts. One preset for film (low ambient, warm light, reference audio), another for gaming (slightly higher ambient, lower latency setups), and a social preset for sports with more seating and brighter accents. Keep input switching simple and labeled; complexity breaks immersion faster than anything.

Common Mistakes I Avoid

• Over‑absorbing the room so it sounds dull and fatiguing. • Mounting screens too high, causing neck strain. • Ignoring HVAC noise until the final week. • Letting cable chaos dictate equipment placement. • Using glossy finishes near the screen. • Skipping sightline tests before committing to seating and platform heights.

FAQ

What room size works best for a dedicated AV space?

Volumes between 2,000–3,500 ft³ typically balance low‑frequency control and seating comfort. Very small rooms are harder to tame below 80 Hz; very large rooms demand more power and treatment.

How much acoustic treatment do I need?

Start with 20–30% surface coverage: broadband absorption at first reflections, bass traps in corners, and diffusion on the rear wall. Measure and add selectively rather than covering everything.

What background noise level should I target?

NC‑25–30 suits film and focused listening. Mixed‑use media rooms can tolerate NC‑30–35. WELL v2 provides useful benchmarks for indoor acoustics.

Is projection or a large TV better?

Projection excels for screen sizes above ~100" if you can control light and use a quality screen. Large TVs deliver higher contrast and simpler setup for brighter rooms. Match the display to your lighting plan.

How do I protect sightlines with multiple seating rows?

Introduce risers that create 6–8" eye‑to‑eye vertical separation. Keep the vertical viewing angle under 15° and maintain centerline alignment for the primary row.

Where should subwoofers go?

Use two subs at mid‑points of opposite walls or front/rear corners to smooth modal response. Avoid stacking subs in one corner unless you’re compensating for severe nulls.

What color palette is best for an AV room?

Low‑reflectance, matte neutrals near the screen reduce glare, with warmer accent tones to limit visual fatigue—consistent with established color psychology guidance.

How bright should the room be during viewing?

Keep vertical illuminance at seating around 75–150 lux for film mode. Use layered, dimmable lighting with low‑glare optics to preserve contrast.

Do I need professional calibration?

It’s highly beneficial. Even modest systems gain clarity and balance when speakers are time‑aligned, subs integrated, and displays calibrated to the room’s light level.

What about future upgrades?

Run extra conduits, label all cables, and plan rack space with 20–30% capacity headroom. A flexible backbone makes display or speaker upgrades painless.
