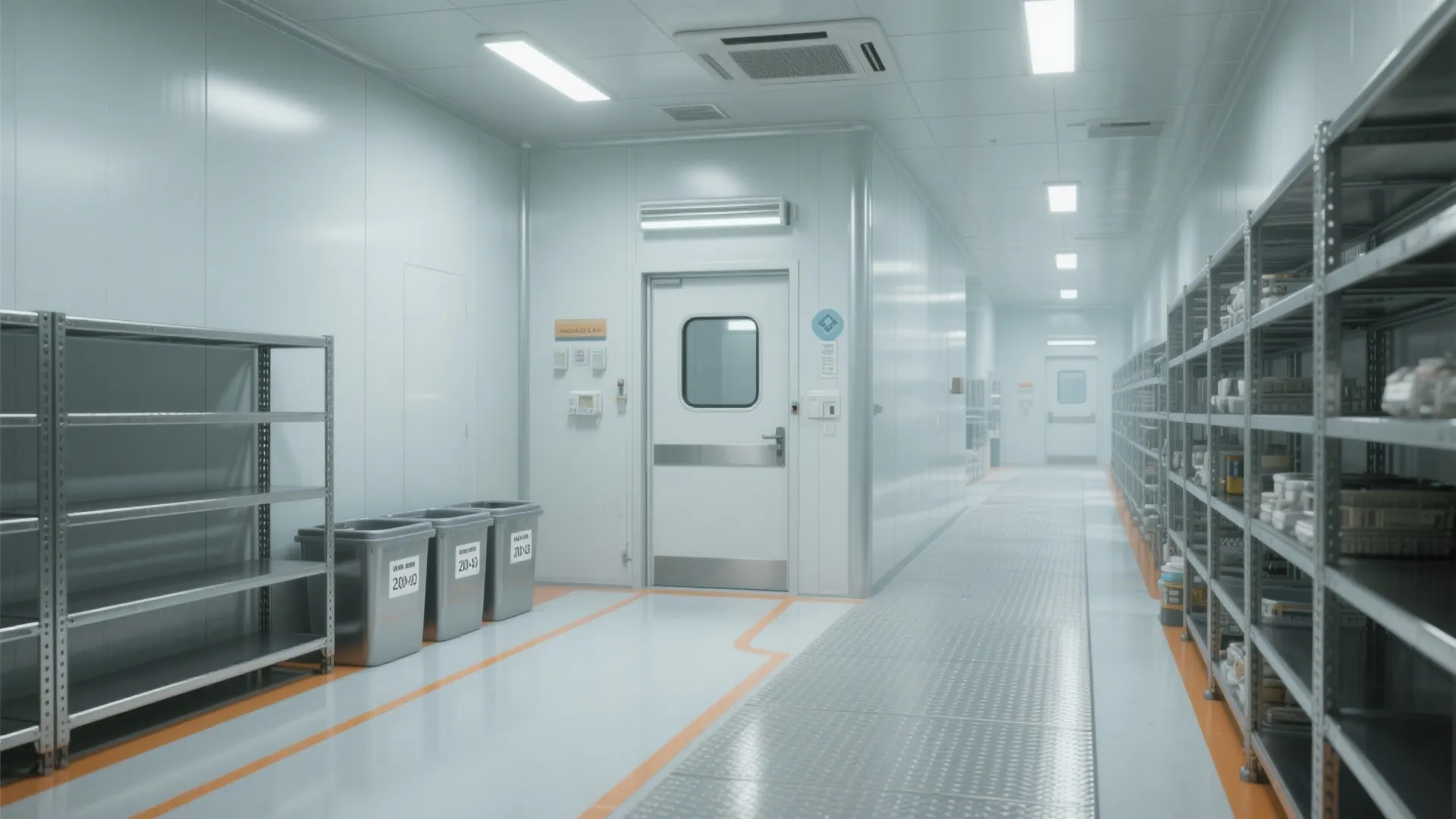

Walk In Cold Rooms: Design & Optimization Guide: 1 Minute to Master Walk In Cold Rooms for Every Space

I’ve designed and commissioned walk-in cold rooms across restaurants, labs, and healthcare environments where temperature precision, workflow efficiency, and hygiene dictate success. The best results come from balancing thermal engineering with human factors—smart envelope design, targeted lighting, ergonomic access, and cleanable materials—so the room performs reliably and staff can work safely.

Cold storage impacts energy and productivity at scale. Steelcase research links environmental comfort to performance, with 23% reported productivity gains in optimized work settings; while not office-specific, the principle applies to task-centric spaces like cold rooms where thermal and ergonomic factors reduce strain. From a standards perspective, the WELL v2 Thermal Comfort guidelines highlight operative temperature control and air movement as key drivers of human comfort and performance. I use those principles to minimize drafts at doorways and keep picking zones within safe ranges.

Lighting inside cold rooms is often neglected, but IES photometric guidance shows task lighting in food prep and inspection zones typically targets 300–500 lux; inside cold storage, I aim for 200–300 lux for general visibility and up to 500 lux for labeling and quality checks. Paired with 4000–5000K CCT and low glare luminaires, visibility improves while color rendition remains consistent for date codes and product identification.

Envelope and Insulation: The Thermal Backbone

Thermal performance starts with the envelope: high R-value insulated panels with continuous vapor barriers and carefully sealed joints. In my projects, I specify 100 mm–150 mm polyurethane or polyisocyanurate panels depending on temperature setpoint, with attention to thermal bridges at floor-wall connections and around the door frame. A heated door frame and proper gaskets fight condensation and ice. Moisture management is equally critical—once humid air breaches the barrier, ice formation undermines both efficiency and the schedule.

Floor Design and Drainage

Floor build-up needs compressive strength for rack loads, anti-slip surface texture, and a thermal break where the slab meets the wall. I prefer insulated floors for rooms below 0°C and heavy traffic, with integrated trench drains or point drains placed away from primary picking aisles to avoid slip risk. Gradient design (1–1.5%) moves meltwater toward drains without pushing carts off-line. Where codes allow, epoxy or polyurethane cement flooring resists chemical attack and thermal cycling, staying hygienic under frequent wash-down.

Doors, Airlocks, and Access Control

Entry is a major heat gain path. Double swing doors work for high-throughput kitchens, but sliding doors reduce protrusion in tight corridors. For frequent access, I use air curtains or strip curtains to limit infiltration; in research and healthcare cold rooms, antechambers or airlocks dramatically stabilize conditions. Door hardware should be glove-friendly, with panic releases and anti-stuck mechanisms. Door closers must be calibrated for the pressure differential to avoid slamming and gasket damage.

Layout: Workflow, Safety, and Picking Efficiency

Layout determines speed and safety. I organize aisles with clear minimum widths based on cart dimensions and turning radius, segregate fast-moving SKUs near the door to reduce dwell time, and place sensitive items deeper within the cold sink. To test rack density versus maneuverability, I often simulate aisle widths and turning circles with a layout simulation tool such as a room layout tool to refine shelf spacing and reach ranges before committing.

Refrigeration System Selection

Choose the cooling architecture based on size, temperature class, and redundancy needs: remote condensing units for better heat rejection, or packaged systems for compact sites. Evaporator selection should match airflow strategy—low-velocity units reduce drafts and dehydration, while higher throw units suit larger rooms. I specify EC fans for efficiency and quiet operation, and add defrost logic tuned to humidity load to avoid ice build-up. Refrigerant choice depends on local regulations and sustainability goals; consult current codes for HFO and CO₂ options.

Temperature Zoning and Controls

Zoning improves flexibility and energy use. For mixed-use rooms (produce, dairy, proteins), stage evaporators or use partitioned bays so different setpoints can coexist. Smart controls with PID loops, door-open sensors, and demand defrost maintain tight bands without overcooling. Data logging is essential in healthcare and research—continuous monitoring with alarms for excursions protects inventory and compliance.

Lighting Quality, Color, and Glare Control

Cold temperatures can reduce lumen output of some luminaires; choose LED fixtures rated for low ambient temperatures with sealed housings. I set a target of 200–300 lux in general aisles and higher at inspection points, with 4000–5000K neutral-cool CCT to maintain contrast. Glare control matters when reflective packaging and frost are present; diffusers or prismatic lenses tame specular reflections, reducing eye strain during long picking cycles.

Human Factors and Ergonomics

Prolonged work at low temperatures increases fatigue and reduces dexterity. Ergonomics.org notes that grip strength and fine motor control degrade as skin temperature drops, which validates design moves like warm staging areas, shorter pick paths, and glove-compatible controls. I keep heavy items between knee and shoulder height, assign clear reach zones, and minimize ladder use through adjustable shelving. Signage must be legible at lower light levels and placed at decision points to prevent dwell.

Acoustic Comfort in Mechanical Spaces

Evaporator fans, defrost cycles, and compressors introduce noise that can raise stress levels. I specify vibration isolation mounts, flexible connections, and acoustically damped panels outside the cold envelope to cut transmitted noise. Inside, low-velocity air distribution helps keep noise below conversational levels, which supports faster teamwork and fewer errors during peak hours.

Materials, Hygiene, and Maintenance

Surfaces must resist corrosion, bacterial growth, and frequent cleaning agents. Stainless steel (304/316) for racks and hardware, food-grade gaskets, and anti-microbial sealants pay back in longevity. Avoid chip-prone finishes that harbor bacteria. Design inspection-friendly junctions—coved floor-to-wall transitions and removable kick plates—for faster cleaning audits. A maintenance plan should include gasket checks, defrost verification, and door alignment; small gaps can add significant heat load.

Energy Optimization Strategies

Start with envelope integrity, then pursue system efficiency: EC fans, variable-speed compressors, floating head pressure, and night set-back where appropriate. If the facility allows, heat recovery from condensers can preheat domestic water. Occupancy sensors dim lights when idle, and door-open sensors nudge controls to avoid fighting infiltration with aggressive cooling. Data trends reveal patterns—if defrost cycles spike after delivery windows, focus on entry strategy and humidity control.

Safety, Compliance, and Monitoring

Compliance in foodservice and healthcare relies on documented temperature history and contingency plans. Install calibrated probes at representative points, add independent alarms, and test response times. In regions using CO₂ systems, gas detection and ventilation must be integrated. Emergency egress, anti-entrapment hardware, and non-slip floor ratings are non-negotiables.

Commissioning Checklist

Before handover, verify panel seals, pressure balance at doors, defrost timing, lighting levels, and actual aisle widths versus design. Validate controls with door-open tests and product load simulations. Train staff on workflow, PPE, cleaning, and alarm response. The first weeks should include data review and minor retuning based on real usage.

Planning the Layout

When a program includes multiple temperature zones, separate them with adjustable racking and marked circulation paths. Prototype reach ranges and turning radii using an interior layout planner to prevent cold bottlenecks and ensure safe passing clearances. This simple pre-build exercise saves both energy and labor time once the room is live.

Trusted References for Design Decisions

The WELL v2 Thermal Comfort and Air guidelines inform airflow and human comfort in controlled environments, while IES recommendations guide illumination levels and glare control for visual tasks. For workflow and behavioral efficiency, Steelcase research provides data-backed insights into how environmental quality affects performance across task-based settings. These references help calibrate technical decisions to human realities.

FAQ

Q1: What illumination levels work best inside a walk-in cold room?

A1: For general aisles, target roughly 200–300 lux, and raise to around 500 lux at inspection or labeling stations. Use 4000–5000K LED fixtures rated for low ambient temperatures with diffusers to control glare, aligned with IES task lighting guidance.

Q2: How do I minimize frost and ice at the doorway?

A2: Combine a tight air seal (well-maintained gaskets, heated frames) with air curtains or strip curtains, and consider a small antechamber in high-traffic applications. Tune defrost schedules to humidity load and add door-open sensors so controls respond intelligently.

Q3: What aisle width should I plan for carts and safe passing?

A3: It depends on cart dimensions and turning radius; I typically plan 1.2–1.5 m for single-direction flow and 1.5–1.8 m for two-way passing in high-throughput rooms. Validate with a room design visualization tool before installation.

Q4: Which materials hold up best to cold, moisture, and cleaning chemicals?

A4: Stainless steel racks (304/316), polyurethane cement or epoxy floors, food-grade gaskets, and antimicrobial sealants. Avoid brittle or chip-prone finishes that trap contaminants.

Q5: How can I improve energy efficiency without compromising temperature stability?

A5: Prioritize envelope integrity, then adopt EC fans, variable-speed compressors, floating head pressure, and demand defrost. Use occupancy and door sensors to reduce unnecessary cooling during idle or open-door periods, and review data trends for targeted tuning.

Q6: Do different products need separate temperature zones?

A6: Often yes. Produce, dairy, and proteins benefit from distinct setpoints. Partitioned bays or staged evaporators allow tighter control and reduce cross-impact on humidity and dehydration.

Q7: What ergonomic measures matter most for staff working in the cold?

A7: Keep heavy items between knee and shoulder height, minimize reach and ladder use, provide glove-friendly hardware, and reduce drafts at picking stations. As dexterity declines in cold (supported by ergonomics research), these adjustments prevent errors and strain.

Q8: How should I commission a new cold room?

A8: Verify panel seals, gaskets, door pressure balance, lighting levels, evaporator performance, and defrost logic. Run door-open and load simulations, set alarms, and train staff. Review data in the first weeks and fine-tune controls.

Q9: What refrigerants are viable for modern, compliant systems?

A9: Local codes drive choice; HFO blends and CO₂ are increasingly common for lower environmental impact. Always review regional regulations and service support availability before selection.

Q10: How do I control noise from fans and compressors?

A10: Use EC fans, vibration isolation mounts, flexible connections, and low-velocity air distribution. Place noisy components outside occupied work zones and dampen transmission through structure.

Q11: What monitoring is essential for healthcare or research cold rooms?

A11: Continuous data logging, calibrated sensors at representative points, independent alarms with defined response protocols, and documented maintenance for audits.

Q12: Can I model the layout before building?

A12: Yes—use a layout simulation tool to test aisle widths, turning circles, and reach ranges, reducing rework and ensuring safe, efficient circulation once the room is operational.
