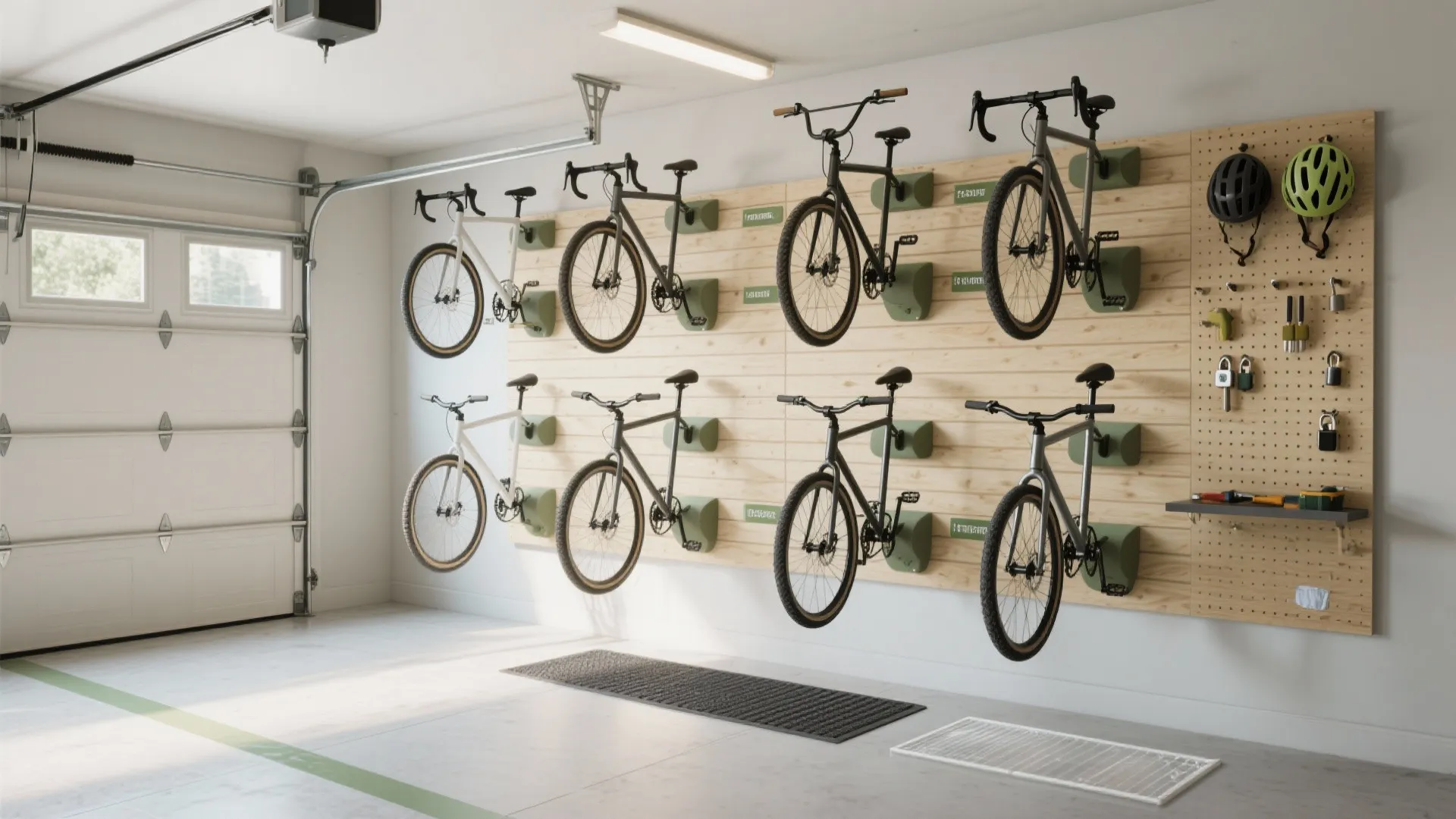

Wall Mount Bike Rack DIY: Build Your Own Space-Saving Storage: Fast-Track Guide to a Clutter-Free Garage in 1 Hour

I’ve built more bike storage solutions than I can count—tight city entryways, garage walls, and hallway nooks—all with one goal: get bikes off the floor, protect components, and keep circulation clear. A well-designed wall-mounted rack can free up 8–12 square feet per bike, reduce trip hazards, and make daily access effortless.

In workplace and residential garages, clear pathways matter. Steelcase research notes that reducing clutter and obstacles contributes to smoother movement and lower minor accident rates in active zones; translating that to bike storage means tighter footprint and consistent mounting heights improve safety and throughput. WELL v2 guidance also ties orderliness and clear sightlines to perceived environmental quality, influencing stress and ease of use. Embedding these principles in a DIY rack pays off every day.

Lighting matters more than most DIY guides acknowledge. The Illuminating Engineering Society recommends task lighting in utility areas around 300–500 lux for safe handling of equipment, which helps when lifting a bike onto pegs or aligning the wheel. And if you’re selecting finishes, remember color psychology: neutral, matte surfaces reduce glare and visual noise, supporting faster visual recognition of hooks and pedals—small choices that make the rack feel intuitive.

Planning Your Wall Rack

Start with the bikes you own. Measure wheelbase, handlebar width, and total weight. Typical road bikes range 18–25 lbs; mountain and e-bikes can exceed 45–60 lbs, which affects anchor choice and spacing. For most homes, a vertical rack (front wheel hung) saves floor depth, while a horizontal (top tube support) preserves handlebar clearance in narrow hallways. If you’re working with a mixed fleet, plan two mounting types side-by-side and stagger heights for grip clearance.

Layout is everything in small rooms. To test reach, swing, and door conflicts before drilling, I mock up with painter’s tape and cardboard cutouts. If you want a quick digital pass to visualize clearances, a room layout tool can simulate wall depth and clearance: room layout tool.

Wall Structure and Anchoring

Wall type dictates hardware. For wood stud walls, 5/16" or 3/8" lag bolts into studs are appropriate for heavy bikes; aim for at least 2" embedment into framing. Space hooks on 16" or 24" centers depending on stud pattern. For masonry walls, use sleeve or wedge anchors rated 150–300 lbs shear per anchor, following manufacturer specs. Avoid drywall-only mounting; even with toggles, drywall flex leads to fastener creep under cyclic loads.

I set a minimum safety factor of 3x expected load. Example: a 60 lb e-bike plus dynamic load when you hang it—plan for 180–200 lbs capacity per hook. Check the hook’s rated load and match anchor capacity accordingly. Use large-diameter washers to distribute bearing pressure and prevent tear-out.

Hardware and Materials

- Hooks: Vinyl-dipped steel utility hooks for wheel hangers; choose deep throats for 700c and 29" tires. For top-tube cradle designs, use powder-coated steel brackets with neoprene pads to prevent paint damage.

- Backer board: 3/4" plywood or LVL strip tied into studs creates a continuous mounting rail, reducing point loads and allowing flexible hook placement.

- Fasteners: Structural screws or lag bolts; for masonry, stainless wedge anchors. Use anti-corrosion coatings in damp garages.

- Finish: Matte polyurethane on plywood; avoid high-gloss that can glare under task lights.

- Protection: A small bumper or clear polycarbonate kick plate at floor level prevents scuffs from pedals and tires.

Vertical Rack: Front-Wheel Hook Layout

Vertical hanging is compact and fast. Set the hook height so the rear wheel clears the floor by 2–3"; for a typical road bike, hook height around 70–74" works; for 29er MTBs, 74–78" is common. If you have high ceilings, keep eye-level visual balance: centerline of the bike should sit between 48–60" for comfortable handling.

Stagger adjacent hooks by 6–8" vertically to offset handlebars. Horizontal spacing at 14–16" often suffices; measure your widest bar plus 2" clearance. Add a wheel stop or small block for the rear wheel to prevent swing. If tires leave marks, a slim wall strip of washable paint or a clear guard keeps maintenance low.

Horizontal Rack: Top-Tube Cradle

For frames that dislike wheel hooks (aero rims, heavy e-bikes), support the top tube. Mount two padded brackets level and 12–18" apart depending on frame geometry. Height: set the bottom of the top tube at about 48–54" for easy lifting. Confirm pedal and bar clearance from adjacent surfaces, especially in hallways. If storing multiple bikes, alternate bar directions to reduce interference.

Ergonomics, Reach, and Workflow

I design for the person as much as the bike. For most adults, a comfortable lift is between waist and shoulder height; excessive reach increases strain. Steelcase research into flow and access supports keeping frequently used items within an arm’s reach band to reduce micro-fatigue. In practice, the most-used bike gets the prime spot—clear floor, better light, direct path to the exit.

Add a small shelf or pegboard near the rack for helmets, locks, and multitools. Keep the heaviest items at torso height, lighter items above, to maintain center-of-gravity control when grabbing gear.

Light, Color, and Acoustic Comfort

Target 300–500 lux ambient light at the rack. A 4000K LED strip above the rail offers neutral rendering without bluish harshness. Control glare—mount lights slightly forward so the beam grazes the wall rather than reflecting into your eyes. Matte finishes minimize specular highlights and help quick visual recognition of hooks.

Acoustics in garages can be harsh. A cork or rubber mat under the rack dampens impact noise when a wheel taps the wall. Soft materials on cradles prevent resonance and small rattles.

Step-by-Step Build

1) Locate studs or assess masonry. Mark centers and intended hook positions.

2) Install a 3/4" plywood backer, 6–8" tall, anchored into studs or with masonry anchors. Seal edges.

3) Pre-drill for hooks; test one bike to confirm heights and clearances before committing to all positions.

4) Install wheel hook(s) or cradles. Add rear wheel block and floor bumper as needed.

5) Add storage: a slim shelf, pegboard, or bin rail. Label zones to keep clutter down.

6) Finish: touch up paint, apply pads, and verify lighting angles.

Safety and Maintenance

Inspect anchors monthly for looseness; thermal cycling and vibration can back screws out. Check pads for wear to avoid frame scuffs. Keep tires clean—grit abrades wall finishes. If the rack is in a child-access area, add a secondary tether for stability on heavier bikes.

Space-Saving Layout Strategies

If you’re squeezing multiple bikes into a tight wall, run a two-tier vertical array with staggered heights and a minimum 14" on center. In corner conditions, rotate the layout so handlebars point into open space, not toward doors. For odd-shaped rooms, an interior layout planner helps validate clearances before you drill: interior layout planner.

Material Selection and Sustainability

Choose FSC-certified plywood or reclaimed hardwood for backers to reduce footprint. Powder-coated steel hardware offers long service life and low maintenance. If you need moisture resilience, sealed marine plywood or recycled HDPE boards are robust. Avoid foam pads that crumble; opt for replaceable rubber or neoprene strips.

Common Mistakes to Avoid

- Anchoring into drywall alone

- Ignoring bar width, leading to clashing grips

- Mounting too high, increasing lift strain

- Poor lighting, making hooks hard to locate

- No rear wheel stop, causing swing and scuffs

FAQ

Q1: How high should I mount a vertical front-wheel hook?

A: Aim for 70–78" depending on wheel size; ensure the rear wheel clears the floor by 2–3" and the main handling zone sits at comfortable reach around 48–60".

Q2: What anchors are best for heavy e-bikes?

A: Use 3/8" lag bolts into studs or 3/8" wedge anchors in masonry, with a 3x safety factor. Verify hook and anchor ratings meet or exceed 180–200 lbs combined.

Q3: Can I mount into drywall with toggle bolts?

A: Not recommended for bikes. Drywall flexes under cyclic loads; use studs or masonry. A plywood backer tied to studs gives flexibility and higher capacity.

Q4: How much spacing between bikes?

A: For vertical racks, 14–16" on center with a 6–8" vertical stagger usually clears handlebars. Measure your widest bars and add at least 2" extra.

Q5: What lighting is ideal near the rack?

A: Provide 300–500 lux at the wall. A 4000K LED strip or puck lights reduce color distortion and improve visibility. Position lights to avoid direct glare.

Q6: How do I protect bike paint?

A: Use vinyl-dipped hooks or padded cradles. Add neoprene pads on contact points and keep surfaces clean to reduce abrasive wear.

Q7: Is a horizontal rack better for certain frames?

A: Yes—bikes with deep rims, heavy e-bikes, or frames sensitive to wheel hang benefit from padded top-tube cradles at about 48–54" height.

Q8: How do I integrate storage for gear?

A: Add a small shelf or pegboard near the rack with the heaviest items at torso height. Keep lock and helmet within arm’s reach to streamline exits.

Q9: What finish should I use on plywood?

A: Matte polyurethane or waterborne finishes reduce glare and resist scuffs. Seal edges to prevent moisture ingress in garages.

Q10: How do I minimize tire marks on the wall?

A: Install a washable wall guard or clear polycarbonate strip where tires contact, and keep tires clean. A rear wheel stop also limits swing.
