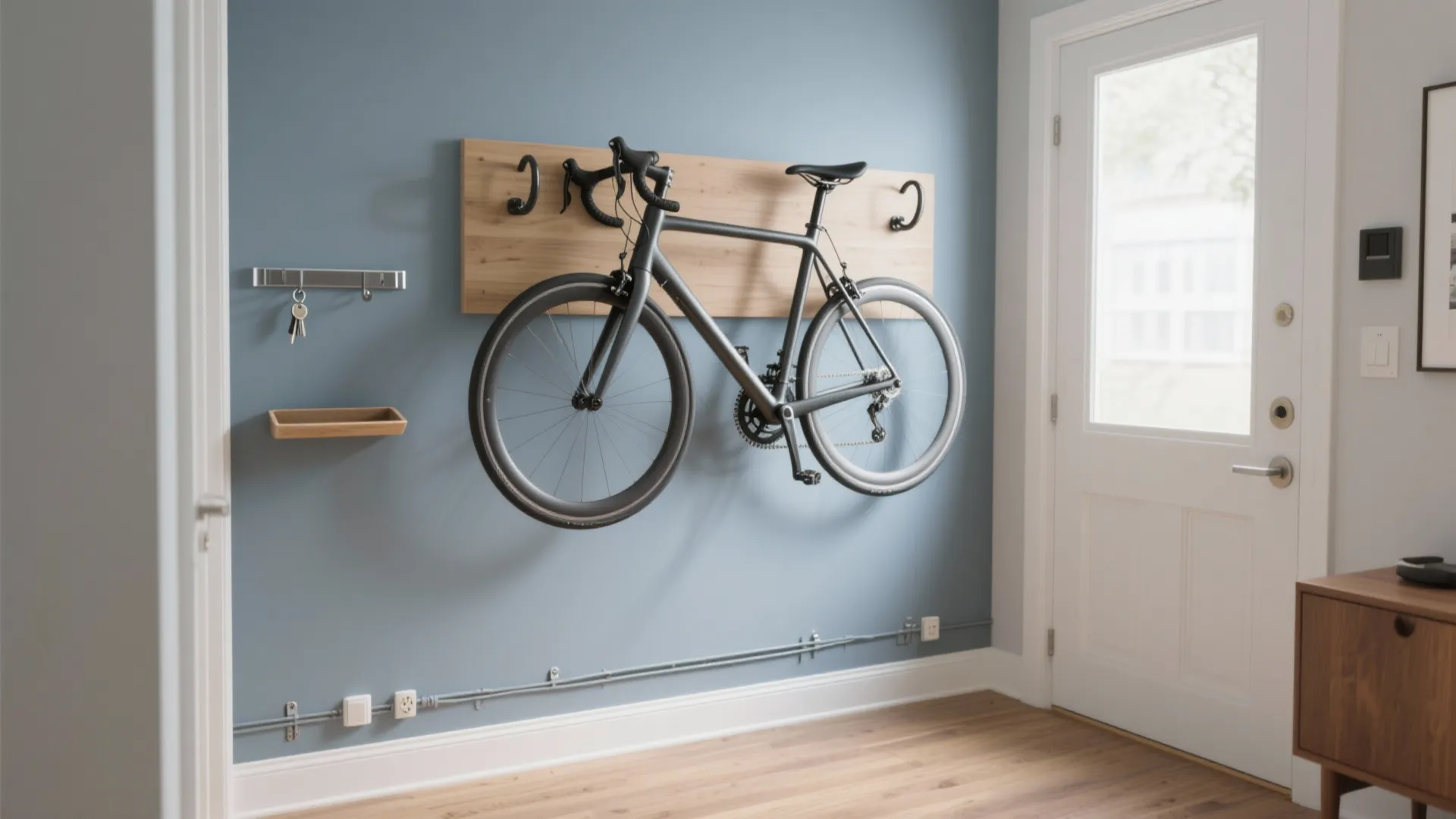

Wall Mounted Bike Rack DIY: Space-Saving How-To Guide: 1 Minute to a Clutter-Free Entryway: DIY Wall Mounted Bike Rack

Living with one or more bikes in a compact home can quickly erode floor space and visual order. A wall-mounted bike rack solves the clutter, preserves circulation, and turns your ride into a focal point. In my projects, wall systems typically reclaim 6–10 square feet per bike, which is meaningful in a 400–700 sq ft apartment. Beyond space, thoughtful mounting height and clearances protect walls, improve daily workflow, and reduce lifting strain.

Good design leans on data. The WELL Building Standard highlights injury reduction through ergonomic access and reach ranges, supporting a 28–48 inch vertical reach zone for comfortable, low-strain interaction (WELL v2). Steelcase’s research on activity support and posture change also ties ease-of-access to habit formation—when retrieval is simple, usage increases and storage stays orderly. For illumination when mounting or dismounting, I follow IES recommendations around 300–500 lux task lighting in utility corners (IES standards), so you can inspect tires and lock hardware without glare.

Color also affects how tidy a storage wall feels. Verywell Mind notes cool hues (blues and blue-grays) lower perceived visual noise, while warmer accents energize; I use a neutral base panel with a discrete, high-chroma hook cap to guide placement without making the wall busy.

Planning the Mounting Location

First map circulation: measure your hallway width and turning radius from entry to the rack. A minimum 36 inch clearance is typically required for comfortable passage. For multi-bike households, stagger hooks to offset handlebars and pedals, preserving a clean silhouette and reducing micro-collisions. If you’re working on a tight corridor and testing staggered heights or diagonal placements, a quick layout simulation with a room layout tool can help visualize spacing and handlebar clearances before drilling.

Stud location is non-negotiable. Most residential studs are 16 inches on center; verify with a quality stud finder and confirm with a pilot hole. I aim for two fasteners into a single stud for single-bike hooks, and a cleat or rail solution spanning two studs for multi-bike loads. Keep the bike’s center of mass slightly inward from hook contact to reduce torque on the fastener.

Selecting the Right Rack Type

Choose between vertical hook systems (wheel-hang), horizontal cradles (top tube rest), or fold-down arms. Vertical hooks save the most floor area. Horizontal cradles better protect carbon frames with delicate finishes. If you ride heavy e-bikes (50–70 lbs), confirm rated capacity and use a rail that spreads load across studs. For mixed fleets, combine a vertical hook for the road bike and a horizontal cradle for the commuter.

Material matters: powder-coated steel hooks with rubber sleeves resist abrasion, while hardwood backing panels distribute load and elevate aesthetics. Avoid thin drywall anchors for primary support. Stainless or zinc-coated lag screws minimize corrosion—especially near entry doors or laundry areas where humidity spikes.

Ergonomics and Height Guide

Map your shoulder and hip height before setting the hook. For most adults, the vertical hook height centers between 54–64 inches to hang by the front wheel without overreaching. If ceiling height is low, reduce hook height and tilt the bike slightly to clear handlebars. Keep grip zones (bars and top tube) within the WELL-aligned comfortable reach band; you should not have to plantar flex or tiptoe to dock.

Kid bikes or shorter riders benefit from a lower secondary hook at 40–46 inches. In households with two bikes stacked, maintain 12–16 inches vertical separation to prevent pedal-to-spoke interference.

Wall and Fastener Details

Backer boards resolve two problems: they bridge irregular stud spacing and protect drywall. I often mount a 1 x 8 or 1 x 10 hardwood plank across two studs, then attach the rack to this plank. Seal and finish the board to limit grime and tire marks. Use 5/16–3/8 inch diameter lag screws, 2.5–3 inches long, into studs. Pre-drill pilot holes slightly smaller than the screw’s core diameter to avoid splitting and ensure firm engagement.

On masonry walls, use sleeve anchors or concrete screws rated for shear loads, and avoid brittle plaster surfaces without a substrate. For seismic regions or high-traffic corridors, add a security tether point—an eye bolt into a stud—to attach a secondary strap for redundancy.

Lighting, Visibility, and Safety

Utility corners tend to be underlit. Aim for 300–500 lux with a wide beam wall washer to avoid harsh shadows while lifting the bike (IES standards). A 3000–3500K color temperature feels comfortable and neutral indoors, avoiding blue cast on white walls. Keep glare low: position fixtures off-axis from your eyes and handlebars.

Reflective tape on the backer board edge helps night visibility, and a small tray below the rack corrals keys, multi-tools, and tire levers. If your workflow involves late rides, a motion sensor provides hands-free illumination when you enter with the bike.

Step-by-Step Build

1) Measure and mark: choose height based on rider reach and ceiling constraints. Level a horizontal datum line. 2) Find studs: mark at 16 inch intervals; confirm with pilot holes. 3) Install backer: pre-drill countersunk holes, then lag into studs. 4) Mount hardware: attach the hook or cradle per manufacturer specs; add rubber sleeves for rim or frame protection. 5) Test load: hang the bike, check clearance to floor, adjacent walls, and doors; adjust angle or spacing. 6) Finish: touch up paint, add cable management for locks and lights.

Multi-Bike Layouts and Traffic Flow

For two to four bikes, stagger heights and alternate front-wheel orientation to interlock handlebars. Reserve 6–8 inches lateral spacing between pedal planes. If you need to validate whether the hallway turning radius works with multiple bikes hung, try a quick interior layout planner to simulate door swing and circulation before committing to holes.

Acoustics, Materials, and Maintenance

Rubber contact points dampen micro-squeaks when docking. Felt pads behind pedal and bar touchpoints prevent wall scuffs. In humid environments, opt for powder-coated steel and sealed hardwood; wipe down after wet rides to avoid rust staining. Quarterly checks: retighten lag screws, inspect rubber sleeves, and refresh finish where tires rub.

Color Psychology and Visual Order

Use a calm neutral wall (warm gray or muted blue-gray) with a single accent line or cap color on the hook. Verywell Mind’s color psychology overview supports cool hues for calm and order, making the rack visually recede while the bike becomes a sculptural object. Keep the area uncluttered—one shallow shelf for essentials; avoid stacking helmets and bags where they intrude into the walkway.

Budget and Sustainability

DIY builds can be done with a $40–$120 hardware budget depending on hook type and backer wood. Choosing FSC-certified hardwood and durable, repairable components extends life. Powder coating outlasts paint and resists chipping. Reuse an offcut plank or reclaimed beam as a backer—just sand and seal it for a clean finish.

FAQ

How high should I mount a vertical bike hook?

Center the hook roughly 54–64 inches from the floor for adult riders, keeping the handlebar within comfortable reach and avoiding overhead strain.

Can I mount a rack into drywall without hitting a stud?

Not for primary support. Use studs or a backer board spanning studs. Drywall anchors are insufficient for dynamic loads from lifting and docking.

What lighting level is ideal around the rack?

Provide 300–500 lux task light in the storage corner for safe docking and quick inspections, aligning with common IES task ranges.

Is vertical storage safe for carbon frames?

Yes, if the contact point is the tire/rim with a rubberized hook. Avoid clamps on thin-walled tubes; consider horizontal cradles for delicate finishes.

How much space will I save?

Expect to reclaim 6–10 square feet per bike compared to floor stands, depending on frame size and hallway width.

What fasteners should I use?

5/16–3/8 inch lag screws, 2.5–3 inches long, into studs. For masonry, use sleeve anchors or concrete screws rated for shear loads.

Can I stack two bikes vertically?

Yes. Maintain 12–16 inches vertical separation and offset handlebars to avoid interference and ease retrieval.

Will color choice affect perceived clutter?

Cool neutrals (blue-gray, soft gray) reduce visual noise; a single accent on the hook guides placement without making the wall busy.

How do I handle e-bike weight?

Confirm the rack’s capacity (often 50–70 lbs for robust systems) and use a rail across two studs to distribute load. Consider a lower mount to reduce lift height.

What about kids’ bikes?

Mount a secondary hook at 40–46 inches. Keep the path clear and add a small bin for helmets to prevent floor clutter.

Do I need a backer board?

It’s strongly recommended. A hardwood plank spreads load, protects drywall, and provides a clean mounting datum for multiple hooks.

How do I prevent wall scuffs?

Add felt pads at potential contact points and a washable finish or clear wall protector film behind the tire arc.

Is a fold-down rack useful in tight studios?

Fold-down arms reduce protrusion when the bike is out, but confirm hinge quality and capacity. They’re ideal behind doors or in narrow utility bays.

How often should I maintain the setup?

Quarterly: retighten fasteners, check rubber sleeves, clean the backer board, and inspect for corrosion or finish wear.
