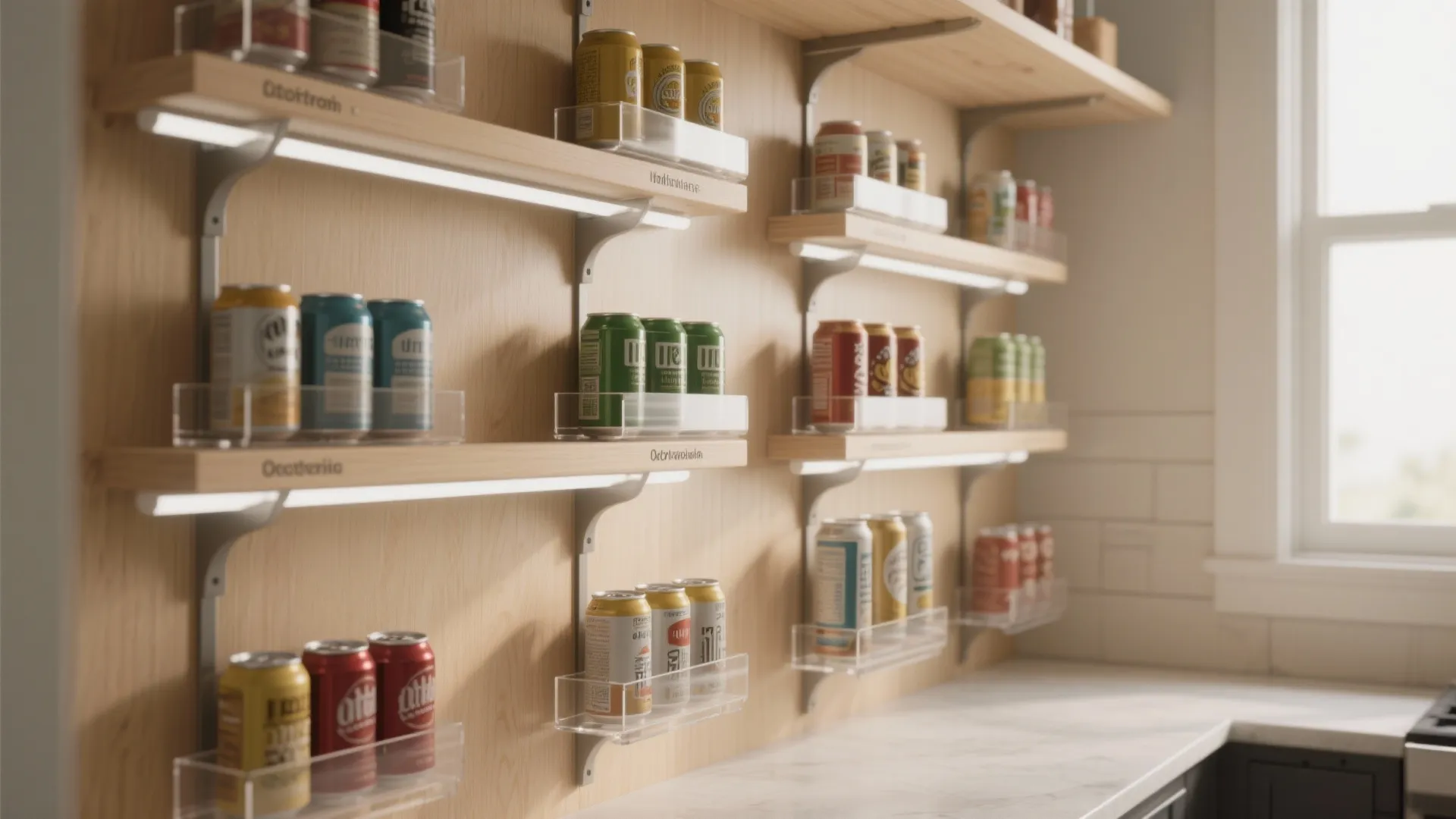

Wall-Mounted Can Organizer DIY: Organize Your Pantry Effortlessly: Fast-Track Guide to Building a Space-Saving Wall-Mounted Can Organizer

Wall-mounted can organizers turn crowded pantry shelves into clean, visible inventory. I like them because they lift bulk weight off shelves, streamline restocking, and reduce visual clutter. In typical homes, food waste often stems from hard-to-see items; workplace research on visibility and choice architecture translates neatly to kitchens—Gensler reports that clear sightlines and intuitive access improve task efficiency by up to 12–18% in optimized spaces, and those same human-factors principles help you cook faster and waste less at home. Steelcase research further connects organization with reduced cognitive load, showing how clear categorization reduces decision friction during routine tasks. These are the small design choices that add up.

Ergonomically, placing frequently used cans between 24–60 inches off the floor keeps reach safe and comfortable—aligned with WELL v2 human factors guidance on accessible reach zones and task visibility. For weight, standard 15 oz cans average 0.9–1.0 lb each; design each rail or channel to safely hold 6–12 cans (5.4–12 lb) plus a 2x safety margin. I follow a conservative approach: aim for a minimum 30 lb rated anchor per vertical bay to handle dynamic load over time. For lighting, the Illuminating Engineering Society recommends 300–500 lux for general kitchen tasks; good vertical illumination on the organizer reduces misreads and saves time.

Plan the Layout

Start by auditing your pantry inventory and grouping cans by height: soup/beans (~4.5 in height), tuna/sardines (~1.7–2 in), and taller tomato or broth cans (~4.8–5 in). Map your wall studs with a stud finder; most residential studs run 16 inches on center. I place vertical rails over studs and set channels horizontally, keeping minimum 0.75–1 inch clearance above each can for easy finger access. If you want to simulate spacing before drilling, a simple interior layout planner like a room layout tool can help visualize bay spacing, clearances, and traffic paths as you open and close pantry doors.

Materials and Tools

Choose materials that balance strength, cost, and cleanup. Plywood (3/4 in) or furniture-grade MDF for backboards; hardwood or aluminum angle for rails; and hardwood dowels or acrylic edges for front retainers. For a clean look, I favor 1x3 poplar rails with a shallow lip and an acrylic face to prevent roll-out. Use wood screws (2.5–3 in) into studs, and heavy-duty drywall anchors only where studs are unavailable. Finish with low-VOC paint or waterborne polyurethane for wipeability and safer indoor air. Hardware: countersink bit, level, square, stud finder, and a high-tooth blade for clean edges.

Size Your Organizer

Determine bay width by can diameter plus tolerance. Standard 15 oz cans average ~2.9–3.0 in diameter; allow 3.25–3.5 in per channel to avoid friction. For gravity-feed designs, set a 5–7 degree slope; anything steeper risks impact and label damage. For flat shelves with a retainer, keep the lip at 1–1.25 in. Vertical spacing: 5.5–6 in for standard cans, 2.25–2.5 in for short cans, 7–7.5 in for tall cans. If you plan double-depth channels (two cans deep), calculate load carefully and reinforce with a mid-rail.

Fastening and Anchoring

Mount the backboard first. Pre-drill into studs at 16 in centers, two screws per stud. Add a French cleat if you want removable panels. For aluminum angle rails, use through-bolts with washers to prevent tear-out. For wood rails, pocket screws into a sub-rail work well. Test with a partial load before full stock. I avoid sole reliance on drywall anchors for heavy cans; if you must, use metal toggles rated >50 lb and reduce bay capacity accordingly.

Rail and Channel Design Options

Three proven approaches:

1. Gravity-Feed Channels: Slight slope with a soft front stop. Fast to restock and good for FIFO rotation.
2. Flat Shelf with Retainer: Rails level, clear acrylic or wood lip. Flexible sizing and quieter handling.
3. Modular Peg-and-Clip: Vertical slotted standards and clip-on shelves; best for renters or evolving inventories.

Add felt pads or silicone dampers on front stops to minimize label scuffing and impact noise.

Lighting and Visibility

Cans read best under neutral-white light (3000–4000K). Aim for 300–500 lux at the vertical surface per IES kitchen task guidance; integrate a low-glare LED strip under an aluminum channel with a diffuser. Keep glare low by angling light 15–30 degrees and using matte finishes on surrounding surfaces to reduce specular reflection.

Color and Labeling Strategy

Color coding speeds identification. According to widely cited color psychology overviews, high-contrast labeling improves wayfinding and reduces hunt time. I use matte labels with bold sans-serif type, black-on-white for staples, and accent colors for categories: reds for tomato-based items, greens for vegetables, blues for fish. Keep category legends at eye level.

Ergonomics and Safe Reach

Place daily-use items in the mid-zone (shoulder to hip). Heavy or bulk cans sit below 24 in. Reserve higher bays for light, infrequent items. Maintain 36 in minimum clearance in front of the organizer for safe movement, and ensure pantry door swings don’t collide with protruding rails.

Step-by-Step Build

1. Measure wall and locate studs; mark vertical lines.
2. Cut backboard to size; pre-drill countersunk holes aligned to studs.
3. Finish backboard surfaces; allow proper curing time.
4. Layout rail spacing on the backboard; mark channels for short, standard, and tall cans.
5. Cut and finish rails; add soft front stops.
6. Mount backboard; verify level. Install rails from bottom up.
7. Test with 2–3 cans per channel; check clearances and deflection.
8. Install edge protectors and optional LED strip with diffuser.
9. Label channels; stock by category and date for rotation.

Acoustics and Quiet Handling

Pantry doors and hard surfaces amplify clatter. Soft stops, felt liners on lip edges, and rubber bumpers at end caps go a long way. Keep the slope shallow; it reduces kinetic noise and protects labels.

Maintenance and Hygiene

Choose finishes that tolerate wiping with mild detergents. Waterborne polyurethane or catalyzed lacquer works well. Avoid raw MDF in humid pantries; seal all edges. Every quarter, wipe rails, check fasteners, and re-level if needed.

Small-Space Variations

For narrow pantries, go vertical with 6–8 in wide modules and a single-column gravity feed. For deep closets, use double-depth channels only on lower bays. If you live in a rental, opt for wall standards with minimal holes and removable cleats.

Budget and Sustainability

Repurpose offcuts of plywood and hardwood. For transparent retainers, consider recycled acrylic. Source FSC-certified wood if available. Lighter materials reduce wall load and are easier to handle during installation.

Troubleshooting

If cans stick, increase channel clearance by 1/8 in or add a low-friction tape. If rails sag, upgrade to thicker stock or add a center brace. If labels fade under daylight, switch to neutral-white LED and UV-resistant label stock.

FAQ

What height should I mount the organizer for safest reach?

Keep frequently used cans between 24–60 inches off the floor; heavy items below 24 inches. This aligns with accessible reach guidance common in human-factors standards.

How much weight can each channel safely hold?

Design for 6–12 standard cans per channel (roughly 5.4–12 lb) and apply a 2x safety margin. Anchor into studs and use through-bolts or wood screws 2.5–3 inches long.

Is a gravity-feed system better than flat rails?

Gravity-feed improves rotation and speeds restocking but needs a gentle slope (5–7 degrees) and soft stops. Flat rails are quieter and more flexible for mixed sizes.

What lighting level works best?

Target 300–500 lux on the organizer with 3000–4000K LEDs. Diffusers and angled fixtures reduce glare and improve label legibility.

How do I prevent cans from rolling out?

Use a 1–1.25 inch front lip, add silicone bumpers, and avoid steep slopes. Test with partial loads before fully stocking.

Can I build this without hitting studs?

Prefer studs. If unavailable, use metal toggle anchors rated above 50 lb and reduce capacity. Consider wall standards to spread load.

What materials are most durable?

3/4 inch plywood backboards with hardwood or aluminum angle rails. Finish with low-VOC, cleanable coatings to resist moisture and stains.

How should I group and label cans?

Group by height and category; use high-contrast labels at eye level. Color coding speeds recognition and reduces hunt time.

How do I clean and maintain the organizer?

Wipe quarterly with mild detergent, check fasteners, and re-level rails. Seal all edges to prevent moisture ingress.

What if my pantry is very narrow?

Use single-column vertical modules 6–8 inches wide and keep channels shallow. Prioritize everyday items in the mid-zone.
