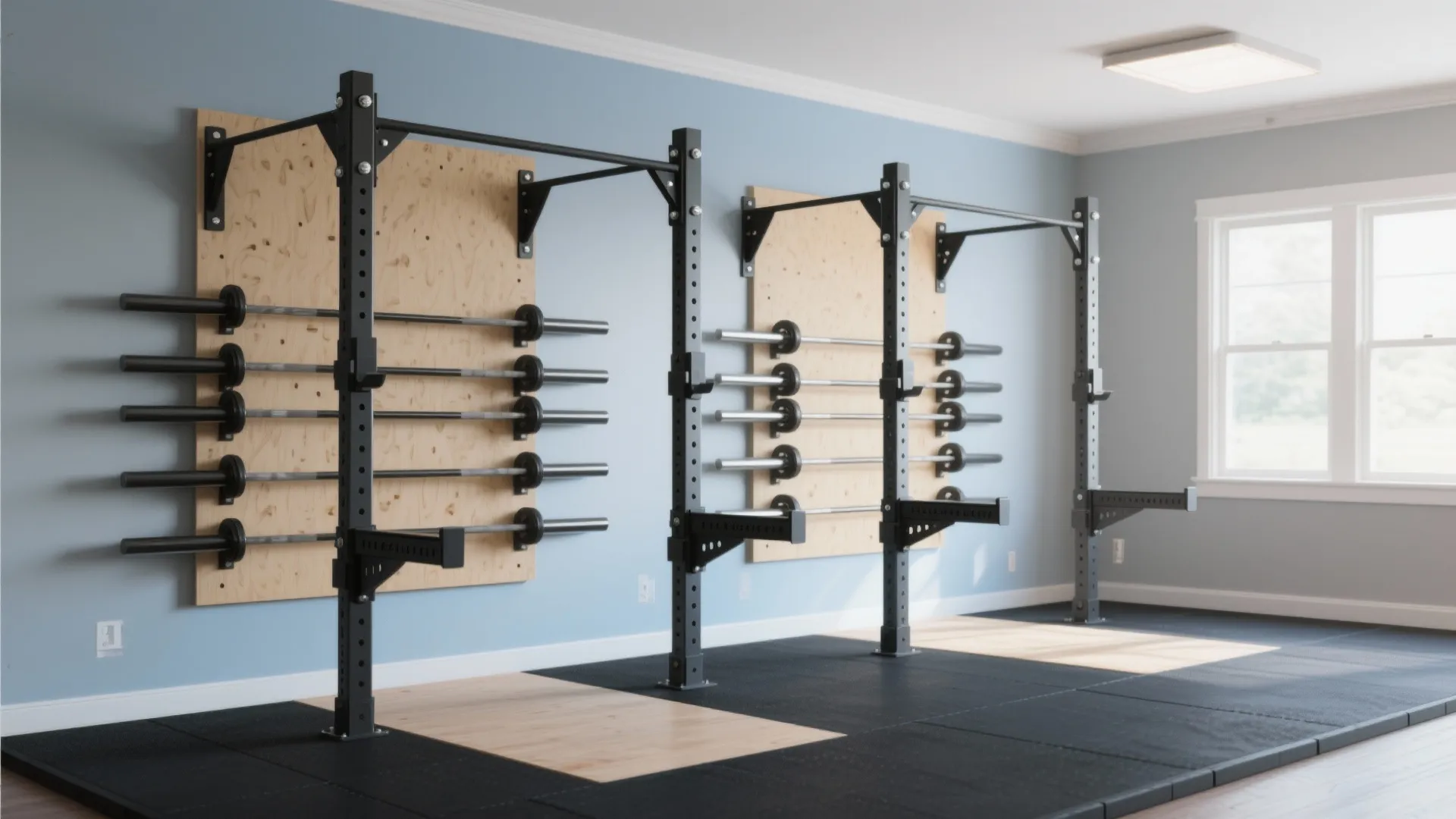

Wall Mounted Squat Rack DIY: Build Your Own Compact Gym Essential: 1 Minute to a Fast-Track Guide to Building a Space-Saving Wall Mounted Squat Rack

I’ve designed and installed more wall-mounted strength stations than I can count, both for clients and in my own studio. A compact rack can deliver serious performance without swallowing floor space—if it’s planned with proper structure, ergonomics, and clear load paths. Let’s build one that’s safe, adaptable, and clean-looking.

To ground expectations: a home lifter working sets in the 135–225 lb range is common for many trainees, while advanced users often exceed 315 lb on squats. Workplace and building safety guidance is clear—anchors should be specified to carry several times expected loads, accounting for dynamic factors. WELL v2’s Movement and Ergonomics concepts encourage designing environments that support strength training with safe clearances and well-organized equipment (v2.wellcertified.com). Gensler’s research on human performance environments shows users stay more engaged in spaces that feel open, bright, and clearly zoned for activity—layout decisions matter (gensler.com/research).

On lighting, the Illuminating Engineering Society recommends 300–500 lux for task areas, and many gyms operate in the 300–750 lux range with controlled glare. Good visibility helps with bar centering, rack pin alignment, and foot placement, reducing error across sets. Color psychology also matters; cooler neutral hues support focus, and a balanced warm accent keeps the space inviting (verywellmind.com/color-psychology).

Planning the Structure: Wall, Studs, and Load Paths

I start by validating the wall. For wood framing, you want at least two—preferably three—studs to carry vertical uprights and bracket loads. Typical studs are 16 in on center; map them precisely with a stud finder, then confirm with small pilot tests where permissible. Masonry walls can take sleeve anchors or wedge anchors sized for your rack; never guess, always consult the anchor’s datasheet for shear and pullout values.

Rack arms and uprights should form a continuous load path into the structure: bar weight transfers through J-cups to uprights, through brackets into studs or masonry, then into the foundation. If you intend to handle 300+ lb, size brackets and fasteners with a safety factor of at least 3:1. Spread connections vertically: two or three brackets per upright reduce leverage and torsion.

Dimensions and Clearances

Squat stance width and barbell length dictate clearance. Allow 36–48 in lateral clearance around the bar ends for safe loading/unloading. Front clearance of 60–72 in is comfortable for unracking and stepping back. If you plan to bench on the same setup, ensure the lower J-cup height can reach roughly 18–22 in for typical bench heights, with pin holes or slots every 2 in to fine-tune.

Upright height at 84–90 in works for most spaces, providing room for pull-up accessories later. If ceiling height is tight, keep at least 6–8 in above your max bar height for hand clearance and lighting fixtures.

Materials: Steel, Lumber, and Fasteners

I prefer steel uprights for durability: 2x3 in or 2x2 in 11–12 gauge steel tube is common. If you’re combining steel uprights with a wood mounting backer, use a hardwood or high-quality plywood backer board (at least 3/4 in) spanning three studs; this distributes loads and gives you consistent engagement. Powder-coated steel resists corrosion and chalk; avoid paint only if your space is humid.

Fasteners: for wood studs, structural screws (1/4 in diameter or better) or lag bolts with washers are my go-to. For masonry, use appropriately sized wedge anchors or sleeve anchors with verified pullout values. Always pre-drill clean holes, vacuum dust, and torque to spec.

Ergonomics: J-Cup Heights, Hole Spacing, and Grip Comfort

Hole spacing at 2 in increments balances adjustability with strength. For squats, typical J-cup heights fall roughly between mid-chest and clavicle level depending on lifter height. I mark two primary positions per user and one backup position for high-bar vs low-bar. Add numbered labels on uprights—visible under 300–500 lux lighting—to cut setup time and mistakes.

J-cups should include UHMW or dense rubber lining to protect the bar knurling. Ensure the cup’s lip has a generous radius so the bar rolls into place without catching.

Wall Bracket Design

Brackets should triangulate: a vertical plate, a horizontal or angled brace, and a gusset. A 10–12 in arm depth keeps the bar sufficiently forward while maintaining compactness. If your wall isn’t perfectly true, shim carefully to prevent racking torque.

For mixed-use spaces, I’ll design fold-away arms. A hinge with a locking pin lets the arms swing flat against the wall, cutting the profile down to a few inches. Make sure the hinge axis is robust and captured on both leaves.

Safety Systems: Spotter Arms and Anchors

Spotter arms are non-negotiable for solo training. Size them long enough—18–24 in—to catch the bar comfortably. Use a pin-and-lock mechanism with secondary retention (a hairpin cotter or through-bolt). When wall mounting, check that spotter loads won’t pry the entire rack; supplemental floor footers or a secondary tie-back can help.

Consider a low-profile footplate or mini base that ties the uprights to the floor without becoming a trip hazard. If you’re in a rental, explore a spreader base that loads the floor rather than anchoring to it.

Surface and Flooring

Rubber tiles at 8–12 mm are adequate for general barbell work; double up near the rack for deadlift zones or add a platform. A firm substrate under the rack prevents creep. Keep the surface matte to limit glare under task lighting.

Lighting, Color, and Acoustic Comfort

I place linear fixtures that deliver roughly 400–600 lux over the lifting zone, angled to avoid direct glare at eye level during unrack. A 4000–5000K color temperature reads clean and focused. Add acoustic panels or heavy curtains if the space echoes—impact sounds from racking can spike reverberation.

Color strategy: neutral base (gray or deep white) with one energizing accent—saturated blue or orange—placed away from the bar path to avoid visual noise.

Layout and Space Optimization

Define a dedicated strength lane along the wall, and use adjacent zones for mobility or storage. If you’re iterating before drilling, a layout simulation tool can help visualize clearances and circulation in a tight room.

room design visualization tool

Step-by-Step Build Outline

1. Validate the Wall

Confirm stud spacing or masonry condition, measure twice, and mark a plumb centerline for each upright.

2. Prepare Backer Board

Cut a 3/4 in plywood backer spanning at least three studs; seal edges; pre-drill for structural screws.

3. Fabricate Uprights and Brackets

Use 2x3 in 11–12 gauge steel for uprights; drill 2 in spaced holes; build triangulated brackets with gussets.

4. Mount Backer and Uprights

Fasten backer to studs; level uprights; attach brackets with washers; torque fasteners to spec.

5. Add J-Cups and Spotter Arms

Line cups with UHMW; install pin-lock spotters; test engagement under controlled loads.

6. Test and Tune

Start with 95–135 lb and gradually increase; listen for creaks, retighten after first week; label hole positions.

Storage and Accessories

Integrate a vertical plate tree or low-profile pegs. Keep collars, clips, and bands on a magnetic strip or shallow shelf. If adding a pull-up bar, ensure the wall can take combined vertical and horizontal loads.

Maintenance

Quarterly: inspect anchors, check spotter pins, touch up powder coat. Wipe chalk and sweat to prevent corrosion. Replace UHMW liners when grooves deepen.

Safety, Codes, and When to Bring a Pro

If you’re uncertain about wall integrity or anchor selection, consult a licensed contractor or structural engineer. Follow manufacturer specs for fasteners, and keep a clear emergency path around the rack. Under higher loads or multi-user setups, professional installation pays for itself.

FAQ

How much weight should a DIY wall-mounted rack be designed to hold?

For general training, design for at least 300–400 lb with a 3:1 safety factor. Advanced lifters may need 600+ lb capacity; size anchors and brackets accordingly.

What lighting levels are ideal around the rack?

Target 300–600 lux in the lifting zone to see J-cups and foot placement clearly, aligning with common task lighting ranges referenced by IES guidance.

Can I install on drywall alone?

No. Drywall has negligible structural capacity. You must anchor into studs or masonry, ideally with a spanning backer board for load distribution.

Is 2 in hole spacing necessary?

It’s a practical balance: fine enough to dial in bar height for squat and bench while maintaining steel integrity. Tighter spacing demands heavier material and careful fabrication.

What’s the best color temperature for home gyms?

4000–5000K provides crisp visibility and focus without feeling sterile. Pair with a neutral palette and minimal glare.

Do I need spotter arms if I train with a partner?

Yes. Partners help, but mechanical redundancy is safer. Spotter arms with reliable pins protect against missed reps and unexpected slips.

How do I reduce noise on wall-mounted racks?

Add UHMW liners on J-cups, rubber flooring, and soft-close bumpers on arms. Acoustic panels or heavy curtains cut reverberation in small rooms.

What anchors are best for masonry?

Wedge anchors or high-quality sleeve anchors sized per load. Follow manufacturer torque and embedment specs; verify pullout capacity for your substrate.

Can I add a pull-up bar later?

Yes, if your uprights and wall can take combined vertical and horizontal loads. Ensure brackets have lateral resistance and the wall connections are upgraded if needed.

How much clearance should I keep around the bar ends?

Aim for 36–48 in lateral clearance to load plates safely and avoid collisions in tight rooms.

What maintenance schedule is realistic?

Quarterly anchor checks, monthly fastener inspection during heavy cycles, and immediate replacement of worn UHMW liners. Keep surfaces clean to prevent corrosion.
