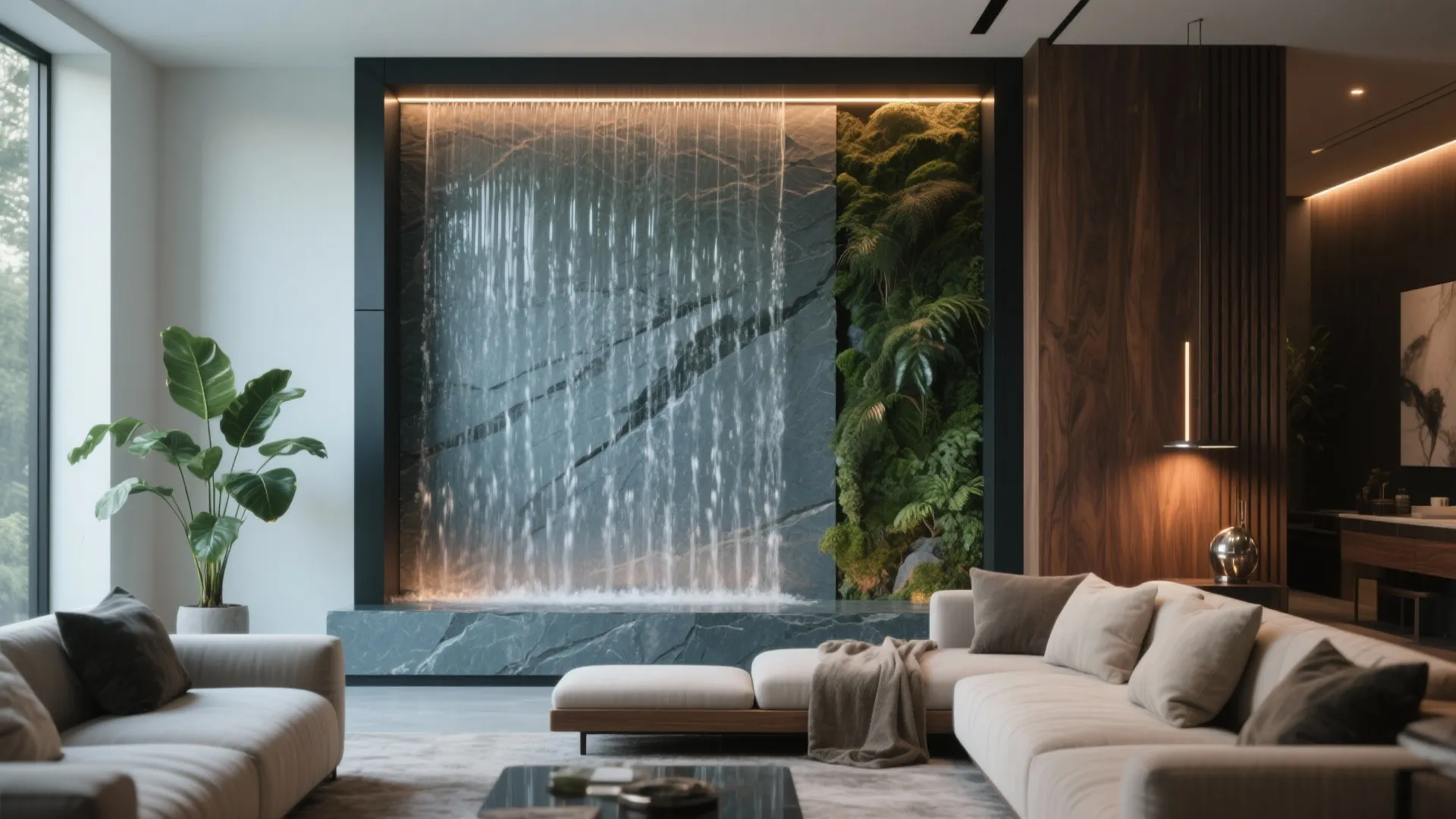

Waterfall Wall DIY: Create a Stunning Water Feature at Home: Fast-Track Guide to Building a Waterfall Wall in 1 Hour

I design spaces where water becomes a quiet anchor—calming, rhythmic, and visually magnetic. A waterfall wall delivers that effect at home without overtaking the room. Done right, it elevates mood and improves perceived air quality while integrating seamlessly into furniture, lighting, and acoustics.

Research underscores the wellness impact of sound and biophilic cues. The WELL v2 Sound concept sets targets for background levels—typically below 35 dBA in living areas—to reduce cognitive load, and a properly tuned waterfall can sit within that range when isolated from resonance. Steelcase’s workplace research also notes that controlled, consistent sound can help mask distractions, improving focus for light tasks; this principle translates well to reading nooks or home offices adjacent to water features.

Color and psychology matter here. Verywell Mind’s overview on color psychology highlights how blues and cool greens are linked to calm and lowered heart rate perception, while warmer ambers can feel cozy but stimulating—use this palette logic when selecting stone, backlighting, and surrounding finishes to sculpt the emotional tone of your waterfall wall.

Planning the Waterfall Wall

I start by sizing the panel and basin to the room’s rhythm. A common ratio is a panel height between 1.8–2.4 m with a width of 0.6–1.2 m; this maintains a vertical presence without overwhelming circulation. Keep at least 900 mm clear in front for comfortable viewing and maintenance. If your room layout is tight or you want to test clearances, a room layout tool can help you simulate traffic lines and furniture spacing: room layout tool.

Structural and Waterproofing Essentials

Water is unforgiving on poor substrates. I specify cement backer board with a liquid-applied waterproofing membrane rated for continuous wet areas. Joints get alkali-resistant mesh tape. The basin should be seamless—fiberglass, stainless steel, or welded PVC liner—pitched 1–2% toward the pump intake. Include an accessible clean-out and a removable debris screen for hair, leaves, and mineral flakes.

Pump, Flow, and Noise Control

The pump sets character: laminar, silky sheets versus lively, textured cascades. Aim for 1,500–3,000 L/h for panels around 0.8–1.2 m wide, with a head matched to your height plus friction losses. Use flexible anti-vibration couplings and isolate the pump in a lined compartment to cut mechanical noise. To keep ambient sound near WELL v2 recommendations for living spaces, install a soft return surface in the basin (EPDM mat or pebbles) to damp impact noise, and avoid splash by fine-tuning lip geometry at the spill edge.

Water Quality and Maintenance

I specify a closed-loop system with a fine mesh pre-filter and a biological or UV clarifier to discourage algae. Keep water level sensors to protect the pump. Plan a monthly routine: wipe mineral film, purge and refresh water, and inspect seals. If you live in hard-water regions, use conditioned water to reduce scaling. Stainless or glass panels should be cleaned with non-abrasive agents to preserve optical clarity.

Material Palette and Visual Balance

Materiality frames the waterfall’s personality. Honed slate or basalt brings a grounded, matte elegance; ribbed glass yields a soft shimmer; brushed stainless reads modern and bright. I balance field materials with a contrasting frame—blackened steel or warm walnut—to anchor the feature and keep sightlines coherent. Maintain a quiet background so the water becomes the protagonist rather than visual noise.

Lighting the Waterfall

Lighting defines the mood and legibility. I follow IES guidance on glare control: shielded fixtures, low-UGR optics, and careful aiming to avoid direct view of LEDs. Put linear LED at the top, 2700–3000K for cozy living spaces or 3500–4000K for fresher tones, and a secondary wash at the base to model depth. Dimming is non-negotiable; it lets the feature breathe from day to evening. For deeper reads on lighting standards, see IES resources on recommended practices.

To connect wellness criteria with lighting and acoustics, WELL v2 offers a structured framework for sound levels, glare mitigation, and visual comfort strategies that align nicely with residential adaptations.

Ergonomics, Safety, and Human Factors

Edges should be radiused and non-slip. If the basin sits proud of the floor, keep the lip low (50–75 mm) and finish adjacent flooring with high-friction tiles. Humidity needs monitoring: maintain 40–50% RH to feel fresh without condensation. Integrate a discreet splash rail if kids or pets share the room. Place controls (pump, light, and fill) at a reachable height of 900–1200 mm to support comfortable daily use.

DIY Build Sequence

1) Mark stud locations and mount a dedicated backer with waterproof membrane. 2) Install the basin with level checks and seal all seams. 3) Route plumbing: pump to top spillway, add shut-off valves and unions for service. 4) Fit spill edge: a precisely leveled lip creates an even sheet; micro serrations can energize texture. 5) Add filtration, level sensors, and electrical (GFCI-protected). 6) Test flows with water, adjust valves to tune sheet uniformity. 7) Install lighting, set dimmer curves. 8) Finish the surround—frame, shelves, or seating—to integrate the feature.

Acoustic Comfort Tuning

When a waterfall is too loud, it’s usually splash or resonance. Line the basin, soften the return surface, and decouple the pump. If the cavity behind the panel booms, add acoustic fleece or mineral wool to absorb low-mid frequencies. Test levels at typical seating positions and aim for calm, consistent sound that masks minor household noises without intrusive hiss.

Energy and Sustainability Considerations

Choose efficient DC pumps with variable speed to trim energy while tailoring mood. LED lighting should be high efficacy (≥90 lm/W) with quality drivers. Recycled stone or FSC-certified wood for framing keeps embodied impact down. Design for easy disassembly—replaceable liners, accessible filters—so the feature stays maintainable rather than disposable.

Styling and Integration

I style with restraint around water. A single plant with glossy leaves, a small bench, and a soft rug balance texture. Keep nearby art sealed or at a distance. In open-plan settings, align the waterfall with a sightline from entry or dining to act as a quiet focal point rather than a shout. Use the interior layout planner linked above to test vantage points and seating relationships.

Troubleshooting Common Issues

Uneven sheet: re-level the spill lip, clean mineral buildup, adjust flow; foam suggests surfactants—refresh water and clean basin. Micro-splash: pull the sheet closer to the panel by adding a tiny down-tilt to the lip or increasing flow slightly. Cloudy water: check filtration, add UV clarifier, and reduce light exposure if algae appears.

FAQ

How wide and tall should a home waterfall wall be?

For most living rooms, 0.6–1.2 m wide and 1.8–2.4 m tall works well, leaving comfortable circulation and visual balance. Larger rooms can handle wider panels, but keep at least 900 mm clear in front.

What pump specs do I need?

Match flow to width: around 1,500–3,000 L/h for 0.8–1.2 m wide panels, with head height equal to your wall height plus friction losses. Variable-speed DC pumps are quieter and more efficient.

How do I keep sound levels comfortable?

Isolate the pump, use soft return materials in the basin, and tune the spill edge to reduce splash. Target calm background sound—WELL v2 suggests living areas under roughly 35 dBA for comfort.

Which materials resist water best?

Honed stone (slate, basalt), tempered ribbed glass, and stainless steel are reliable. Combine with cement backer board and a liquid-applied waterproofing membrane behind the panel.

What lighting temperature should I use?

2700–3000K creates a warm, cozy feel; 3500–4000K reads crisper and more refreshing. Shield fixtures to avoid glare and use dimming for night comfort per IES glare control practices.

How do I prevent algae and cloudy water?

Use a closed-loop system with fine filtration and a UV clarifier. Refresh water monthly, wipe surfaces to remove biofilm, and limit direct sunlight on the basin.

Can I integrate the waterfall near electronics or art?

Yes, with disciplined splash control and humidity management (keep RH around 40–50%). Seal nearby art, and keep electronics slightly offset from the plume.

What’s the best way to visualize layout before building?

Simulate clearances, sightlines, and seating distances with an interior layout planner to avoid surprises and confirm that the feature anchors the room without obstructing flow.

Is maintenance time-consuming?

Plan a 30–45 minute monthly cycle: clean filters, wipe mineral film, refresh water, and check seals. With good filtration and conditioned water, upkeep stays light.

How do I manage power and safety?

Use GFCI-protected circuits, accessible shutoffs, and drip loops. Keep controls at 900–1200 mm height and ensure all edges around the basin are non-slip and gently radiused.
