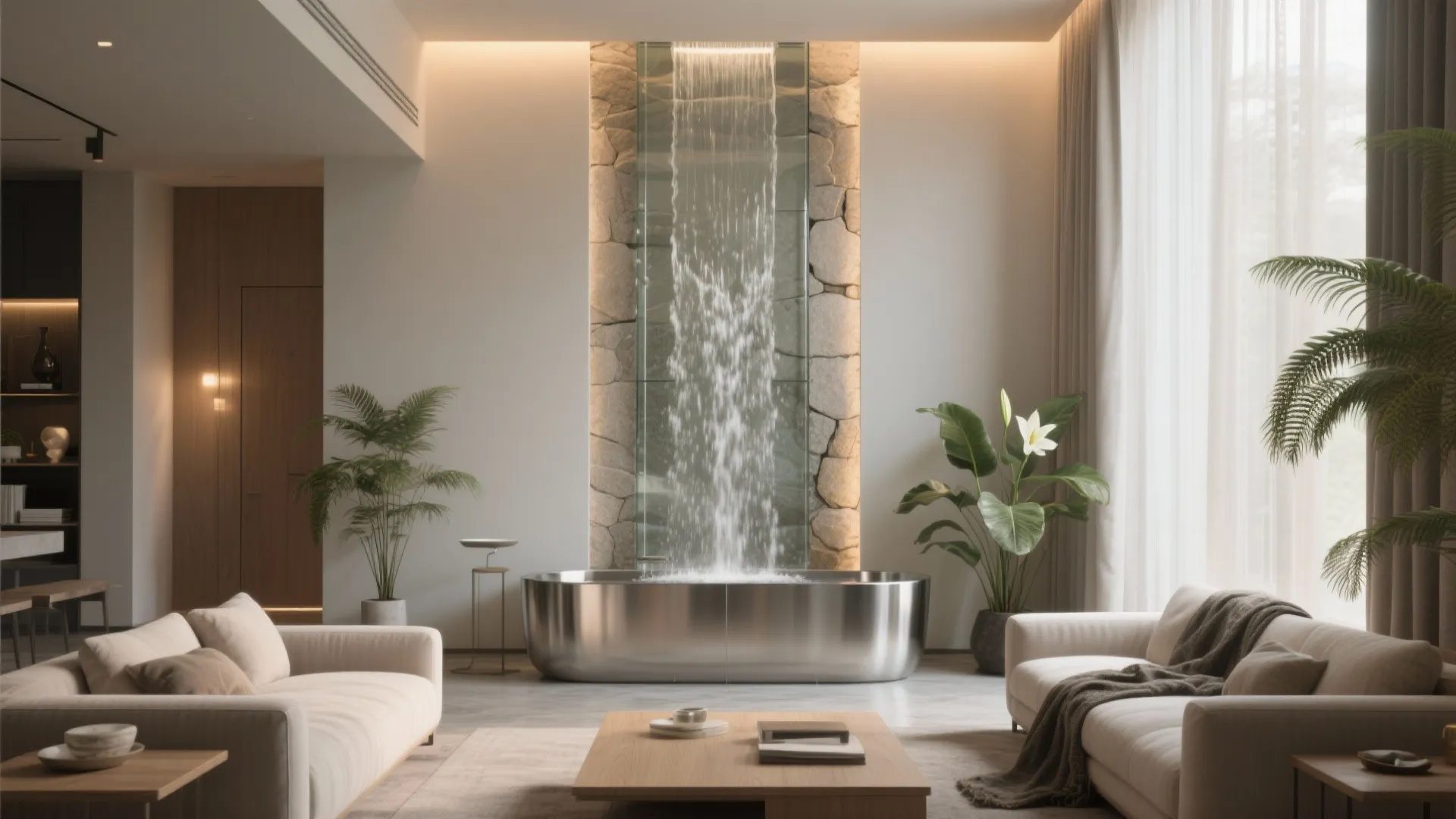

Waterfall Wall DIY: Transform Your Space with a Serene Feature: Fast-Track Guide to Creating a Stunning Waterfall Wall in 1 Hour

I’ve designed and installed multiple waterfall wall features in residences and boutique wellness spaces, and the transformation is consistently profound: calmer acoustics, richer texture, and a visually grounding focal point. Done well, a waterfall wall becomes the quiet heart of a room—balancing sound, light, and movement without overwhelming the architecture.

Ambient sound matters. Research from Steelcase indicates that uncontrolled noise is a top workplace stressor and a key driver of distraction, with workers spending significant time managing auditory interruptions. A small water feature can introduce a consistent, diffuse sound mask that reduces the perceived impact of sporadic noise. From a health perspective, WELL v2 points to sound masking and ambient noise control as essential components of healthy interiors; when mapped with proper reverberation targets, water’s broadband sound can help you maintain acceptable background levels without harsh mechanical noise (reference: v2.wellcertified.com).

Lighting also shapes perception. The Illuminating Engineering Society recommends ambient illumination in living areas typically around 100–300 lux, with task lighting calibrated higher depending on activity. A waterfall wall reads best within this ambient range, supplemented by warm accent lighting (2700–3000K) to highlight water texture without glare. Matching the water’s shimmer with controlled beam angles prevents specular hotspots and keeps visual comfort in check (IES standards: ies.org/standards).

Design Intent: What a Waterfall Wall Should Achieve

A great waterfall wall isn’t just a decorative add-on; it’s a sensory anchor. My goals: soften background noise, introduce gentle motion for visual pacing, and provide a tactile surface that invites approach without dominating the plan. The feature should align with circulation paths, frame seating zones, and reinforce the room’s spatial rhythm. In compact spaces, keep the feature narrow but tall to preserve floor area while amplifying vertical drama.

Site Selection and Layout Strategy

Pick a wall that can support plumbing and load. Avoid direct sun to minimize algae growth and glare. In living rooms, place the feature opposite seating so the sound reaches occupants indirectly rather than projecting straight toward them. In entry halls, set the wall to greet with a calm reveal from the doorway rather than an immediate splash. When modeling options, test clearances, sightlines, and splash zones with a layout simulation tool like the room layout tool: room layout tool. Aim for at least 28–36 inches of clear path around the basin for maintenance and comfortable circulation.

Dimensions, Proportions, and Visual Balance

I favor a width-to-height ratio between 1:2 and 1:3 for most living spaces—tall enough to feel architectural, narrow enough to keep cadence with adjacent millwork. If you’re integrating into a paneled wall, align the waterfall panel with existing verticals to avoid visual clutter. Consider a 48–60 inch width for medium rooms, with a projection no more than 8–12 inches for a flush, refined profile.

Materials: Panels, Finishes, and Sustainability

Choose a water-friendly panel: tempered glass for a crisp contemporary look, brushed stainless for durability, or large-format porcelain for a monolithic, low-maintenance face. Stone (slate or basalt) yields deep texture but requires vigilant sealing. Keep materials low-VOC and resilient; prioritize recycled-content stainless, and porcelain sourced from manufacturers with transparent environmental declarations. In wet zones, specify EPDM liners and corrosion-resistant fasteners. If you introduce wood trim, seal all end grains and use marine-grade finishes to prevent swelling.

Hydraulics and Basin Engineering

The magic is in water distribution. A full-width spillway with laminar weirs reduces sheet breakup. Include an adjustable flow valve to fine-tune sound levels. The basin should be dimensioned to minimize splash: at least 8–10 inches of water depth with a baffle to slow recirculation. Add a mechanical pre-filter and a fine biological filter to keep water clear. Use a submersible pump sized to lift the water column and maintain a steady sheet—typically 400–900 GPH for small residential walls, scaling up based on width and head height. Integrate a top-fill port and an auto top-off float to keep the system stable.

Acoustic Comfort: Tuning the Sound

Target a soft, consistent wash rather than a loud cascade. Too much fall height increases splash and raises sound pressure levels beyond comfortable ranges. Keep the drop shallow and the sheet laminar to create an even acoustic bed. If the room is lively (hard floors, sparse upholstery), pair the feature with acoustic rugs or wall panels to control reverberation. This balances the calming water sound with overall speech intelligibility.

Lighting: Color Temperature, Beam Control, and Glare

Accent with warm white LEDs around 2700–3000K to enhance the water’s amber highlights. Use narrow beams to graze the surface and a secondary soft wash above to reveal depth. Position fixtures at oblique angles to the water plane; perpendicular angles create specular glare. Dimming is essential. Tie accent lights to a separate circuit or smart dimmer so evening scenes can drop to 10–20% output while maintaining visibility.

Ergonomics and Human Factors

A waterfall wall naturally attracts people. Keep controls reachable at 42–48 inches above the finished floor. Provide a safe, stable maintenance stance; avoid slippery finishes within the reach area. If the home includes neurodiverse occupants or those sensitive to auditory stimuli, keep the flow adjustable so the sound level can be moderated. Maintain tactile contrasts around edges—subtle chamfers or textured trims—to communicate boundaries.

Construction Steps: From Framing to Finish

1) Frame the niche or surface-mount structure with moisture-resistant studs and sheathing. 2) Install a waterproof membrane (sheet or liquid-applied) over the entire assembly. 3) Set the basin with an EPDM liner, integrated drain, and access panel. 4) Run dedicated electrical (GFCI) for the pump and lighting; add a service switch nearby. 5) Plumb the recirculation loop with flexible PVC or PEX to the top spillway; include isolation valves and unions for easy service. 6) Mount the panel (glass/stone/porcelain) with concealed brackets; check plumb meticulously for a uniform sheet. 7) Integrate the spillway, test flow at low rate, and tune weirs. 8) Seal all transitions and commission with filtered water, then balance pump speed and lighting.

Safety, Codes, and Maintenance

Use GFCI-protected circuits and UL-listed pumps/fixtures. Provide a discreet child-safe cover if the basin is accessible. Maintenance is straightforward: clean pre-filters monthly, refresh water as needed, and treat with aquarium-safe biocide to prevent algae. Inspect seals quarterly. If using stone, reseal annually. Keep the sound stable by avoiding mineral buildup along the spillway—wipe and descale as required.

Styling and Integration

Complement the water feature with low, soft seating and natural textiles. Plants that favor humidity—ferns, peace lilies—thrive nearby and deepen the biophilic effect. In minimal rooms, keep décor restrained so the water remains the primary motion. In eclectic settings, pair the feature with textured ceramics and matte metals for a layered, tactile narrative.

Budget and Phasing

Expect a broad range depending on materials and custom fabrication. A modest glass or stainless system with a clean basin can be achieved on a tighter budget, while custom stonework and integrated lighting will lift costs. Phase the build if needed: rough-in framing and utilities first, then add the panel and lighting, and finalize with the spillway and finish trims as the last step.

Common Mistakes to Avoid

Oversized pumps cause harsh acoustics and splash. Neglecting waterproofing leads to long-term damage. Poor lighting angles introduce glare. Inadequate access makes maintenance frustrating. Most importantly, avoid placement that conflicts with main circulation; the feature should guide movement, not block it.

FAQ

Q1: How loud should the waterfall wall be?

A: Keep the perceived sound at a gentle background level that masks intermittent noise without overpowering conversation. Adjustable flow valves help tune loudness, and pairing with soft furnishings manages overall reverberation.

Q2: What lighting works best for water features?

A: Warm LEDs (2700–3000K) with controlled beams. Graze the surface at oblique angles to avoid glare, and use dimmers for evening scenes.

Q3: Which materials are lowest maintenance?

A: Brushed stainless and large-format porcelain resist staining and algae better than textured natural stone. If you choose stone, commit to regular sealing.

Q4: How do I prevent splash?

A: Use a laminar spillway, keep the drop shallow, and size the basin deeper with baffles. Tune pump speed to maintain a smooth sheet.

Q5: Can a waterfall wall improve acoustics?

A: Yes, a consistent water wash can serve as gentle sound masking. Research from Steelcase highlights noise as a key distractor; a well-tuned feature helps soften its impact.

Q6: What are the electrical safety requirements?

A: Dedicated GFCI-protected circuits, UL-listed pumps and fixtures, and accessible shutoff. Keep wiring outside wet zones and add drip loops.

Q7: How often should I service the system?

A: Check filters monthly, wipe spillways to prevent mineral buildup, replace or treat water as needed, and inspect seals quarterly. Reseal stone annually.

Q8: Is it suitable for small apartments?

A: Yes—choose a tall, narrow format (1:2 or 1:3 ratio) to conserve floor space. Model clearances with an interior layout planner to maintain circulation.

Q9: What pump size should I choose?

A: For small residential walls, 400–900 GPH is common, but size to your width and head height. Select a quiet, efficient pump with adjustable flow.

Q10: Will direct sunlight cause issues?

A: It can promote algae and glare. Place the feature away from strong sun or use shading and regular water treatment to keep it clear.
