I’ve designed and built more than a dozen backyard grill stations, and the best ones share a simple truth: a great Weber table isn’t just a surface—it’s a workflow. When prep, cook, rest, and serve happen in a smooth sequence, outdoor cooking feels effortless and safe. To ground that idea, I map the station around reach zones, glare-free lighting, and proper clearances so tools live where hands naturally go and hot surfaces stay out of traffic.

Two data points shape my baseline layout. First, WELL v2 recommends task lighting around 300–500 lux for food prep, which prevents knife errors and eye strain at dusk. Second, Steelcase research on work zones shows that minimizing cross-traffic reduces errors and fatigue; translated outdoors, keeping the grill’s hot zone separated from the prep and serve zones cuts mishaps when the patio gets crowded. I design with those thresholds in mind and add dimmable, warm-white lighting to maintain visibility without glare.

Height and reach matter as much as heat. Ergonomic guidance commonly places working counters between 36–38 inches high for most adults, with primary tools within 20–24 inches of reach to limit awkward posture. In my builds, the Weber cooktop lip serves as the reference: the adjacent prep counter matches or is 1 inch lower for easier chopping and sliding trays. I use 24–30 inches of uninterrupted landing space on each side of the grill for safety and staging, and maintain at least 12 inches of buffer from any combustible edge. For planning and testing traffic flows on a small patio, a layout simulation tool from Coohom helps visualize grill clearances, prep landings, and seating patterns before you commit.

Plan Your Zones

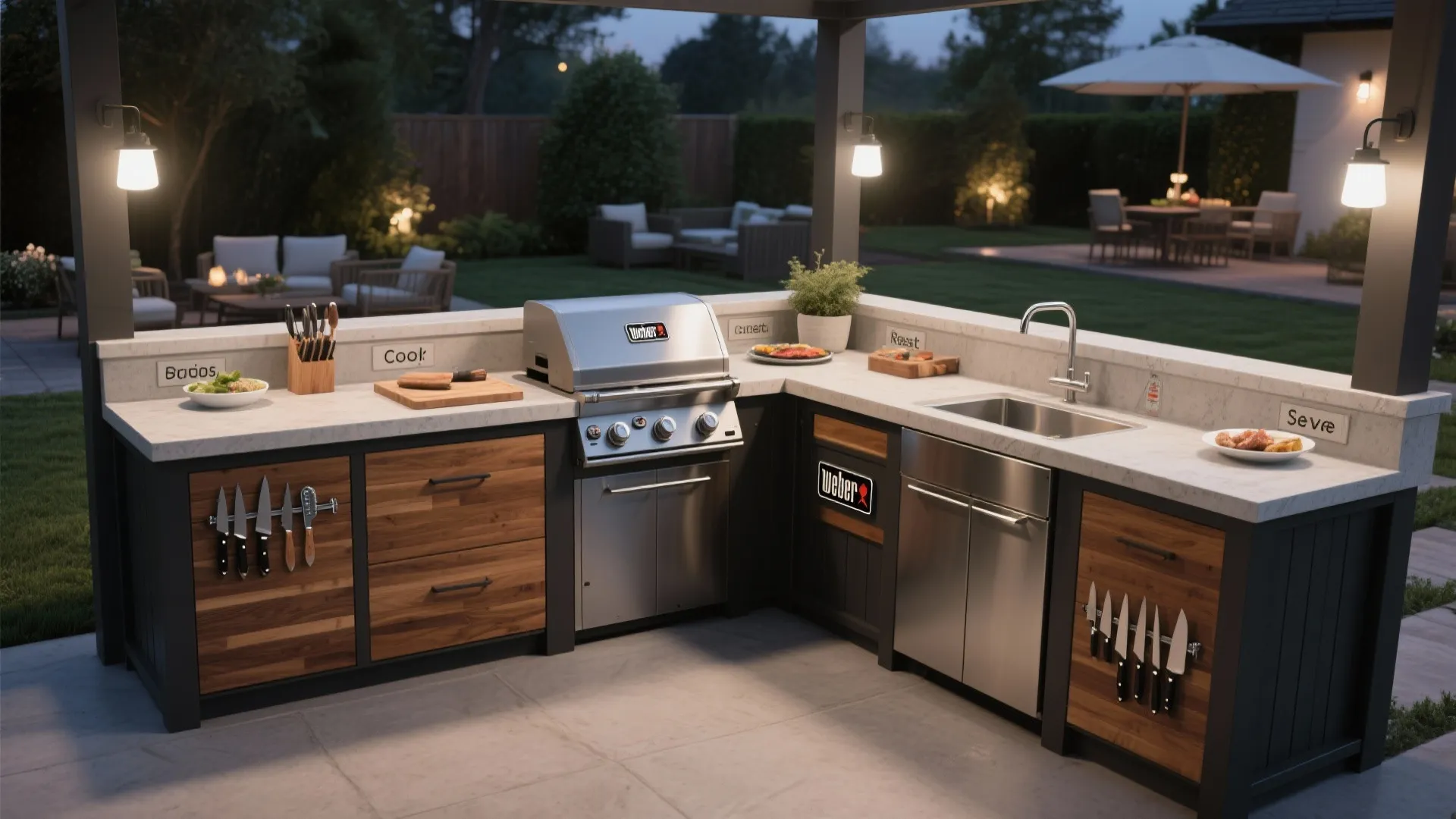

I break the station into four zones: Prep, Cook, Rest, Serve. Prep sits upwind and closest to water; Cook centers on the Weber body with tool hooks and thermometers; Rest is a warm, clean landing area for proteins; Serve finishes near seating with sauce and plating space. This sequence reduces backtracking and keeps smoke away from guests. If your yard funnels wind from one direction, rotate the Cook zone so the prevailing breeze carries smoke away from Prep and Serve.

Standard Dimensions for Weber Models

Measure your specific Weber kettle or gas unit, then frame the table to those dimensions. For kettles, I allow a 2–3 inch perimeter air gap around the bowl and lid swing, plus a 6–8 inch fire-safe buffer to any vertical panel. For gas models, respect manufacturer clearances to combustibles; maintain 24 inches behind the lid for full open range. Counter depth: 24 inches works for prep; 30 inches if you rely on large cutting boards and pans. Landing zones left and right: 18–24 inches each. Tool rails sit 10–12 inches below counter height to avoid overhang snags. Waste and ash storage lives under Prep, away from propane or charcoal storage.

Materials and Weather Strategy

Outdoors punishes weak materials. I lean on powder-coated steel frames or marine-grade plywood with a proper finish. Countertops: sealed concrete, porcelain slabs, or dense hardwoods like ipe perform well; sealed butcher block is acceptable if you commit to maintenance. Fasteners and hinges should be stainless steel. For heat deflection, add a non-combustible panel—cement board with a metal skin—behind the grill body. A ventilated back helps relieve heat buildup, and storm-rated covers keep the works clean.

Ergonomics and Safety

Good posture prevents fatigue. I optimize counter height to your reach: taller cooks benefit from 37–38 inches; shorter cooks from 35–36 inches. Knives live on magnetic racks at eye level to avoid drawer rummaging, and tongs hook along the Cook zone front rail. Maintain at least 36 inches of clear aisle behind the grill for safe lid operation. For fuel, keep propane cylinders vented and shaded, never directly beneath burners. Charcoal storage sits dry and sealed, away from moisture and grease. A class K or multi-purpose fire extinguisher should be reachable within 10 feet.

Lighting for Dusk and Night Cooks

Even the best grills are frustrating in poor light. I aim for 300–500 lux over the Prep zone in warm white (2700–3000K), keeping the grill face free of glare with shielded, adjustable heads. Under-shelf LEDs illuminate tools without shining into eyes. Task lighting should be dimmable to adapt from sunset ambiance to full prep mode. If you’re wiring new lines, route through waterproof junctions and use outdoor-rated fixtures.

Acoustics and Social Comfort

Backyard kitchens live among conversation. I avoid hard, reflective walls near the station to limit clatter and sharp echoes. If you have a narrow patio, soft surfaces—outdoor rugs, planters, or wood slats—help absorb sound so guests don’t feel shouted at. The Serve zone should face seating so verbal cues carry without turning and moving hot trays.

Workflow Details That Make It Sing

The small moves matter. A 1–2 degree slope in countertops drains rainwater. A raised lip prevents cutting boards from sliding. Tool hooks labeled by function beat a messy bin. Thermometers and timers clip to an eye-level bar within 20 inches of your dominant hand. Keep raw and cooked trays color-coded; raw on the left, cooked on the right. A tray-width channel under the counter stores boards upright and dry. Consider a narrow pull-out bin for recyclables near Serve.

Build Steps: Frame to Finish

1) Measure your Weber and define clearances. 2) Sketch zones and confirm traffic with a room layout tool. 3) Build the frame: powder-coated steel or treated lumber with cross bracing. 4) Install non-combustible backer near the grill bay. 5) Set countertops and verify heights and slopes. 6) Add storage: drawers for tools, closed cabinet for charcoal, vented bay for propane (if applicable). 7) Mount hooks, magnetic knife strip, and thermometer bar. 8) Wire lighting with outdoor-rated fixtures. 9) Seal, test for heat, check lid clearance, and run a full cook rehearsal.

Color Psychology Outdoors

Color influences appetite and mood. Warm neutrals and wood tones feel welcoming without pushing body heat perception higher. A deep charcoal frame grounds the station visually and hides smudges. Accents in muted reds or terracotta suggest warmth and food readiness without skewing lighting color rendering. Keep work surfaces light enough to show food color accurately.

Sustainability Choices

I prioritize materials that last and are repairable. Stainless steel fasteners, modular shelves, and sealed hardwoods extend lifecycle. For concrete, choose mixes with supplementary cementitious materials to reduce embodied carbon. Drip channels and grease trays make cleaning efficient, reducing harsh chemical use. If you add a small sink, route greywater responsibly and use high-efficiency spray heads.

Seasonal Maintenance

At the end of peak season, deep-clean the station: degrease metal, re-seal wood, check fasteners, and replace worn gaskets. Inspect lighting seals and tighten junction boxes. Verify that ash and grease bins are empty before storage. In winter, prop open doors slightly to prevent moisture buildup and mold.

Frequently Used Accessories

Essential add-ons include a heat-resistant resting board, instant-read thermometer, tong holsters, and a grill-side splash guard. If you smoke often, integrate a small dedicated rest shelf to keep probes organized. For gas models, a quick-disconnect and shut-off valve make seasonal changes safer.

FAQ

Q1: What counter height works best for a Weber grill station?

A1: Most adults are comfortable at 36–38 inches for prep. I match the prep counter height to the grill rim or drop it by 1 inch to make chopping and tray sliding easier.

Q2: How much landing space should I leave on each side of the grill?

A2: Plan 18–24 inches of clear counter on both sides for tools, trays, and safety. Add more if you routinely cook for groups larger than six.

Q3: What lighting level prevents mistakes at dusk?

A3: Target 300–500 lux in warm white (2700–3000K) over prep. Shield the grill face to avoid glare while checking doneness. Guidance aligns with WELL v2 lighting recommendations.

Q4: Which materials stand up to heat and weather?

A4: Powder-coated steel frames, sealed concrete or porcelain countertops, and stainless fasteners perform well. Dense hardwoods like ipe are durable if you maintain the finish.

Q5: How do I control smoke direction?

A5: Orient the Cook zone so prevailing winds carry smoke away from Prep and seating. A simple windsock test (or observing local patterns) helps set the station angle.

Q6: What safety clearances should I follow?

A6: Keep at least 12 inches from combustibles around the grill edge, 24 inches behind the lid for full opening, and 36 inches of aisle behind. Store propane in a ventilated, shaded bay.

Q7: Any tips to reduce noise around the station?

A7: Use soft surfaces—outdoor rugs, planters, wood slats—to absorb sound. Avoid hard right-angle corners close to the grill to reduce clatter and echoes.

Q8: How should I organize tools for speed?

A8: Mount a magnetic knife strip at eye level, place tong hooks along the front rail, and keep thermometers within a 20–24 inch reach zone. Label hooks so tools return to the same spot.

Q9: Can I integrate a sink?

A9: Yes. Position it on the Prep side, upwind of the grill. Use outdoor-rated plumbing hardware and plan for greywater management or local code-compliant connections.

Q10: What’s the best way to plan my layout before building?

A10: Test circulation and clearances with an interior layout planner. It lets you simulate landing areas, aisle widths, and seating before committing to materials.
