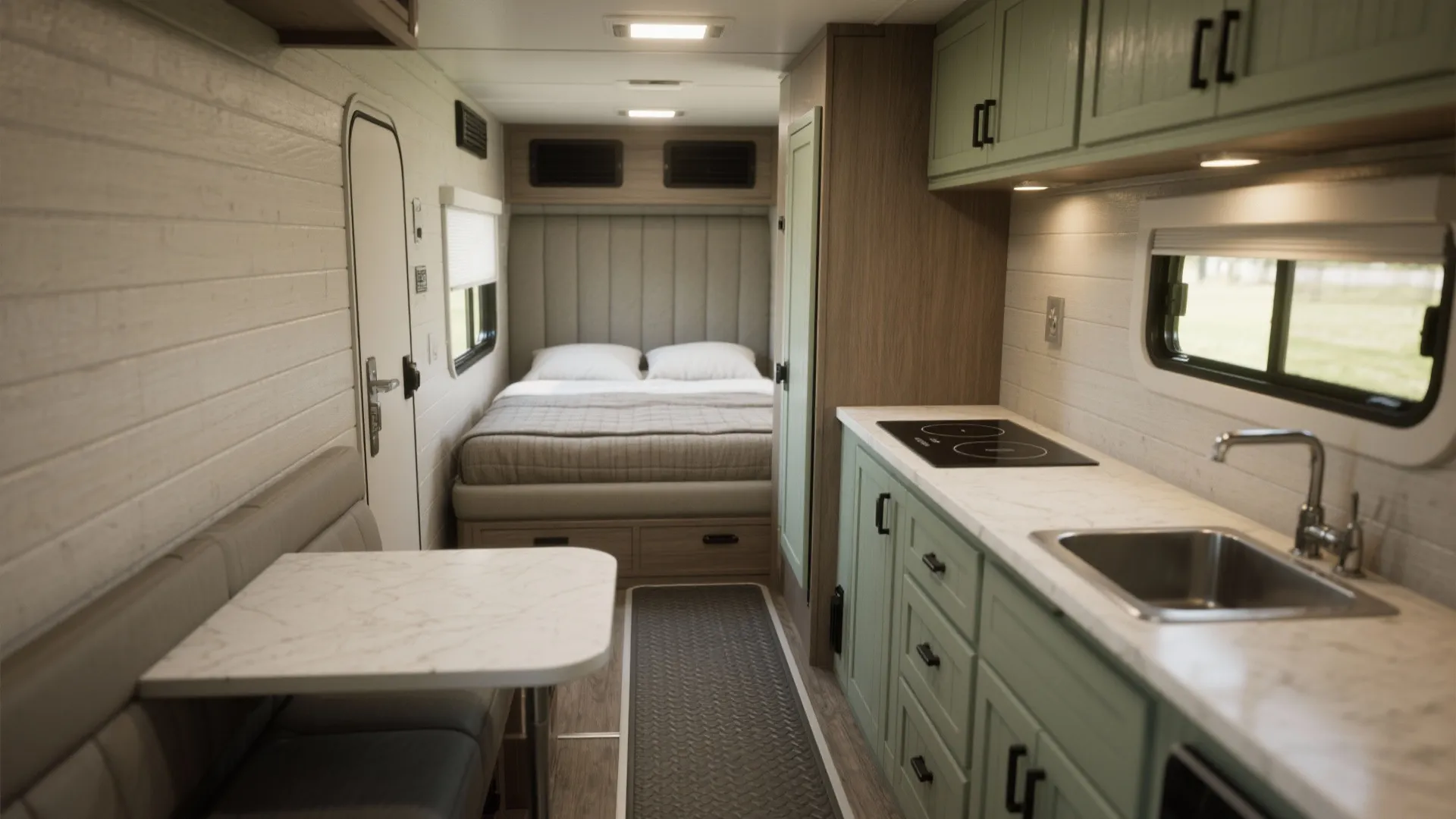

Weekender Small Living Quarters Horse Trailer Design Ideas: 1 Minute to Smarter, Comfier Horse Trailer Living Quarters

I’ve designed and refitted a range of small living quarters horse trailers, and the sweet spot is always the same: a compact, calm, easy-clean environment that supports short trips without feeling cramped. A weekender setup needs a reliable sleep zone, a galley that actually works at a rest stop, and storage that doesn’t steal headroom or add rattling weight.

Scale matters. Research from Steelcase shows that perceived control over space significantly improves comfort and satisfaction; in small environments, that translates to flexible furniture and intuitive storage that keep surfaces clear. Lighting is equally critical: the Illuminating Engineering Society (IES) recommends task lighting in the 300–500 lux range for kitchen prep and reading, while ambient zones can sit closer to 100–200 lux for rest. Get those ratios right and a 12–14 ft LQ can feel larger and calmer.

Thermal comfort and ergonomics drive usability on the road. WELL v2 guidelines emphasize temperature and acoustic control for wellbeing in compact interiors, while Herman Miller research links posture support with reduced fatigue—vital when a bench cushion doubles as a workstation. I design seat heights at 17–18 inches, counters at 34–36 inches, and clear pass-throughs at a minimum of 24 inches to keep movement fluid, even with boots on.

Layout Strategies for a 12–14 ft Weekender

For most two-horse bumper pulls with a small LQ, I favor a curbside galley, streetside storage and utilities, and a forward sleeping berth. If you’re pre-planning a shell or mapping a retrofit, a lightweight room layout tool helps simulate door swings, slide-outs (if any), and knee-clearance for dinette conversions.

Front Sleep Berth

- Go with a short queen or RV full-size mattress with breathable, removable cover. Leave 18–20 inches kneeling clearance at the foot for making the bed.

- Integrate a shallow headwall niche with dimmable reading lights (300–400 lux) and dual USB-C/AC outlets. Use fabric-wrapped headboard panels to absorb road noise without adding bulk.

Curbside Galley

- A 24–30 inch run with a single-bowl sink, induction hob, and flip-up work leaf maximizes prep without blocking the aisle. Induction reduces heat load and is safer while stationary.

- Overhead cabinets at 10–12 inches deep prevent head bumps; store heavier items in toe-kick drawers or low lockers for lower center of gravity.

Convertible Seating

- A streetside bench-dinette converts to a single sleeper. Target 24 inches seat depth with 6–7 inches cushion thickness and medium-firm foam. Hidden storage under the bench should allow full-bin removal without contortions.

Compact Wet Bay

- If you opt for a wet bath, keep it 24–28 inches wide with a pocket door to avoid swing conflicts. A molded shower pan with integrated threshold doubles as a boot tray when not in use.

Light, Color, and Acoustics That Calm the Cabin

Lighting layers do the heavy lifting in a compact trailer. Use warm-white ambient LEDs around 3000–3500K to soften metal surfaces, then elevate task zones (cooktop, reading) to 300–500 lux with glare-shielded fixtures. I place night lights at ankle height to avoid waking the horse with sudden brightness when you step out.

Color psychology favors low-chroma neutrals to reduce perceived clutter. Soft greige walls, matte sage or sand cabinetry, and a single accent (charcoal hardware or a woven runner) keep cognitive load low. According to Verywell Mind’s overview of color psychology, balanced, muted palettes reduce stress and visual fatigue, which matters after a long haul.

Sound is as important as sight. Add mass-loaded vinyl underlayment in the LQ floor and acoustic fabric panels on selective wall areas to mute road vibration. Use rubber isolation grommets where cabinet boxes meet the frame to cut rattles.

Storage That Travels Well

- Use full-height pantries with 12–14 inch deep shelves and soft bungees across the front to prevent shift. Label cubbies for quick reset at camp.

- Add ceiling nets only where headroom allows; otherwise, go for shallow overheads and prioritize under-bench drawers on locking slides.

- Create a mud zone by the entry with a drip tray, wall hooks rated for 35–50 lb, and a vented boot locker.

Materials and Finishes Built for the Road

- Walls: Lightweight composite panels with wipeable matte finish reduce glare and scuffs. Corner guards at high-contact edges are non-negotiable.

- Floors: Woven vinyl or coin rubber for grip and easy cleaning; add a removable woven runner for warmth.

- Counters: Compact laminate or lightweight solid-surface; radius the front edge for comfort in tight aisles.

- Hardware: Compression latches and positive catches throughout. Use marine-grade hinges and aluminum frames to control weight.

Ventilation, Thermal, and Safety Basics

I integrate cross-venting—roof fan with reversible flow and a low intake vent near the galley. Insulate with closed-cell foam for thermal stability and condensation control, and specify window shades with reflective backing for sunny sites.

Place a combo smoke/CO alarm near the sleeping berth, a fire extinguisher by the entry, and hard-mount a first aid kit. Non-slip stair treads at the door keep things surefooted when you’re in spurs or mud.

Electrical and Water Planning

- Electrical: LED throughout, with two circuits—ambient and task—on separate dimmers. Pre-wire for a 200–300W portable solar panel and a DC-DC charger from the tow vehicle. Keep inverters ventilated and accessible.

- Water: A 15–25 gallon fresh tank is adequate for weekenders; pair with a low-flow spray head and on-demand water heater. Use PEX with crimp fittings for vibration resistance and easy service.

Ergonomics and Human Factors in Tight Quarters

Small doesn’t mean uncomfortable. I aim for: 24 inch clear aisle; 30 inches in front of the galley; 15 inches toe-kick depth for steadier balance; and 34–36 inch counter height. For seating, lumbar-friendly back angles (100–110 degrees) reduce fatigue. Research summarized by Herman Miller highlights the benefits of proper seat geometry on endurance—valuable after a full day riding and driving.

Weekend-Ready Floor Plans

- Single Berth + Dinette: Permanent front bed, compact curbside galley, streetside dinette converting to a twin. Best for solo travelers or partners who prefer a fixed bed.

- Bunk-Friendly: Add an upper fold-down bunk above the dinette for an extra sleeper without stealing aisle space.

- Wet Bay Compact: Integrate a wet bath opposite the galley, maintaining a 24 inch corridor; pocket door to avoid interference. Use an interior layout planner to test clearances before committing—an online interior layout planner lets you try variations without guesswork.

Aesthetics with Purpose

Keep the palette breathable—matte finishes to cut glare, textured weaves to hide dust, and a single statement element like a slatted wood headboard or stitched leather pulls to elevate the feel without adding weight. Layer a washable wool blend throw for thermal comfort and tactility.

Budget and Weight Tips

- Prioritize structure, insulation, and lighting quality. You’ll feel these every mile.

- Save on drawer quantity; use modular bins behind doors with stay-puts.

- Track tongue weight as you add components. Distribute heavy items low and over the axle line to keep handling predictable.

Quick Spec Checklist

- Ambient 3000–3500K LEDs; task 300–500 lux with glare control

- 24 inch minimum aisle; 34–36 inch counters; 17–18 inch seating height

- 15–25 gallon fresh tank; reversible roof fan; reflective window shades

- Compression latches; marine hinges; coin rubber or woven vinyl flooring

- Composite wall panels; radius-edge counters; acoustic fabric accents

FAQ

How big should a weekender living quarters be?

For one to two people, a 12–14 ft LQ segment is workable with a fixed bed, compact galley, and convertible dinette. Maintain a 24 inch minimum aisle to keep movement comfortable.

What lighting levels work best in a small trailer?

Use warm ambient light around 100–200 lux for relaxation, and 300–500 lux task lighting for prep and reading, aligned with IES recommendations for task performance.

Is a wet bath worth the space?

If you camp frequently without facilities, yes. Keep it narrow (24–28 inches), use a pocket door, and let the shower pan double as a mud tray to justify the footprint.

Which materials hold up to vibration and dirt?

Composite wall panels, coin rubber or woven vinyl floors, compact laminate counters, and compression latches. These resist scuffs, clean fast, and won’t rattle loose.

How do I manage heat and condensation?

Closed-cell foam insulation, a reversible roof fan plus low intake, and reflective shades. Cross-venting prevents stale air and reduces moisture build-up.

What colors make small trailers feel bigger?

Low-chroma neutrals like greige, sand, or sage in matte finishes reduce glare and visual noise. Color psychology research suggests muted tones lower stress and perceived clutter.

Any tips for safe storage on the move?

Keep heavy items low and near the axle, use locking slides, add soft bungees across open shelves, and specify positive latches on every door and drawer.

How can I power off-grid weekends?

LED lighting, a 100Ah house battery with DC-DC charging from the tow vehicle, and a 200–300W portable solar panel cover essentials like lights, fans, and device charging.

What seat and counter heights reduce fatigue?

Seat height at 17–18 inches with a back angle around 100–110 degrees, and counter height at 34–36 inches. These dimensions align with ergonomic best practices and feel natural in boots.

How do I keep noise down for the horse?

Decouple cabinets with rubber grommets, add mass-loaded vinyl under the LQ floor, and use fabric panels on select walls to absorb high-frequency rattles.
