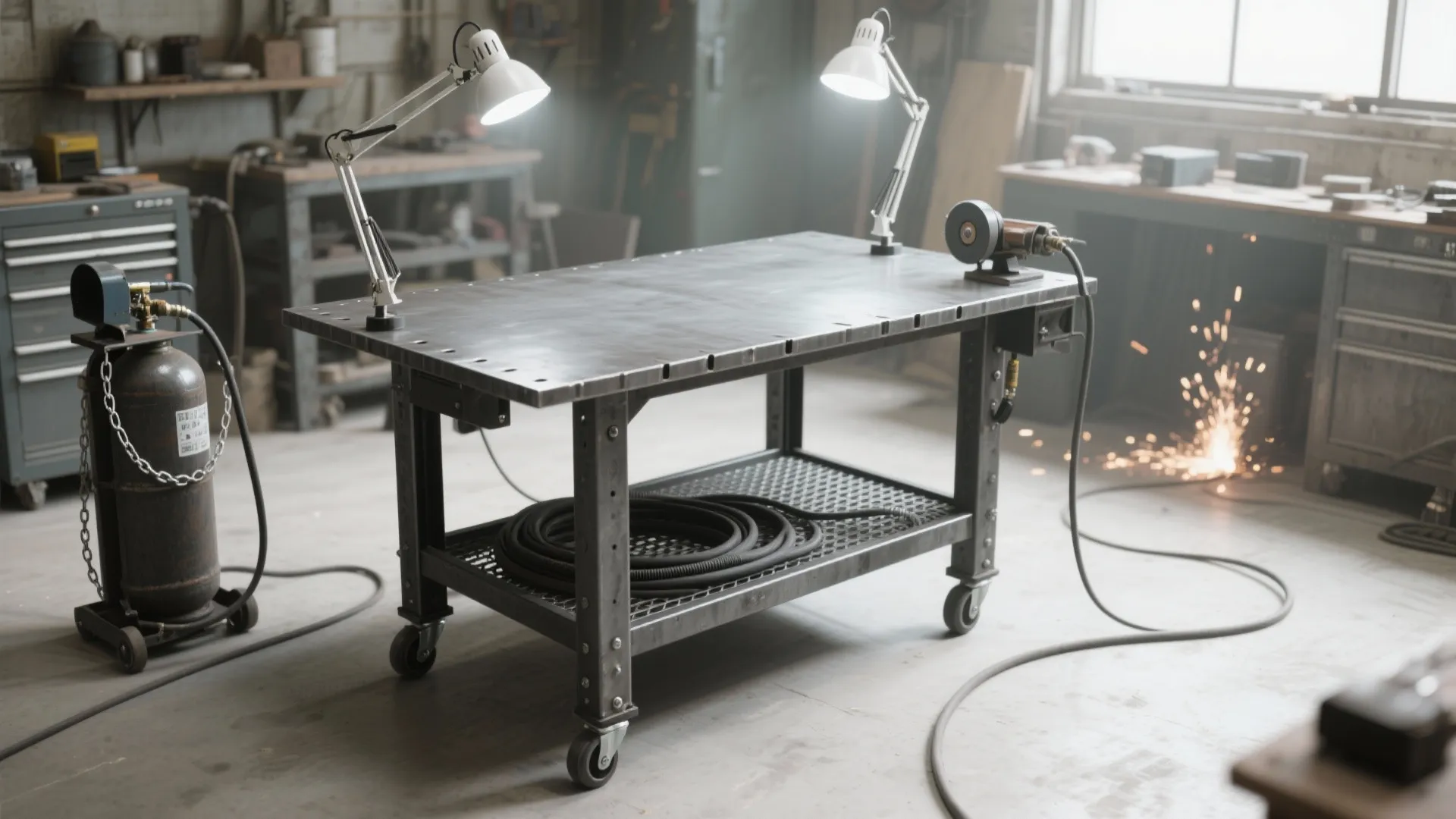

Welding Table DIY: Build a Professional Workspace at Home: 1 Minute to a Sturdy Welding Table—Build Fast, Save More

I’ve built and tuned more than a dozen welding tables for small shops and home studios, and the best ones share a balance of stiffness, flatness, ergonomics, and clean cable/air management. A solid DIY welding table doesn’t need to be expensive—what it needs is the right structure, a plan for heat and sparks, and a workflow that keeps you moving safely and efficiently.

Before diving into materials, anchor the design in proven performance and safety benchmarks. The WELL v2 concept for lighting recommends maintaining task illuminance around 300–500 lux for fine work; welding prep and measurement fall in that range, while arc work relies on the helmet’s filter lenses and task lights positioned outside the glare path (source: WELL v2). Steelcase research highlights how ergonomic reach zones reduce fatigue and errors; keeping frequently used tools within 18–24 inches of the primary hand reduces unnecessary motion and improves flow (source: Steelcase Research).

In my own shops, simple changes like raising the table surface from 33" to 36" for standing posture cut back strain dramatically. I set a clear rule of thumb: plan the table around your dominant workflow—tack and fit on the flat, clamp and square on the edges, grind at a sparking corner—and route cables and air lines so they never cross your foot path.

Structure and Dimensions: Flatness, Mass, and Modularity

For most home welders, a 30"–36" × 60"–72" footprint hits the sweet spot—big enough for frames and brackets, small enough to maneuver in a garage. Aim for a top made from 3/8"–1/2" mild steel plate for stiffness and thermal mass. If plate isn’t available, stitch-weld a grid of 2" × 2" × 1/4" angle or 2" × 3" × 1/8" rectangular tubing under a 1/4" plate, checking flatness with a straightedge and feeler gauges. Keep the tolerance within 0.5–1.0 mm across the diagonal; you’ll notice the difference when squaring.

Legs should be 2" × 2" × 3/16" tube or heavier with cross-bracing. Add gussets at the corners and a lower shelf frame to resist racking. If you plan to move the table, install industrial casters rated for at least 1.5× your table’s weight and include two locking, two swivel units. Otherwise, go with adjustable leveling feet on isolation pads to stabilize and reduce vibration.

Tabletop Options: Slotted, Gridded, or Solid Plate

A slotted top with 16–22 mm holes on a 50–100 mm grid provides flexible fixturing for clamps and stops. I like a 100 mm grid with M16 tooling—it’s a good compromise for home use. If you’re building a solid plate top, weld or bolt on peripheral rails with tapped holes every 100–150 mm for custom jigs and angle stops. Mark a centerline and 100 mm grid lightly with a scribe; it speeds up repetitive setups without committing to a full perforated system.

When planning hole patterns and accessory reach, a room layout tool helps visualize clearances around the table, grinder stand, and gas bottle station before you drill and weld.

Ergonomics: Height, Reach, and Posture

Set the top height to match your primary stance. For standing MIG/TIG, 34"–36" reduces back flexion; for seated TIG, 30"–32" with a footrest works well. Keep clamps, squares, and a chipping hammer within the primary reach zone—roughly a forearm’s length from your neutral stance. Steelcase’s research on reach ergonomics reinforces this proximity principle, which translates directly to fewer interruptions and less micro-strain during repetitive tack cycles.

Plan a tool rail along the table’s long edge and a magnetic strip for smaller hand tools. If you frequently switch between processes, segment the table into zones: prep and layout at the left third, tack and assemble in the center, and grinding at the right corner with a spark guard. This zoning reduces cross-over and keeps your cables off the floor.

Lighting, Glare Control, and Visual Comfort

Arc brightness is handled by your helmet, but the rest of the shop should meet task lighting standards without introducing glare. Target 300–500 lux on the table surface for prep work, per lighting guidance aligned with WELL v2 task illuminance. Use neutral white 4000–4500 K fixtures to maintain color fidelity for heat tint and bead inspection, and mount fixtures at 30–45° to the surface to avoid specular reflections directly into your eyes.

Install an adjustable task light with a shielded head for layout. I keep one angled over my grid marks and another lower on a flexible arm for joint inspection. If you weld stainless or aluminum often, add a high CRI source to improve visual differentiation of heat-affected zones.

Clamping, Fixturing, and Squaring

A good table earns its keep with fast clamping. Stock a mix of toggle clamps, deep-throat C-clamps, and F-style bar clamps. Keep a pair of 6" and 12" machinist squares, a calibrated straightedge, and a set of magnetic angles. Weld-on dog stops or drop-in bench dogs speed repeatable work. For heavy frames, build removable edge fences from 2" × 2" × 1/4" angle with slotted holes so you can micro-adjust squareness before final tacks.

To maintain flatness over time, stitch your fixtures and avoid continuous welds that can warp the top. If you do need to attach permanently, alternate sides and let the plate cool between passes.

Spark, Heat, and Fire Safety

Designate a grinding corner with a steel spark guard and a non-combustible floor mat. Store flammables away from the spark path and keep a Class ABC extinguisher within reach. Route cables and leads under the table through grommeted holes or hangers; avoid trip lines. Keep your gas cylinder chained to a dedicated stand or the table leg with a bolted bracket. For hot work on thin plate, a sacrificial chill bar reduces distortion.

Ventilation matters. Even in a garage, use local extraction near the arc and grinding area. Your helmet handles light, not fumes. Position a fan to push fresh air across the work and capture with a hood behind the table—never aim a strong fan directly at the arc.

Surface Finishing and Maintenance

Deburr edges and chamfer the top perimeter to prevent knuckle hits. A light coat of high-temperature oil or paste wax helps resist rust without contaminating welds—apply sparingly and wipe down before critical TIG work. Keep a dedicated brass brush for aluminum, stainless brush for stainless, and clean them often. Periodically check flatness with a straightedge and record your measurements; if the table drifts, re-level the feet or shim the subframe.

Storage, Power, and Air Management

Build a lower shelf from expanded metal for slag fall-through and airflow. Add a drawer for consumables—tips, nozzles, collets—and a divided bin for abrasives. Set two GFCI-protected outlets on the table’s side, routed through flexible conduit, and a quick-connect for air. Cable hooks keep MIG leads off the deck, and a retractable hose reel keeps the floor clear.

Layout Planning and Workflow Simulation

Before you commit, map the cell: table centerline, grinder stand, material rack, and cylinder zone. Maintain at least 36" circulation around the table for safe movement and 48" if you roll large frames. To visualize clearances and working triangles, use an interior layout planner like this room design visualization tool to simulate reach and cable paths.

Material Choices and Sustainability

Mild steel remains the practical choice for tops and frames, but consider reclaimed plate or structural offcuts. Expanded metal for shelves reduces weight and lets grit fall away. If you add wooden drawers, choose hardwood fronts with fire-retardant coatings and keep them outside the spark trajectory. Design for disassembly—bolt-on rails and replaceable top strips extend lifespan and cut waste.

Step-by-Step Build Outline

1) Cut and prep: square all tube ends, deburr the plate. 2) Assemble the frame: tack legs, check diagonals, add cross-braces. 3) Mount the top: use countersunk bolts or stitch welds, verifying flatness after each pass. 4) Add gussets and shelves: tie corners and install the lower rack. 5) Drill grid or install rail holes: mark accurately, use a jig. 6) Fit leveling feet or casters. 7) Wire outlets and mount hooks. 8) Final lighting and spark guard. 9) Layout your tool zones and test a sample project—adjust before you commit to permanent fixtures.

FAQ

What table height works best for home welding?

For standing work, 34"–36" is comfortable for most people; for seated TIG, 30"–32" with a footrest reduces strain. Adjust 1–2" based on your body height and preferred posture.

Do I need a perforated top with a grid of holes?

No. A solid plate with rail-mounted tapped holes every 100–150 mm and removable edge fences covers 80% of home projects. Perforated systems add flexibility but also cost and drilling effort.

How flat should the table be?

Keep variance under 0.5–1.0 mm across the diagonal. Use a long straightedge and feeler gauges, and correct by shimming the subframe or re-leveling feet.

What lighting setup is safest around a welding table?

Provide 300–500 lux task lighting for prep and inspection, with neutral white 4000–4500 K fixtures and shielded task lights angled to avoid glare. The helmet manages arc brightness; shop lights should support everything else.

How do I control sparks and fire risk?

Establish a grinding corner with a steel spark guard, keep flammables out of the spark path, use a Class ABC extinguisher, and route cables off the floor. Ventilate with local extraction near the work area.

What clamping tools are essential?

F-style bar clamps, deep-throat C-clamps, toggle clamps, machinist squares, magnetic angles, and a straightedge. Add bench dogs or weld-on stops for repeatability.

Should I put casters on my welding table?

Casters are convenient but can compromise rigidity. If you use them, choose industrial casters rated at least 1.5× the table’s weight and combine two locking and two swivel units. Otherwise, leveling feet provide a more stable base.

How do I manage cables and air lines efficiently?

Install cable hooks on the table edge, route leads through grommeted holes, and use a retractable hose reel. Keep connections on the side opposite your primary stance to reduce trip hazards.

Is reclaimed steel suitable for a DIY welding table?

Yes, as long as it’s straight and free of deep pitting. Inspect and resurface if needed. Reclaimed plate and structural offcuts are durable and reduce material costs.

What size should a home welding table be?

30"–36" × 60"–72" fits most garages and projects. Smaller footprints work for hobby brackets; larger tops benefit frame builds if you have circulation space.

How do I maintain the table surface?

Deburr regularly, apply a light anti-rust coating, clean brushes per material, and check flatness periodically. Avoid heavy continuous welds on fixtures to limit warping.
