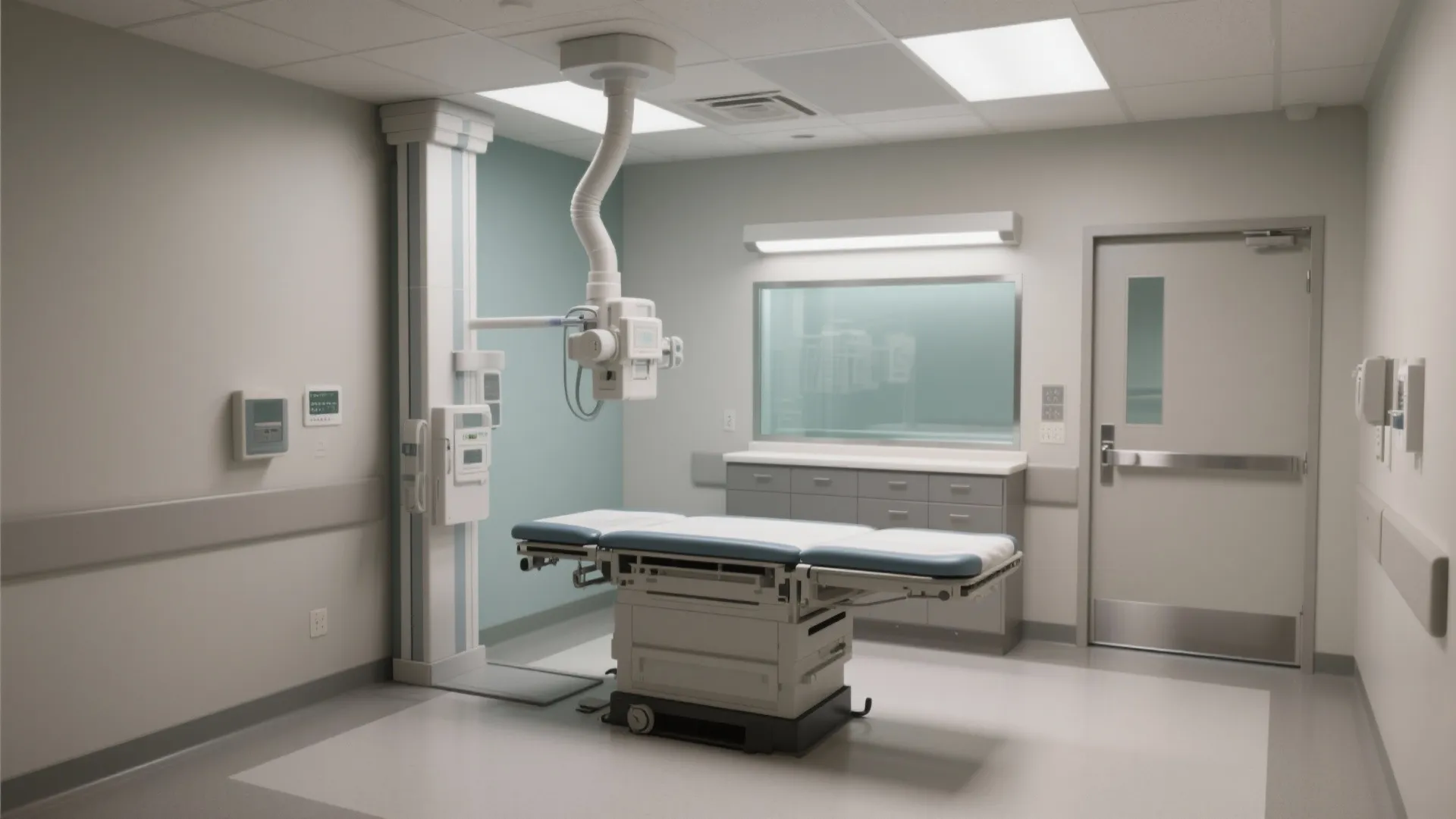

X Ray Room Size: Essential Guide for Safe & Efficient Design: 1 Minute to Find the Right X Ray Room Dimensions for Any Clinic

Designing an X-ray room is a precise exercise in safety, ergonomics, and operational flow. The ideal size is driven by equipment footprint, patient pathway, radiation shielding, and code compliance—not a single universal number. In contemporary outpatient settings, I typically plan clear room sizes from 12'×14' (3.7×4.3 m) for compact DR systems to 14'×18' (4.3×5.5 m) for systems requiring broader movement arcs and stretcher access. These ranges accommodate safe technician positioning, detector handling, and barrier placement while minimizing patient transfer turns.

Safety and comfort benchmarks need real anchors. From a human factors standpoint, sit-stand work heights of 28–48 in (71–122 cm) align with ergonomic guidelines to reduce technician strain, improving reach envelopes and reducing awkward postures; studies across the workplace sector show that reducing repetitive reach and force exposure can improve team performance and lower injury risk (see research summaries by Herman Miller and Steelcase). Exposure-control adjacency and patient-viewing angles also tie to WELL v2’s focus on human-centered safety and visibility in clinical environments, while the Illuminating Engineering Society recommends exam/procedure lighting in the 300–500 lux range (task areas may elevate) to support accurate positioning and reduce error rates (IES standards).

Core Room Dimensions

For a fixed X-ray system with a vertical wall stand and ceiling-suspended tube, I target a clear footprint of 12'×16' (3.7×4.9 m) minimum. This allows a 5–6 ft (1.5–1.8 m) safety corridor around the table for patient transfers, the tube stand’s longitudinal travel, and side-access for bariatric wheelchairs. If the practice regularly images stretchers or mobile patients with mobility aids, I extend the short side to 14 ft (4.3 m). Pediatric or emergency workflows with caregivers present often require another 1–2 ft (0.3–0.6 m) on the long side to maintain safe separation and sightlines from the control area.

Clearances and Zoning

I break the room into four zones: patient transfer zone (minimum 5 ft/1.5 m clear on one long side of the table), tube travel zone (free of obstructions along longitudinal and transverse tracks), detector staging zone (3–4 ft/0.9–1.2 m along a clean wall with bump-protected shelving), and technician retreat zone (behind the protective barrier with direct sightline to the patient). For the control alcove, provide at least 36 in (914 mm) depth for console plus chair and 48 in (1220 mm) width clear, ensuring elbow clearance and a 30–40° viewing cone to both patient and modality display. These spatial ratios keep movement intuitive and reduce cross-traffic that can slow turnover.

Doorways, Transfers, and Accessibility

Plan 48 in (1220 mm) clear door width for stretcher entry; swing or sliding doors must not cut into transfer paths. A 5 ft (1.5 m) turning circle on at least one side of the table supports wheelchair maneuvers. Thresholds should be flush; any transitions must be less than 1/2 in (13 mm) with beveled edges for safe imaging cassette carts. Patient comfort improves when transfer surfaces align within 1 in (25 mm) in height, minimizing lifts and shear.

Control Room vs. In-Room Barrier

Small practices often opt for an in-room leaded glass barrier with console—space-efficient when the envelope is tight. I allocate 3'×6' (0.9×1.8 m) for this barrier and console, placed diagonally to maintain visual control and reduce backlit glare on monitors. In larger suites, a separated control room improves acoustic privacy and team communication; add 25–35 sq ft (2.3–3.3 m²) beyond the imaging room to accommodate console, CPU, and PACS station.

Radiation Shielding Basics

Wall and barrier thicknesses are determined by workload (mA-min/week), use factor, distance, and occupancy in adjacent spaces. While final calculations come from a licensed medical physicist, room size should anticipate 1/16 in (1.6 mm) lead equivalence at primary barriers and 1/32 in (0.8 mm) at secondary barriers for typical diagnostic rooms, with leaded vision panels sized to maintain eye contact while minimizing leakage paths. Place the primary beam away from high-occupancy adjacencies where possible, reducing shielding load and freeing more area for patient access.

Lighting, Color, and Visual Comfort

General ambient lighting at 300–500 lux keeps positioning accurate; add local task lighting near the console at 500–750 lux with low-glare optics. Maintain 3500–4000K neutral-white ambient to balance color rendering for skin assessment (CRI ≥90 preferred) and reduce visual fatigue. A dimmable perimeter layer helps calm anxious patients without compromising safety checks. Soothing, desaturated hues (greens/teals, warm grays) can lower perceived anxiety—color psychology literature consistently links low-saturation cool hues to calmer affect. Limit mirror-like finishes near the beam path to reduce veiling reflections on displays.

Acoustics and Privacy

Even in compact rooms, I target an acoustic ceiling with NRC 0.70+ and gasketed doors. This keeps spoken instructions intelligible without raising voice levels, aiding quick positioning and minimizing repeats. Locate the compressor or mechanical noise sources outside the imaging room; background NC 30–35 is a practical ceiling for clinical comfort.

Ergonomics and Human Factors

Technologists repeat micro-movements hundreds of times a week. Adjustable-height tables (approx. 22–34 in/56–86 cm) and ceiling-suspended tubes reduce reach and lift demands. Keep detector shelves at 30–40 in (76–102 cm) and no higher than 48 in (122 cm) for the heaviest cassettes. Provide 18–24 in (46–61 cm) knee clearance at the console to support neutral posture. Quick-reach storage (within 16–20 in/41–51 cm from the standing position) for immobilizers, lead aprons, and markers saves seconds per patient and compounds into smoother throughput.

Workflow and Patient Flow

Map the sequence: arrival → change → pre-position → expose → verify → exit. Keep the patient path linear with no backtracking. In multi-room suites, I align changing alcoves near the entry and route clean outbound flow to the waiting area to avoid cross-contact. If you’re testing different positions for the table, tube stand, and barrier, a room layout tool can quickly visualize sightlines and turning radii before construction.

room layout tool

Storage and Utilities

Allocate 10–15 sq ft (0.9–1.4 m²) for lead apron racks, immobilizers, step stools, and pediatric supports. Provide dedicated parking for mobile shields. Utilities: floor boxes or wall outlets at both sides of the table, data at console and wall stand, and dimming controls within the control zone. If using wall-mounted detectors, confirm backing supports and recessed conduits early to avoid encroaching into clearances later.

Materials and Infection Control

Choose seamless, coved flooring and integral bases (4–6 in/100–150 mm). Wall finishes should be impact-resistant where detectors and carts circulate; high-density wall protection at 36–48 in (900–1200 mm) reduces long-term damage. Non-porous, easy-clean casework lowers turnaround time between patients and improves infection control. Specify low-VOC materials for indoor air quality and patient comfort.

Future-Proofing and Technology

Reserve ceiling structure capacity for future tube rails or overhead booms. Plan spare conduits for PACS upgrades and additional data lines. If AI-assisted positioning or dose tracking is on your roadmap, ensure your console zone has thermal management and cable management baked in, with at least 20% spare rack space.

Quick Size References

1. Compact DR general X-ray: 12'×14' (3.7×4.3 m) minimum
2. Standard DR with frequent stretcher use: 12'×16' to 14'×18' (3.7×4.9 to 4.3×5.5 m)
3. In-room control barrier footprint: ~3'×6' (0.9×1.8 m)
4. Door clear width: 48 in (1220 mm)
5. Turning circle: 5 ft (1.5 m) minimum at one side of the table
6. Ambient lighting: 300–500 lux; task at console: 500–750 lux; 3500–4000K CCT

Compliance, Standards, and Research Touchpoints

Use a certified medical physicist to confirm shielding based on workload and occupancy. For lighting levels and glare control, the Illuminating Engineering Society’s healthcare recommendations provide a reliable baseline. Ergonomic workstation guidance from workplace research leaders underscores the value of adjustable heights and clear reach envelopes to reduce strain over repetitive tasks. For holistic well-being—sightlines, lighting quality, noise, and posture—WELL v2 concepts offer a useful framework that aligns patient safety with staff performance. For color and patient experience, color psychology references reinforce the calming role of low-saturation palettes.

FAQ

What is the minimum room size for a general X-ray suite?

For a fixed DR system, I recommend at least 12'×16' (3.7×4.9 m), expanding to 14'×18' (4.3×5.5 m) if you regularly accommodate stretchers or bariatric wheelchairs.

How much space should I keep clear around the X-ray table?

Maintain a 5–6 ft (1.5–1.8 m) clear transfer zone on one long side and at least 3 ft (0.9 m) on the opposite side for staff movement and detector handling.

What door width works best for patient access?

Provide 48 in (1220 mm) clear width to accommodate stretchers and mobility devices without risky maneuvers.

How bright should the room lighting be?

Target 300–500 lux ambient, with 500–750 lux at the console. Use neutral-white 3500–4000K lighting to support accurate skin tone assessment and reduce eye strain.

Do I need a separate control room?

Not always. An in-room leaded glass barrier with a 3'×6' footprint can save space while maintaining safety. Larger departments benefit from a separate control room for privacy and teamwork.

Who determines the exact shielding thickness?

A licensed medical physicist calculates required shielding based on workload, beam direction, and adjacent room occupancy. Plan the room so primary beams do not face high-occupancy spaces.

How do color and finishes affect patient experience?

Low-saturation greens, blues, and warm grays help reduce anxiety; matte or low-gloss finishes limit glare on displays and glass, aiding visibility.

What ergonomic features matter most for technologists?

Height-adjustable tables, ceiling-suspended tubes, and storage within a 16–20 in (41–51 cm) reach envelope reduce strain and speed setup. Provide proper knee clearance at the console.

Can I simulate layouts before construction?

Yes. Use an interior layout planner to test table, tube, and barrier placements, verify turning radii, and refine sightlines before committing to walls and utilities.

How should I plan for future technology upgrades?

Reserve ceiling capacity for rails/booms, add spare conduits, and design the console area with 20% extra rack and cooling capacity for future PACS or analytics tools.
