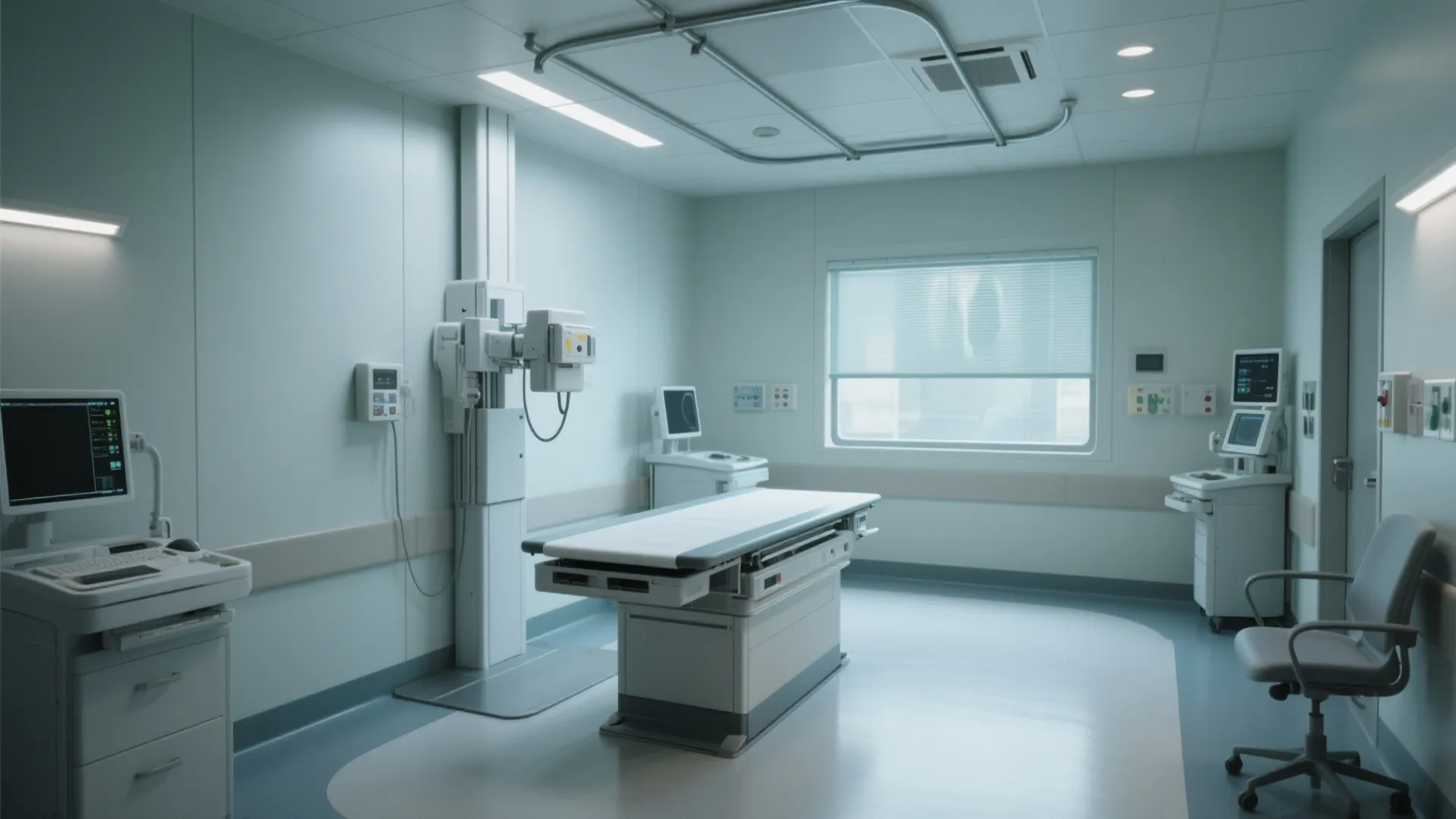

X Ray Room Size: The Complete Guide for Optimal Efficiency: 1 Minute to Find the Ideal X Ray Room Size—No More Guesswork!

X ray room size does more than dictate your clinic’s floor plan—it impacts patient safety, staff workflow, regulatory compliance, and even your future upgrade potential. Whether you’re building a brand new facility or retrofitting within a challenging footprint, getting the X ray room dimensions and layout right is a must for smooth operation and long-term value. Below, we dig into the essentials for sizing, compliance, and maximizing efficiency—backed by regulations and expert best practices.

Standard X Ray Room Size: What Does the Code Require?

The American College of Radiology (ACR) and National Council on Radiation Protection & Measurements (NCRP) recommend that a standard general-purpose X ray room be a minimum of 12x15 feet (3.7 x 4.6 meters), with a ceiling height no less than 8 feet. This accommodates both stationary and mobile radiography systems, supports safe technician maneuvering, and addresses Americans with Disabilities Act (ADA) accessibility. Diagnostic imaging rooms must allow for at least 36 inches of clear pathway for both gurney and wheelchair access (source: ACR Facility Design Guidelines).

Don’t cut corners on ceiling height—modern equipment such as ceiling-suspended X ray units or height-adjustable tables require generous vertical clearance. Also, factor in space for wall-mounted rails, cable runs, and mechanical ventilation as required by local codes or LEED standards for indoor air quality.

X Ray Room Layout: Safety, Workflow, and Flexibility

Size alone is not enough—the layout shapes both safety and efficiency. The X ray generator should be mounted so the central ray is easily accessed by patients and staff, with the control booth positioned outside a 90-degree primary beam path, protected by leaded glass. Storage for aprons, markers, and wipes should sit near the door to support infection control protocols.

To optimize workflow, ensure at least 3 feet of clearance around the exam table. Place display monitors and remote controls in direct line of sight. In multi-bay diagnostic areas, stagger equipment and ensure visual/physical separation per Joint Commission and CDC guidance. Use nonporous, easy-to-clean finishes to enhance infection control and overall durability.

Regulatory and Shielding Mandates: No Room for Error

Every X ray room must comply with local, state, and federal guidelines, often involving input from a board-certified medical physicist. Walls and doors generally require 1.5mm–2mm of lead or an equivalent barrier, validated by calculations based on machine workload, energy output, and proximity to adjacent spaces (source: NCRP Report No. 147). Windows must use leaded glass, and ventilation ducts may require baffles or bends to prevent scatter radiation escape.

Compliance isn’t only about regulations—it’s about liability. Nonconforming rooms risk penalties, forced shutdowns, and unsafe radiation exposure for staff, patients, and even neighbors. Always request a shielding report and keep up-to-date records as required by the US Department of Housing and Urban Development (HUD) and local Departments of Health.

Design Mistakes: How Undersized X Ray Rooms Harm Patient Care

Attempting to minimize room size can backfire: crowded layouts restrict staff movement, prolong imaging times, and jeopardize patient privacy. These constraints often lead to workflow bottlenecks and increased musculoskeletal injury risk to staff. Failing to plan for accessories (e.g., additional image plates, digital system upgrades) can drive premature renovations. Neglecting ADA access will expose your practice to both legal risks and a poor patient experience.

Consulting frontline radiologic technologists and maintenance staff during the early design phases uncovers practical layout details and future-proofing insights that architects may overlook.

Planning for Tomorrow: Digital Radiography, Modular Spaces, and Smart Upgrades

With the rapid shift from analog to digital radiography, some systems do occupy less space. However, digital cassettes, servers, and new portable units require their own storage and service access. Leave at least 15% of your initial floor area uncommitted for tech upgrades, PACS (Picture Archiving and Communication System) installations, or telemedicine gear. Modular wall systems and overhead cable trays streamline future modifications without extraordinary construction costs.

Electrical service is non-negotiable—install circuits capable of supporting full loads, with power outlets for auxiliary equipment and IT devices at both patient and operator stations. Consider HVAC zoning for constant room temperature, a detail increasingly required by equipment manufacturers and regulatory guidelines.

Expert Tips for Outstanding X Ray Room Planning

1. Review local, state, and federal codes: Laws can vary greatly by region—double-check that design meets all requirements.
2. Engage a certified medical physicist: Early calculations of workload, occupancy, and scatter risk save time and money.
3. Account for patient volumes: Large clinics or hospitals may require bigger rooms and workflow separation between patient prep and imaging areas.
4. Anticipate tomorrow’s needs: Even small additions like bariatric tables or large-format DR panels can quickly eat up spare footage.

FAQ

Q: What’s the minimum standard size for an X ray room?

A: Most US guidelines recommend at least 12x15 feet (3.7x4.6 meters), with a ceiling of 8 feet or higher. Always confirm with your equipment vendor and local regulations.

Q: Why is lead shielding required in X ray room construction?

A: Lead shielding prevents harmful ionizing radiation from leaking into adjacent spaces. It's mandated by both state and national regulations, with minimum thickness typically ranging from 1.5mm to 2mm depending on workload and location.

Q: Do I need special ventilation for an X ray room?

A: Yes, for air quality and in some cases to meet CDC and local health codes. Ventilation should not compromise radiation containment, so consult experts about baffles or filtered systems.

Q: Can digital X ray systems really save space?

A: Sometimes, but many require additional IT infrastructure. Always consult both equipment vendors and facility planners before finalizing dimensions.

Q: Who should I involve when designing my X ray room?

A: Essential stakeholders include radiologists, technologists, architects, medical physicists, infection control experts, and your local department of health.
