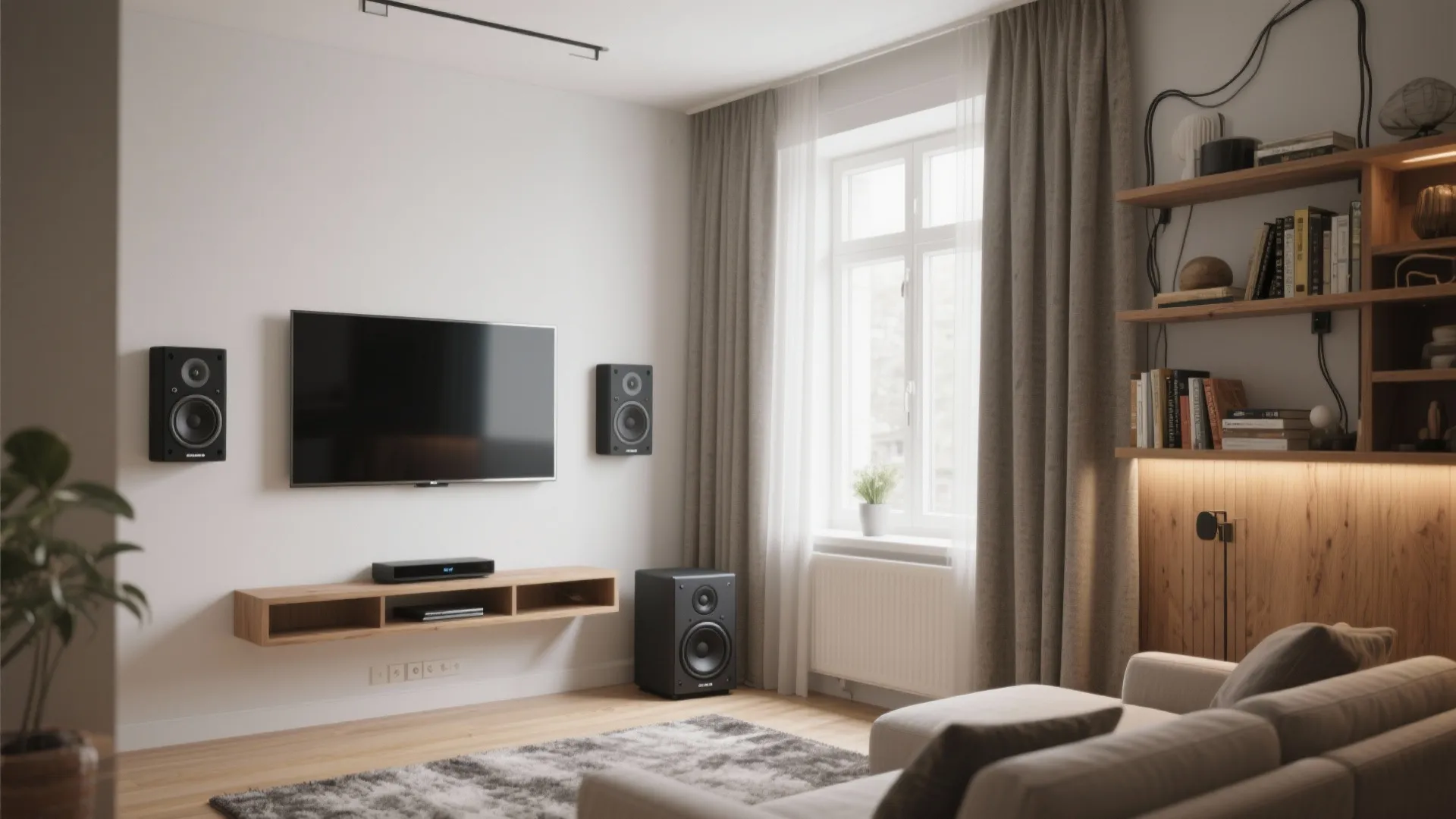

5 clever 5.1 speaker setup ideas for a small room: My field-tested strategies to place, tune, and hide a 5.1 system in compact spaces without sacrificing cinematic impact

[Section: Meta 信息]

Meta info is provided in the meta object below.

[Section: 引言]

I’ve designed countless compact living rooms, and 5.1 speaker setup in small room projects are some of my favorites—small spaces spark big creativity. Over the past decade, I’ve learned that placement, calibration, and materials matter more than sheer size. Today I’m sharing 5 design ideas, blending my real-world experience with expert data, to help your surround sound breathe in tight quarters.

[Section: 灵感列表]

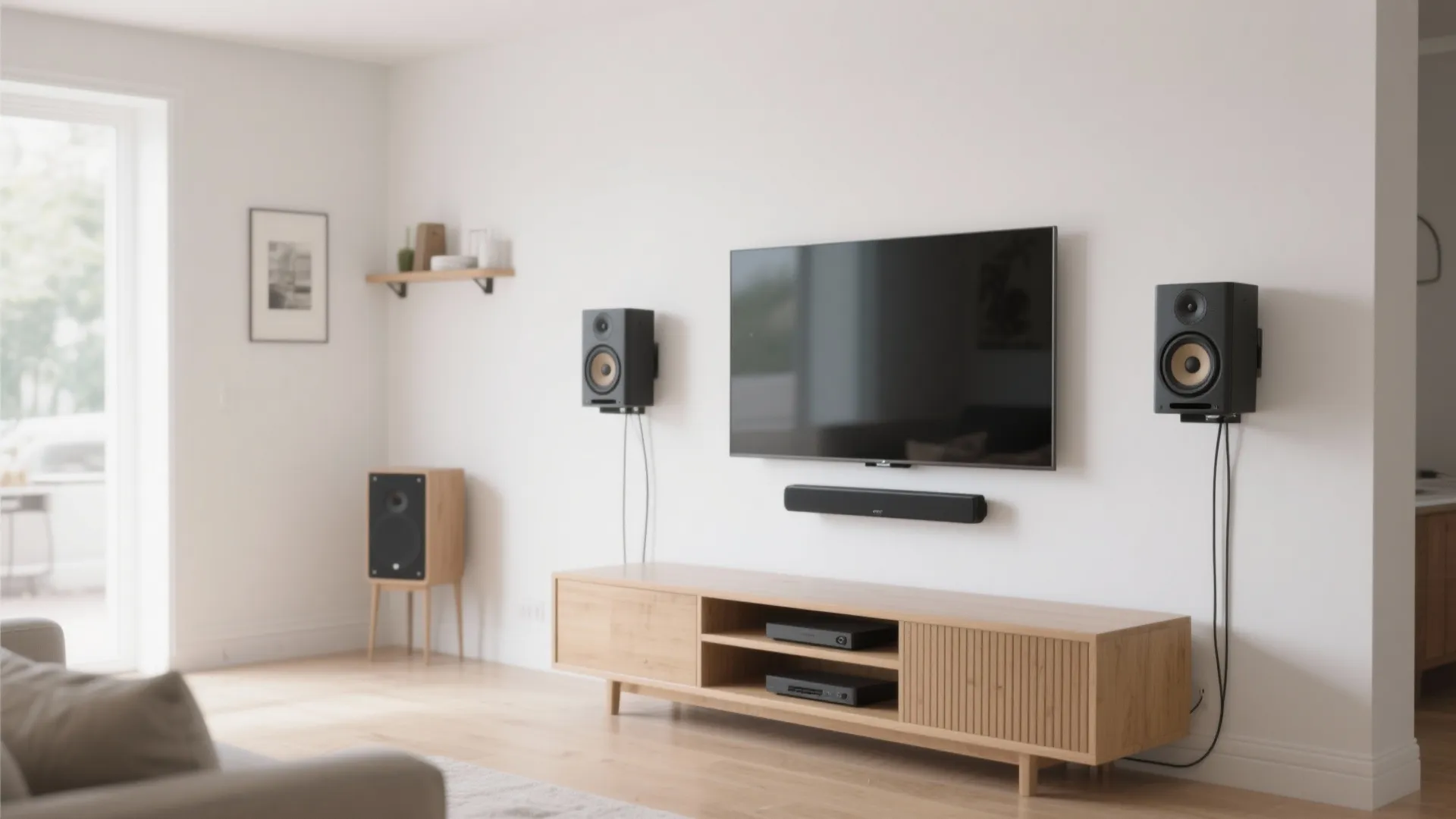

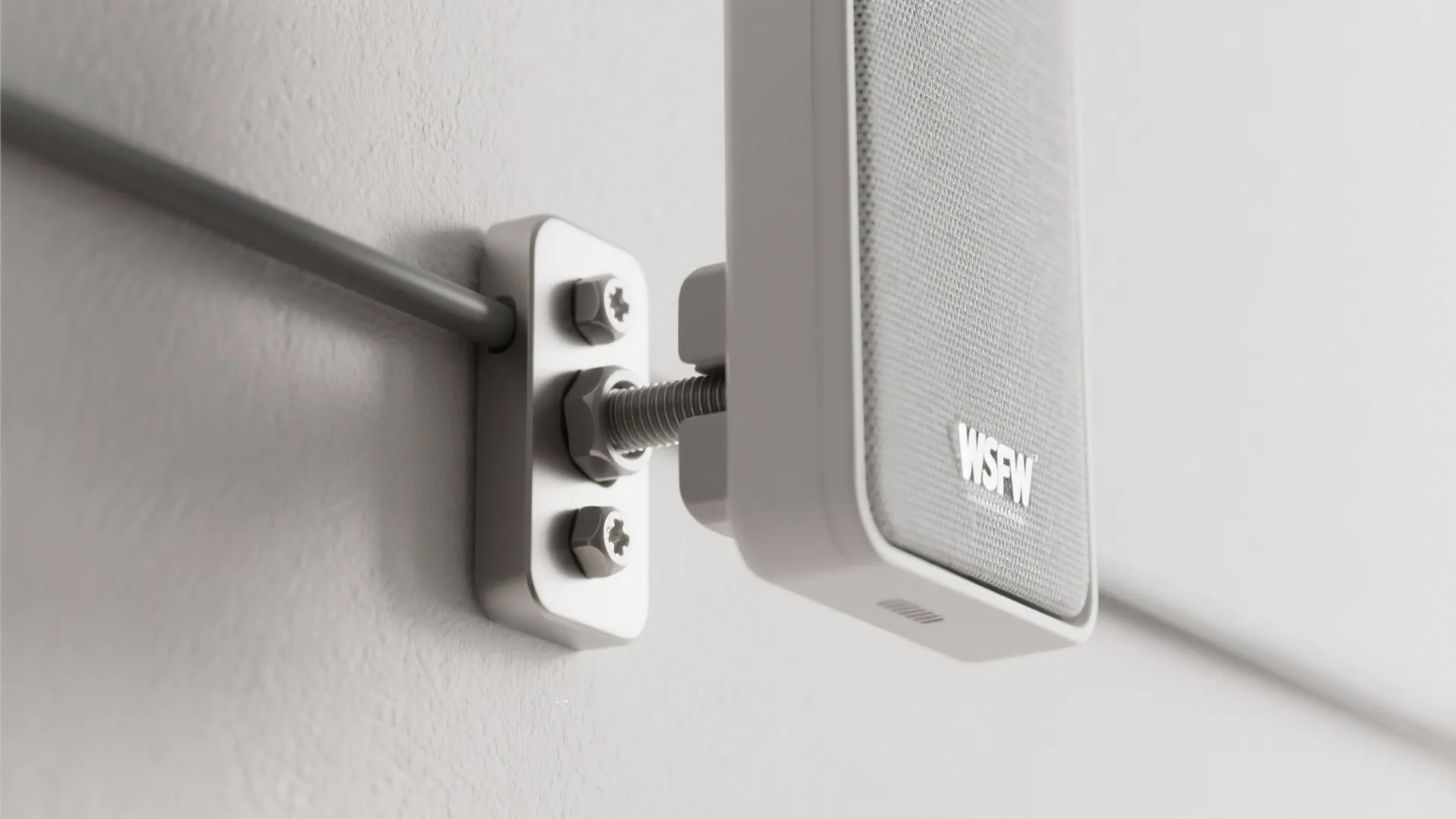

Minimalist wall-mount layout

My Take

I once helped a young couple mount all five speakers and a slim sub on walls to free every inch of floor. The result felt airy, and the soundstage snapped into focus because the fronts were perfectly aligned with the TV centerline.

Pros

Wall-mounting keeps the front L/C/R at ear height, improving dialogue clarity and imaging—great for "5.1 speaker placement in small rooms." Cable runs can be hidden behind paintable raceways, maintaining a clean minimalist look. According to Dolby’s 5.1 guidelines, aiming surrounds slightly above ear level (about 1–2 ft) can enhance envelopment in compact seating zones (Dolby, 5.1 Speaker Setup Guide).

Cons

You’ll need solid anchors and planning around studs; plaster or brick can slow the install. Fixed mounts limit micro-adjustments, so initial measurements must be precise. If you rent, patching holes later is a minor chore—worth it, but plan ahead.

Tips / Cost

Use adjustable tilt/swivel brackets to fine-tune toe‑in. Budget: $60–$150 for quality mounts and raceways; 2–3 hours for a tidy DIY install.

glass backsplash makes the room feel lighter

save pin

save pin

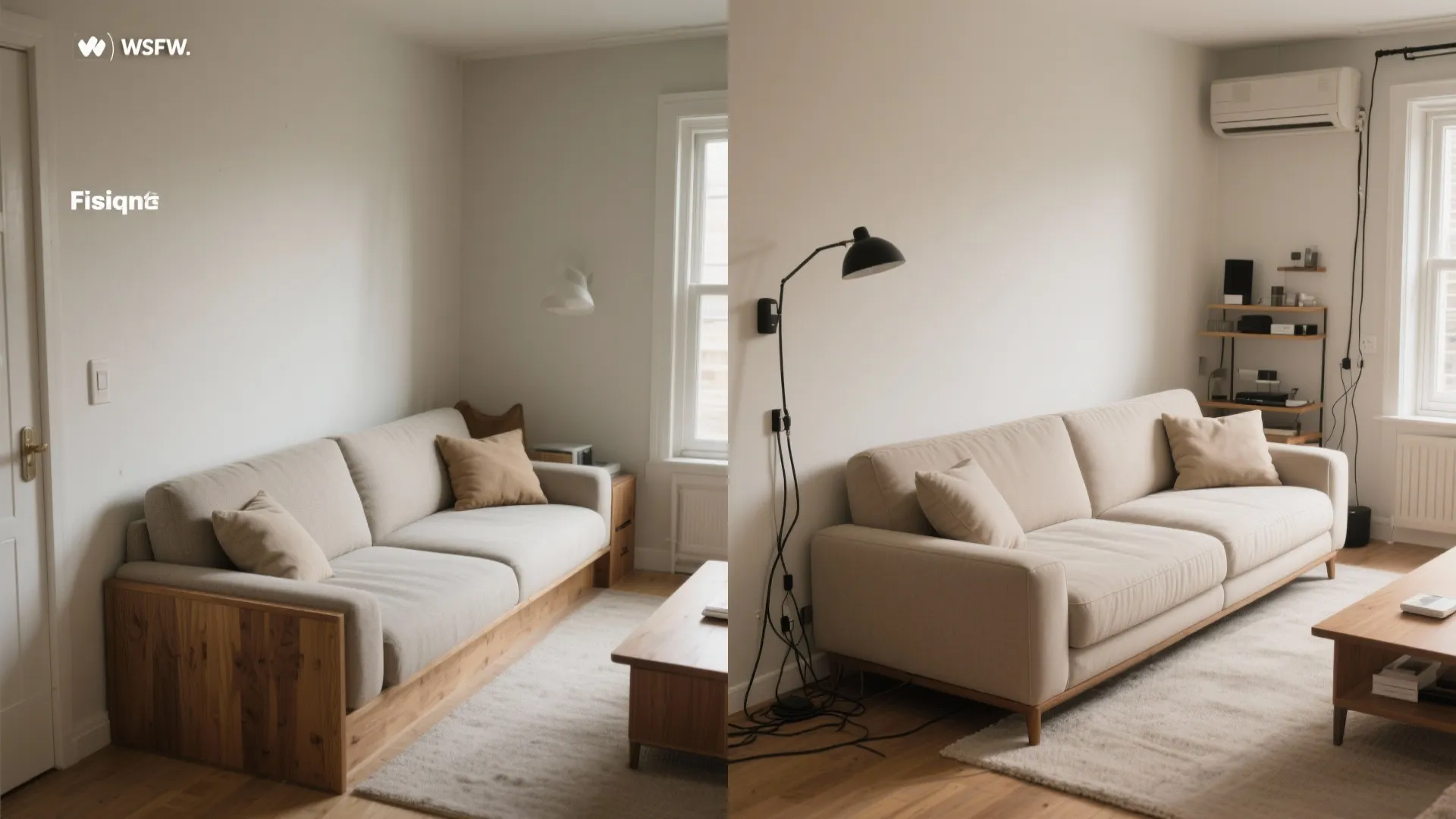

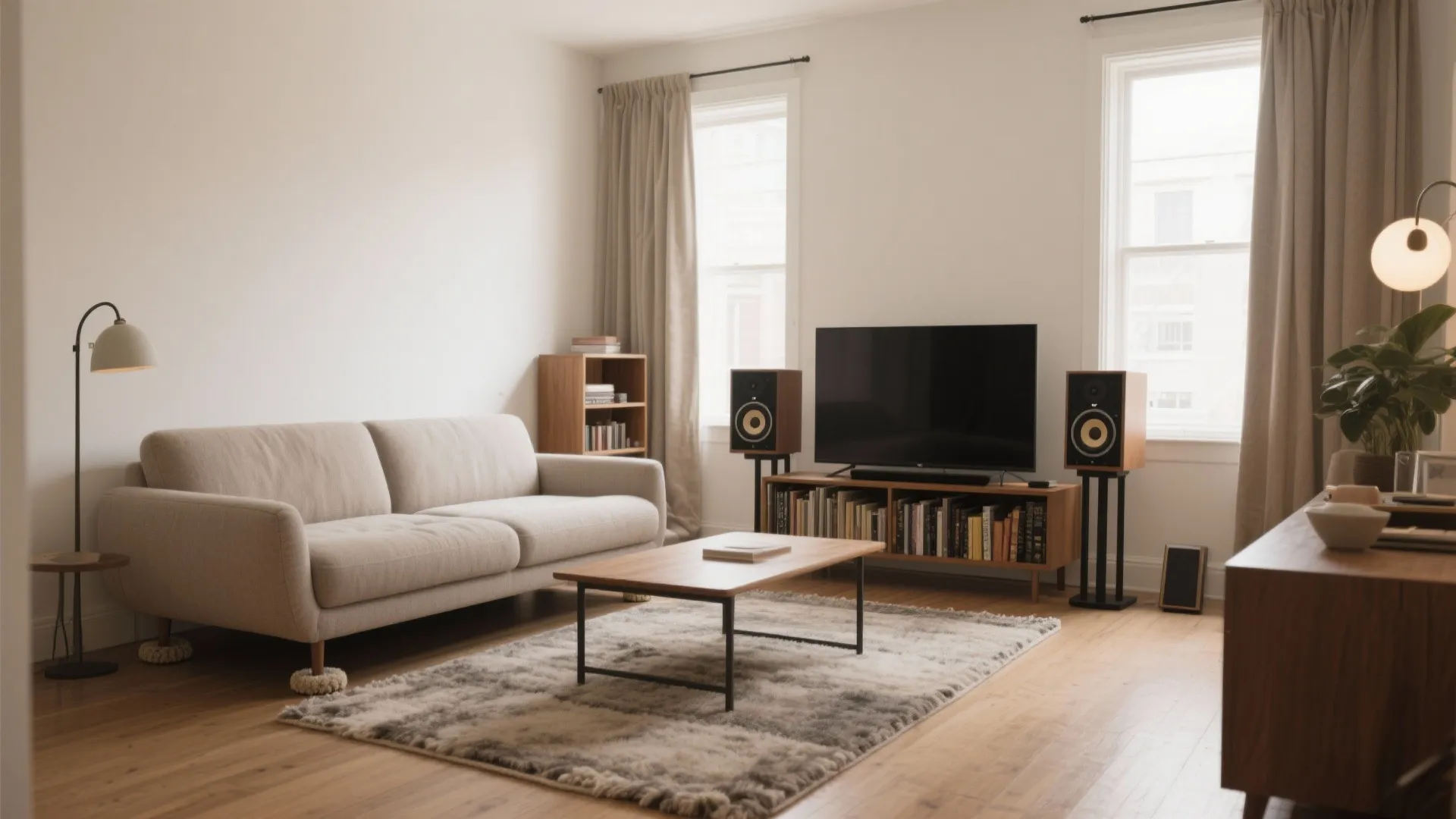

Sofa-nearfield sweet spot

My Take

In a 10'×12' studio, I pulled the sofa 10–12 inches off the back wall and brought surrounds slightly forward, just behind the listener’s ears. The nearfield effect was addictive—lower volume, higher detail.

Pros

Sitting closer to the speakers reduces room reflections, boosting clarity for a "small room 5.1 nearfield setup." You can run the system at lower SPLs, easing neighbor concerns while keeping dynamics. Research on nearfield monitoring shows improved direct-to-reflected sound ratios enhance intelligibility (AES Convention Paper 9111).

Cons

Moving furniture a foot forward can feel awkward in tight traffic lanes. If the couch is too close to the back wall, bass can boom; fixing that may require small wall panels or a bookshelf diffuser.

Tips / Case

Place surrounds 90–110° relative to the main seat; toe them toward the listener’s shoulders. Try felt sliders under sofa feet to make micro-moves painless.

L-shaped layout frees more counter space

save pin

save pin

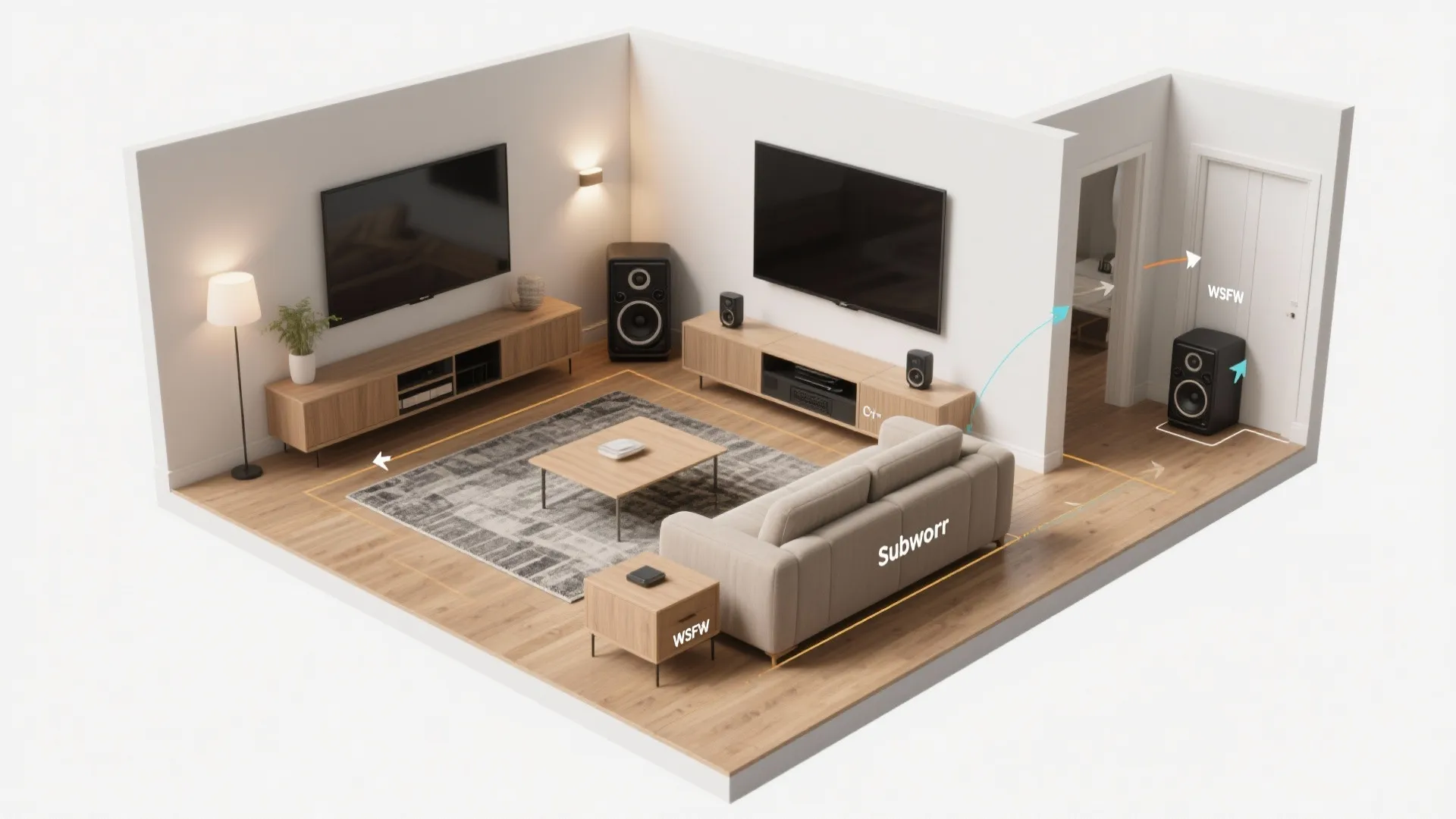

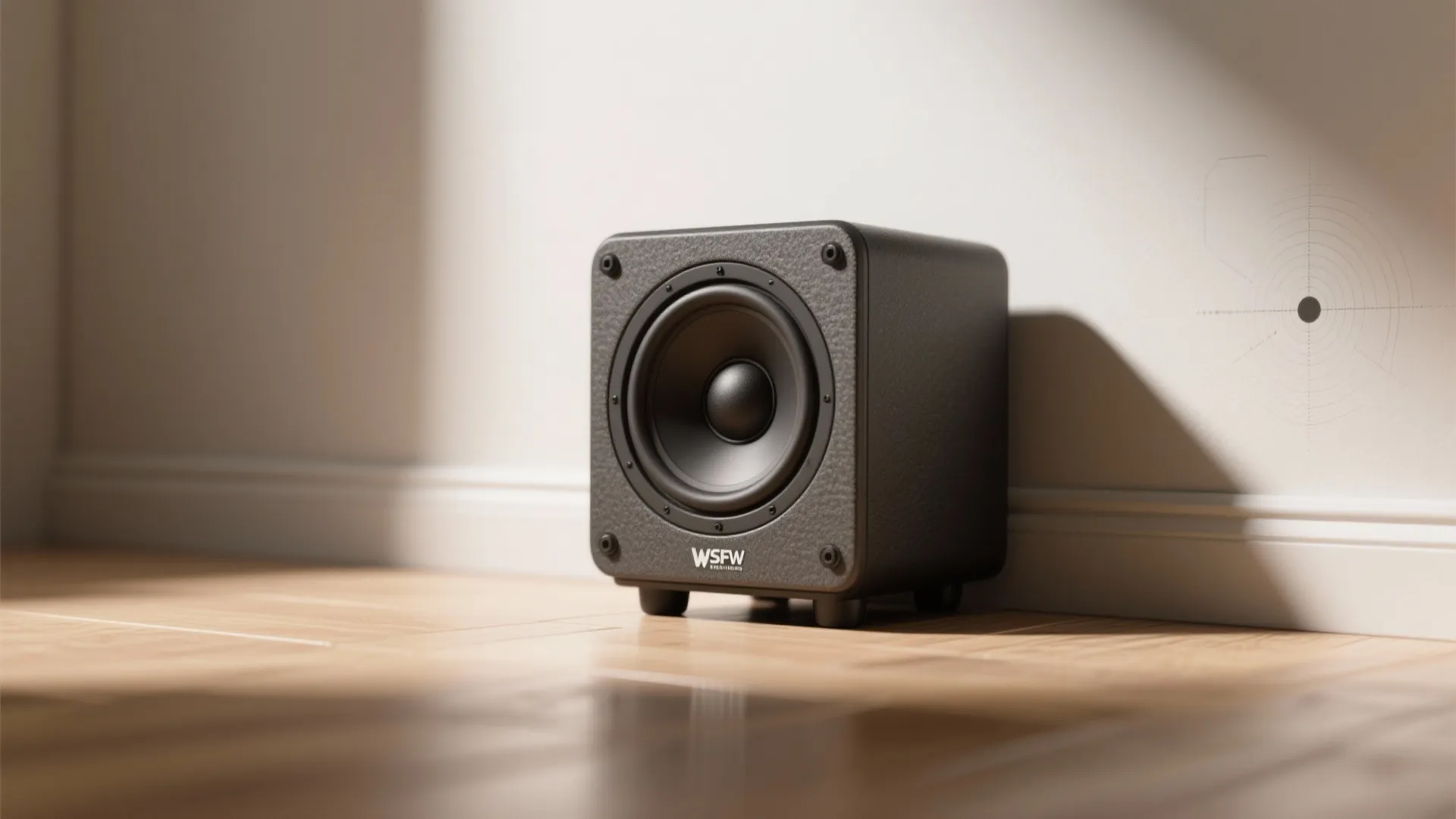

Compact subwoofer management

My Take

I’ve tamed more small-room bass than I can count. The biggest unlock is a controlled sub location plus a quick crawl test: play a bass sweep, crawl to where it sounds smooth, then place the sub there.

Pros

The "subwoofer crawl" method reliably finds a balanced spot for tight spaces, a proven tactic in "5.1 bass management for small rooms." Corner placement can add output; along the front wall often yields smoother response. Multiple measurements with a basic SPL app help track nulls and peaks for objective tweaks.

Cons

Corners may excite room modes, making some notes boomy and others thin. Micro-moves of just a few inches can change response, so patience pays. Very tiny rooms may benefit from a smaller sealed sub to avoid over-energizing the space.

Tips / Cost

Start with 80 Hz crossover; raise to 100–120 Hz if your satellites are tiny. Consider adding two small subs later for smoother bass (even in small rooms). Budget: $150–$400 for a compact sealed model.

save pin

save pin

Room-friendly acoustic tweaks

My Take

As a designer, I avoid studio-looking foam walls. Instead, I layer textiles and mixed materials—wool rug, lined curtains, a bookcase—to calm reflections without killing style.

Pros

Soft finishes reduce slap echo and tame mids/highs, boosting "dialogue clarity in small home theaters." Thick rugs and curtains can cut early reflections similar to light absorption panels. The National Research Council of Canada notes that adding absorption improves speech intelligibility by lowering reverberation time in small rooms (NRC, IRC-IR-693).

Cons

Too much absorption can deaden the room; keep some reflective elements for sparkle. Some designer fabrics look great but do little acoustically—density matters more than price.

Tips / Case

Prioritize first reflection points: side walls near the fronts, and the ceiling above the listening position. A filled bookcase behind the sofa doubles as diffusion and decor.

warmth from wood accents

save pin

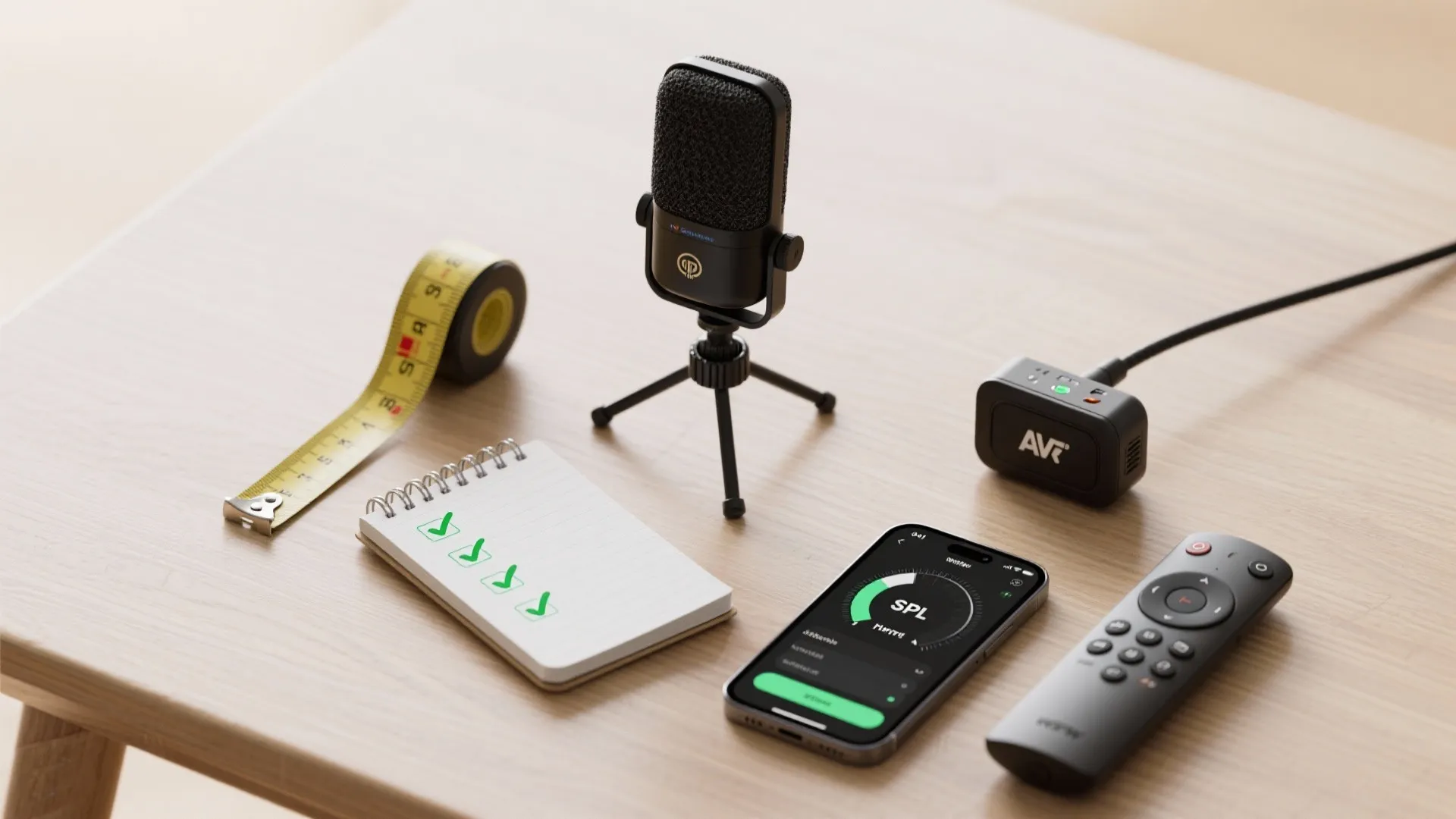

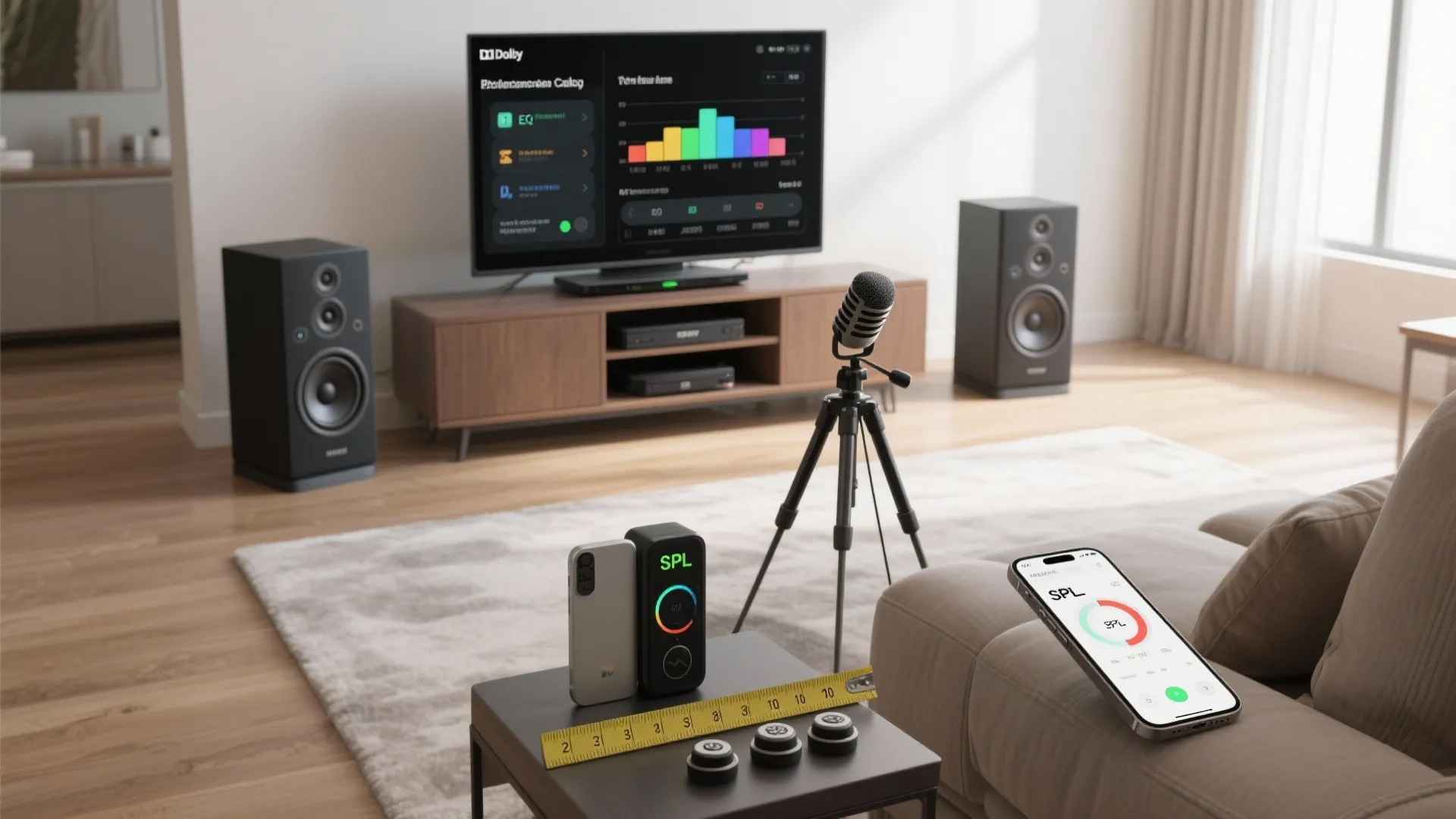

Smart calibration and crossover strategy

My Take

Even seasoned pros get surprised by auto-calibration. I run it once, then verify with a tape measure and a quick manual touch-up—especially distances and crossover points.

Pros

Modern room correction (Audyssey, YPAO, Dirac) aligns levels, delays, and EQ, crucial for "5.1 calibration in a small room" where reflections skew perception. Setting all speakers to “Small” with appropriate crossovers offloads bass to the sub for cleaner mids. Following Dolby’s 5.1 angle guidance (22–30° fronts, 90–110° surrounds) ensures consistent imaging (Dolby, 5.1 Setup Guide).

Cons

Auto-EQ can over-dampen treble or overboost deep bass; trust your ears for final tweaks. Mic placement errors during calibration multiply problems—use a tripod and make several positions around your main seat.

Tips / Cost

Level-match to 75 dB using your AVR’s test tones. If dialogue feels thin, try raising center channel +1 to +2 dB. Time needed: 30–60 minutes; free with your AVR.

[Section: 总结]

Small kitchens taught me this truth that applies here too: a small room doesn’t limit you—it demands smarter design. With thoughtful placement, tuned bass, soft finishes, and calibration, a 5.1 speaker setup in small room scenarios can sound wonderfully cinematic. Which idea do you want to try first?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What is the best 5.1 speaker placement for a small room?

Keep fronts at ear height, center aligned with screen, surrounds at 90–110° slightly above ear level, and sub found via crawl test. This follows Dolby’s 5.1 guidance for compact seating zones.

2) How far should my sofa be from the back wall in a tiny room?

Ideally 8–16 inches to reduce bass buildup and improve surround timing. Even a small shift can smooth response without major renovations.

3) What crossover settings work for small satellites?

Start at 80 Hz; if your speakers are very small, raise to 100–120 Hz. Set speakers to “Small” so the sub handles deep bass.

4) Do I need acoustic panels?

Not always. Thick rugs, lined curtains, and a filled bookcase at reflection points can deliver a big share of the benefit while keeping style intact. NRC research supports using absorption to shorten reverberation time.

5) Will auto-calibration fix a bad layout?

No. It optimizes within limits, but core geometry—angles, heights, and distances—must be right first. Measure placements before running EQ.

6) Can I put the subwoofer in a corner in a small room?

Yes, corners add output but may cause boomy modes. Use the sub crawl and small position tweaks to find a compromise that balances punch and smoothness.

7) Are on-wall speakers good for small spaces?

Absolutely. Slim on-wall L/C/R save floor area and keep tweeters at ear height, making them ideal for a 5.1 speaker setup in small room layouts.

8) What reference can I trust for angles and heights?

Dolby’s official 5.1 speaker setup guide details angles and placement with diagrams. It’s a reliable, industry-standard reference for both small and large rooms.
